Product description
Description and product details Overview, features, specifications, compatibility and FAQ
360MM AIO. 2.1-INCH IPS LCD. THREE RS120 PWM FANS.

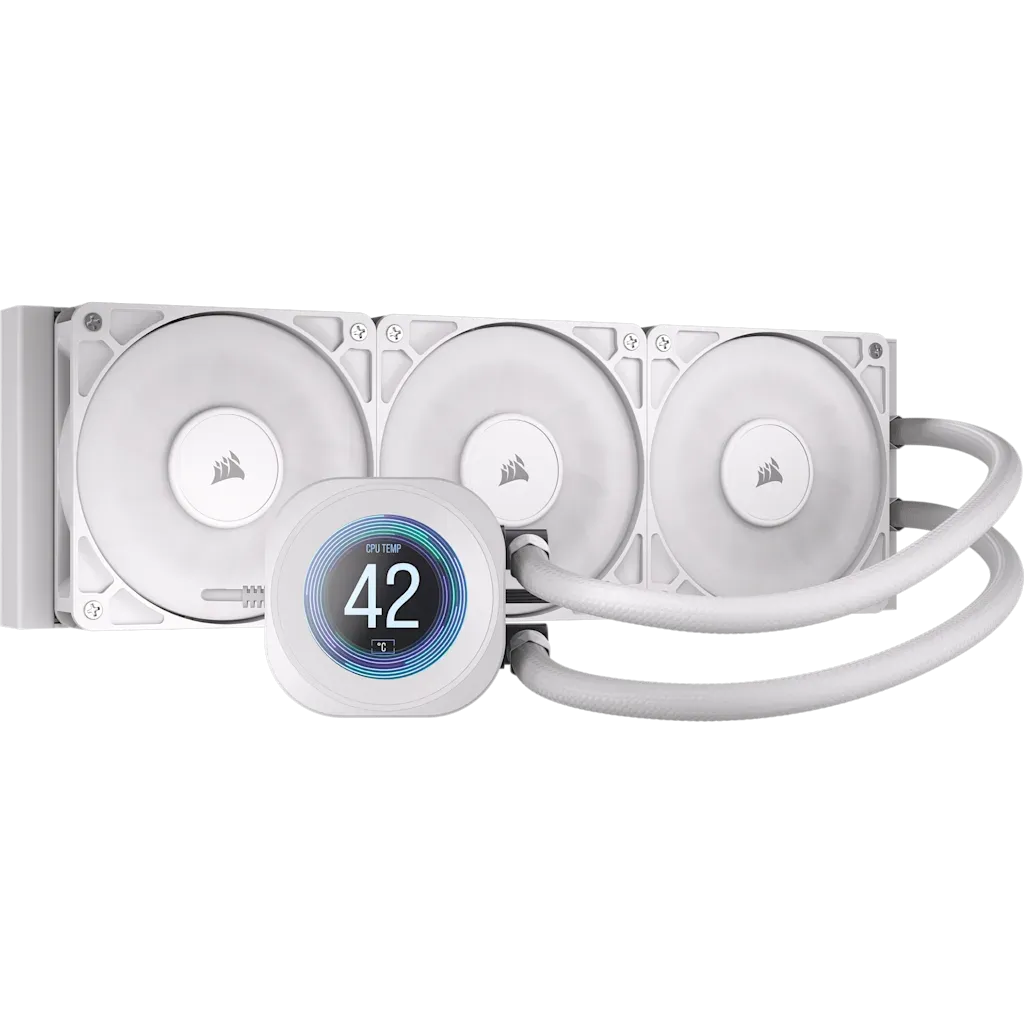

Corsair NAUTILUS 360 RS LCD 360mm Liquid CPU Cooler — White
The Corsair NAUTILUS 360 RS LCD combines a large 360mm aluminum radiator, three high-static-pressure RS120 PWM fans, a slightly convex copper cold plate, and a low-noise pump for modern Intel and AMD desktop processors.
A bright 2.1-inch IPS LCD displays processor temperatures, animated GIFs, images, logos, and system information at 480 × 480 resolution and 30 FPS. Corsair iCUE provides display customization, GIPHY integration, monitoring, and coordinated control through a simple internal USB 2.0 connection.
2.1″ IPS
480 × 480 LCD at 30 FPS
2,100 RPM
Maximum rated fan speed
72.8 CFM
Maximum airflow per fan
Display temperatures, images, animated GIFs, logos, and customized graphics.
High-static-pressure fans use AirGuide technology and Magnetic Dome bearings.
Corsair provides long-term manufacturer coverage subject to its warranty terms.
Large-Format Liquid Cooling
360mm Radiator Cooling for High-Performance Systems
The NAUTILUS 360 RS LCD uses a large aluminum radiator, three 120mm fans, a copper cold plate, and a factory-sealed liquid loop to move processor heat efficiently into the case airflow.

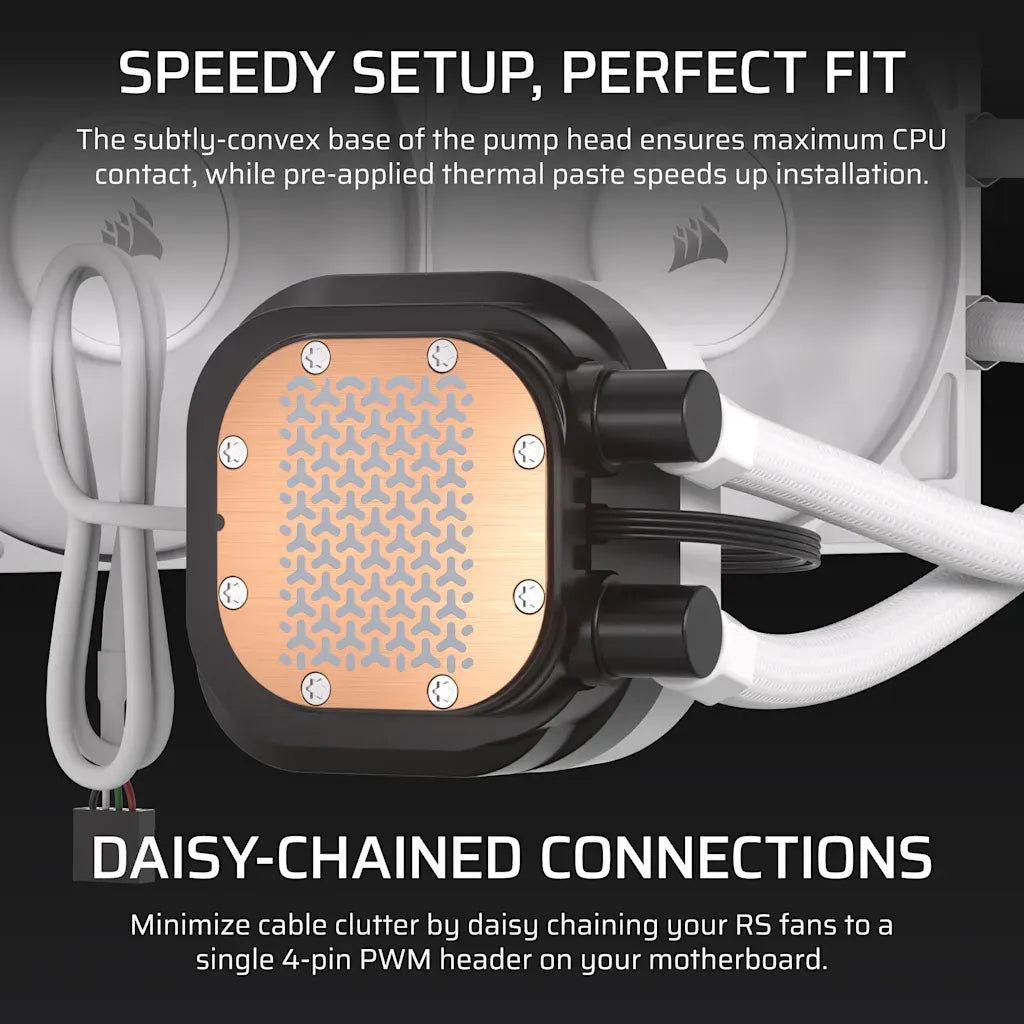

Slightly Convex Copper Cold Plate
The optimized contact shape is designed to improve contact with the processor’s integrated heat spreader.
360mm Aluminum Radiator
A 396 × 120 × 27mm radiator provides extensive fin area for sustained heat dissipation.

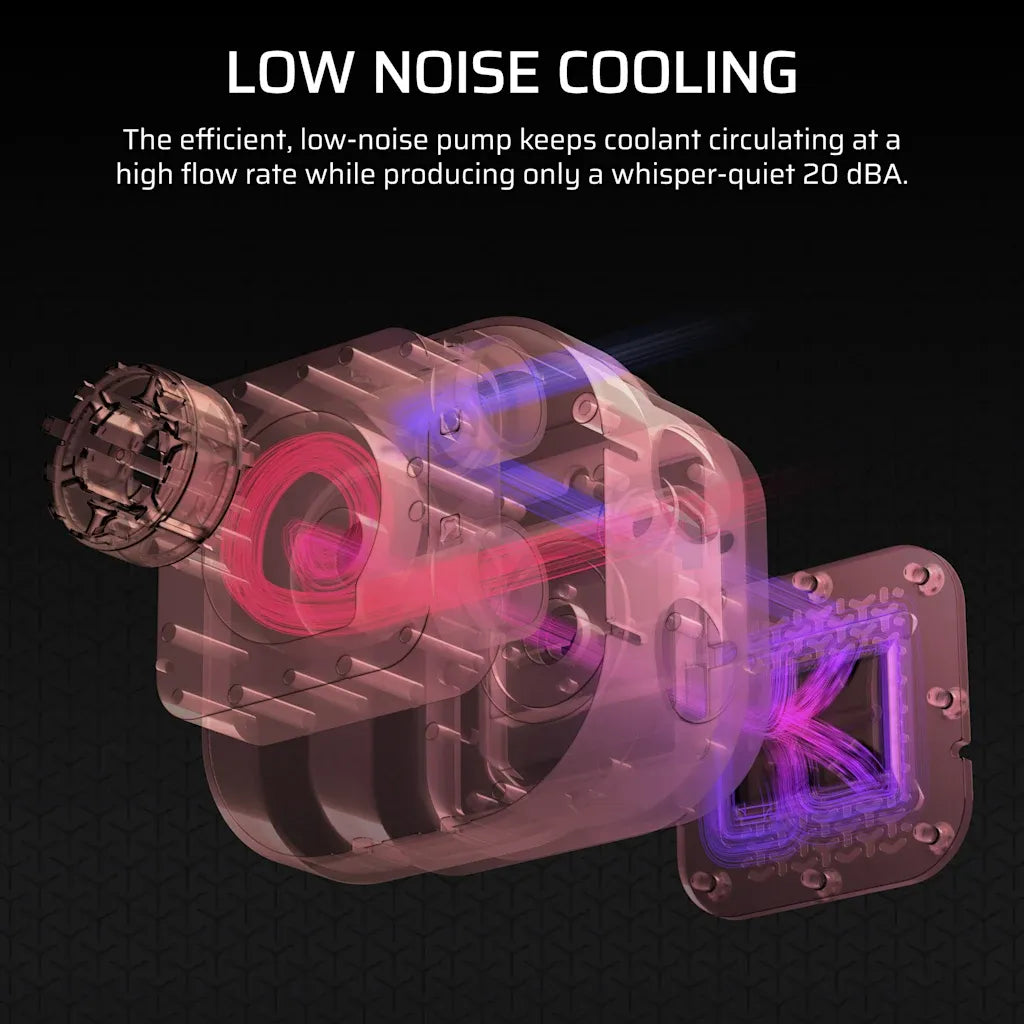

Low-Noise Pump
Corsair lists the pump at approximately 20 dBA for quiet operation inside a properly configured system.
Factory-Sealed AIO Design
The closed-loop cooler arrives assembled and does not require filling, draining, or routine coolant replacement.

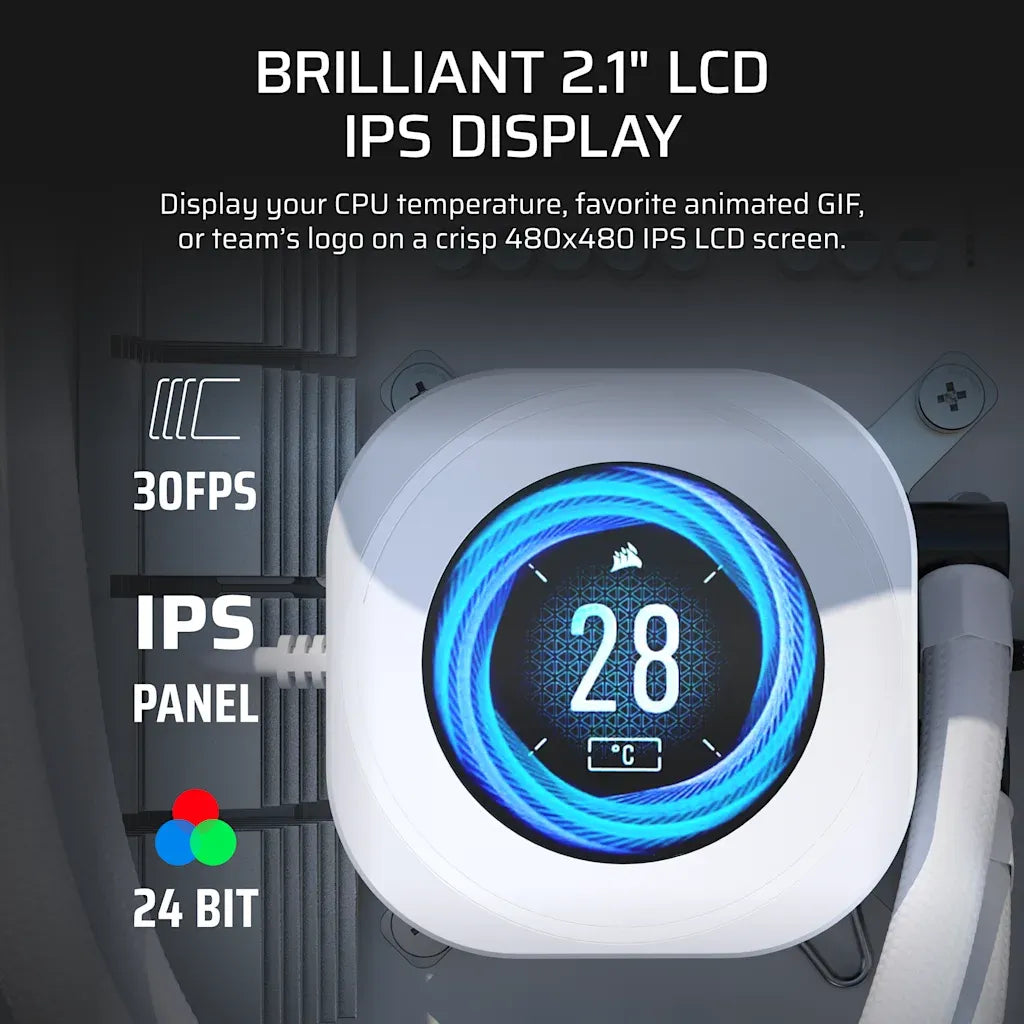

Brilliant IPS LCD Display
Show Temperatures, GIFs, Images, and Logos
The 2.1-inch IPS display provides a customizable visual centerpiece for system monitoring, personalized artwork, animated content, and branded graphics.
480 × 480 Resolution
The square IPS panel provides a crisp canvas for gauges, images, animations, and monitoring layouts.
30 FPS Animation
Smooth playback supports animated GIFs and moving display effects through Corsair iCUE.
600cd/m² Backlight
The bright panel remains visible through tempered-glass side panels and illuminated system interiors.
Over 16.7 Million Colors
Full-color output supports detailed images, logos, gauges, and customized visual themes.

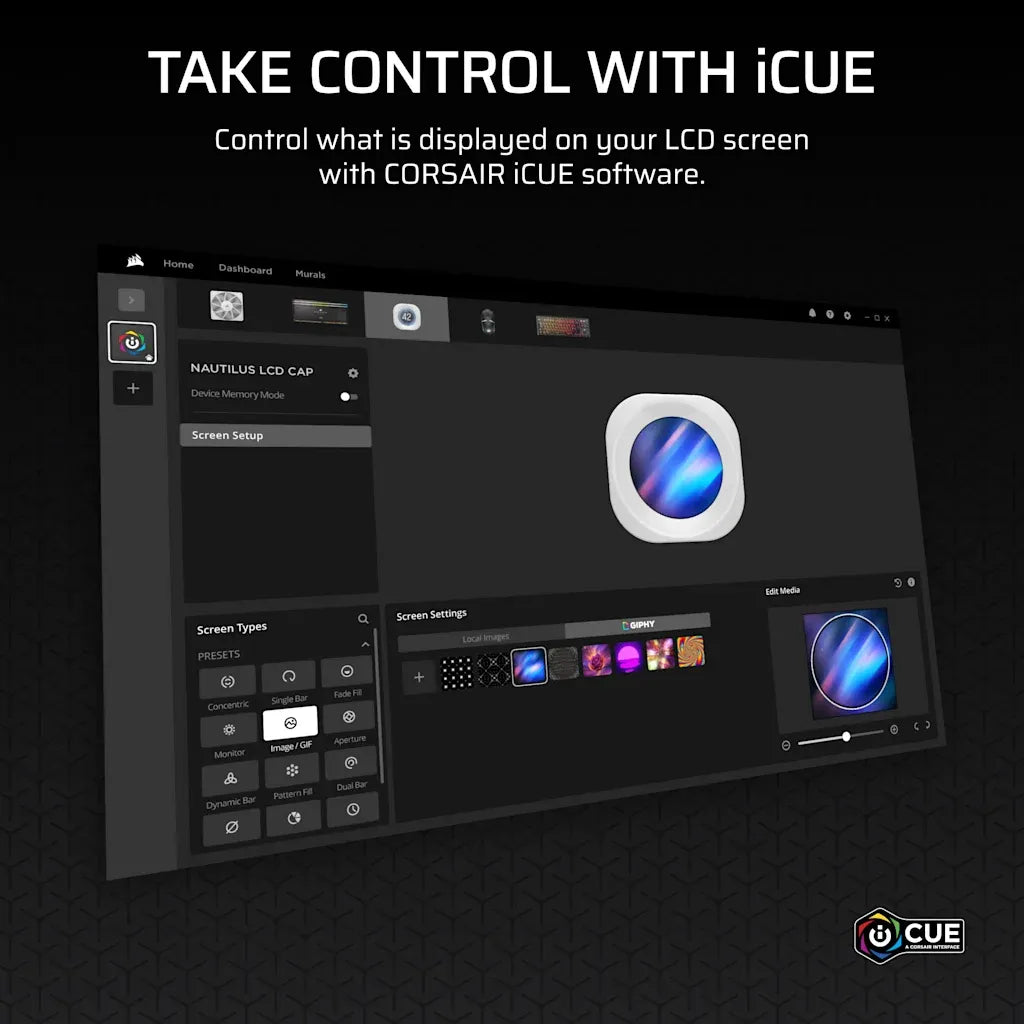

Corsair iCUE Control
Customize the LCD through a Simple USB Connection
Connect the included display cable to an available internal USB 2.0 nine-pin motherboard header, then use Corsair iCUE to configure display content and supported monitoring features.
System Monitoring
Display supported temperatures, system information, and customized sensor layouts.
Custom Images and Logos
Personalize the cooler with artwork, a team logo, a store logo, or other compatible image files.
Animated GIF Support
Use personal animations or browse compatible content through iCUE’s integrated GIPHY support.
Internal USB 2.0 Header Required
The LCD requires an available nine-pin USB 2.0 motherboard header for communication and control.

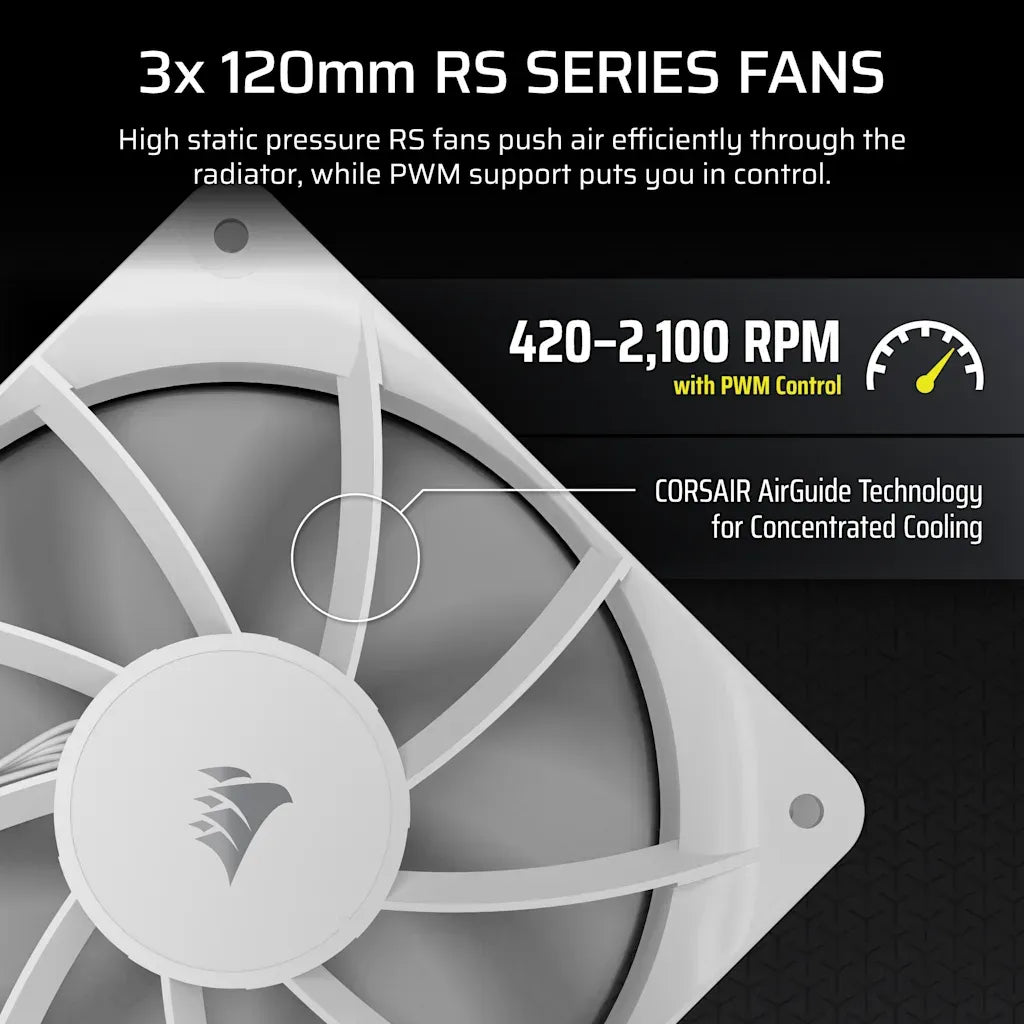

RS120 Fan Performance
High Airflow, Static Pressure, and Zero RPM Support
The three RS120 fans are designed to move air through the radiator efficiently while providing motherboard-controlled PWM speed adjustment and a Zero RPM mode for quiet low-temperature operation.
420–2,100 RPM ±10%
A wide PWM range supports quiet idle operation and stronger airflow under sustained processor load.
13.3–72.8 CFM Airflow
Each fan provides a broad listed airflow range for flexible cooling and acoustic tuning.
0.2–4.15mm H₂O Static Pressure
High static pressure helps move air through the radiator’s restrictive fin structure.
Zero RPM Mode
Compatible motherboard control can stop the fans completely at low temperatures for silent operation.
Focused Airflow and Long-Life Bearings
AirGuide Technology with Magnetic Dome Bearings
Corsair RS120 fans use anti-vortex AirGuide vanes to focus airflow through the radiator and Magnetic Dome bearings for low-friction operation and long-term durability.
AirGuide Anti-Vortex Vanes
Focused airflow reduces sideways dispersion and directs more air through the radiator fins.

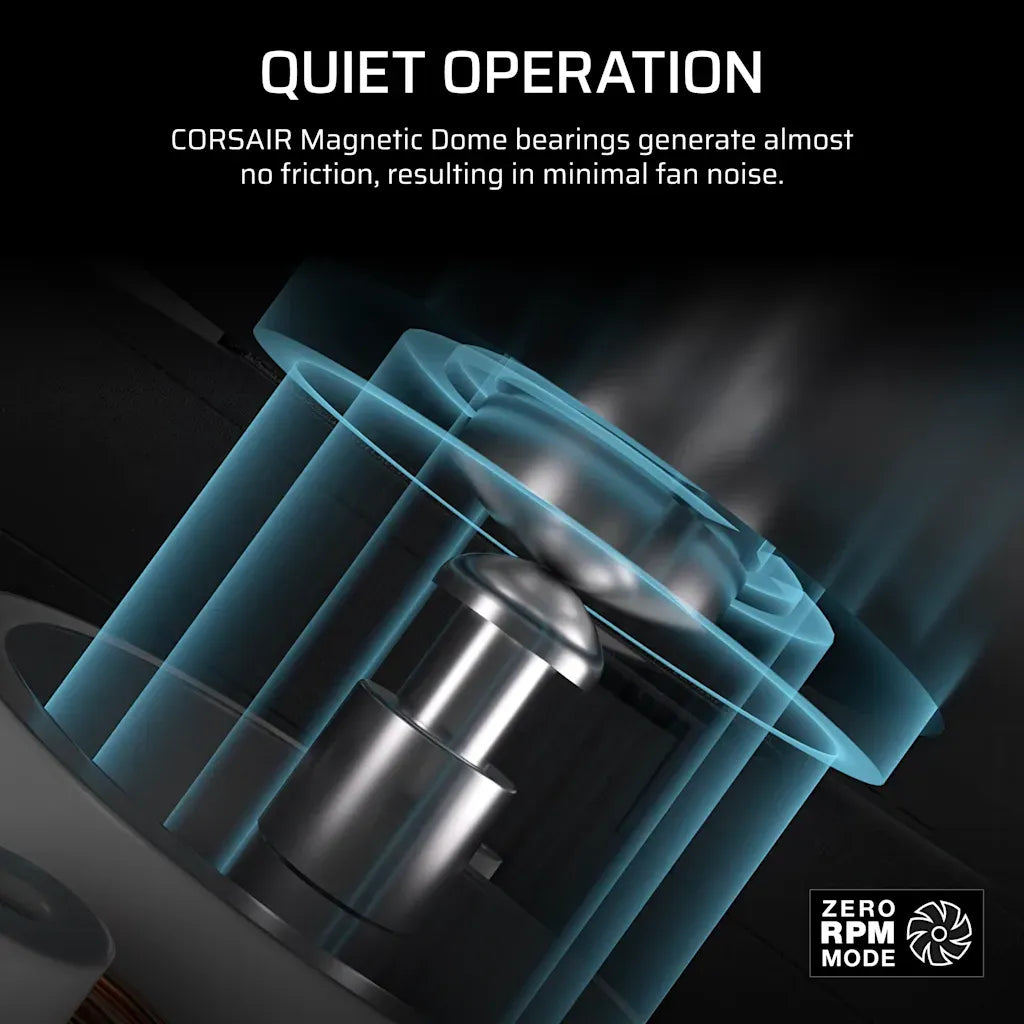

Magnetic Dome Bearings
The bearing design supports stable, low-friction fan operation across the rated speed range.
Daisy-Chained Fan Connections
Link the fan connectors together to reduce cable clutter and use a single compatible four-pin PWM header.
10–36 dBA Listed Fan Noise
Actual acoustics vary with fan speed, radiator placement, case airflow, and complete system configuration.

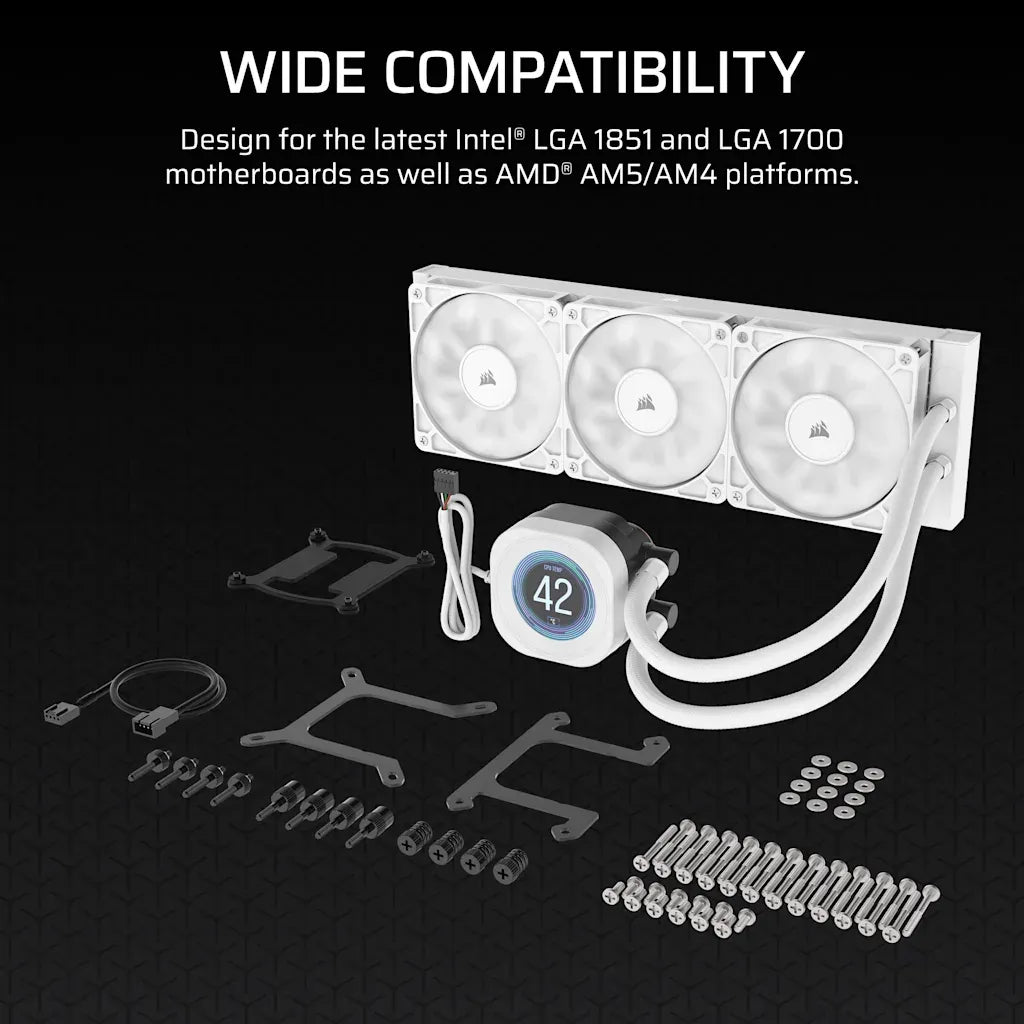

Modern Socket Compatibility
Intel LGA 1851 / 1700 and AMD AM5 / AM4
The included mounting hardware supports current mainstream Intel and AMD desktop platforms, with pre-applied thermal compound for a cleaner first installation.
Intel LGA 1851
Supports compatible Intel desktop processors using the latest listed mainstream socket.
Intel LGA 1700
Compatible with supported Intel desktop processors and motherboards using LGA 1700.
AMD AM5
Supports current-generation AMD Ryzen desktop processors on compatible AM5 motherboards.
AMD AM4
Supports a broad range of compatible Ryzen desktop processors using the AM4 platform.
Complete LCD Cooling Feature Set
Key Features
A 360mm liquid-cooling loop, customizable IPS LCD, three high-pressure PWM fans, quiet pump, simplified cabling, broad socket support, and five-year manufacturer coverage.
360mm All-in-One Liquid CPU Cooler
White Cooler Finish
Slightly Convex Copper Cold Plate
Pre-Applied Thermal Compound
360mm Aluminum Radiator
396 × 120 × 27mm Radiator Dimensions
450mm Tube Length
Three Corsair RS120 PWM Fans
420–2,100 RPM ±10% Fan Speed
13.3–72.8 CFM Fan Airflow
0.2–4.15mm H₂O Static Pressure
10–36 dBA Listed Fan Noise
Approximately 20 dBA Pump Noise
AirGuide Anti-Vortex Fan Vanes
Magnetic Dome Fan Bearings
PWM Fan Control with Zero RPM Mode
Daisy-Chained Four-Pin PWM Fan Connections
2.1-Inch IPS LCD Display
480 × 480 LCD Resolution
30 FPS LCD Refresh Rate
600cd/m² LCD Brightness
Over 16.7 Million Display Colors
Corsair iCUE Display Customization
Internal USB 2.0 Nine-Pin Header Required
Intel LGA 1851 and 1700 Support
AMD AM5 and AM4 Support
Five-Year Limited Manufacturer Warranty
Compatibility Overview
Supported Platforms and Installation Requirements
Confirm the processor socket, case radiator clearance, internal USB availability, fan-header capacity, and tube routing before purchase.
| AMD | AM5, AM4 |
| Intel | LGA 1851, LGA 1700 |
| Radiator Mount Requirement | Compatible 360mm case position with three adjacent 120mm fan mounts |
| LCD Connection | One available internal USB 2.0 nine-pin motherboard header |
| Fan Connection | Compatible four-pin PWM motherboard header supporting the daisy-chained fan group |
| Software | Corsair iCUE on a compatible Windows system |
Installation Planning
Check 360mm Clearance, Headers, and Tube Routing
A successful installation requires adequate radiator clearance, the correct motherboard connections, and a layout that avoids excessive tube bending or component interference.
Confirm a Full 360mm Mount
Measure the case’s top or front mounting area and account for the 396mm radiator length, 27mm radiator thickness, and 25mm fan thickness.
Reserve an Internal USB Header
The LCD requires a free USB 2.0 nine-pin motherboard header for display communication and iCUE control.
Plan the Daisy-Chained Fans
Connect the three RS120 fans according to the Corsair guide and verify the motherboard header’s supported current.
Route the 450mm Tubes Carefully
Avoid sharp bends, excessive tension, pump interference, and contact with fan blades or moving components.
Official Product Media
NAUTILUS RS LCD Product Videos
Official Corsair-hosted media highlighting the white cooler, LCD customization, pump flow, and cold-plate contact design.
Official Corsair NAUTILUS RS LCD white product overview.
Official Corsair media demonstrating the customizable IPS LCD.
Playback availability can depend on the browser, network, and Shopify content-security settings.

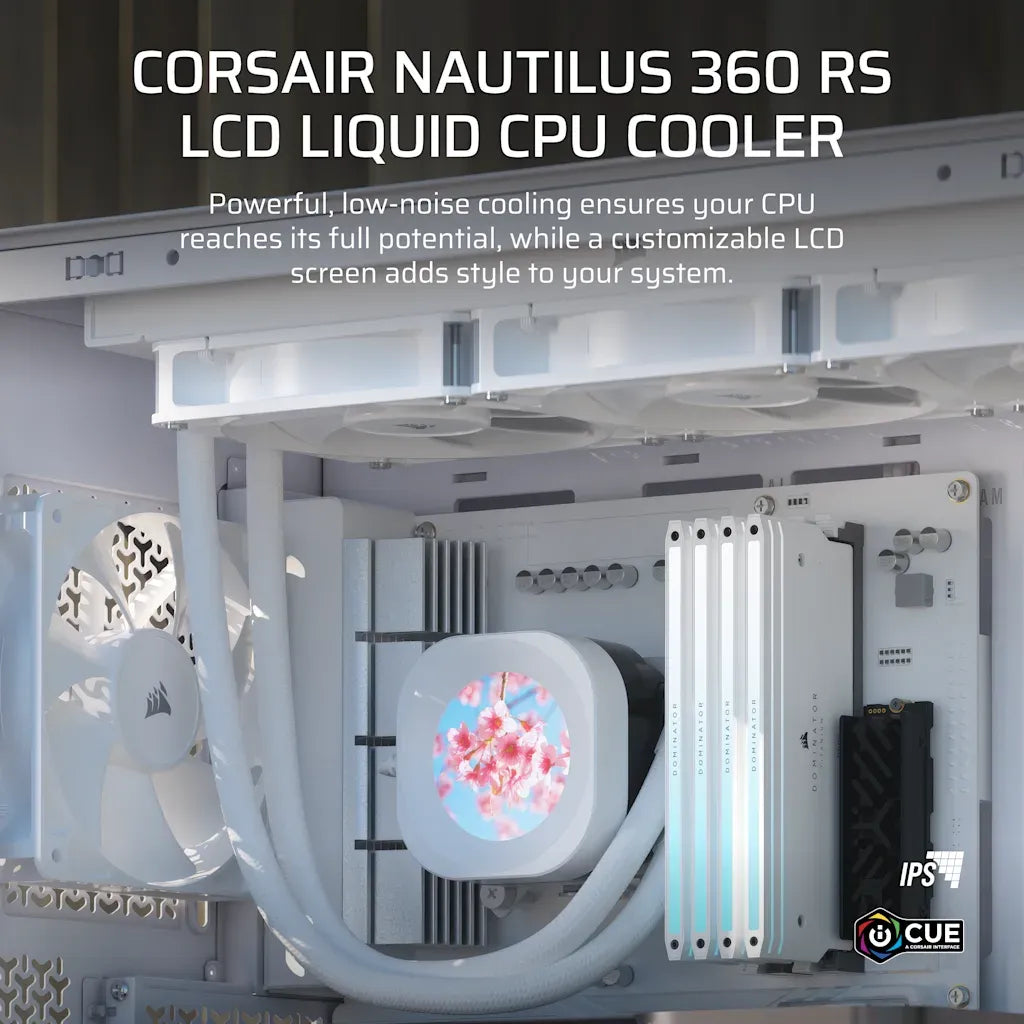

Designed for Premium Performance Builds
Perfect For
Ideal for high-performance gaming PCs, creator workstations, modern white builds, LCD-focused showcase systems, and cases with a properly supported 360mm radiator position.
Large Radiator Cooling Capacity
A 360mm radiator and three high-pressure fans provide substantial cooling surface area for demanding processors.
Customizable 2.1-Inch LCD
Display system temperatures, custom artwork, GIFs, team branding, or a personalized OPCBleu graphic.
Coordinated White Finish
The white radiator, fans, tubes, and pump housing complement bright and minimalist system themes.
Software and Warranty
Corsair iCUE and Five-Year Coverage
Corsair iCUE provides LCD customization and supported monitoring on compatible Windows systems, while the cooler is backed by a five-year limited manufacturer warranty.
LCD Customization
Create sensor screens, image layouts, animated GIFs, and personalized visual presets.
Supported Monitoring
Display compatible processor temperatures and other available system information.
Official Corsair iCUE
Five-Year Limited Warranty
Retain the purchase receipt and follow Corsair’s current regional warranty requirements.
Detailed Cooling Hardware
Technical Specifications
Verified specifications for the LCD, radiator, fans, pump, materials, dimensions, tubing, socket compatibility, software, weight, package contents, and warranty.
| Brand | Corsair |
| Product Model | NAUTILUS 360 RS LCD |
| Manufacturer Part Number | CW-9061034-WW |
| Product Type | All-in-One Liquid CPU Cooler with LCD |
| Color | White |
| Radiator Class | 360mm |
| Radiator Dimensions | 396 × 120 × 27mm / approximately 15.6 × 4.7 × 1.1 in |
| Radiator Material | Aluminum |
| Cold Plate Material | Copper |
| Cold Plate Design | Slightly convex for optimized processor contact |
| Thermal Compound | Pre-applied in an optimized pattern |
| Tubing Length | 450mm / approximately 17.7 in |
| Number of Included Fans | 3 |
| Included Fans | Corsair RS120 PWM fans |
| Fan Control Method | Four-pin PWM with Zero RPM support |
| Fan Speed | 420–2,100 RPM ±10% |
| Fan Airflow | 13.3–72.8 CFM per fan |
| Fan Static Pressure | 0.2–4.15mm H₂O |
| Listed Fan Noise | 10–36 dBA |
| Fan Airflow Technology | AirGuide anti-vortex vanes |
| Fan Bearing | Magnetic Dome |
| Fan Cabling | Daisy-chainable four-pin PWM connections |
| Listed Pump Noise | Approximately 20 dBA |
| Display Type | 2.1-inch IPS LCD |
| Display Resolution | 480 × 480 pixels |
| Display Frame Rate | 30 FPS |
| Display Brightness | 600cd/m² |
| Display Color Depth | Over 16.7 million colors |
| Display Content | Supported temperatures, system information, images, animated GIFs, memes, and logos |
| Display Control | Corsair iCUE on compatible Windows systems |
| Display Connection | Internal USB 2.0 nine-pin motherboard header |
| AMD Socket Support | AM5, AM4 |
| Intel Socket Support | LGA 1851, LGA 1700 |
| Listed Product Weight | 2.389kg / approximately 5.3 lb |

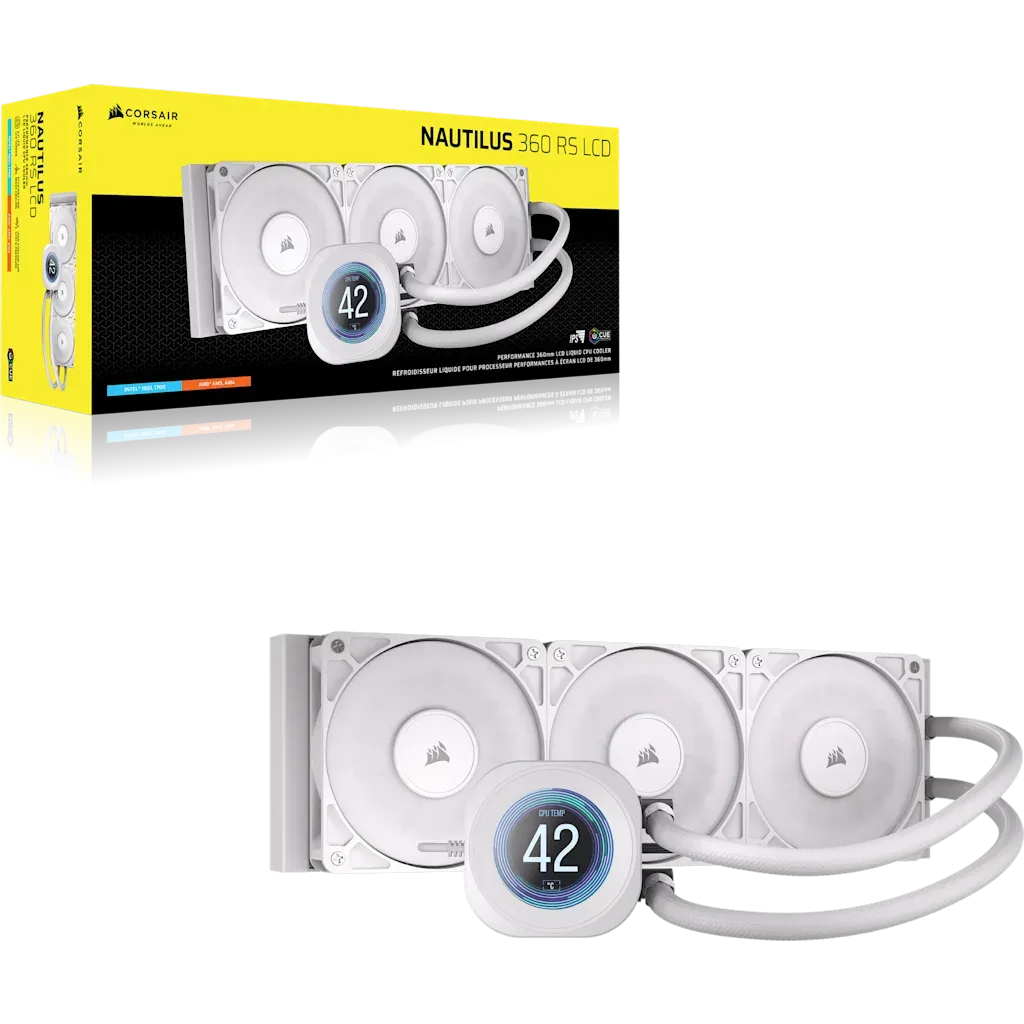

| Package Contents | NAUTILUS 360 RS LCD cooler, three RS120 PWM fans, Intel and AMD mounting hardware, display and fan cables, and pre-applied thermal compound |
| Manufacturer Warranty | 5-year limited warranty, subject to Corsair’s terms |
Shop With Confidence
Why Buy From OPCBleu?
OPCBleu combines carefully selected technology products with transparent service, Canadian delivery, and a customer-first buying experience.
Premium 360mm Cooling with a Brilliant LCD Display.
The Corsair NAUTILUS 360 RS LCD combines a large aluminum radiator, three RS120 PWM fans, a quiet pump, modern socket support, and a customizable 2.1-inch IPS display in a clean white finish.
OPCBleu focuses on performance, reliability, and value so Canadian customers can shop for PC hardware with confidence.
🚚
Fast Canadian Shipping
Quick order processing and delivery across Canada.
🛡️
30-Day Returns
A clear return process for eligible purchases.
🔒
Secure Checkout
Protected payment processing through trusted providers.
💙
Quebec-Based Store
Technology enthusiasts serving customers across Canada.
Helpful Answers
FAQs
Answers to common questions about the exact white model, LCD features, fan performance, Zero RPM mode, socket compatibility, internal connections, case clearance, and warranty coverage.
What is the exact model number?
This is the white Corsair NAUTILUS 360 RS LCD, manufacturer part number CW-9061034-WW.
Which CPU sockets are supported?
Corsair lists Intel LGA 1851 and LGA 1700, along with AMD AM5 and AM4.
What can the LCD display?
The 2.1-inch IPS screen can show supported processor temperatures, system information, static images, animated GIFs, memes, logos, and other compatible content configured through Corsair iCUE.
What are the LCD specifications?
The display uses a 480 × 480 IPS panel operating at 30 FPS with a 600cd/m² backlight and support for over 16.7 million colors.
How is the LCD connected?
Connect the included display cable to an available internal USB 2.0 nine-pin motherboard header, then install Corsair iCUE on a compatible Windows system.
Which fans are included?
Three Corsair RS120 PWM fans are included. Each fan is rated from 420 to 2,100 RPM ±10%, up to 72.8 CFM, and up to 4.15mm H₂O static pressure.
Does the cooler support Zero RPM mode?
Yes. Compatible PWM control can stop the radiator fans at low temperatures for silent low-load operation.
Are the fans RGB illuminated?
No. This model focuses on the customizable LCD screen and uses non-RGB RS120 radiator fans.
How large is the radiator?
The radiator measures approximately 396 × 120 × 27mm. The installed thickness increases when the 25mm fans are attached, so confirm full 360mm case clearance before purchase.
Is thermal paste included?
Yes. Corsair applies thermal compound to the slightly convex copper cold plate in an optimized pattern.
Does the cooler require coolant maintenance?
No routine filling or draining is required. It is a factory-sealed all-in-one liquid cooler.
What warranty is included?
Corsair provides a five-year limited manufacturer warranty, subject to its current regional warranty terms.
