OPCBLEU // PRODUCT
Product description
Description and product details Overview, features, specifications, compatibility and FAQ
4TB. PCIE 5.0 x4. NVME 2.0. HIGH-DENSITY 3D TLC.

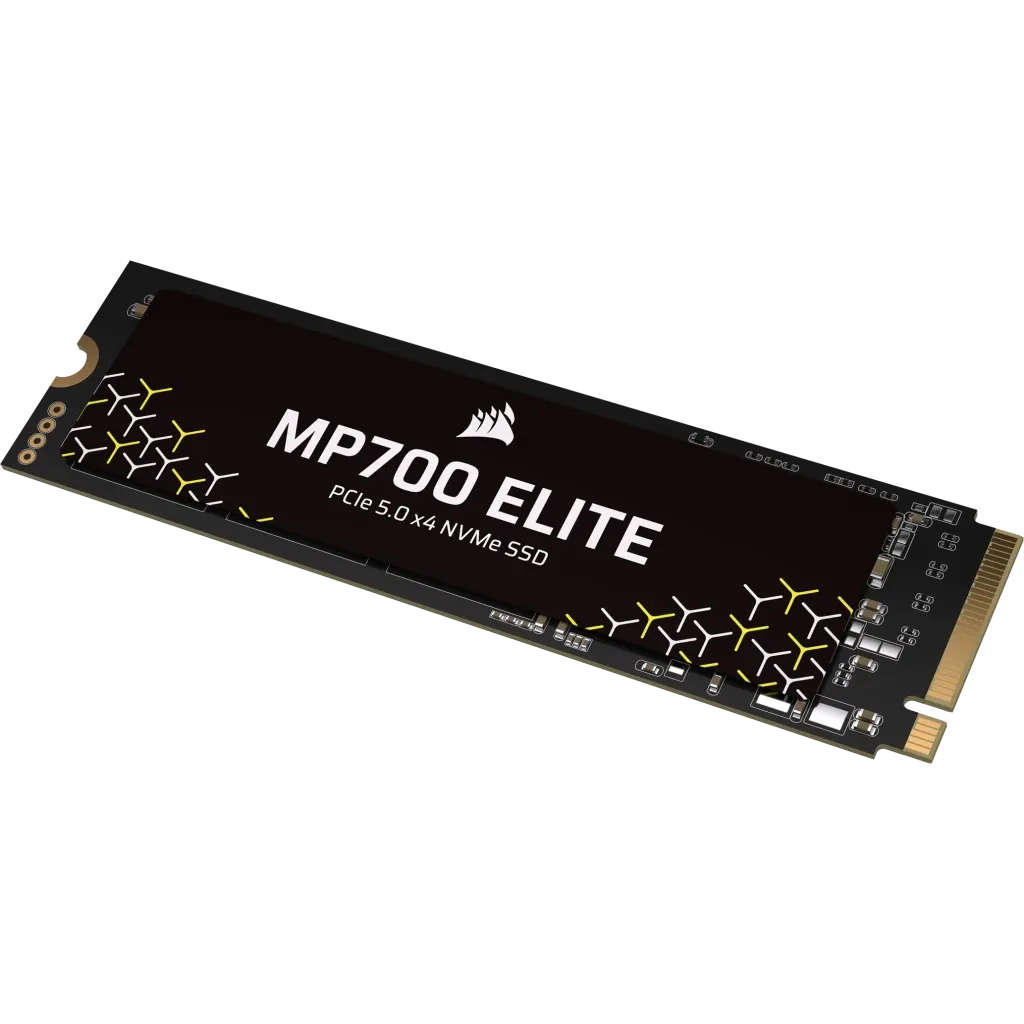

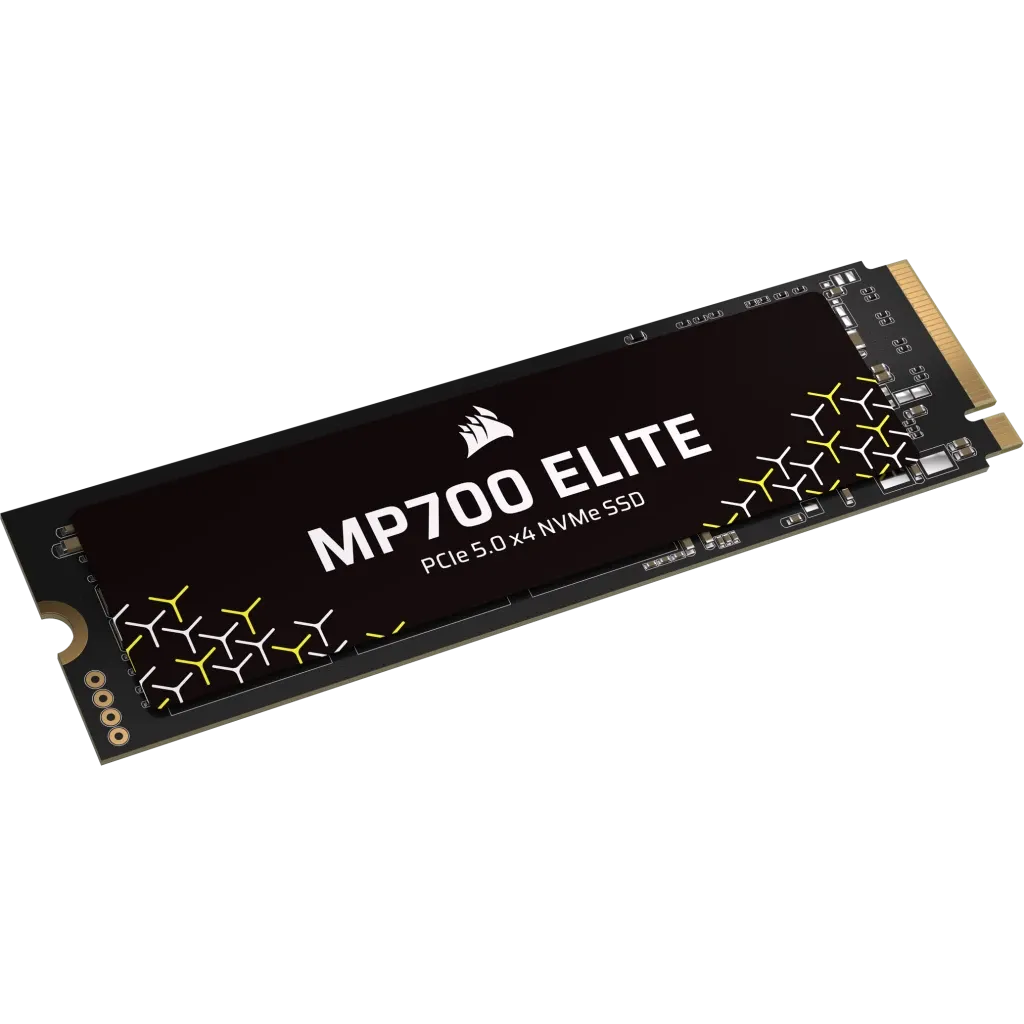

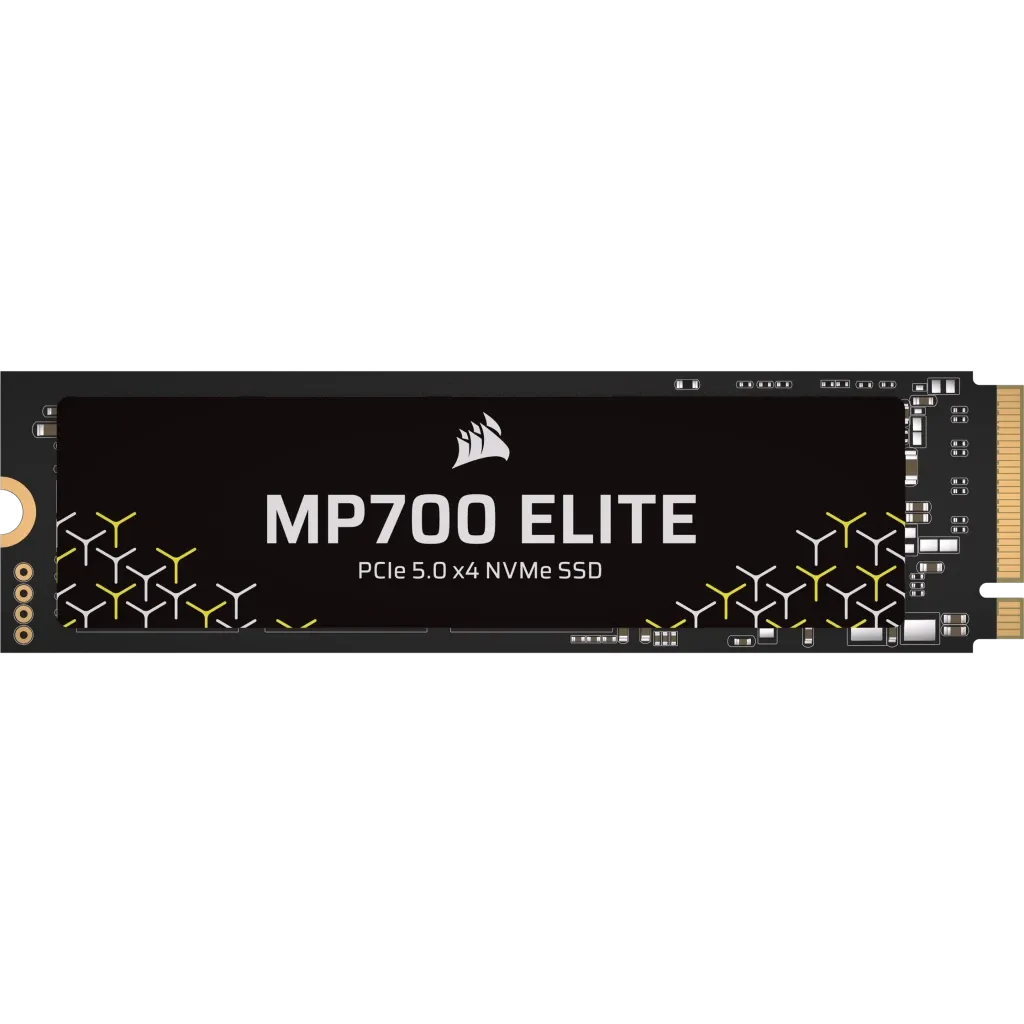

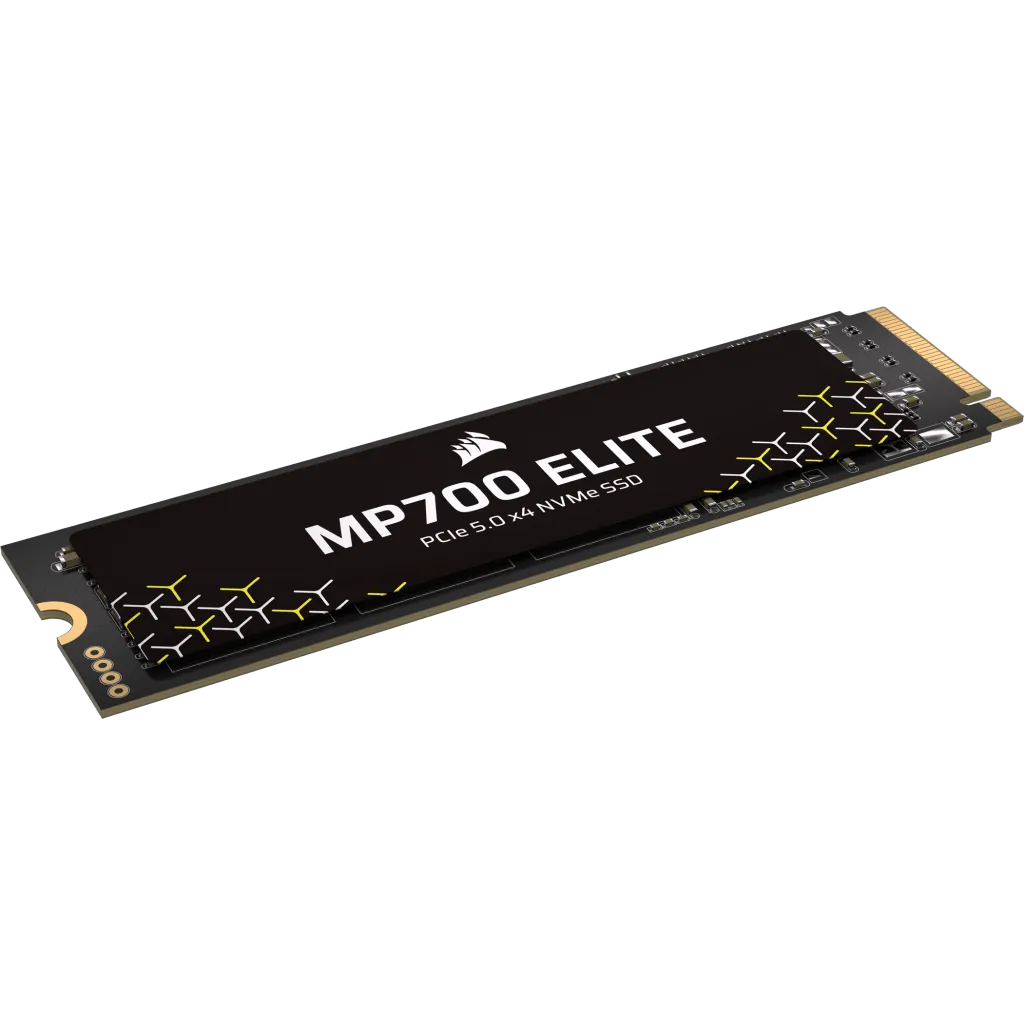

Corsair MP700 ELITE 4TB PCIe 5.0 x4 NVMe 2.0 M.2 2280 SSD
The Corsair MP700 ELITE 4TB combines massive storage capacity with high-speed PCIe 5.0 performance for gaming PCs, creator workstations, and demanding desktop systems. The exact 4TB no-heatsink model reaches sequential read speeds up to 9,400MB/s and sequential write speeds up to 8,100MB/s.
High-density 3D TLC NAND, up to 1.2 million random-read IOPS, up to 1.4 million random-write IOPS, Microsoft DirectStorage support, and a substantial 2,400 TBW endurance rating provide a strong blend of capacity, responsiveness, and long-term reliability. This version ships without an integrated heatsink, so compatible M.2 cooling is required.
9,400MB/s
Maximum sequential read
8,100MB/s
Maximum sequential write
1.4M IOPS
Maximum random write
Flagship Gen5 throughput accelerates large-file access, loading, and transfers.
Strong random performance supports demanding multitasking and professional workloads.
High-density 3D TLC NAND provides strong long-term client-storage endurance.

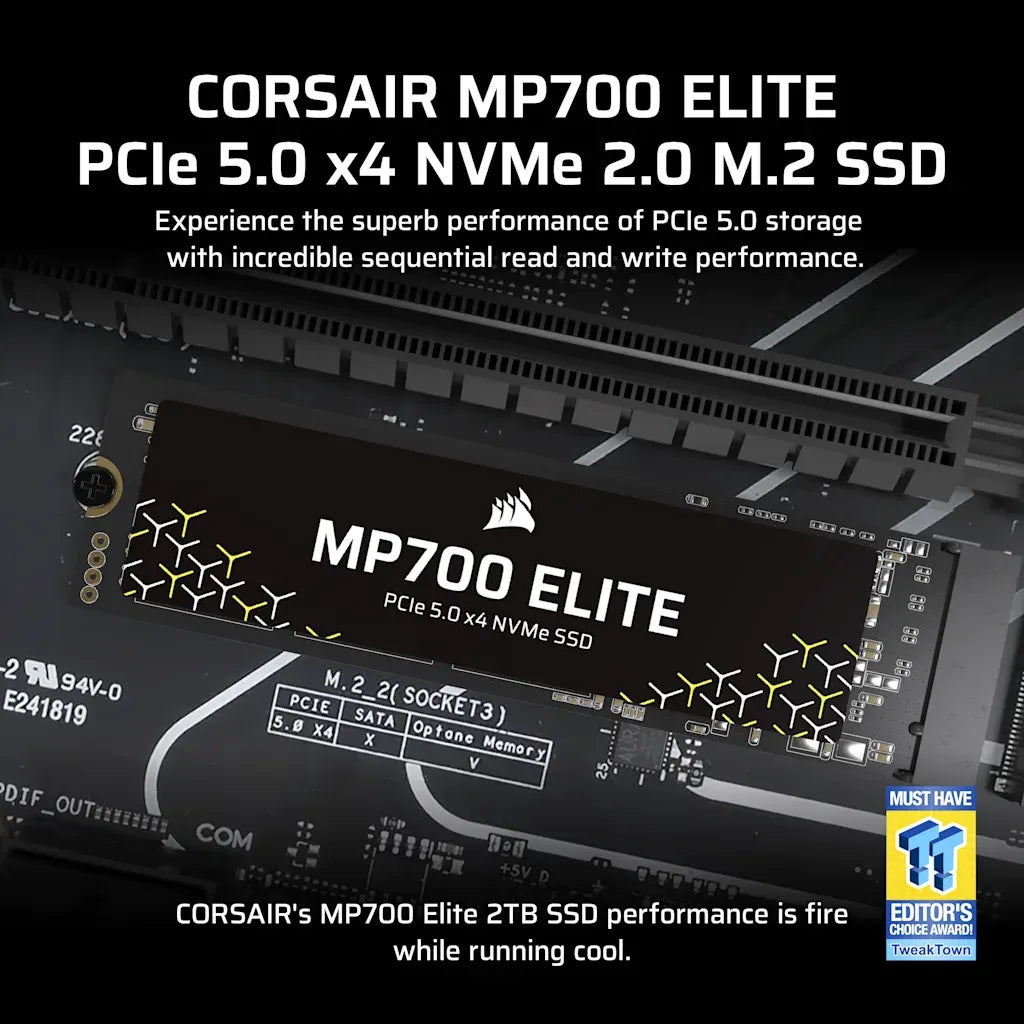

High-Speed PCIe Gen5 Performance
Up to 9,400MB/s Read and 8,100MB/s Write
The PCIe 5.0 x4 interface and NVMe 2.0 protocol provide substantially more bandwidth than previous-generation storage platforms when installed in a compatible Gen5 M.2 slot.
9,400MB/s Sequential Read
Rapid read performance accelerates large applications, game assets, project files, and high-resolution media access.
8,100MB/s Sequential Write
High sequential-write throughput supports demanding exports, installations, caching, transfers, and content workflows.
PCIe 5.0 x4 Bandwidth
Four Gen5 lanes provide the bandwidth required for the drive’s maximum rated performance.
Backward Compatible with Gen4
The drive can operate in a compatible PCIe 4.0 M.2 slot, but performance is limited by the older interface.
Responsive Random Performance
Up to 1.2 Million Read and 1.4 Million Write IOPS
High random performance improves responsiveness when the operating system, applications, games, and professional software access many small files simultaneously.
1.2 Million Random-Read IOPS
Fast random reads improve application responsiveness, asset access, indexing, and multitasking.
1.4 Million Random-Write IOPS
Exceptional random writes support heavy update activity, scratch workloads, caching, and concurrent processes.
Responsive Game Storage
Fast asset access helps reduce storage-related delays in compatible modern games and game engines.
Workstation-Ready Responsiveness
High IOPS performance benefits large project libraries, development environments, and demanding content applications.

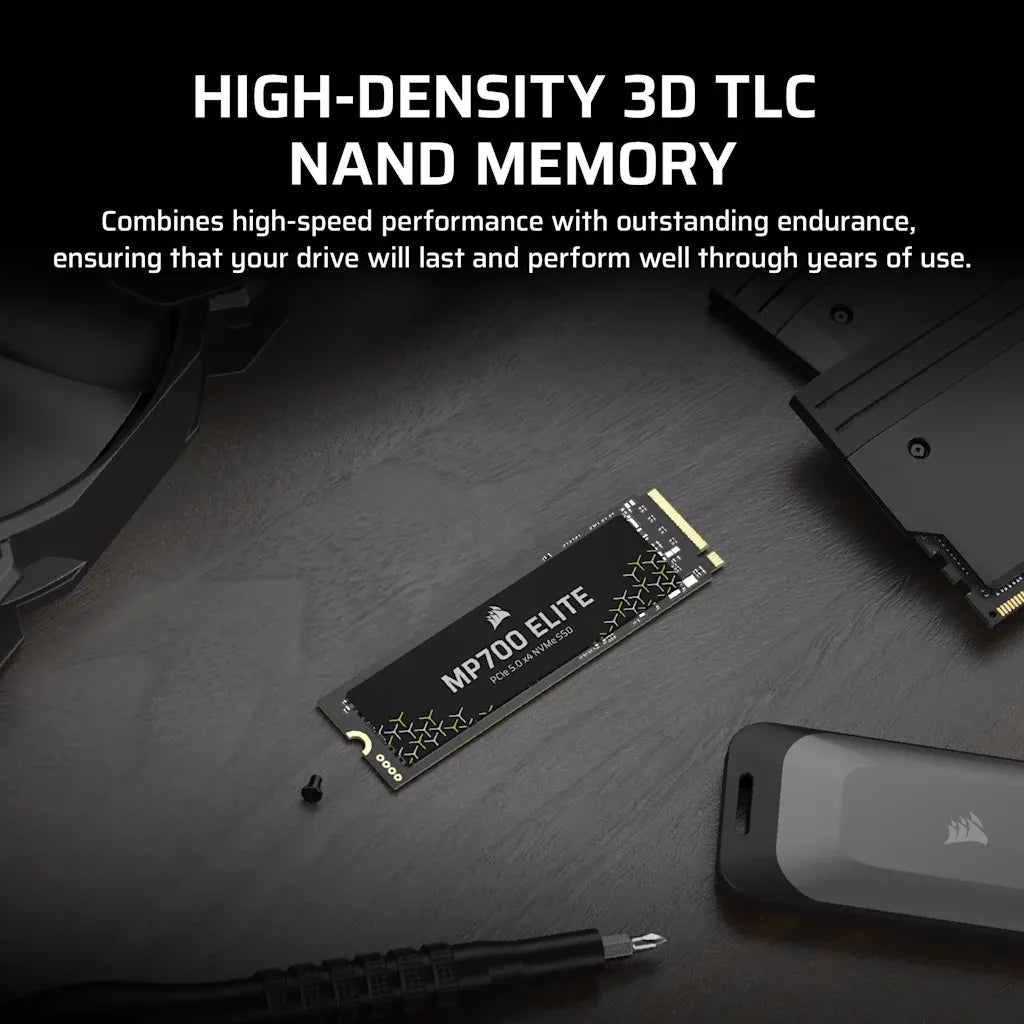

High-Density 3D TLC NAND
Performance, Endurance, and Long-Term Reliability
Three-dimensional TLC NAND provides a strong balance of sustained speed, write endurance, and storage density for a high-performance client SSD.
Three Bits per Cell
TLC NAND generally offers stronger endurance and sustained-performance characteristics than higher-density QLC designs.
2,400 TBW Rating
The exact 4TB model is rated for 2,400 terabytes written under Corsair’s specified client workload.
High-Capacity 4TB Configuration
Store large games, professional projects, applications, and working files on one fast local drive.
S.M.A.R.T. Monitoring
Compatible software can access supported health, temperature, usage, and remaining-life information.
Cooling Required
No Heatsink Included — Use Proper M.2 Cooling
PCIe 5.0 SSDs generate substantial heat under sustained workloads. This model ships without an integrated heatsink and requires a compatible motherboard M.2 heatsink or separate cooling solution.
Separate Cooling Is Required
Do not operate the drive under sustained high-load conditions without an appropriate M.2 cooling solution.
Motherboard Heatsink Compatible
A properly sized motherboard M.2 heatsink is suitable when it provides adequate contact and airflow.
Heat Can Reduce Performance
Excessive temperature can trigger thermal throttling, lowering transfer rates until the drive cools.
Check Heatsink Clearance
Confirm compatibility with the motherboard, graphics card, chipset covers, thermal pads, and selected M.2 slot.

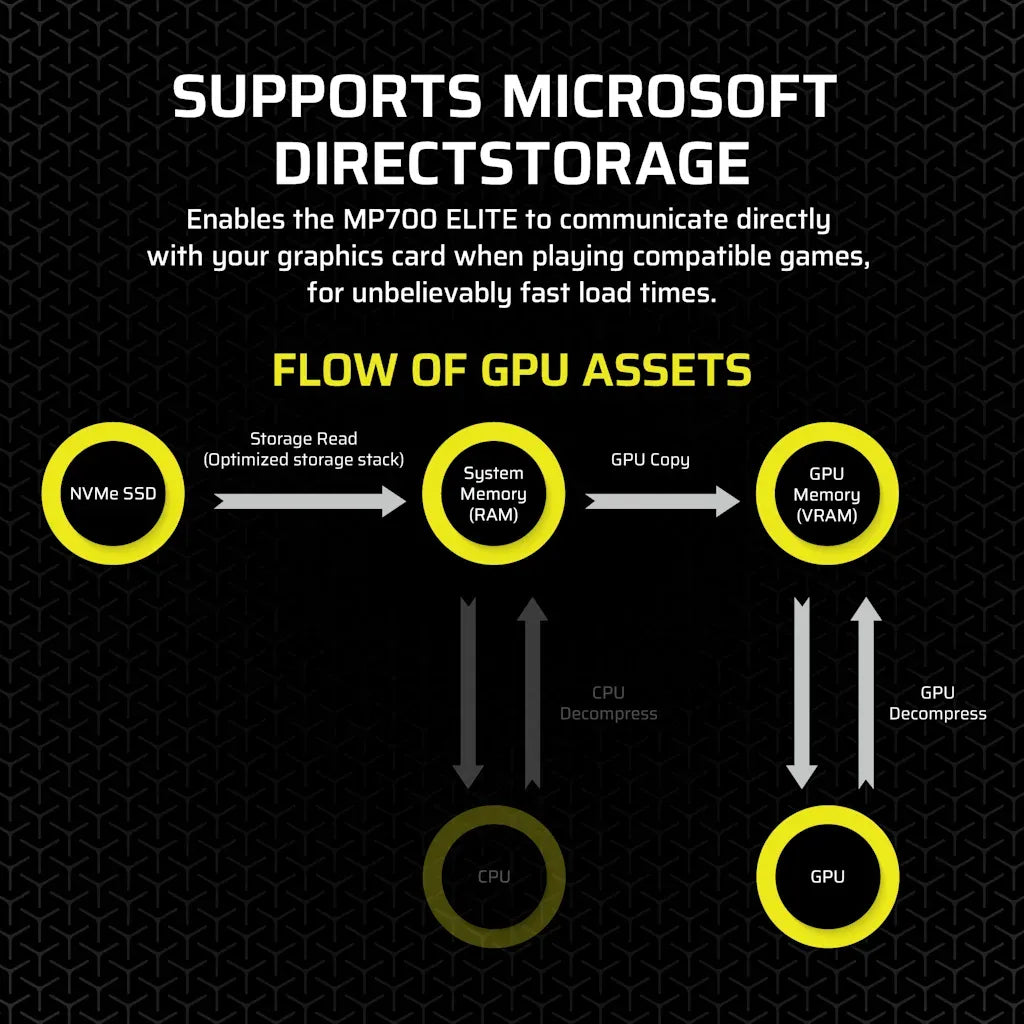

Microsoft DirectStorage
Faster Asset Delivery in Compatible Games
DirectStorage allows supported games to use a more efficient storage-to-GPU asset pipeline, reducing processor overhead and improving load-time potential on compatible systems.
DirectStorage Support
The drive supports Microsoft DirectStorage when used with compatible games, Windows versions, graphics hardware, and drivers.
Efficient Asset Streaming
Compatible game engines can move compressed assets more efficiently from storage toward the graphics pipeline.
System Requirements Apply
DirectStorage benefits require compatible software and a DirectX 12 GPU with Shader Model 6.0 support.
Game Support Determines Results
Performance gains vary because each game must implement DirectStorage and use it effectively.
Complete Gen5 Storage Feature Set
Key Features
High-speed sequential and random performance, PCIe Gen5 bandwidth, NVMe 2.0, 3D TLC NAND, DirectStorage, substantial endurance, and standard M.2 2280 compatibility.
4TB Nominal Storage Capacity
Standard M.2 2280 Form Factor
PCIe 5.0 x4 Interface
NVMe 2.0 Protocol
Up to 9,400MB/s Sequential Read
Up to 8,100MB/s Sequential Write
Up to 1.2 Million Random Read IOPS
Up to 1.4 Million Random Write IOPS
High-Density 3D TLC NAND
2,400 TBW Rated Endurance
Microsoft DirectStorage Support
S.M.A.R.T. Health Monitoring Support
3.3V Operating Voltage ±5%
DEVSLP PS4 Below 85mW
Operating Temperature from 0°C to 70°C
Storage Temperature from −40°C to 85°C
1,500G Shock Resistance Rating
Windows 10 and Windows 11 Compatibility
Mac OS X Compatibility on Supported Hardware
No Heatsink Included
Separate M.2 Cooling Required
Corsair SSD Toolbox Support
Five-Year Limited Manufacturer Warranty
Performance Overview
Exact 4TB Model Performance at a Glance

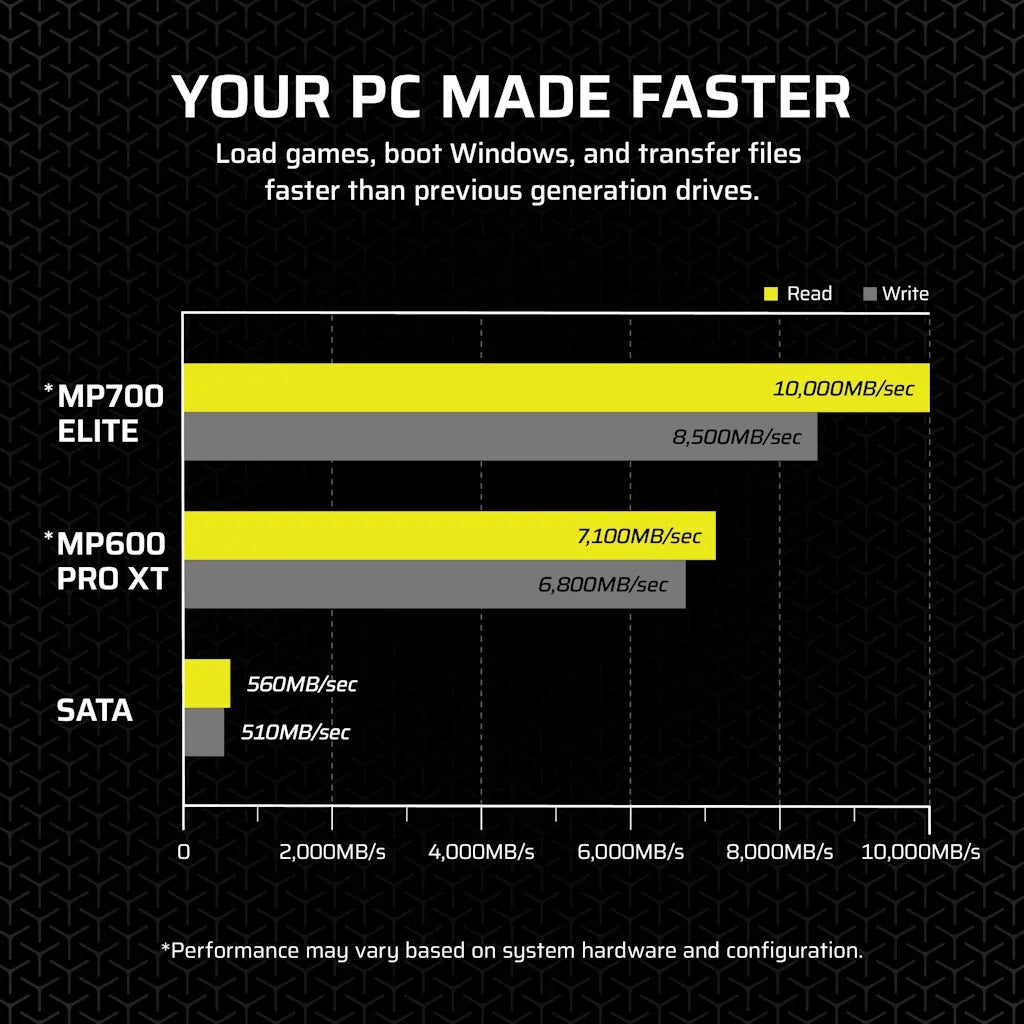

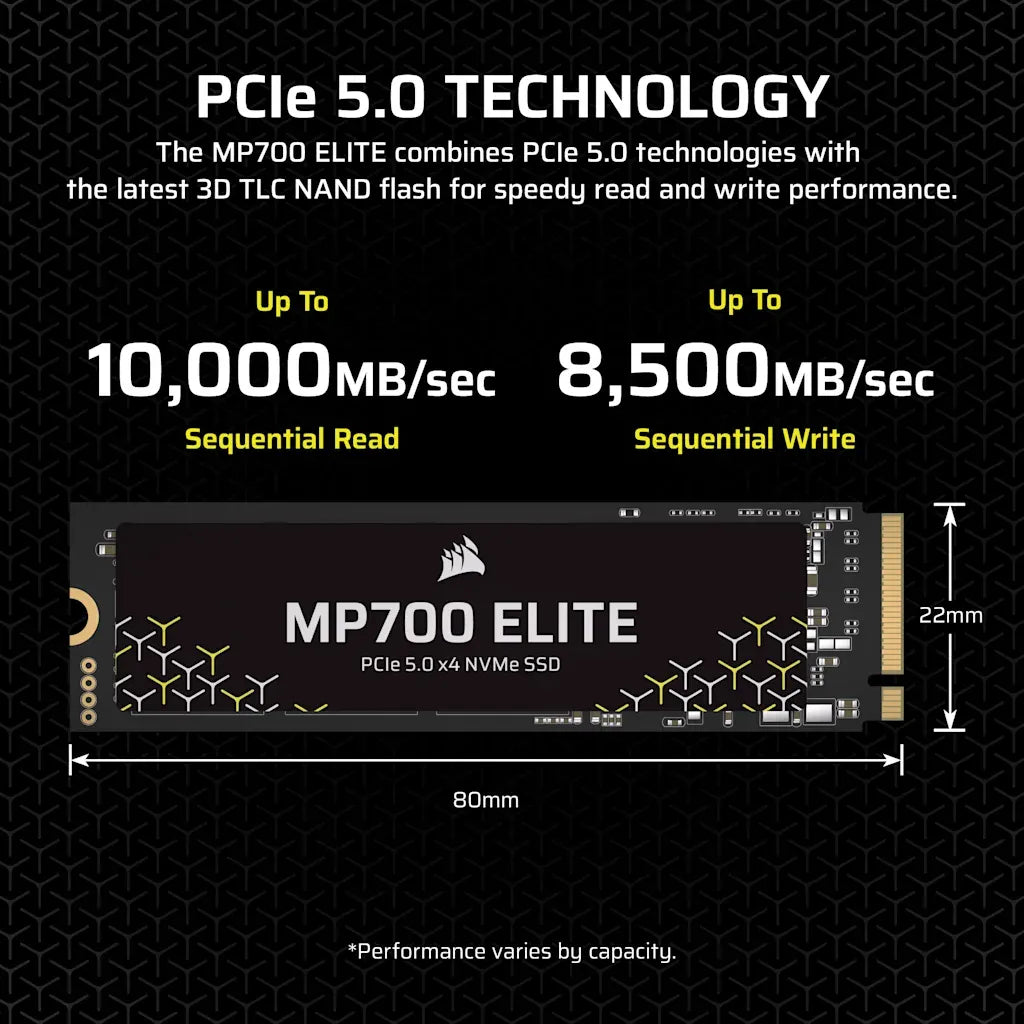

Corsair’s marketing overview displays family-level maximums of 10,000MB/s read and 8,500MB/s write. The current technical table for the exact 4TB no-heatsink SKU lists 9,400MB/s read and 8,100MB/s write, which are the values used throughout this description.
| Sequential Read | Up to 9,400MB/s |
| Sequential Write | Up to 8,100MB/s |
| Random Read | Up to 1,200,000 IOPS |
| Random Write | Up to 1,400,000 IOPS |
| Interface | PCIe 5.0 x4 |
| Protocol | NVMe 2.0 |
| NAND | High-density 3D TLC |
| Endurance | 2,400 TBW |
Installation Planning
Confirm Gen5 Support and Cooling before Installation

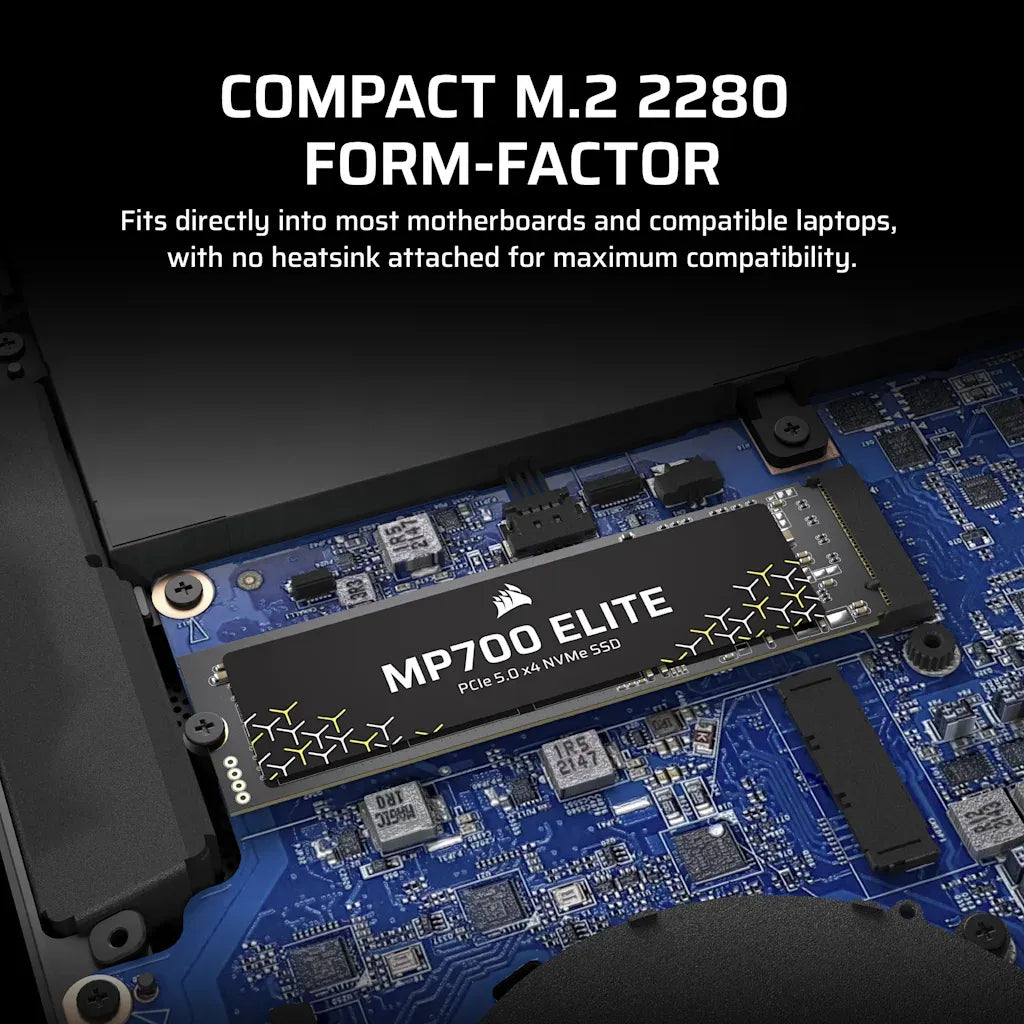

The MP700 ELITE uses the standard M.2 2280 format, but maximum performance requires a compatible PCIe 5.0 x4 M.2 slot, current firmware, available lanes, and adequate cooling.
Use a PCIe 5.0 x4 M.2 Slot
A Gen4 slot can operate the drive at reduced bandwidth, while SATA-only M.2 slots are incompatible.
Install the M.2 Heatsink Correctly
Remove protective films from the thermal pads and ensure even contact with the controller and NAND package area.
Check Shared PCIe Lanes
Some motherboards reduce graphics-card lanes or disable another storage port when a specific Gen5 M.2 slot is used.
Back Up before Replacing a Drive
Create a verified backup, clone, or recovery image before removing the existing system storage.
Designed for Extreme Storage Performance
Perfect For
Ideal for high-end gaming PCs, professional creator systems, development workstations, demanding scratch-disk workloads, and users building around a properly cooled PCIe Gen5 platform.
Gen5 Speed and DirectStorage
High throughput and low-latency asset access support modern game libraries and compatible DirectStorage titles.
Fast Project and Scratch Storage
Rapid sequential and random performance benefits large project files, caches, previews, and exports.
Optimized for Native PCIe 5.0
Use the drive with a properly cooled Gen5 M.2 slot to access its full rated bandwidth.
Software and Warranty
Corsair SSD Toolbox and Five-Year Coverage
Corsair provides SSD management software for supported Windows systems and a five-year limited warranty subject to the applicable endurance and health limits.
Drive Health Monitoring
Review supported S.M.A.R.T. information, temperature, usage, and available health data.
SSD Management Tools
Access supported maintenance, firmware, and drive-management functions through Corsair’s utility.
Official Corsair Download
Five-Year Limited Warranty
Coverage expires at the applicable time, endurance, or S.M.A.R.T. health limit, whichever occurs first, subject to Corsair’s terms.
Detailed Storage Hardware
Technical Specifications
Verified specifications for capacity, form factor, interface, protocol, performance, NAND, endurance, encryption, thermals, compatibility, package contents, weight, and warranty.
| Brand | Corsair |
| Product Model | MP700 ELITE 4TB |
| Manufacturer Part Number | CSSD-F4000GBMP700ENH |
| Product Type | Internal PCIe Gen5 NVMe Solid-State Drive |
| Nominal Capacity | 4TB / 4,000GB |
| Storage Form Factor | M.2 2280 |
| Approximate Physical Size | 22 × 80mm |
| Connector Requirement | Compatible M-key M.2 NVMe slot |
| Interface | PCIe 5.0 x4 |
| NVMe Version | NVMe 2.0 |
| NAND Technology | High-density 3D TLC |
| Integrated Heatsink | None; separate compatible cooling required |
| Maximum Sequential Read | Up to 9,400MB/s |
| Maximum Sequential Write | Up to 8,100MB/s |
| Maximum Random Read | Up to 1,200,000 IOPS at QD32 |
| Maximum Random Write | Up to 1,400,000 IOPS at QD32 |
| Rated Endurance | 2,400 TBW |
| Microsoft DirectStorage | Supported on compatible systems and games |
| S.M.A.R.T. Support | Yes |
| Operating Voltage | 3.3V ±5% |
| DEVSLP | PS4 below 85mW |
| Operating Temperature | 0°C to 70°C / 32°F to 158°F |
| Storage Temperature | −40°C to 85°C / −40°F to 185°F |
| Storage Humidity | 93% relative humidity at 40°C / 104°F |
| Storage Humidity | 93% relative humidity at 40°C |
| Shock Rating | 1,500G |
| Vibration Rating | 20Hz–80Hz at 1.52mm; 80Hz–2,000Hz at 20G |
| Operating-System Compatibility | Windows 11, Windows 10, and Mac OS X on compatible hardware |
| Backward Interface Compatibility | Compatible PCIe 4.0 platforms at reduced performance |

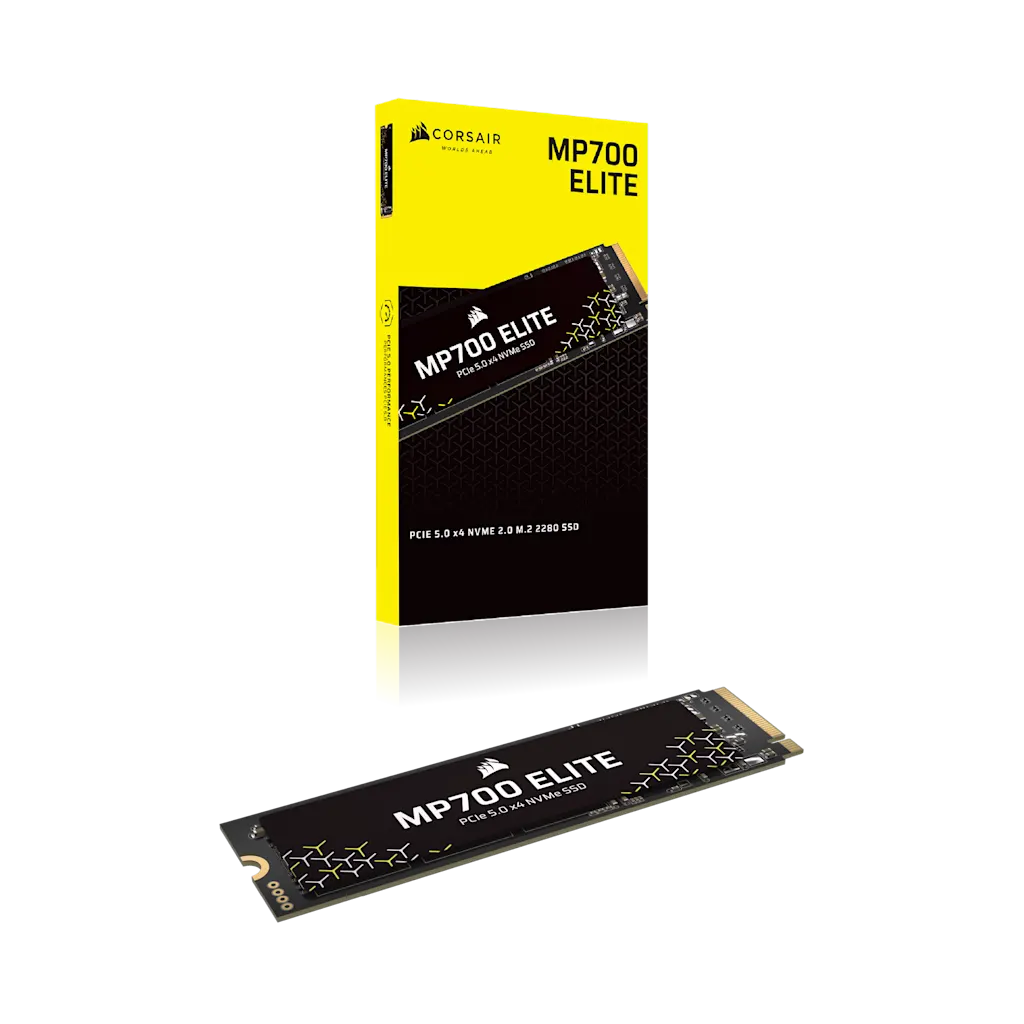

| Package Contents | MP700 ELITE M.2 SSD; no heatsink included |
| Listed Product Weight | 0.032kg / approximately 0.07 lb |
| Management Software | Corsair SSD Toolbox on compatible Windows systems |
| Manufacturer Warranty | 5-year limited warranty, subject to endurance and health limits |
Shop With Confidence
Why Buy From OPCBleu?
OPCBleu combines carefully selected technology products with transparent service, Canadian delivery, and a customer-first buying experience.
Massive Gen5 Storage for High-End Systems.
The Corsair MP700 ELITE 4TB combines extensive capacity, up to 9,400MB/s sequential reads, 1.4 million random-write IOPS, high-density 3D TLC NAND, 2,400 TBW endurance, and Microsoft DirectStorage support.
OPCBleu focuses on performance, reliability, and value so Canadian customers can shop for PC hardware with confidence.
🚚
Fast Canadian Shipping
Quick order processing and delivery across Canada.
🛡️
30-Day Returns
A clear return process for eligible purchases.
🔒
Secure Checkout
Protected payment processing through trusted providers.
💙
Quebec-Based Store
Technology enthusiasts serving customers across Canada.
Helpful Answers
FAQs
Answers to common questions about the exact 4TB model, Gen5 performance, cooling, M.2 compatibility, DirectStorage, NAND technology, endurance, and warranty coverage.
What is the exact model number?
This is the 4TB MP700 ELITE without an included heatsink, manufacturer part number CSSD-F4000GBMP700ENH.
What are the maximum read and write speeds?
The 4TB model is rated for sequential reads up to 9,400MB/s and sequential writes up to 8,100MB/s. Actual performance depends on the host platform, cooling, firmware, workload, and available PCIe bandwidth.
Why does Corsair also advertise 10,000/8,500MB/s?
The product overview displays family-level maximums of 10,000MB/s read and 8,500MB/s write. The current technical table for the exact CSSD-F4000GBMP700ENH 4TB SKU lists 9,400MB/s read and 8,100MB/s write, so those exact-SKU values are used in this description.
Does this SSD include a heatsink?
No. A compatible motherboard M.2 heatsink or separate SSD cooling solution is required for proper sustained Gen5 operation.
Can it work in a PCIe 4.0 M.2 slot?
Yes, on compatible hardware, but the drive operates at reduced performance because the PCIe 4.0 interface provides less bandwidth.
What is the random performance?
The 4TB model is rated for up to 1.2 million random-read IOPS and 1.4 million random-write IOPS at QD32.
Which NAND technology does it use?
The drive uses high-density 3D TLC NAND for a strong balance of performance, endurance, and long-term reliability.
What is the endurance rating?
The exact 4TB model is rated for 2,400 TBW under Corsair’s specified client workload.
Does it support Microsoft DirectStorage?
Yes. DirectStorage requires compatible Windows software, a supported game, and compatible DirectX 12 graphics hardware.
Which operating systems are supported?
Corsair lists Windows 11, Windows 10, and Mac OS X compatibility on systems with a physically and electrically compatible M.2 NVMe slot.
How long is the manufacturer warranty?
The MP700 ELITE carries a five-year limited warranty. Coverage expires at the applicable time, endurance, or S.M.A.R.T. health limit, whichever occurs first, subject to Corsair’s terms.
