Product description
Description and product details Overview, features, specifications, compatibility and FAQ
360MM AIO. 2.1-INCH IPS LCD. THREE RX120 RGB FANS.

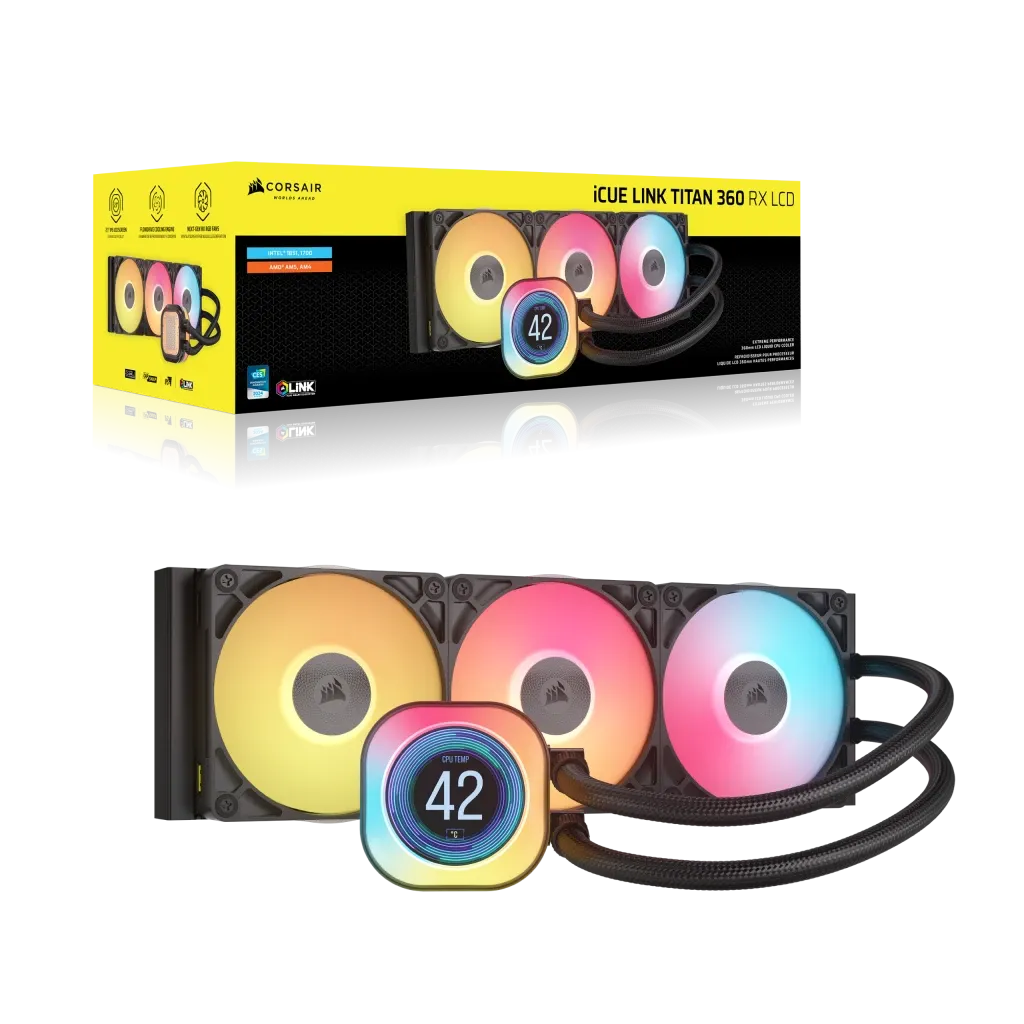

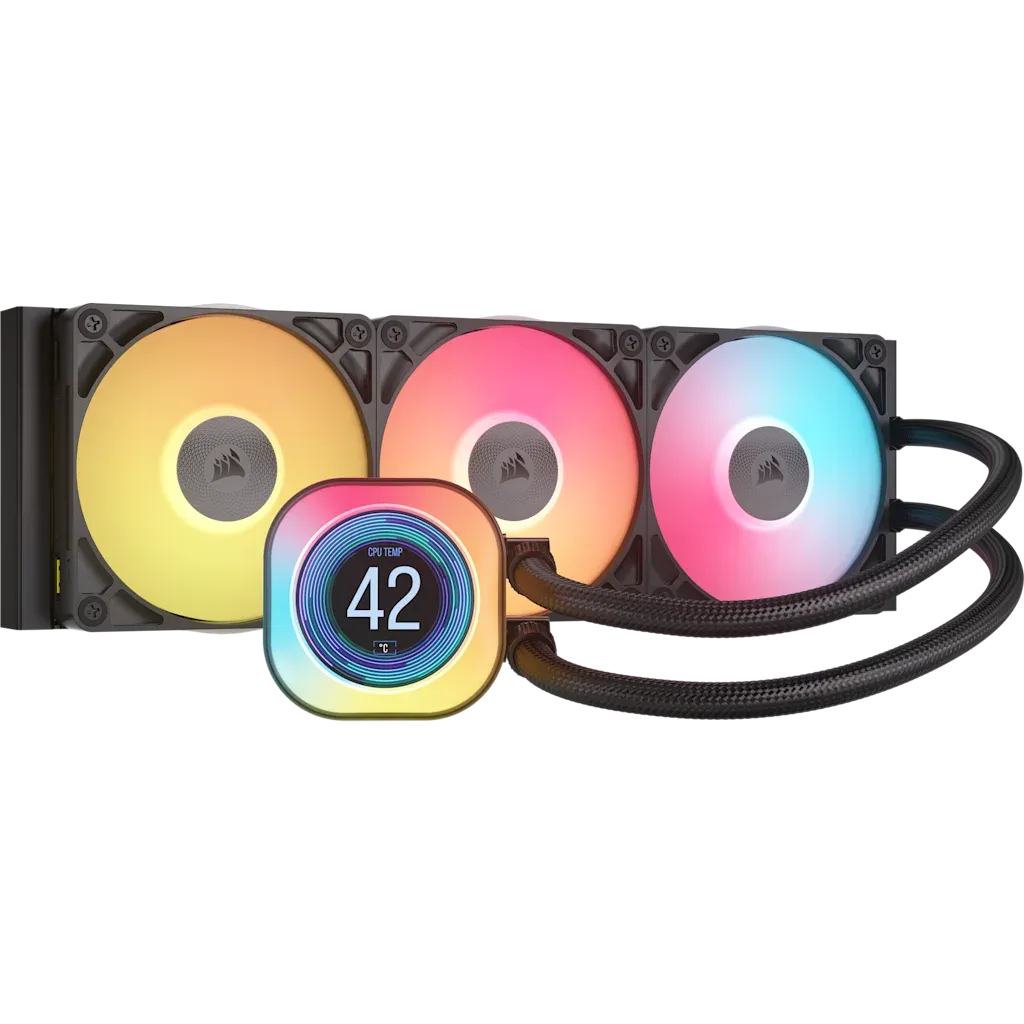

Corsair iCUE LINK TITAN 360 RX LCD Liquid CPU Cooler — Black
The Corsair iCUE LINK TITAN 360 RX LCD combines a 360mm aluminum radiator, Corsair’s FlowDrive cooling engine, a copper cold plate, and three RX120 RGB fans for high-performance cooling with streamlined digital control.
A customizable 2.1-inch IPS LCD displays temperatures, images, animations, and GIFs at 480 × 480 resolution and 30 FPS. The cooler integrates into the iCUE LINK ecosystem through the included System Hub, reducing cable clutter while providing synchronized cooling, lighting, and display control.
2.1″ IPS
480 × 480 LCD at 30 FPS
2,100 RPM
Maximum rated fan speed
68 RGB LEDs
Pump cap and three fans combined
Display temperatures, custom images, animated GIFs, logos, and visual presets.
High-airflow fans use AirGuide technology and Magnetic Dome bearings.
Corsair provides long-term manufacturer coverage subject to its warranty terms.

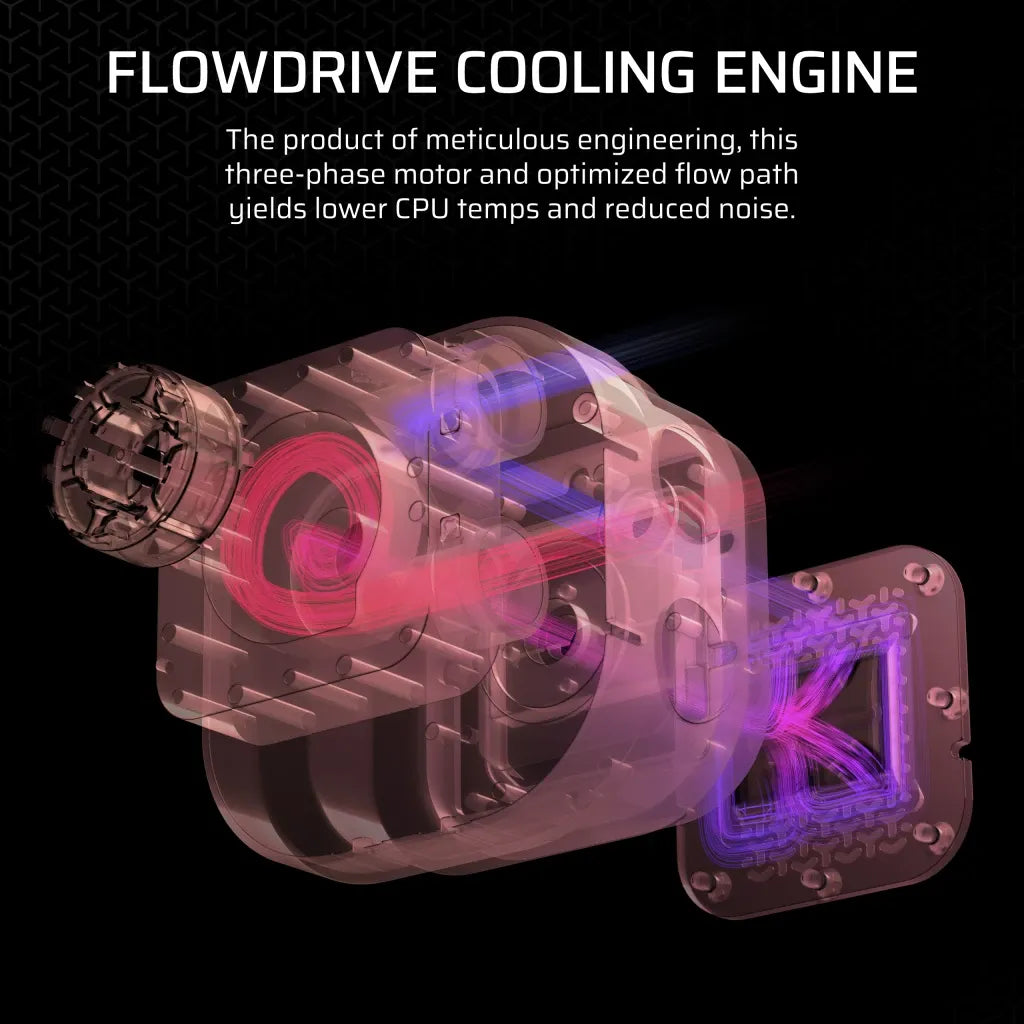

FlowDrive Cooling Engine
Efficient Three-Phase Pump and Precision Cold Plate
Corsair’s FlowDrive design combines a three-phase motor, efficient coolant flow, and a precision-engineered copper cold plate to improve contact with the processor’s integrated heat spreader.
Three-Phase Pump Motor
The FlowDrive engine is designed for smooth, efficient operation and strong thermal transfer.

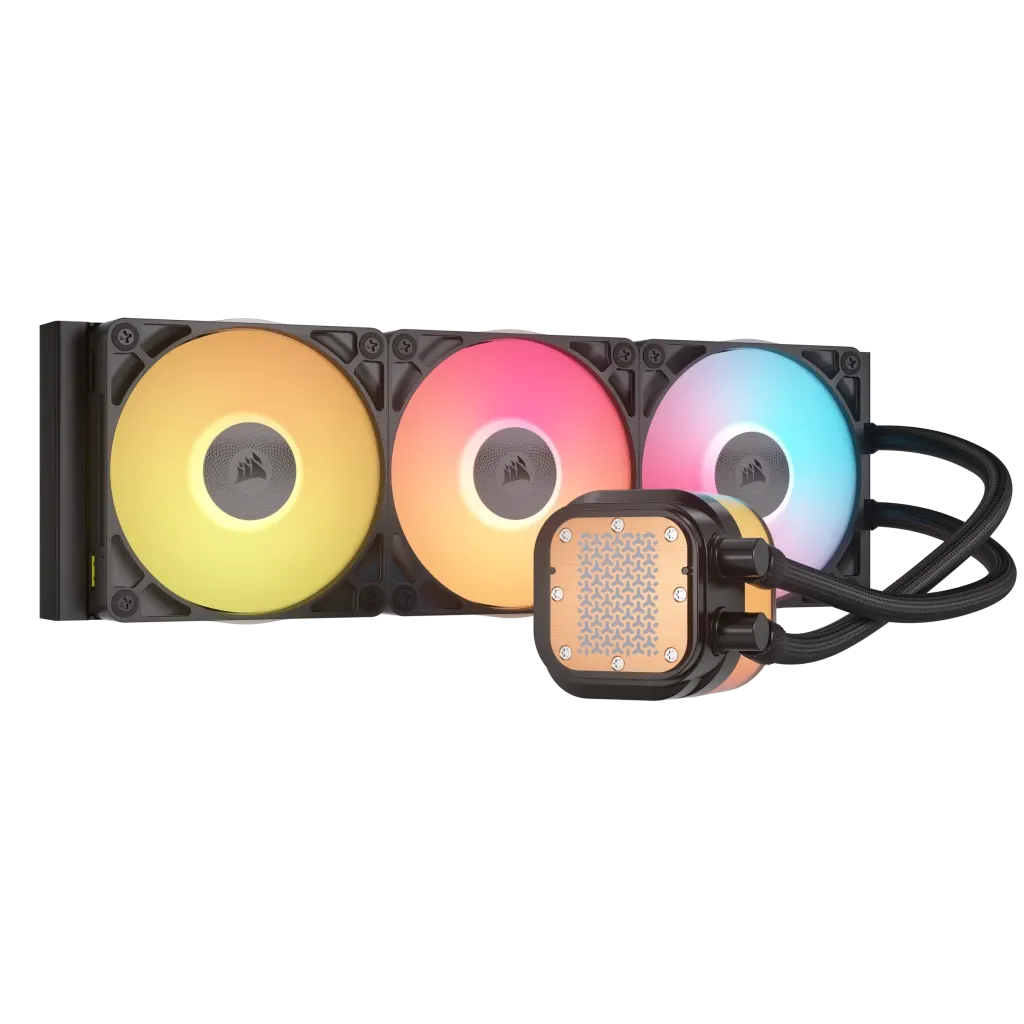

Precision Copper Cold Plate
The cold-plate profile is engineered to maximize contact with compatible Intel and AMD processors.
360mm Aluminum Radiator
A 396 × 120 × 27mm radiator provides the fin area needed for sustained triple-fan cooling.
Factory-Sealed AIO Design
The closed-loop cooler arrives assembled and does not require routine filling or draining.

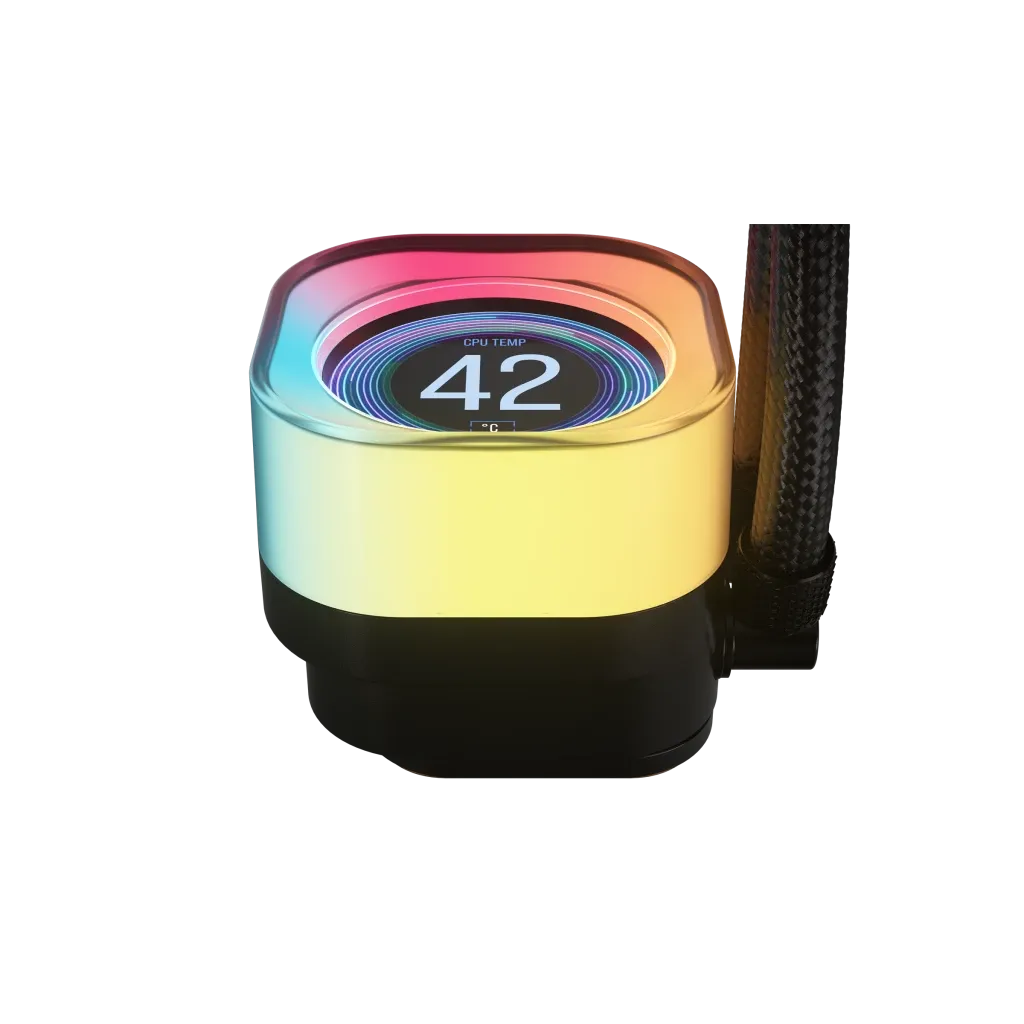

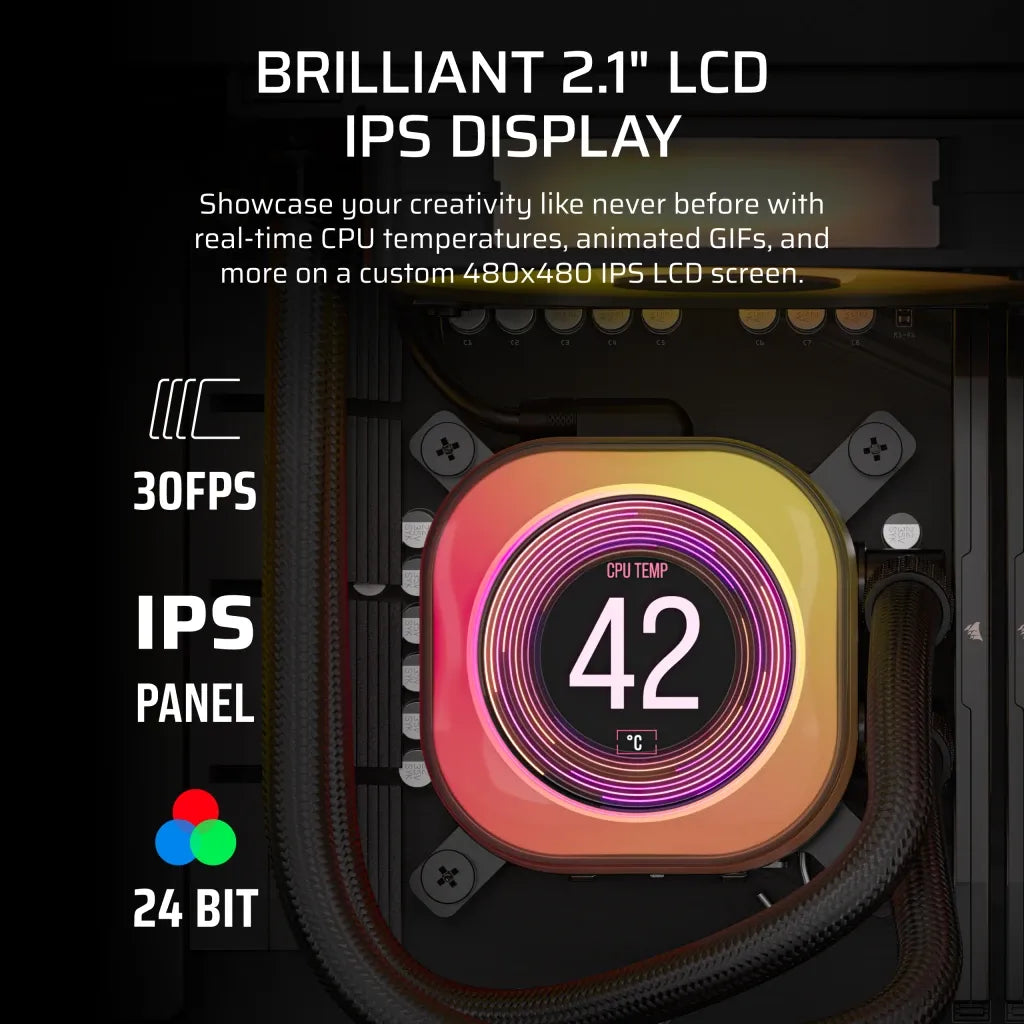

Brilliant IPS LCD Display
Show Temperatures, GIFs, Images, and Animations
The customizable display provides a bright visual centerpiece for system monitoring, artwork, animated media, and personalized themes through Corsair iCUE.
2.1-Inch IPS Panel
The square display provides wide viewing angles and a clean format for monitoring layouts and graphics.
480 × 480 at 30 FPS
High resolution and smooth playback support animated GIFs, images, and predefined effects.
600cd/m² Backlight
The bright screen remains visible through tempered-glass side panels and illuminated interiors.
Over 16.7 Million Colors
Full-color output supports detailed images, gauges, team logos, and personalized visual themes.

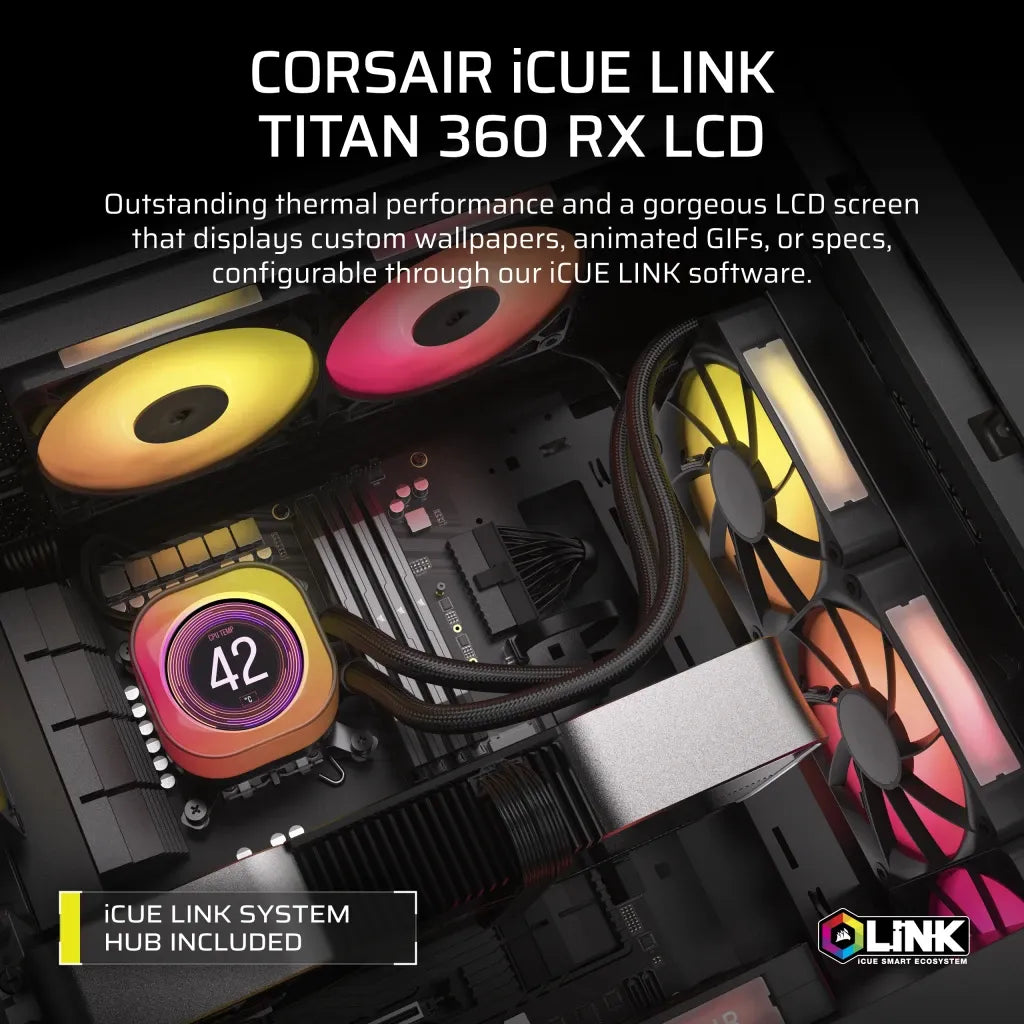

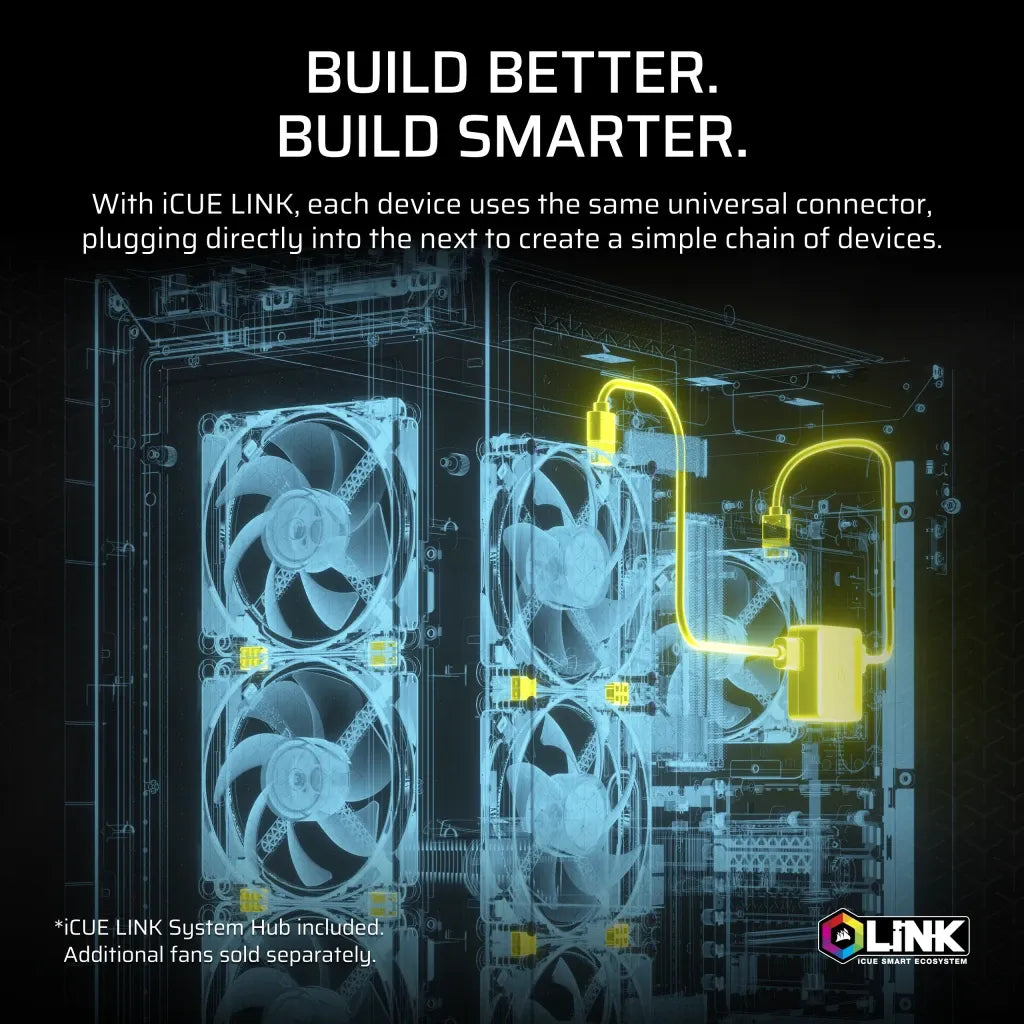

iCUE LINK Connectivity
One Digital Ecosystem for Cooling, Lighting, and Display Control
The included iCUE LINK System Hub connects compatible devices through universal digital cables, reducing traditional fan and RGB wiring while enabling centralized software control.
Streamlined Device Chain
Connect compatible iCUE LINK components in sequence instead of routing separate control cables for every device.
Digital Fan Control
Fan speeds, lighting, and supported monitoring functions are managed through the iCUE LINK ecosystem.
Included System Hub
The package includes the required iCUE LINK hub and connection hardware for the cooler system.
Corsair iCUE Software
Configure the LCD, lighting effects, cooling profiles, monitoring, and compatible Corsair devices from one interface.

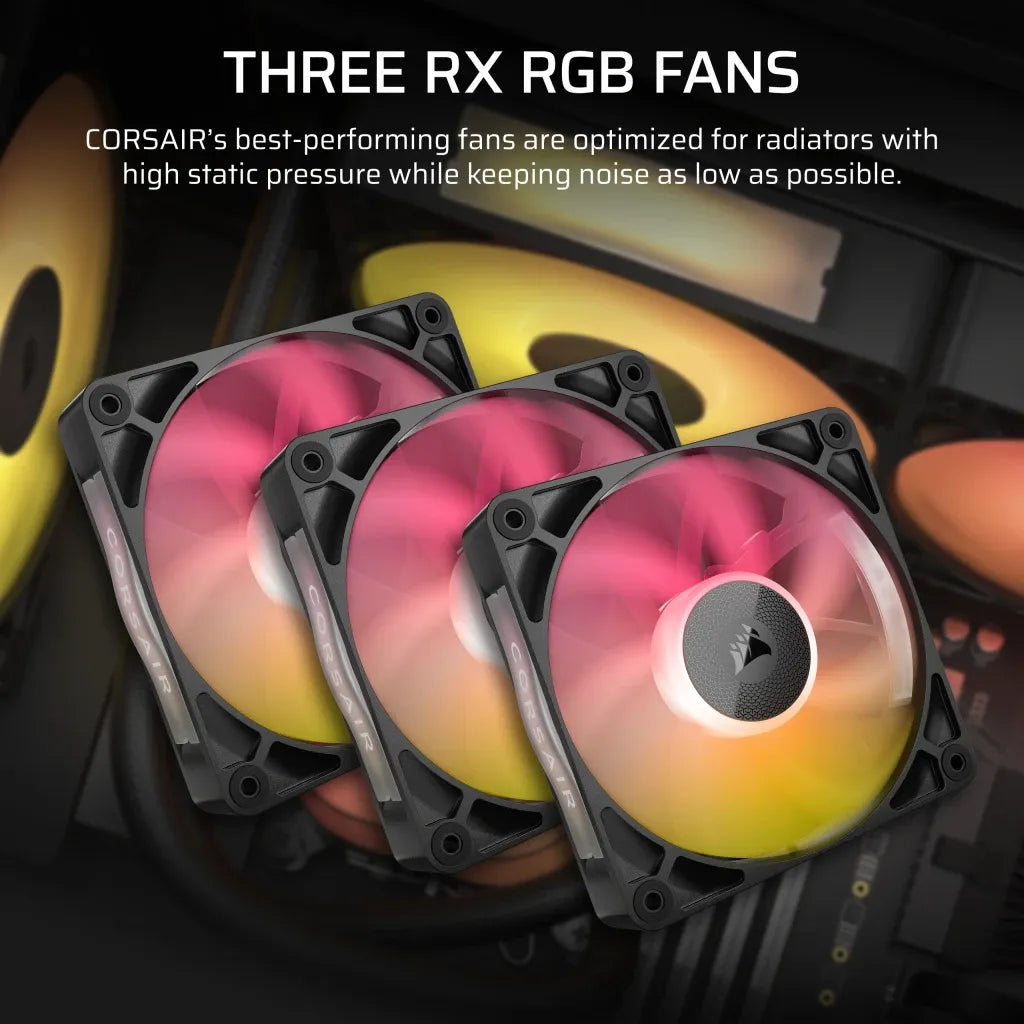

RX120 RGB Fan Performance
High Airflow and Static Pressure for Radiator Cooling
The three RX120 RGB fans are designed for radiator use, combining a wide digital speed range with focused airflow, strong static pressure, and durable Magnetic Dome bearings.
300–2,100 RPM ±10%
A wide controllable speed range supports quieter light-load operation and stronger airflow under load.
10.4–73.5 CFM Airflow
Each fan provides a broad listed airflow range for flexible cooling and acoustic tuning.
0.12–4.33mm H₂O Static Pressure
High static pressure helps move air through the radiator’s restrictive fin structure.
10–36 dBA Listed Noise
Actual acoustics vary with speed, radiator placement, case airflow, and complete system configuration.
Dynamic RGB Lighting
Sixty-Eight Individually Addressable LEDs
The pump-cap assembly contains 44 addressable LEDs, while each of the three RX120 RGB fans adds eight more for a total of 68 individually controllable LEDs across the cooler.
44 Pump and Cap LEDs
The illuminated pump-cap design surrounds the LCD with customizable RGB effects.
Eight LEDs per Fan
Each RX120 RGB fan adds individually addressable lighting around the radiator.
iCUE Lighting Profiles
Create synchronized effects, custom colors, and coordinated themes across compatible Corsair devices.

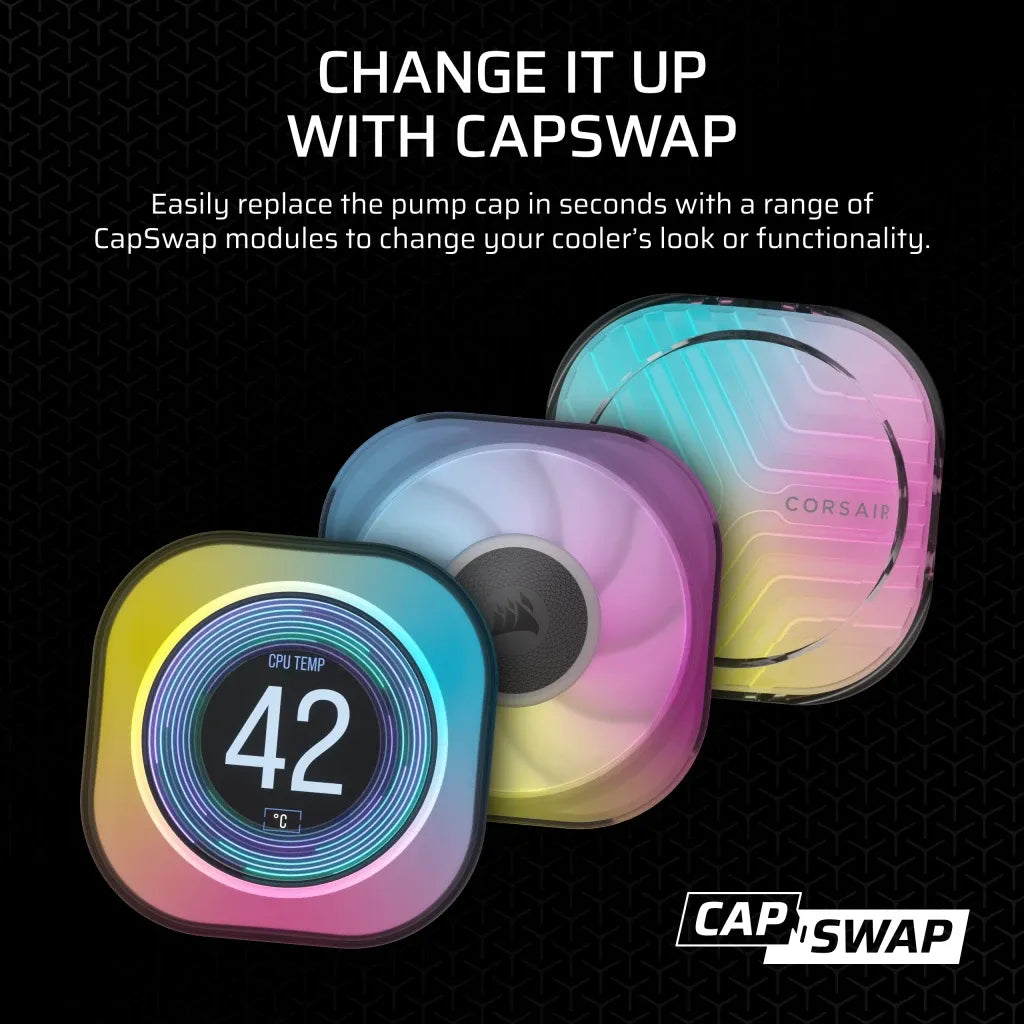

CapSwap Modular Design
The pump cap can be replaced with compatible Corsair CapSwap modules sold separately.
Modern Platform Compatibility
Intel LGA 1851 / 1700 and AMD AM5 / AM4
The included mounting hardware supports current mainstream Intel and AMD desktop platforms. Confirm case clearance, motherboard headers, and iCUE LINK power requirements before installation.
Intel LGA 1851
Supports compatible Intel Core Ultra desktop processors and motherboards using LGA 1851.
Intel LGA 1700
Compatible with supported Intel desktop processors and motherboards using LGA 1700.
AMD AM5
Supports current-generation AMD Ryzen desktop processors on compatible AM5 motherboards.
AMD AM4
Supports a broad range of compatible Ryzen desktop processors using the AM4 platform.
Complete LCD Cooling Feature Set
Key Features
A 360mm liquid-cooling loop, customizable IPS LCD, digital RGB fans, FlowDrive pump, iCUE LINK connectivity, modern socket support, and six-year manufacturer coverage.
360mm All-in-One Liquid CPU Cooler
Black Cooler Finish
FlowDrive Three-Phase Cooling Engine
Precision-Engineered Copper Cold Plate
360mm Aluminum Radiator
396 × 120 × 27mm Radiator Dimensions
450mm Low-Permeation Sleeved Tubes
Three Corsair iCUE LINK RX120 RGB Fans
300–2,100 RPM ±10% Fan Speed
10.4–73.5 CFM Fan Airflow
0.12–4.33mm H₂O Static Pressure
10–36 dBA Listed Fan Noise
AirGuide Anti-Vortex Fan Vanes
Magnetic Dome Fan Bearings
Digital Fan Control through iCUE LINK
44 Addressable RGB LEDs on Pump and Cap
Eight Addressable RGB LEDs per Fan
Sixty-Eight Addressable RGB LEDs Total
2.1-Inch IPS LCD Display
480 × 480 LCD Resolution
30 FPS LCD Refresh Rate
600cd/m² LCD Brightness
Over 16.7 Million Display Colors
Corsair iCUE Display and Lighting Control
Included iCUE LINK System Hub
CapSwap Modular Pump-Cap Support
Intel LGA 1851 and 1700 Support
AMD AM5 and AM4 Support
Six-Year Limited Manufacturer Warranty
Installation Planning
Check 360mm Clearance and iCUE LINK Connections
Confirm the processor socket, radiator clearance, internal USB availability, hub power connection, and cable routing before installation.
Confirm a Full 360mm Mount
Account for the 277mm radiator length, 27mm radiator thickness, 25mm fans, tubes, and nearby motherboard components.
Reserve the Required Headers
The iCUE LINK System Hub and LCD control require the motherboard and power connections specified in Corsair’s installation guide.
Power the System Hub Correctly
Use the included Corsair power cable and follow the manual rather than substituting an unsupported adapter.
Route the 450mm Tubes Carefully
Avoid sharp bends, excessive tension, pump interference, and contact with fan blades or moving components.
Official Product Media
TITAN RX LCD Product Videos
Official Corsair-hosted media highlighting the cooler design, IPS LCD, RGB lighting, and FlowDrive cooling system.
Official Corsair iCUE LINK TITAN RX LCD product overview.
Official Corsair media demonstrating the customizable IPS LCD.
Official Corsair FlowDrive cooling-engine animation.
Official Corsair iCUE LINK component-ecosystem animation.
Playback availability can depend on the browser, network, and Shopify content-security settings.
Designed for Premium Connected Builds
Perfect For
Ideal for gaming PCs, creator systems, black showcase builds, iCUE LINK ecosystems, LCD-focused configurations, and cases with a properly supported 360mm radiator position.
High-Performance Triple-Fan Cooling
A 360mm radiator and three high-pressure fans provide substantial cooling surface area for demanding processors.
Customizable LCD and Sixty-Eight RGB LEDs
Display monitoring data, artwork, GIFs, and coordinated RGB effects through Corsair iCUE.
Streamlined Digital Connectivity
The included System Hub provides a foundation for compatible iCUE LINK fans, cooling, and lighting devices.
Detailed Cooling Hardware
Technical Specifications
Verified specifications for the LCD, radiator, fans, pump, RGB lighting, iCUE LINK hardware, dimensions, tubing, socket compatibility, weight, package contents, and warranty.
| Brand | Corsair |
| Product Model | iCUE LINK TITAN 360 RX LCD |
| Manufacturer Part Number | CW-9061023-WW |
| Product Type | All-in-One Liquid CPU Cooler with LCD |
| Color | Black |
| Cooling Engine | Corsair FlowDrive with three-phase motor |
| Radiator Class | 360mm |
| Radiator Dimensions | 396 × 120 × 27mm / approximately 15.6 × 4.7 × 1.1 in |
| Radiator Material | Aluminum |
| Cold Plate Material | Copper |
| Tubing Material | Black-sleeved low-permeation rubber |
| Tubing Length | 450mm / approximately 17.7 in |
| Number of Included Fans | 3 |
| Included Fans | Corsair iCUE LINK RX120 RGB |
| Fan Dimensions | 120 × 120 × 25mm |
| Fan Control Method | Digital through iCUE LINK |
| Fan Speed | 300–2,100 RPM ±10% |
| Fan Airflow | 10.4–73.5 CFM per fan |
| Fan Static Pressure | 0.12–4.33mm H₂O |
| Listed Fan Noise | 10–36 dBA |
| Fan Airflow Technology | AirGuide anti-vortex vanes |
| Fan Bearing | Magnetic Dome |
| Pump and Cap Lighting | 44 individually addressable RGB LEDs |
| Fan Lighting | 8 individually addressable RGB LEDs per fan |
| Total Addressable LEDs | 68 |
| Display Type | 2.1-inch IPS LCD |
| Display Resolution | 480 × 480 pixels |
| Display Frame Rate | 30 FPS |
| Display Brightness | 600cd/m² |
| Display Color Depth | Over 16.7 million colors |
| Display Content | Supported temperatures, system information, images, animations, and GIFs |
| Display and Lighting Control | Corsair iCUE on compatible Windows systems |
| Connectivity | Corsair iCUE LINK digital ecosystem |
| Included Controller | iCUE LINK System Hub |
| Modular Pump Cap | Compatible with supported Corsair CapSwap modules sold separately |
| AMD Socket Support | AM5, AM4 |
| Intel Socket Support | LGA 1851, LGA 1700 |
| Listed Product Dimensions | 396 × 125 × 125mm |
| Listed Product Weight | 2.59kg / approximately 5.7 lb |

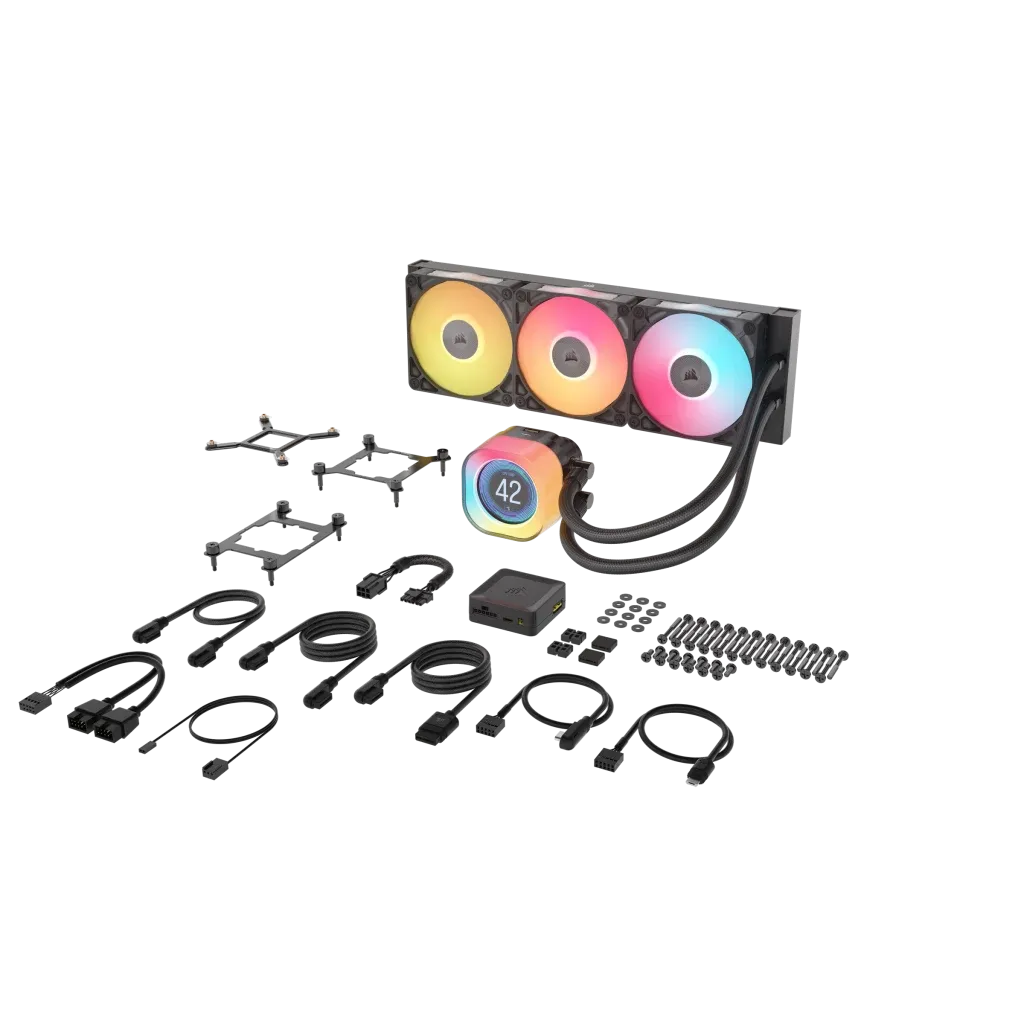

| Package Contents | TITAN 360 RX LCD cooler, three RX120 RGB fans, iCUE LINK System Hub, Intel and AMD mounting hardware, radiator and fan screws, power and data cables, bridge connectors, and installation documentation |
| Manufacturer Warranty | 6-year limited warranty, subject to Corsair’s terms |
Shop With Confidence
Why Buy From OPCBleu?
OPCBleu combines carefully selected technology products with transparent service, Canadian delivery, and a customer-first buying experience.
Premium 360mm Cooling with LCD and iCUE LINK Control.
The Corsair iCUE LINK TITAN 360 RX LCD combines FlowDrive cooling, three RX120 RGB fans, a customizable IPS display, sixty-eight addressable LEDs, modern socket support, and streamlined digital connectivity.
OPCBleu focuses on performance, reliability, and value so Canadian customers can shop for PC hardware with confidence.
🚚
Fast Canadian Shipping
Quick order processing and delivery across Canada.
🛡️
30-Day Returns
A clear return process for eligible purchases.
🔒
Secure Checkout
Protected payment processing through trusted providers.
💙
Quebec-Based Store
Technology enthusiasts serving customers across Canada.
Helpful Answers
FAQs
Answers to common questions about the exact white model, LCD features, RGB lighting, fan performance, iCUE LINK connectivity, socket compatibility, case clearance, and warranty coverage.
What is the exact model number?
This is the black Corsair iCUE LINK TITAN 360 RX LCD, manufacturer part number CW-9061023-WW.
Which CPU sockets are supported?
Corsair lists Intel LGA 1851 and LGA 1700, along with AMD AM5 and AM4.
What can the LCD display?
The 2.1-inch IPS screen can show supported processor temperatures, system information, static images, animated GIFs, and predefined animations through Corsair iCUE.
What are the LCD specifications?
The display uses a 480 × 480 IPS panel operating at 30 FPS with a 600cd/m² backlight and support for over 16.7 million colors.
Which fans are included?
Three Corsair iCUE LINK RX120 RGB fans are included. Each fan is rated from 300 to 2,100 RPM ±10%, up to 73.5 CFM, and up to 4.33mm H₂O static pressure.
How many RGB LEDs are included?
The pump and cap contain 44 individually addressable LEDs, while each of the three fans adds eight, for a total of 68 LEDs across the cooler.
Is the iCUE LINK System Hub included?
Yes. The package includes the iCUE LINK System Hub and the required cooler connection hardware for the three-fan 360mm system.
Does the cooler use a normal PWM fan header?
The fans use digital iCUE LINK control rather than conventional direct PWM control. Follow Corsair’s installation guide for the System Hub, power, USB, and tachometer connections.
How large is the radiator?
The radiator measures approximately 396 × 120 × 27mm. Installed thickness increases when the 25mm fans are attached, so confirm full 360mm case clearance before purchase.
What is CapSwap?
CapSwap allows the pump cap to be replaced without tools using compatible Corsair modules sold separately.
Does the cooler require coolant maintenance?
No routine filling or draining is required. It is a factory-sealed all-in-one liquid cooler.
What warranty is included?
Corsair provides a six-year limited manufacturer warranty, subject to its current regional warranty terms.
