High-capacity output supports demanding gaming systems, professional workstations, and enthusiast upgrades.
1000W DIGITAL POWER. 80 PLUS PLATINUM. ATX 3.1 AND PCIE 5.1.

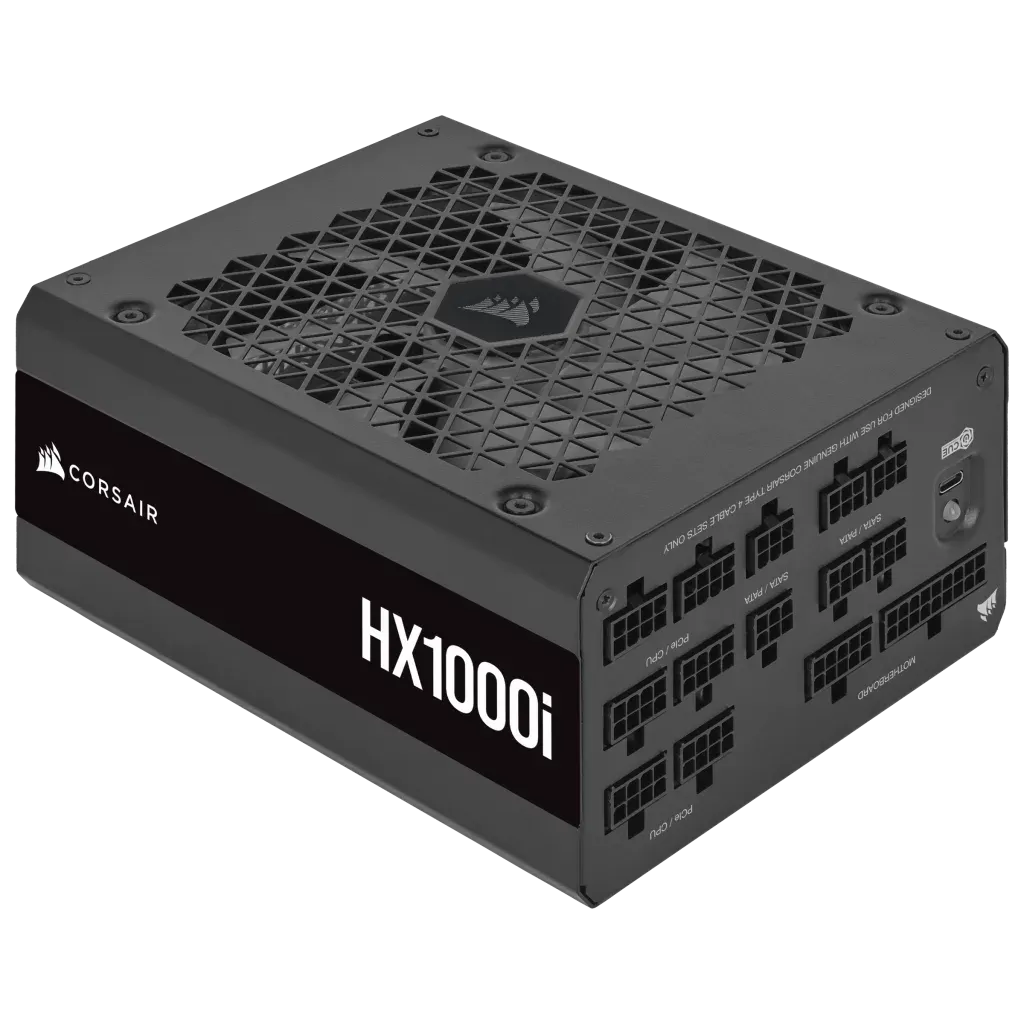

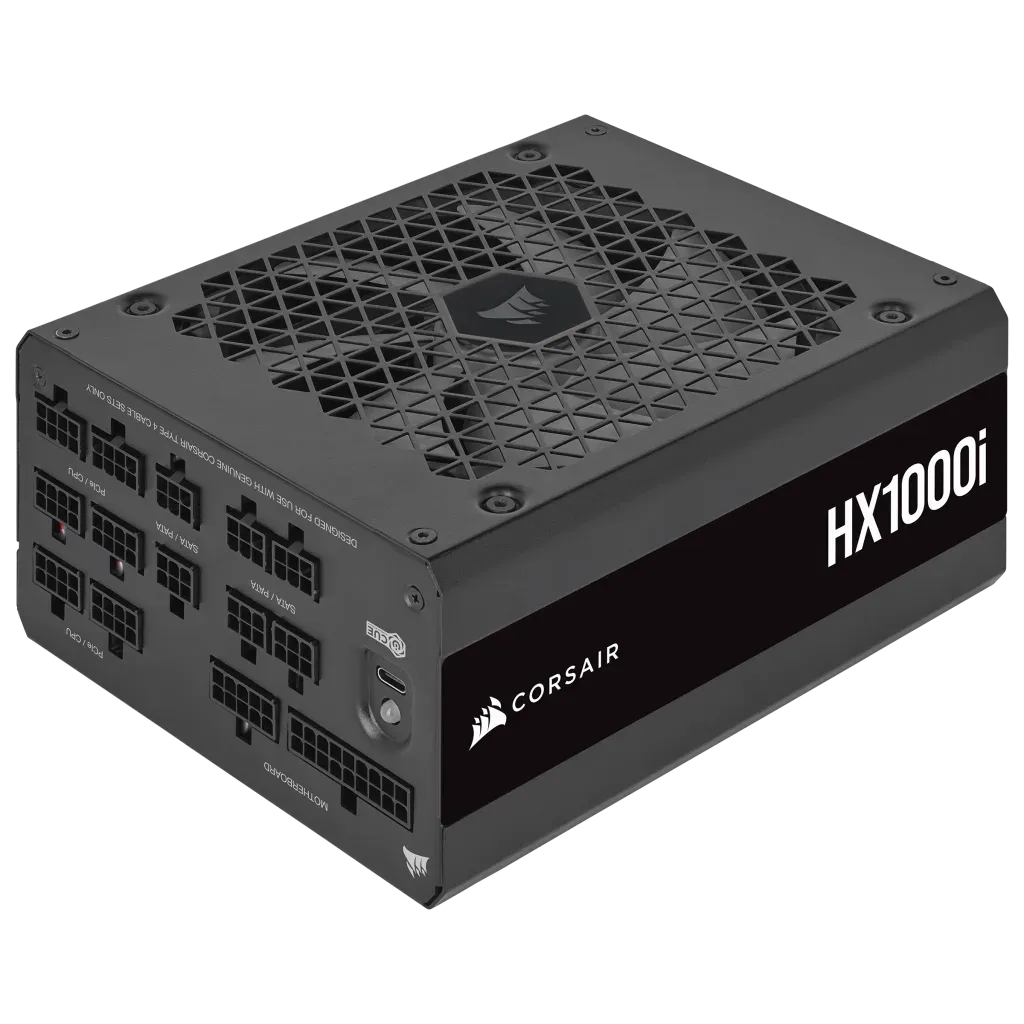

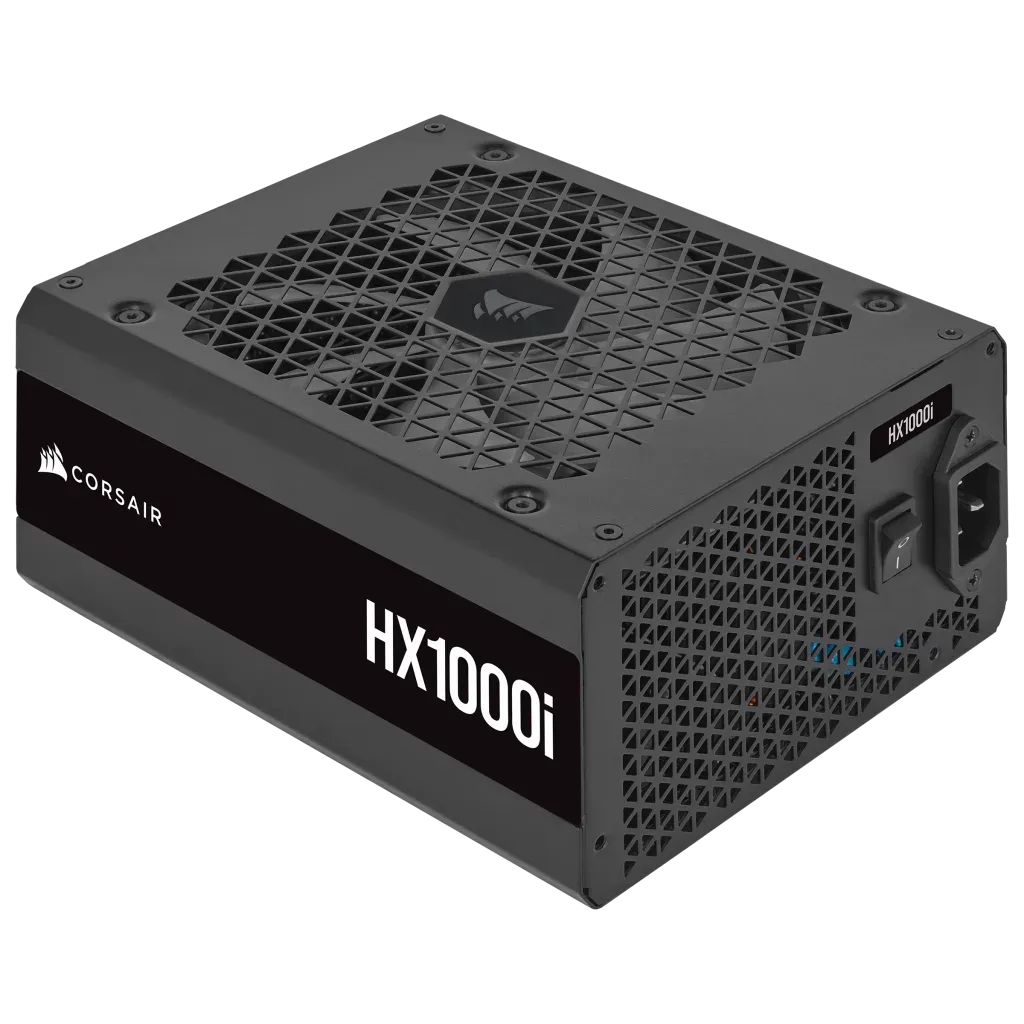

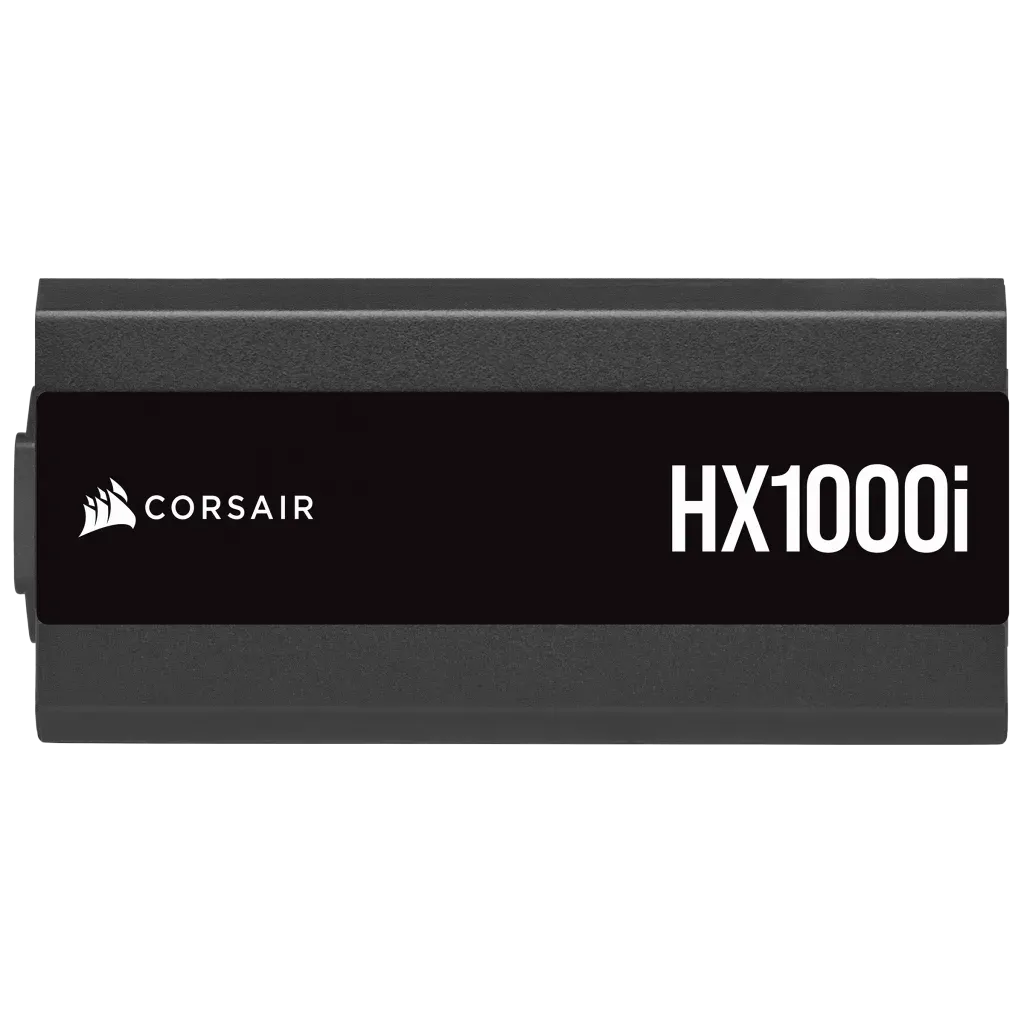

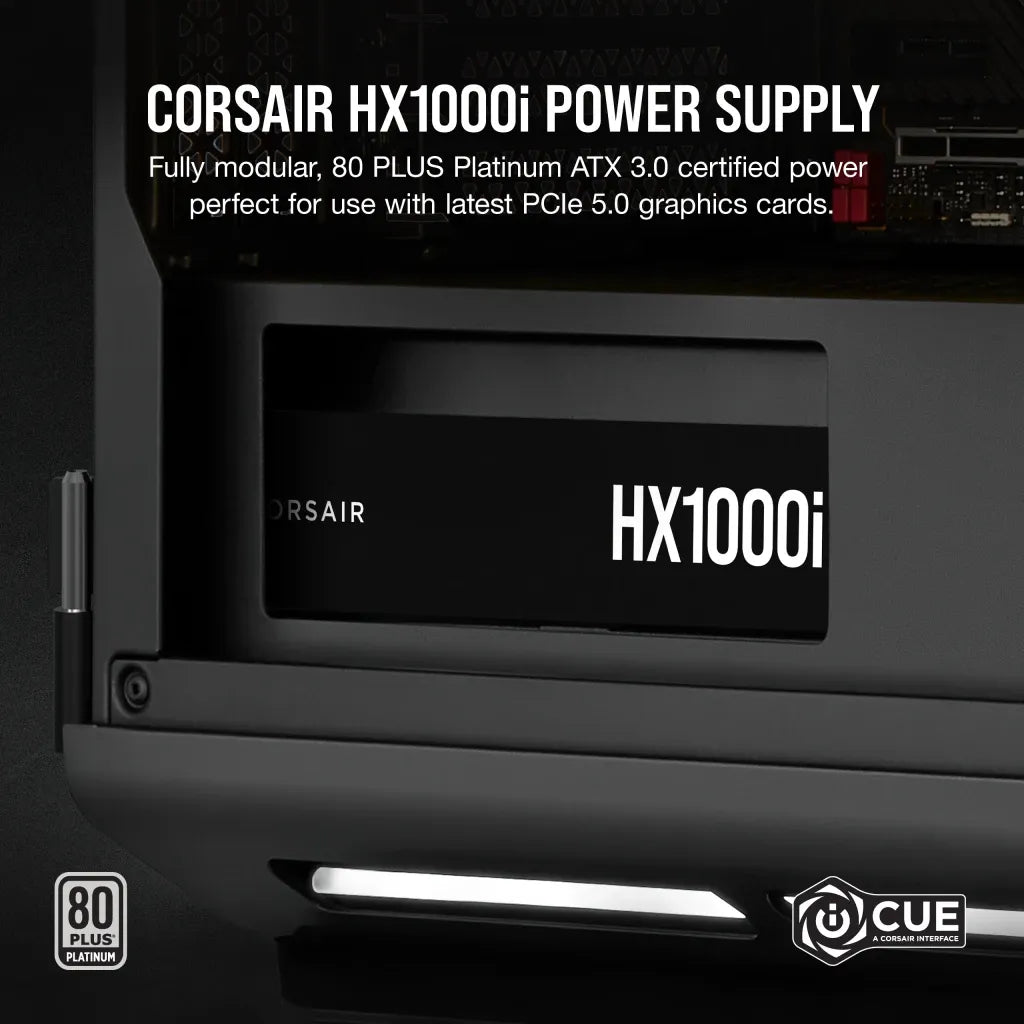

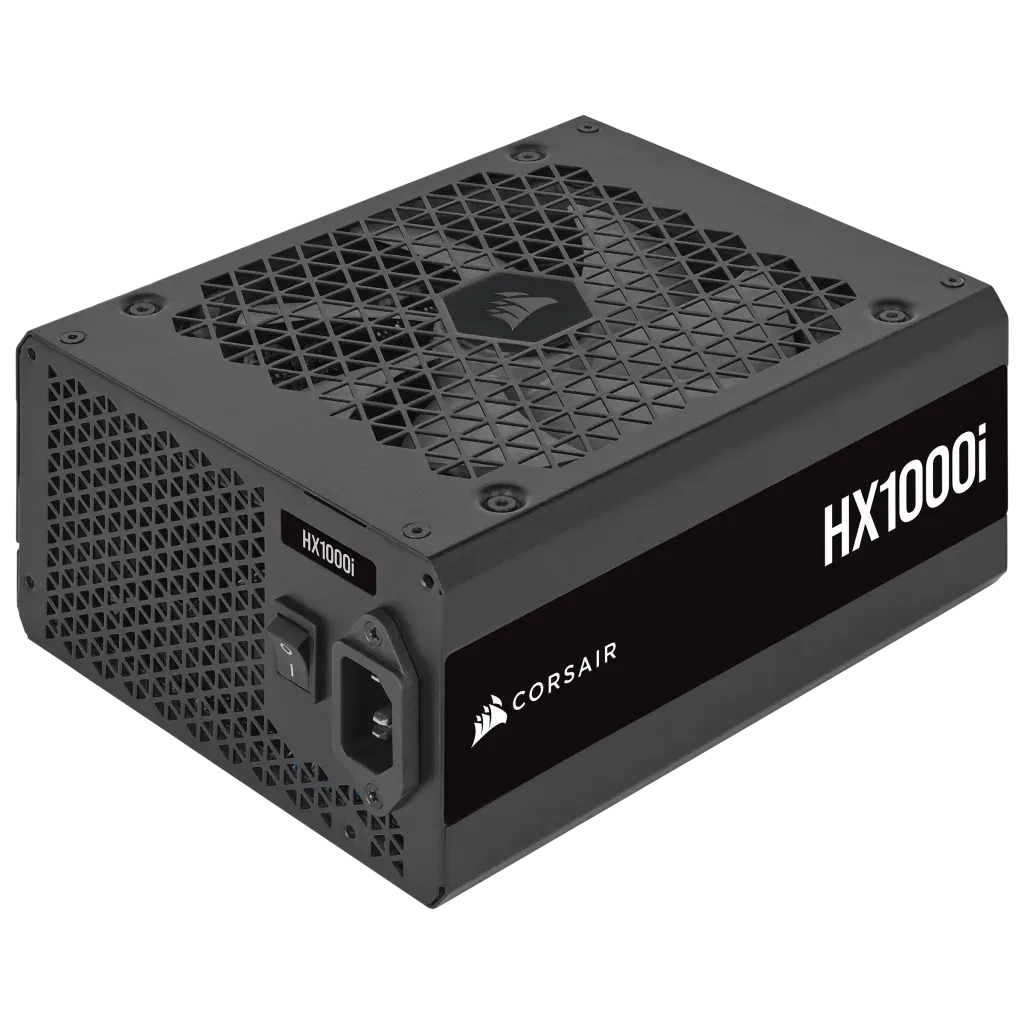

Corsair HX1000i Fully Modular Ultra-Low Noise Platinum ATX 1000W Power Supply
The Corsair HX1000i delivers 1000 watts of continuous digital power with 80 PLUS Platinum and Cybenetics Platinum efficiency, fully modular cabling, and formal ATX 3.1 / PCIe 5.1 certification for demanding modern gaming, workstation, and enthusiast PC builds.
A native-style PCIe 5.1 12V-2x6 GPU cable, 105°C-rated Japanese capacitors, a quiet 140mm fluid dynamic bearing fan, Zero RPM mode, and Corsair iCUE monitoring provide a premium balance of performance, efficiency, acoustics, control, and long-term reliability.
1000W
Continuous digital power
Platinum
80 PLUS and Cybenetics efficiency
10 Years
Limited manufacturer warranty
80 PLUS and Cybenetics Platinum ratings help reduce wasted energy and internal heat.
Formal compliance prepares the unit for current transient-load and power-delivery requirements.
Corsair backs the HX1000i with long-term manufacturer coverage subject to its regional terms.
Platinum Power for Demanding Systems
1000 Watts of Continuous Digital Output
The HX1000i provides a strong single +12V output for high-performance processors, graphics cards, cooling hardware, storage, and expansion devices in enthusiast-class builds.
1000W Continuous Rating
The listed output is continuous power rather than a short-duration peak figure.
83.3A +12V Output
Up to 999.6W is available on the primary +12V output for modern CPU and GPU power delivery.
Enthusiast-Class Capacity
Suitable for compatible high-end gaming, streaming, content-creation, simulation, and workstation systems.

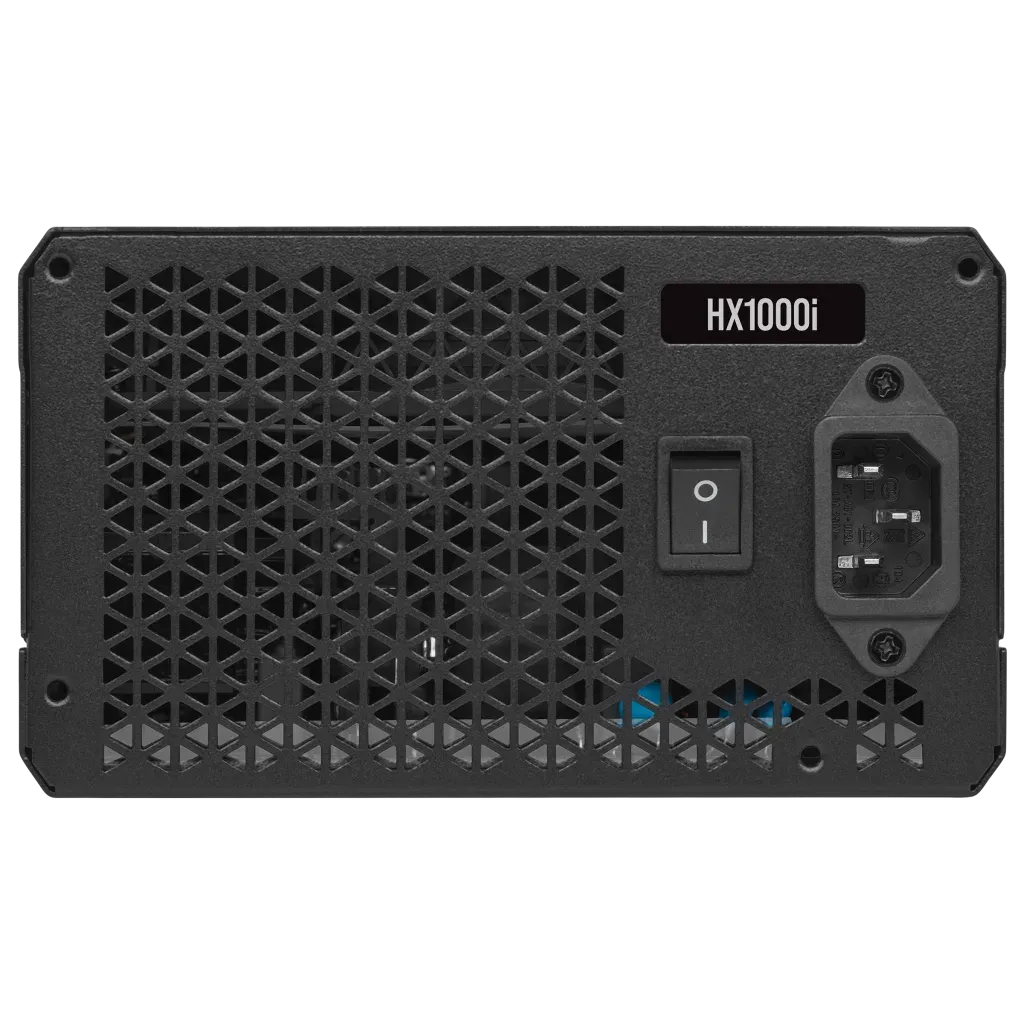

Wide-Range AC Input
The 100–240V input range supports operation across compatible electrical regions with the correct approved power cord.
Ready for Modern GPU Power Demands
ATX 3.1 and PCIe 5.1 Certification
Formal compliance with current power-supply standards helps the HX1000i handle demanding transient loads and modern graphics-card power connections.
ATX 3.1 Certified
The power platform meets current ATX requirements for reliability, efficiency, and transient-load response.
PCIe 5.1 Certified
The included GPU power solution is designed for compatible current-generation graphics cards.

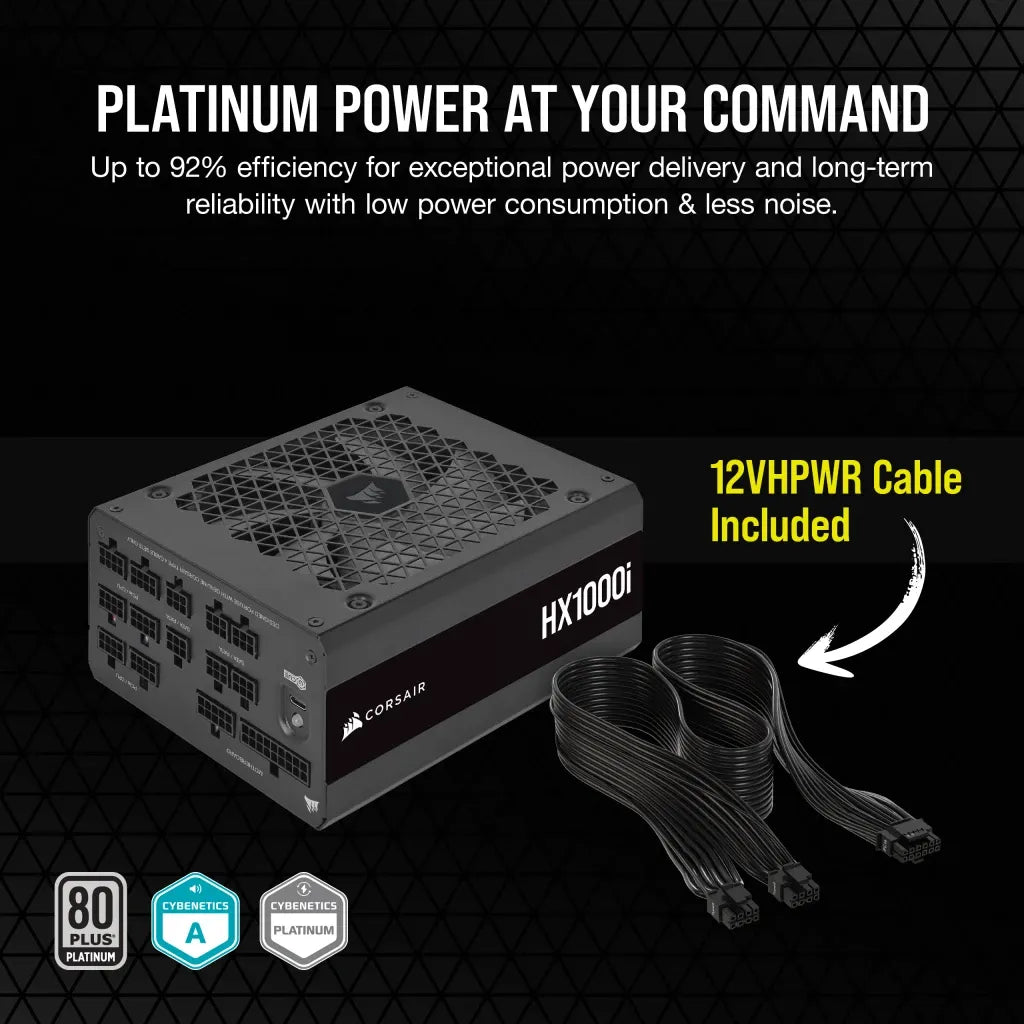

12V-2x6 GPU Cable Included
A dedicated 12+4-pin cable supports compatible high-power graphics cards without using the adapter supplied with some GPUs.
Transient-Load Capability
ATX 3.1 design requirements account for rapid temporary changes in system power demand.
Less Wasted Energy and Heat
80 PLUS Platinum and Cybenetics Platinum Efficiency
High conversion efficiency helps reduce power lost as heat, supporting quieter fan behaviour, lower internal temperatures, and efficient high-load operation.
80 PLUS Platinum
Independent certification verifies high efficiency across defined loads and input conditions.
Cybenetics Platinum
An additional efficiency rating provides broader measurement across multiple operating points.
Reduced Waste Heat
Efficient conversion means less electrical energy must be removed as internal heat.
Cybenetics A Noise Rating
The certified acoustic rating reflects the complete cooling behaviour across tested operating conditions.
Real-Time Digital Power Control

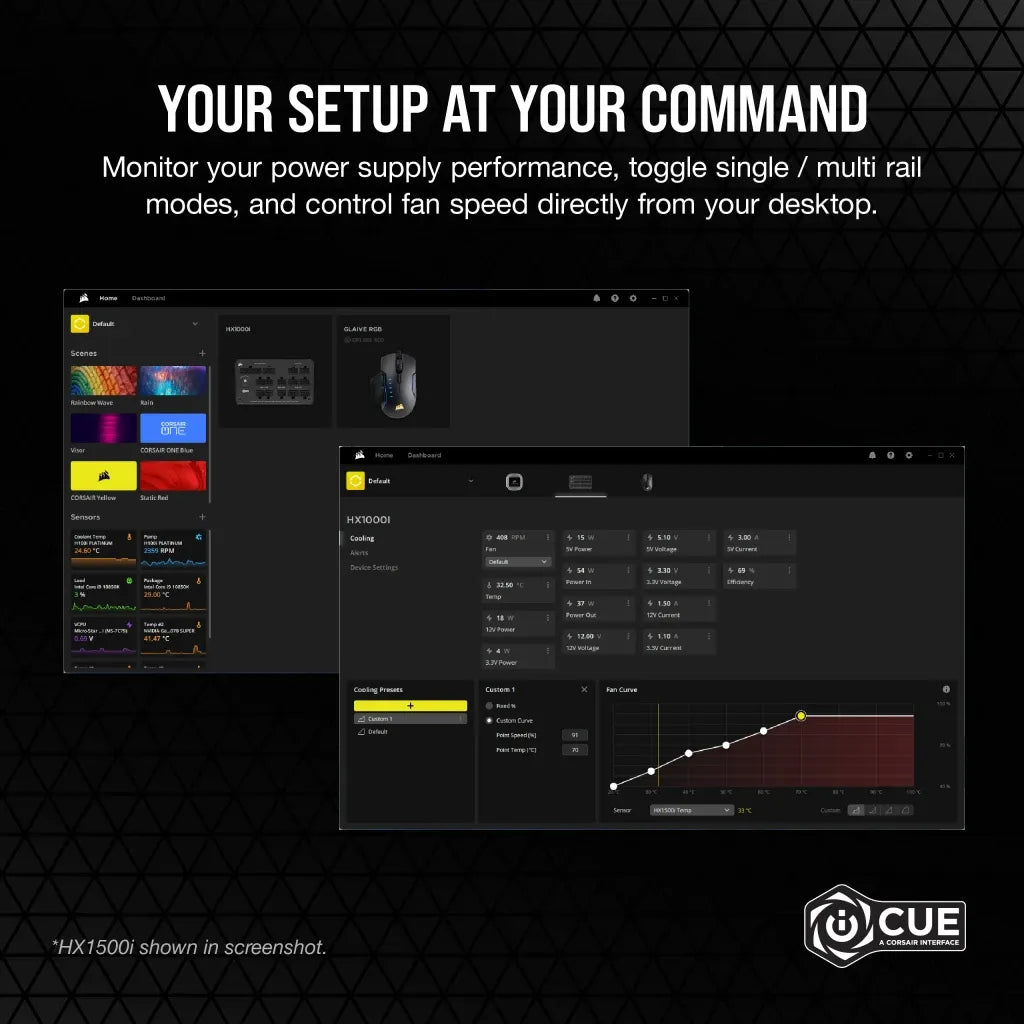

Corsair iCUE Monitoring, Fan Profiles, and OCP Modes
Connect the included internal USB cable to expose supported power-supply data and controls inside Corsair iCUE.
Power and Efficiency Monitoring
View supported input, output, efficiency, voltage, temperature, and fan-speed data directly from the desktop.
Custom Fan Profiles
Create compatible cooling presets that balance temperature and acoustic preferences.
Single- or Multi-Rail OCP
Switch between single-rail and multi-rail over-current protection modes through the PSU settings.
Custom Alerts
Configure supported temperature alerts and automated behaviours inside iCUE.

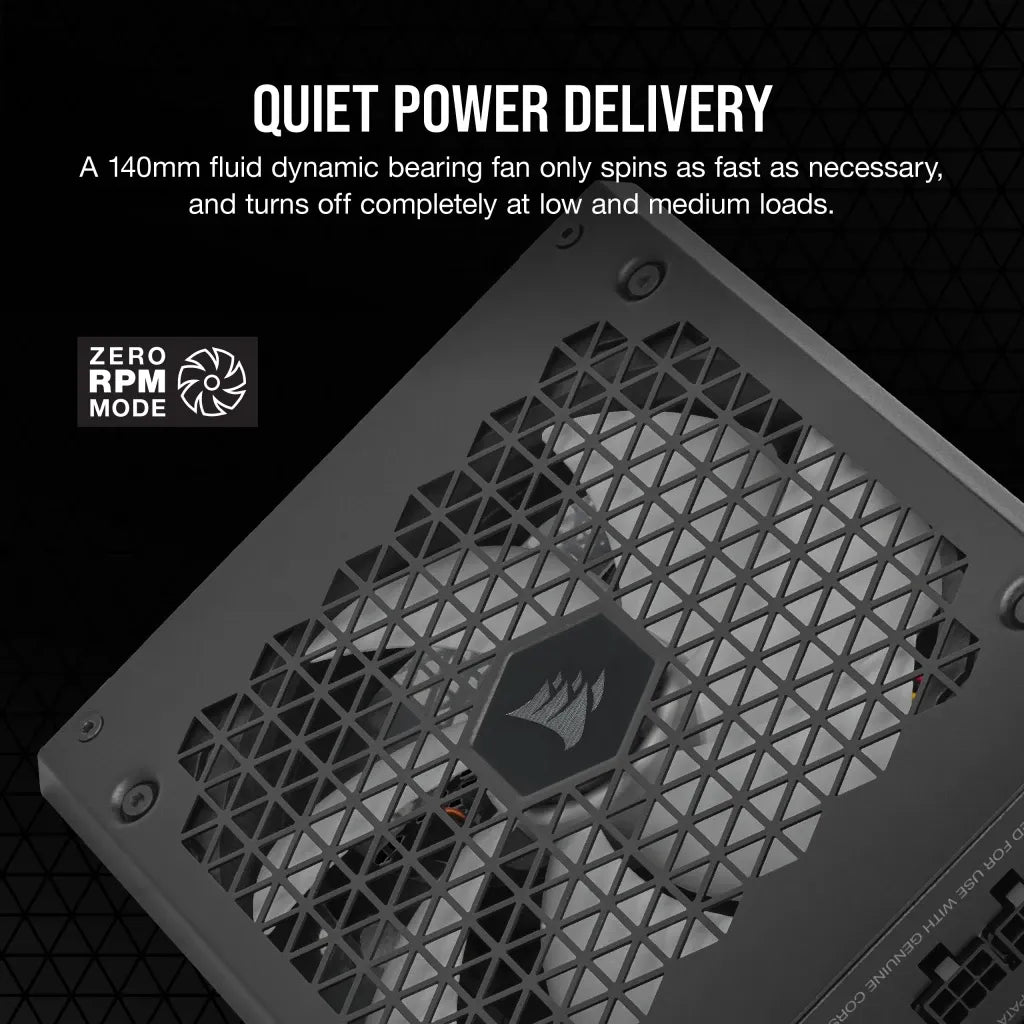

Ultra-Low Noise Cooling

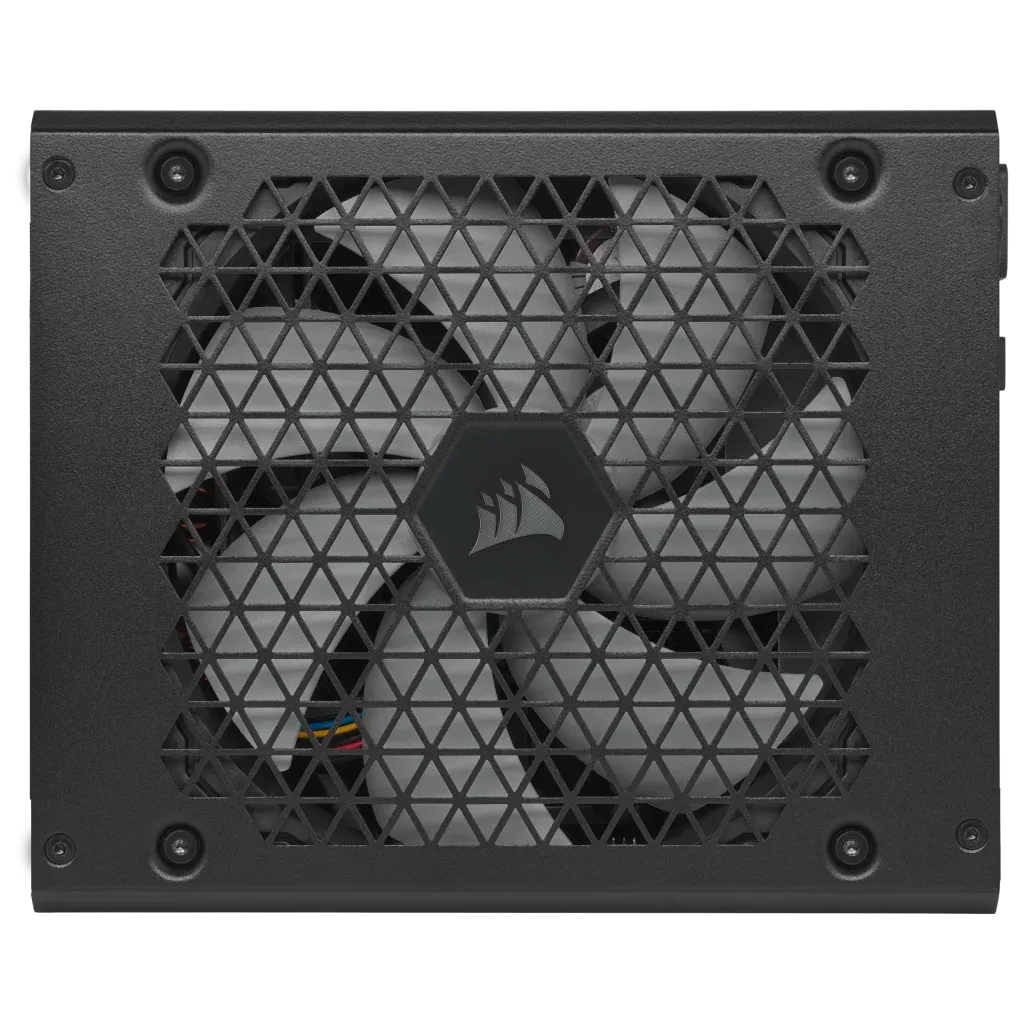

140mm Fluid Dynamic Bearing Fan with Zero RPM Mode
The large low-friction fan remains stopped under suitable low and medium loads, then increases speed only as required for internal cooling.
140mm Fan
A large fan can move the required cooling air at lower rotational speeds than smaller alternatives.
Fluid Dynamic Bearing
The durable bearing design supports smooth, low-noise operation and long service life.
Zero RPM Mode
The fan can remain completely stopped during suitable low and medium load conditions.
Load-Based Cooling
Fan speed rises only as needed according to power, temperature, configuration, and custom iCUE settings.
Premium Internal Components
105°C-Rated Japanese Capacitors and Comprehensive Protection
High-temperature electrolytic capacitors and multiple electrical protection systems support stable long-term operation in demanding builds.
100% Japanese Electrolytic Capacitors
Premium capacitor selection supports consistent output quality and long-term reliability.
105°C Temperature Rating
The capacitor specification provides additional thermal margin inside high-performance systems.
Multiple Protection Circuits
OVP, OCP, OTP, SCP, and OPP help shut the power supply down during supported abnormal conditions.
100,000-Hour Listed MTBF
Corsair lists a mean time between failures of 100,000 hours under its defined test conditions.
Install Only the Cables You Need
Fully Modular Cabling for Cleaner Builds
Every DC output cable is removable, helping reduce unused cable clutter and simplifying routing through modern cases and PSU shrouds.

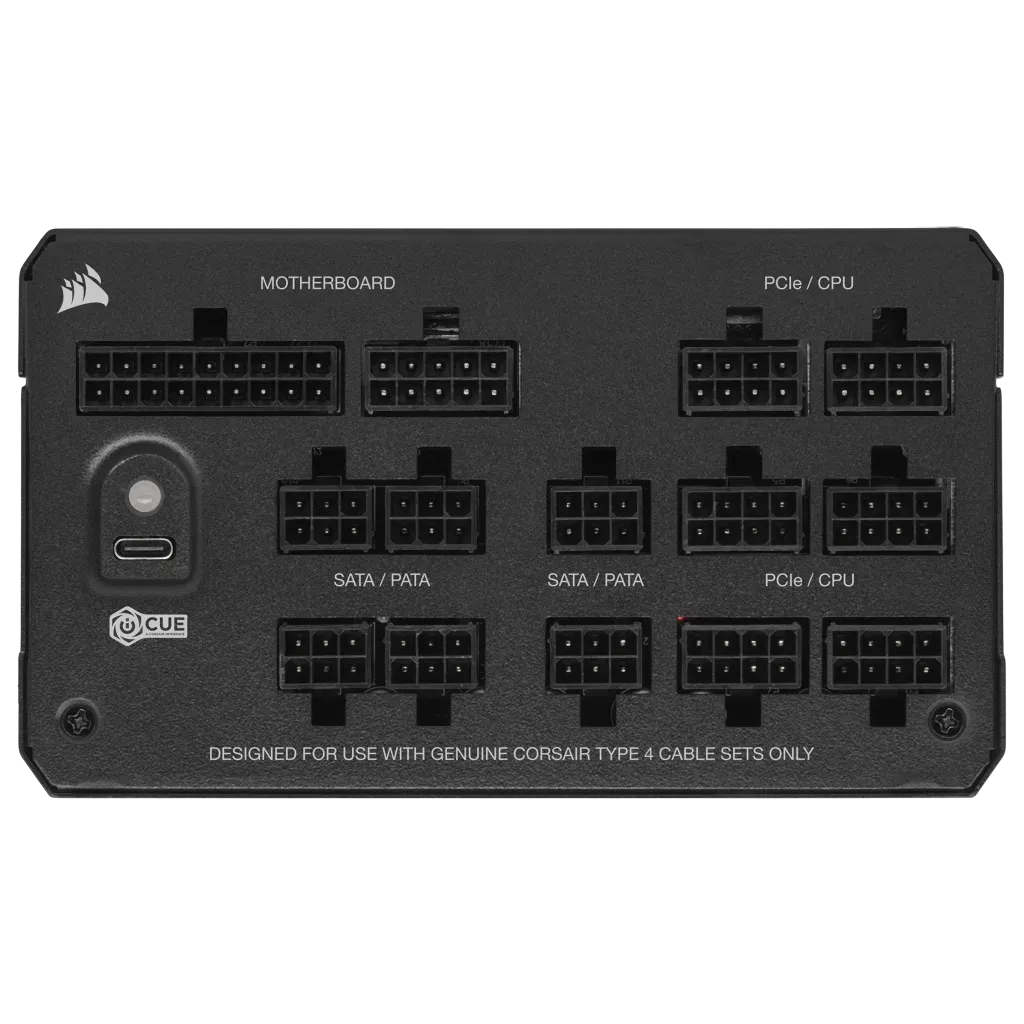

Fully Modular Interface
Connect only the motherboard, CPU, GPU, storage, and peripheral cables required by the system.
Cleaner Cable Management
Fewer unused cables can improve appearance, access, and airflow around the power-supply chamber.
Flat Black and Sleeved Cables
The mixed cable set is designed for practical routing and a discreet appearance inside dark cases.
Use Only Approved Compatible Cables
Modular PSU cables are not universally interchangeable; use the supplied cables or replacements explicitly approved by Corsair.
Complete Platinum PSU Feature Set
Key Features
Digital 1000W power, modern ATX and PCIe compliance, Platinum efficiency, quiet cooling, premium internal components, extensive modular cabling, software control, and ten-year coverage.
1000 watts of continuous power
Fully digital HXi Series power-supply platform
ATX 3.1 certified
PCIe 5.1 certified
Included PCIe 5.1 12V-2x6 GPU power cable
Designed for modern high-performance graphics cards
80 PLUS Platinum efficiency certification
Cybenetics Platinum efficiency rating
Cybenetics A noise rating
Fully modular cable system
140mm fluid dynamic bearing cooling fan
Zero RPM fan mode at low and medium loads
Custom fan curves through Corsair iCUE
Real-time power and efficiency monitoring through iCUE
Single-rail and multi-rail OCP modes selectable through iCUE
USB-C to motherboard USB-header monitoring cable included
105°C-rated 100% Japanese electrolytic capacitors
Single +12V output rated up to 83.3A
Up to 999.6W available on the +12V output
Wide-range 100–240V AC input
Over-voltage protection
Over-current protection
Over-temperature protection
Short-circuit protection
Over-power protection
Two EPS / ATX12V 8-pin CPU power cables
Two dual PCIe 8-pin GPU power cables
Eight SATA power connectors
Eight PATA peripheral connectors
Flat black and sleeved modular cables
ATX chassis dimensions of 180 × 150 × 86mm
100,000-hour listed MTBF
Ten-year limited manufacturer warranty

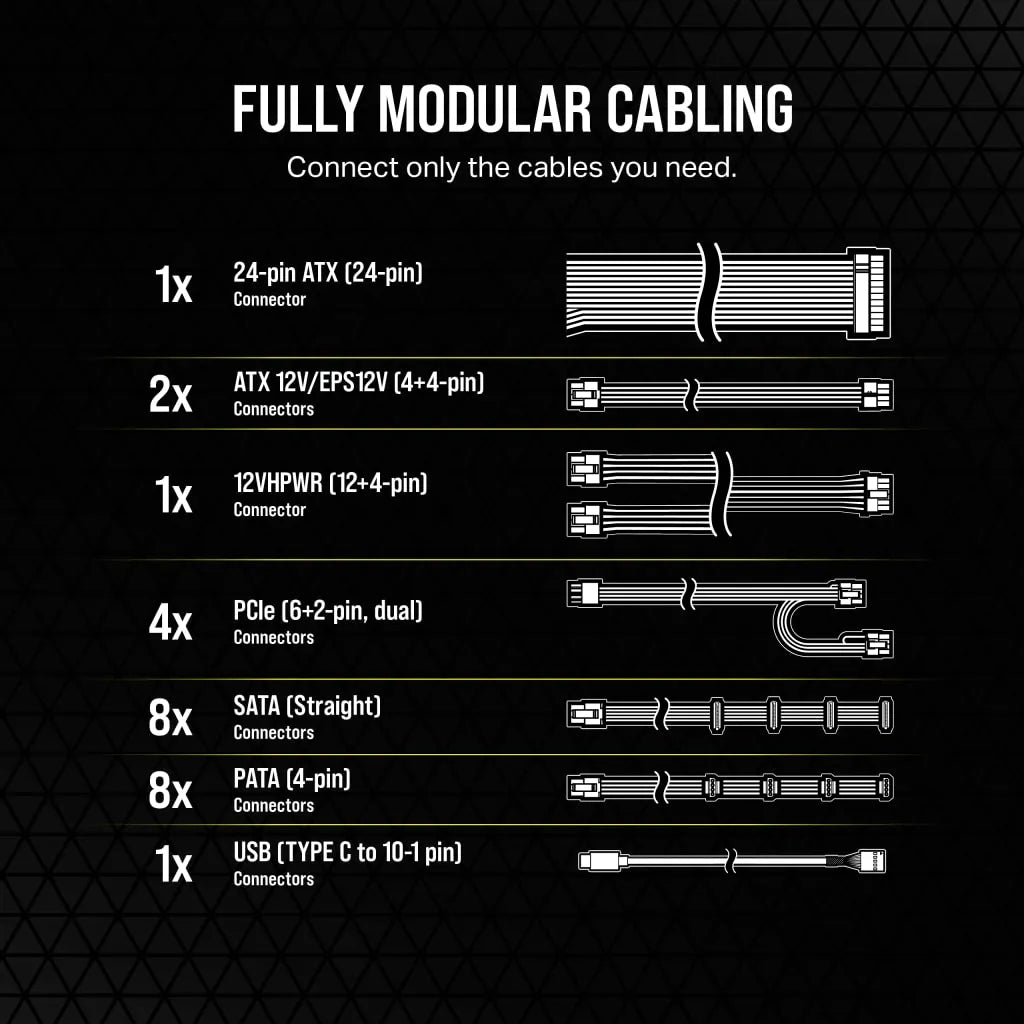

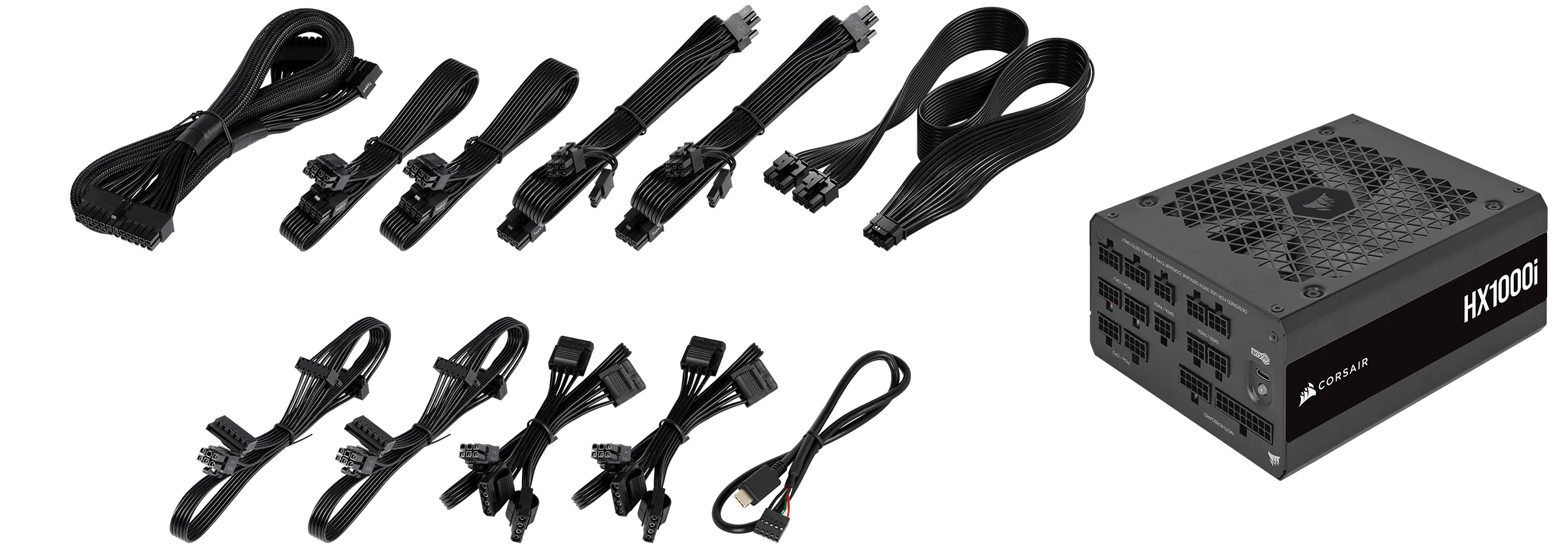

Included Modular Cable Set
Power Connections and Cable Lengths
The included cable set supports modern motherboards, high-end graphics cards, SATA storage, accessories, and digital iCUE communication.
| Cable | Quantity and Connectors | Approximate Length |
|---|---|---|
| ATX Motherboard | 1 cable, 1 × 24-pin connector | 610mm |
| EPS / ATX12V CPU | 2 cables, 1 × 8-pin (4+4) connector per cable | 650mm each |
| PCIe 8-Pin GPU | 2 cables, 2 × 8-pin (6+2) connectors per cable | 775mm each |
| PCIe 5.1 12V-2x6 GPU | 1 cable, 1 × 12+4-pin connector | 650mm |
| SATA Power | 2 cables, 4 SATA connectors per cable | 800mm each |
| PATA Peripheral | 2 cables, 4 PATA connectors per cable | 750mm each |
| Internal USB Monitoring | 1 USB Type-C to motherboard 10-1 pin cable | 525mm |
Installation Planning
Check Case Clearance, Cable Routing, and GPU Requirements
A successful installation requires enough PSU length, connector access, cable-bend clearance, ventilation, and the correct power cables for every component.
Confirm 180mm PSU Clearance
Check the case specification and allow extra room for modular plugs, cable bends, and nearby drive cages.
Keep the Intake Vent Clear
Orient the fan toward a filtered case intake when supported and avoid blocking airflow beneath the unit.
Fully Seat GPU Power Connectors
Insert the 12V-2x6 connector completely and avoid sharp cable bends immediately beside the plug.
Follow Component Power Guidance
Confirm the graphics card and processor recommendations, connector count, expected load, and overclocking requirements.
Official Documentation
HXi Manual and Quick-Start Guide
Use Corsair's official documentation for cable identification, installation, internal USB setup, iCUE controls, safety information, and warranty requirements.
HXi Series Quick-Start Guide
Corsair iCUE Setup
Connect the included USB cable to a compatible motherboard header before configuring monitoring, fan profiles, alerts, or OCP mode.
Power-Supply Safety
Never open the PSU enclosure; hazardous stored electrical energy may remain even after disconnection.
Ten-Year Warranty
Retain the purchase receipt and follow Corsair's current regional warranty and return requirements.
Everything Required for Installation
What's Included
The package includes the digital power supply, full modular cable set, monitoring cable, installation hardware, and North American AC power cord.
HX1000i Power Supply
1000W digital ATX 3.1 / PCIe 5.1 power supply with Platinum efficiency and a 140mm cooling fan.
Fully Modular Cable Set
Motherboard, CPU, PCIe 8-pin, 12V-2x6, SATA, PATA, and internal USB cables are included.
Mounting Screws and Cable Ties
Basic installation hardware helps secure the PSU and organize cables inside the chassis.
North American AC Power Cord
The CP-9020259-NA package includes the correct regional mains cable for compatible outlets.
Premium Power for High-End Builds
Perfect For
Ideal for high-performance gaming PCs, professional workstations, powerful graphics cards, heavily upgraded systems, and builders who want digital monitoring and long warranty coverage.
Modern GPU Power and Strong +12V Capacity
ATX 3.1, PCIe 5.1, 1000W output, and the included 12V-2x6 cable support compatible high-end gaming hardware.
Efficient Continuous Power for Sustained Loads
Platinum efficiency, Japanese capacitors, quiet cooling, and digital monitoring suit demanding long-duration workloads.
Fully Modular Cabling and iCUE Control
Clean cable routing, fan profiles, alerts, and selectable OCP modes provide additional installation and control flexibility.
Exact North American Model Data
Technical Specifications
Detailed specifications for the North American Corsair HX1000i ATX 3.1 power supply, including the exact manufacturer SKU, retail barcode, outputs, cables, dimensions, and warranty.
| Brand | Corsair |
| Product Name | HX1000i Fully Modular Ultra-Low Noise Platinum ATX 1000W Power Supply |
| Manufacturer SKU / MPN | CP-9020259-NA |
| Barcode / UPC / GTIN-12 | 840006697350 |
| Model | HX1000i |
| Series | Corsair HXi Series |
| Product Revision | ATX 3.1 / PCIe 5.1 North American version |
| Colour | Black |
| Power-Supply Type | Fully digital ATX desktop power supply |
| Continuous Power | 1000W |
| ATX Form Factor | ATX |
| ATX12V Version | 3.1 |
| PCIe Standard | PCIe 5.1 |
| Modularity | Fully modular |
| 80 PLUS Efficiency | Platinum |
| Cybenetics Efficiency | Platinum |
| Cybenetics Noise Rating | A |
| AC Input Voltage | 100–240V AC |
| AC Input Current | 13A–6.5A |
| AC Input Frequency | 47–63Hz |
| +3.3V Maximum Load | 25A |
| +5V Maximum Load | 25A |
| Combined +3.3V / +5V Output | 150W maximum |
| +12V Maximum Load | 83.3A |
| +12V Maximum Output | 999.6W |
| -12V Maximum Load | 0.3A / 3.6W |
| +5V Standby Maximum Load | 3A / 15W |
| Fan Size | 140mm |
| Fan Bearing | Fluid dynamic bearing |
| Zero RPM Mode | Yes |
| Digital Monitoring | Corsair iCUE through the included internal USB cable |
| iCUE Functions | Power monitoring, efficiency data, fan control, alerts, and PSU mode configuration |
| OCP Mode | Selectable single-rail or multi-rail through Corsair iCUE |
| Capacitors | 105°C-rated 100% Japanese electrolytic capacitors |
| ATX Motherboard Cable | 1 × 24-pin ATX cable, approximately 610mm |
| CPU Power Cables | 2 × EPS / ATX12V 8-pin (4+4) cables, approximately 650mm each |
| Legacy GPU Power Cables | 2 × dual PCIe 8-pin (6+2 / 6+2) cables, approximately 775mm each |
| Modern GPU Power Cable | 1 × PCIe 5.1 12V-2x6 / 12+4-pin cable, approximately 650mm |
| SATA Power Cables | 2 cables with 4 connectors each; 8 SATA connectors total |
| PATA Power Cables | 2 cables with 4 connectors each; 8 PATA connectors total |
| Internal Monitoring Cable | 1 × USB Type-C to motherboard 10-1 pin cable, approximately 525mm |
| Cable Style | Sleeved and flat black modular cables |
| Protection Features | OVP, OCP, OTP, SCP, and OPP |
| Multi-GPU Ready | Yes |
| Dimensions | 180 × 150 × 86mm / 7.09 × 5.91 × 3.39 in |
| Weight | 3.71kg / approximately 8.2 lb |
| Listed MTBF | 100,000 hours |
| Warranty | Ten-year limited manufacturer warranty |
Shop With Confidence
Why Buy From OPCBleu?
OPCBleu combines carefully selected PC hardware with transparent product information, Canadian delivery, and a customer-first buying experience.
Platinum Digital Power for Demanding Modern Systems.
The Corsair HX1000i combines 1000W continuous output, ATX 3.1 and PCIe 5.1 certification, Platinum efficiency, fully modular cables, iCUE monitoring, quiet Zero RPM cooling, Japanese capacitors, and a ten-year warranty.
OPCBleu focuses on performance, reliability, and value so Canadian customers can shop for PC components with confidence.
🚚
Fast Canadian Shipping
Quick order processing and delivery across Canada.
🛡️
30-Day Returns
A clear return process for eligible purchases.
🔒
Secure Checkout
Protected payment processing through trusted providers.
💙
Quebec-Based Store
Technology enthusiasts serving customers across Canada.
Helpful Answers
FAQs
Answers about the exact model, SKU, barcode, ATX 3.1 certification, modern GPU cable, efficiency, fan behaviour, iCUE monitoring, modular cables, protection features, fitment, and package contents.
What is the exact SKU and barcode?
The North American HX1000i ATX 3.1 model uses manufacturer SKU CP-9020259-NA. Its UPC / GTIN-12 retail barcode is 840006697350.
Is this the HX1000i or HX1000i SHIFT?
This is the standard HX1000i with conventional rear-mounted modular cable connectors. It is not the HX1000i SHIFT model with side-mounted connectors.
Is the HX1000i ATX 3.1 and PCIe 5.1 certified?
Yes. Corsair formally lists this revision as ATX 3.1 and PCIe 5.1 certified for current high-performance PC hardware.
Does it include a cable for modern high-end graphics cards?
Yes. The package includes a PCIe 5.1 12V-2x6 / 12+4-pin GPU power cable. Use only the cable supplied for this Corsair power supply or another cable explicitly approved as compatible by Corsair.
What efficiency certifications does it have?
The HX1000i carries an 80 PLUS Platinum efficiency certification and a Cybenetics Platinum efficiency rating. Actual efficiency varies with input voltage, load, temperature, and operating conditions.
Does the cooling fan run all the time?
No. The 140mm fluid dynamic bearing fan supports Zero RPM mode, allowing the fan to remain stopped during suitable low and medium load conditions.
What can Corsair iCUE monitor or control?
With the included internal USB cable connected, iCUE can display supported power and efficiency data, manage fan profiles and alerts, and switch between single-rail and multi-rail over-current protection modes.
Is the power supply fully modular?
Yes. Every DC output cable is detachable, allowing the builder to install only the cables required by the system.
How many CPU and GPU power cables are included?
Corsair lists two EPS / ATX12V 8-pin CPU cables, two dual PCIe 8-pin GPU cables, and one PCIe 5.1 12V-2x6 / 12+4-pin GPU cable.
What protections are included?
The HXi platform includes over-voltage, over-current, over-temperature, short-circuit, and over-power protection. These protections do not replace correct component selection, cable installation, ventilation, or electrical safety.
Will it fit every ATX case?
The unit measures 180 × 150 × 86mm. Confirm that the case supports an ATX power supply of this length and provides additional clearance for modular connectors, cable bends, the PSU shroud, and storage cages.
What comes in the box?
The package includes the HX1000i power supply, modular cable set, internal USB monitoring cable, AC power cord for the North American version, mounting screws, cable ties, and product documentation.
Corsair HX1000i Fully Modular Ultra-Low Noise Platinum ATX Power Supply 1000W - Black
$469.95
$519.95
Save 9%
