Product description
Description and product details Overview, features, specifications, compatibility and FAQ
FOUR 140MM ARGB FANS. THREE 420MM-CAPABLE LOCATIONS. RAPIDROUTE 2.0.

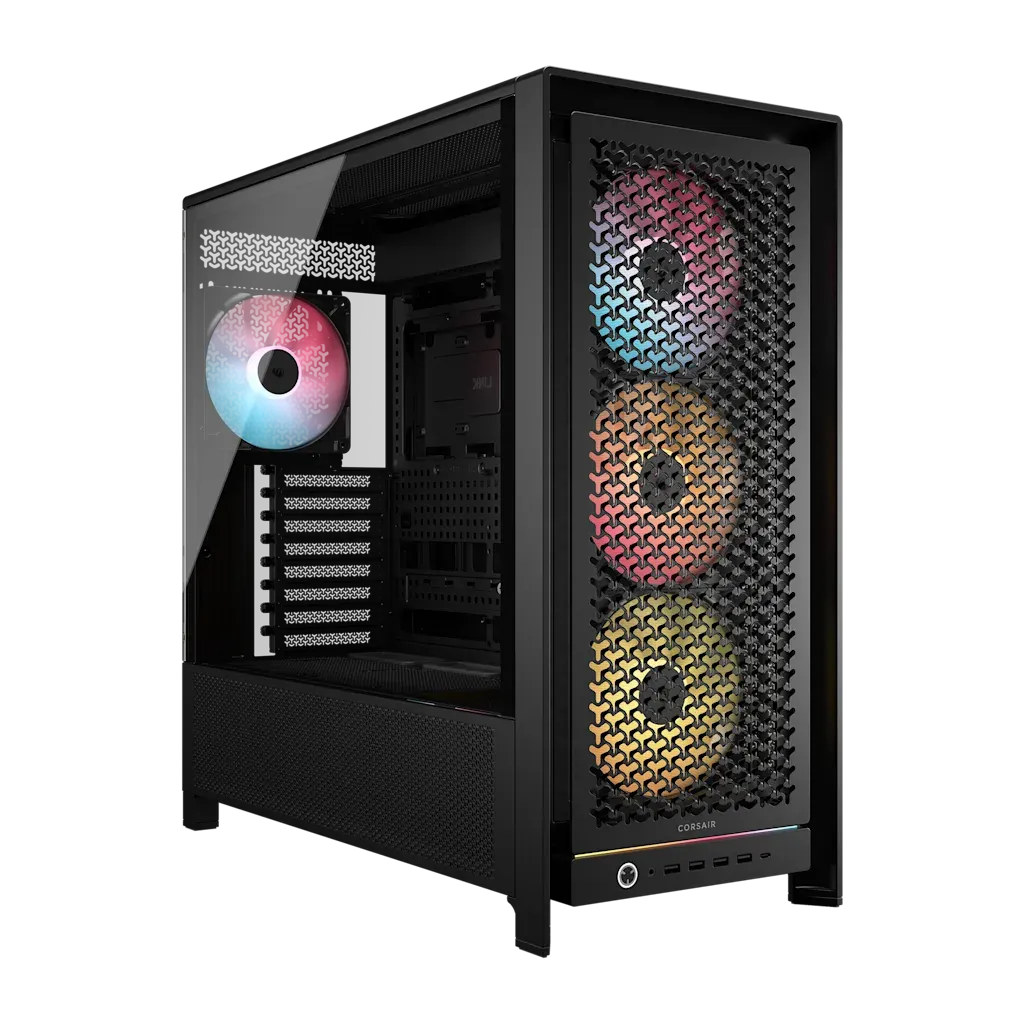

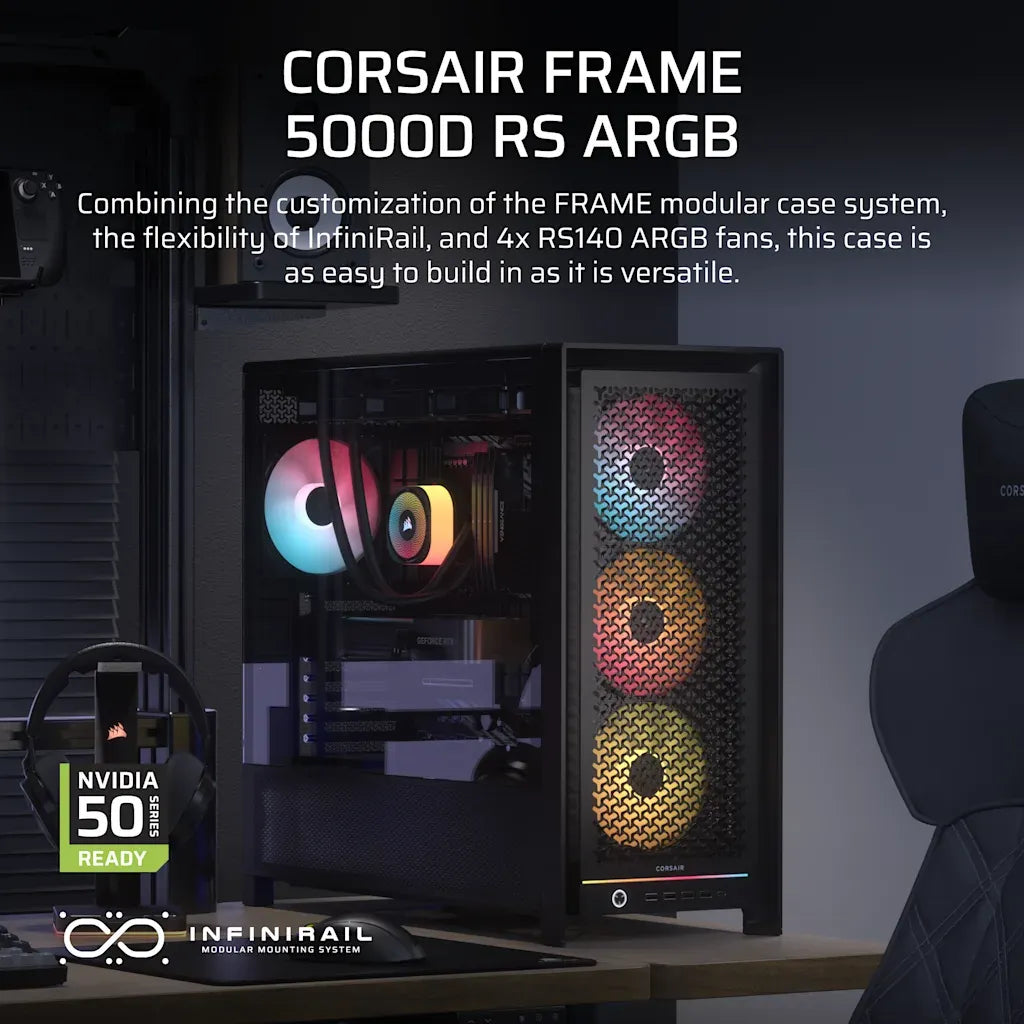

Corsair FRAME 5000D RS ARGB High-Airflow Mid-Tower PC Case — Black
The Corsair FRAME 5000D RS ARGB is a spacious modular mid-tower chassis built for high-performance gaming systems, creator workstations, and ambitious liquid-cooling configurations. Its reinforced 3D-Y airflow front panel, four pre-installed RS140 ARGB fans, and extensive fan and radiator capacity provide a powerful cooling foundation immediately after assembly.
The FRAME Modular Case System allows selected panels, trays, shrouds, and accessories to be replaced as the build evolves. InfiniRail fan mounts simplify front and roof installation, while RapidRoute 2.0, reverse-connector motherboard support, an integrated GPU anti-sag arm, and generous component clearances help produce a clean and professional interior.
4 × 140mm
RS140 ARGB fans included
420mm
Front, roof, and side support
450mm
Maximum listed GPU length
Extensive front, roof, side, bottom, PSU-shroud, and rear mounting options.
The front, roof, and side each accept compatible radiators up to 420 mm.
Install up to two 3.5-inch drives and six 2.5-inch SSDs.
High-Airflow Cooling Included
Four RS140 ARGB PWM Fans Out of the Box
The four factory-installed 140mm fans establish a strong cooling foundation while leaving the remaining mounting areas available for additional fans, liquid coolers, or custom-loop hardware.
Large 140mm Airflow
The larger fan format can move substantial air at lower rotational speeds than many smaller fan configurations.
Addressable RGB Lighting
Lighting connects to a compatible 5V ARGB motherboard header or separately purchased controller.
PWM Speed Control
Compatible motherboard fan headers can automatically balance cooling performance and system acoustics.
Daisy-Chain Connections
Fan power and lighting connections can be linked together to reduce the number of separate cable runs.
Extreme Fan Capacity
Up to Fourteen 120mm or Twelve 140mm Fans
The FRAME 5000D distributes mounting positions across six different zones, allowing airflow to be tailored around the graphics card, CPU cooling system, motherboard, memory, and storage hardware.
Front and Roof InfiniRail
Each location supports three 120mm or three 140mm fans, while the front also accepts two 200mm fans.
Side Cooling Bracket
The internal side mount supports three 120mm or three 140mm fans for direct component airflow.
Bottom and PSU-Shroud Airflow
The bottom supports two 120mm or two 140mm fans, while the PSU shroud accepts two additional 120mm fans.
Rear Exhaust Position
The rear supports one 120mm or one 140mm fan for conventional exhaust cooling.
Large Liquid-Cooling Platform
420mm Radiator Support in Three Locations
The front, roof, and side mounting areas each support 240mm, 280mm, 360mm, or 420mm radiators, providing substantial flexibility for AIO coolers and custom liquid-cooling loops.
Front up to 420mm
The high-airflow front panel supplies outside air directly to a compatible radiator and fan assembly.
Roof up to 420mm
The roof supports large exhaust-oriented liquid coolers and custom-loop heat exchangers.
Side up to 420mm
The internal side bracket creates another large radiator location for advanced cooling layouts.
Rear 120mm or 140mm
The rear supports a compact radiator. No radiator is officially supported at the bottom or on the PSU shroud.

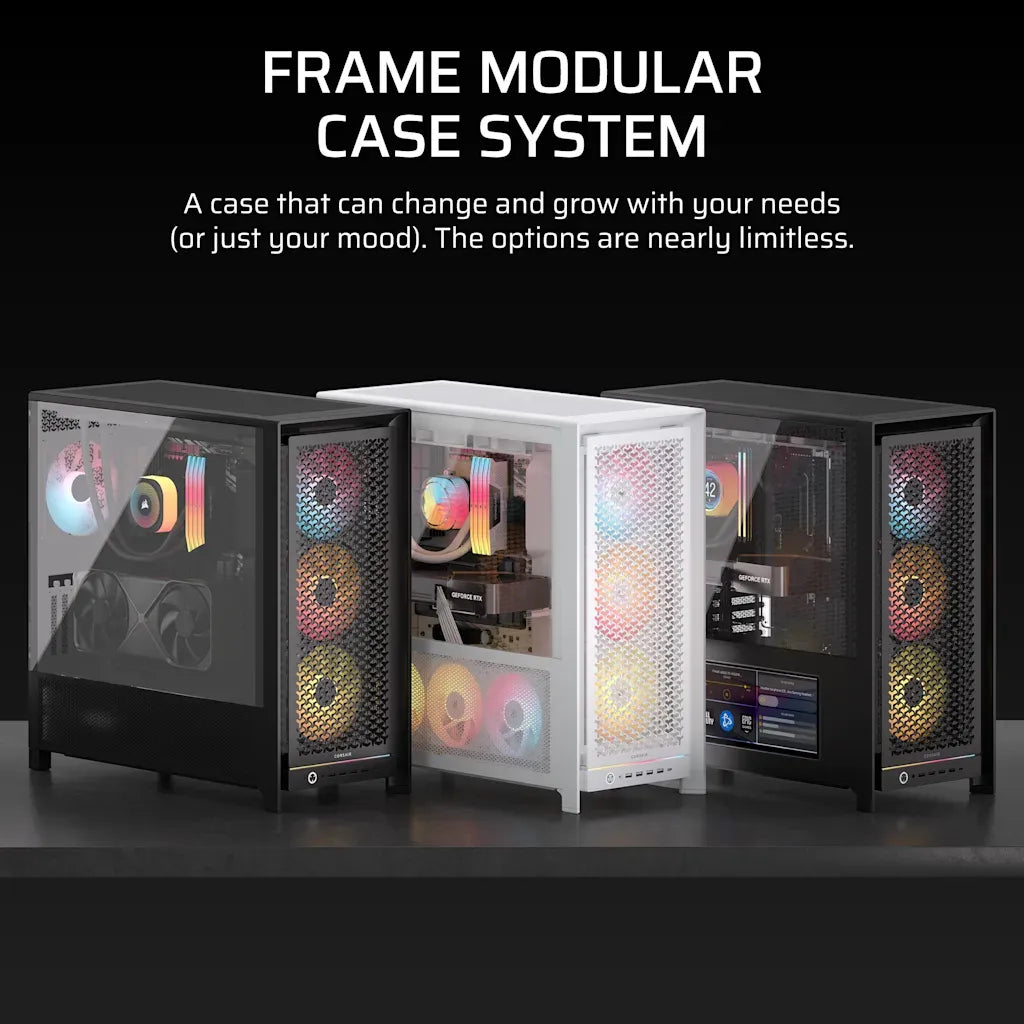

FRAME Modular Case System
A Chassis Designed to Evolve
Selected panels, trays, shrouds, I/O assemblies, and other FRAME components can be replaced with compatible accessories, allowing the enclosure to change with future hardware and design preferences.
Replaceable Components
Compatible FRAME accessories can alter selected exterior and internal elements without replacing the complete case.

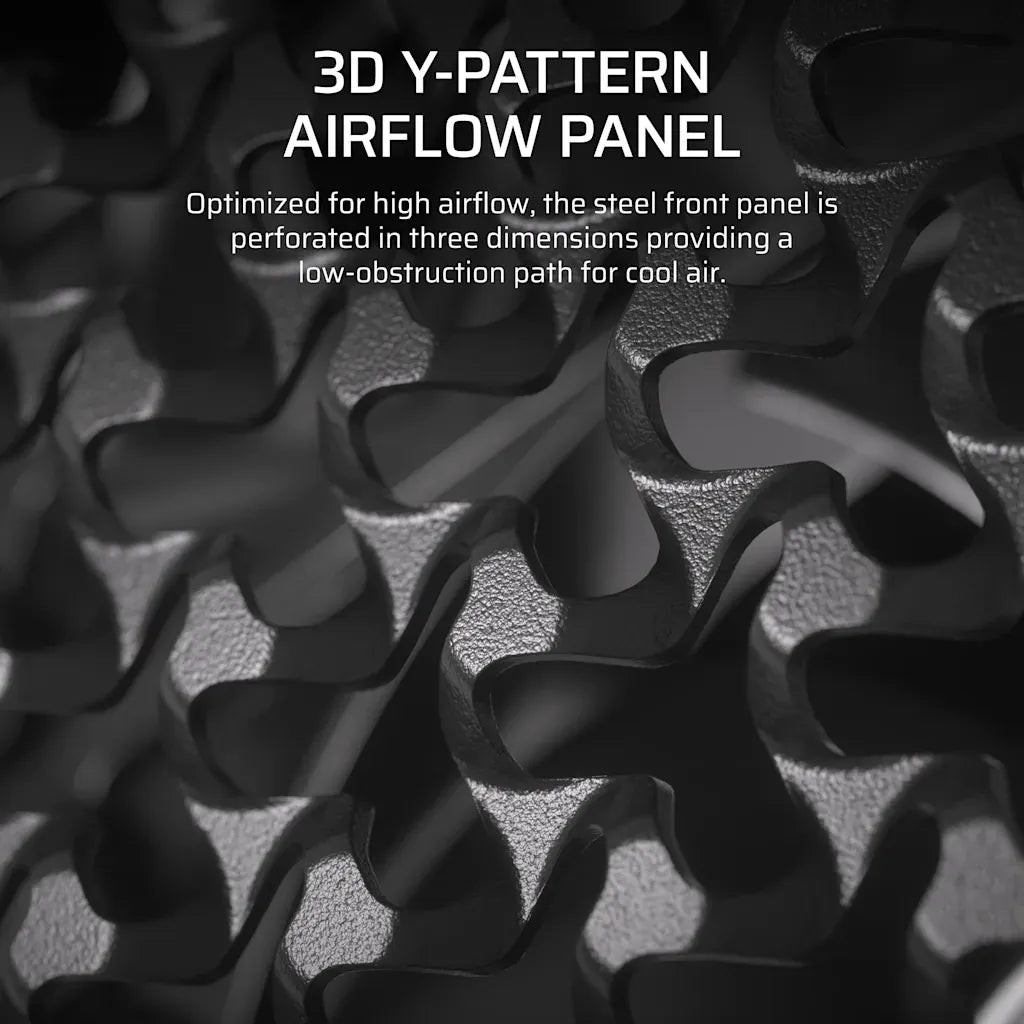

3D-Y Airflow Front Panel
The reinforced steel pattern combines high ventilation with improved structural rigidity.

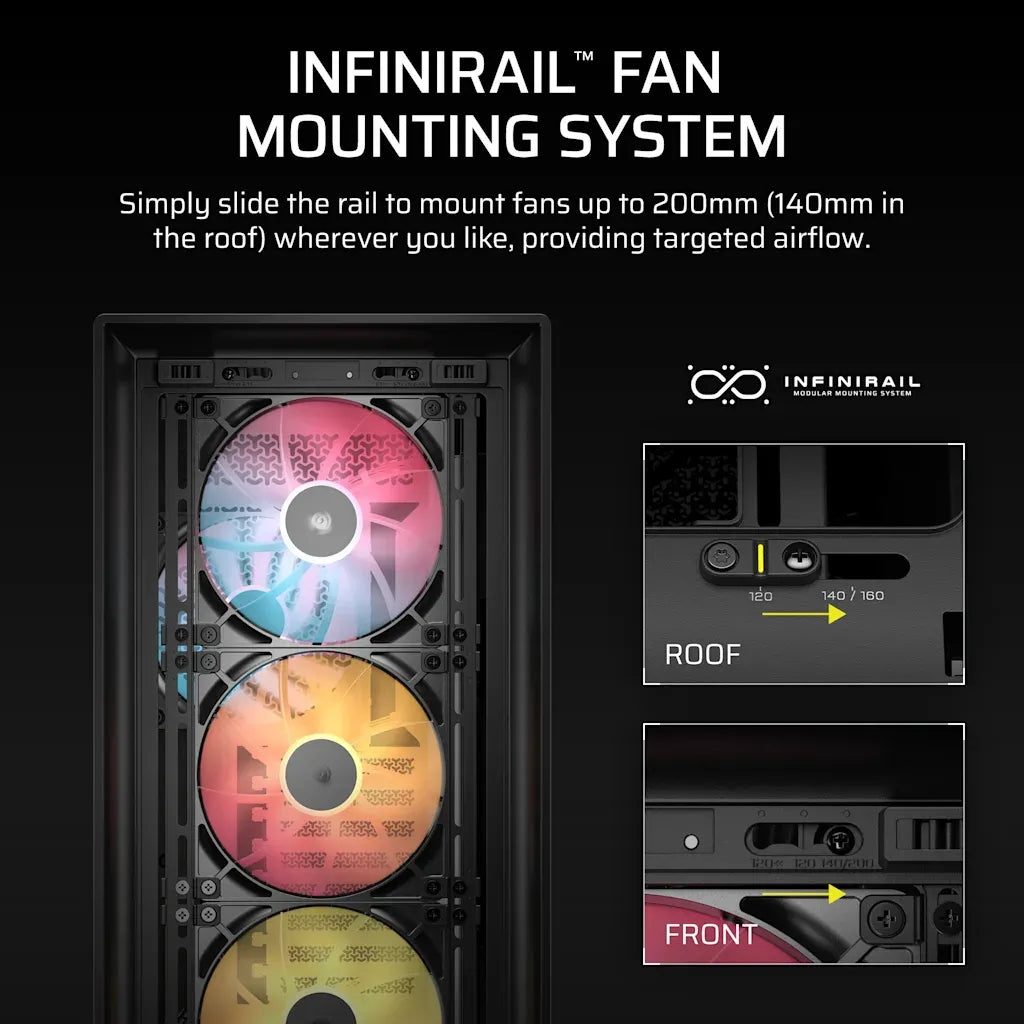

InfiniRail Fan Mounting
Adjustable front and roof rails make it easier to switch fan sizes and fine-tune vertical positioning.
QuikTurn Fan Screws
Builder-focused fan screws reduce installation time when configuring the large number of supported positions.
Advanced Cable Management
RapidRoute 2.0 with a Pegboard Motherboard Tray
The upgraded routing system combines a perforated rear tray, movable cable organizers, dedicated looms, and approximately 42mm of working depth for cleaner power, fan, lighting, and front-panel cabling.
Pegboard-Style Tray
Moveable and rotatable tie-down points allow cable-management positions to match the exact component layout.
42mm Routing Space
The rear chamber provides substantial room for power cables, fan wiring, lighting connections, and storage cables.
Ratcheting Cable Organizers
Reusable organizers keep larger cable bundles controlled and easier to reopen during future upgrades.
Dedicated Cable Shrouds
Internal covers help conceal motherboard and front-I/O cabling from the visible side of the build.
Clean Modern Hardware Support

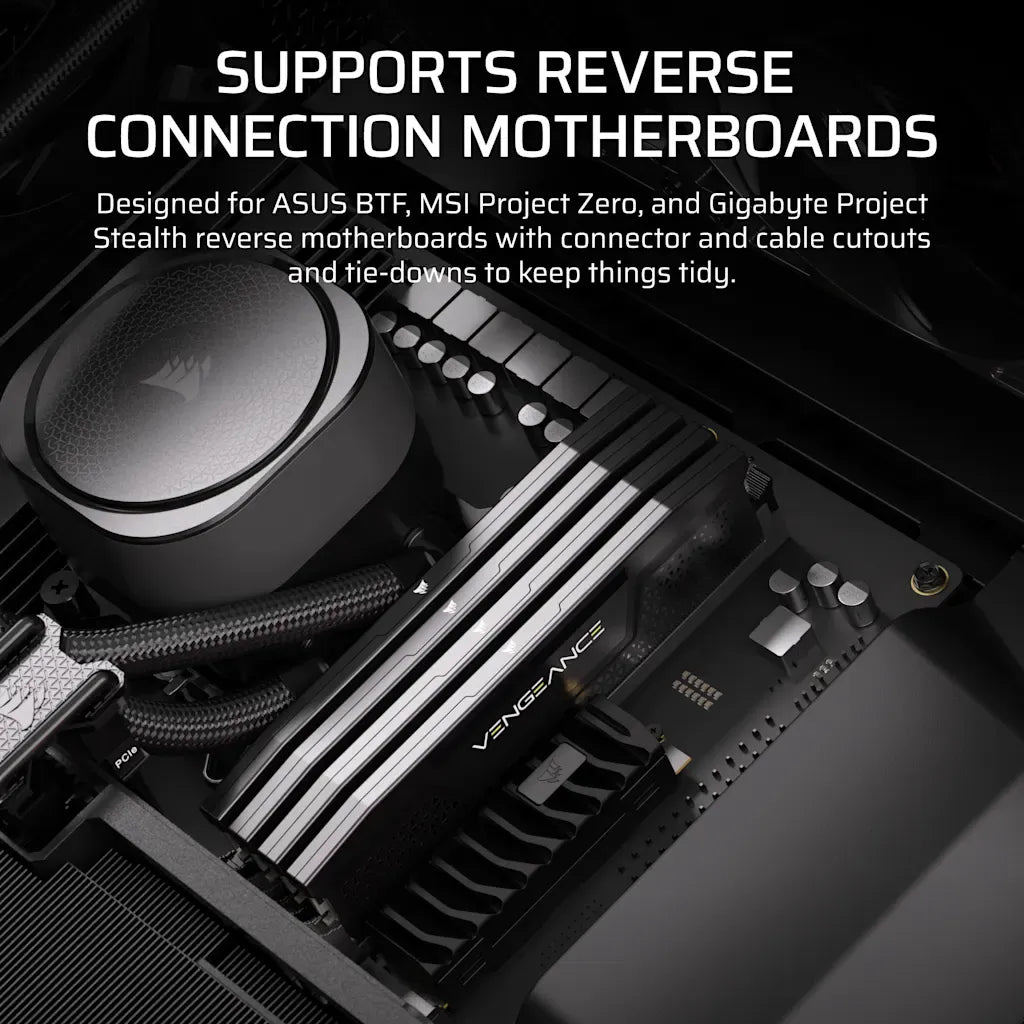

Reverse-Connector Ready with an Integrated GPU Support Arm
The motherboard tray supports compatible back-connect designs, while the adjustable anti-sag arm helps stabilize long and heavy graphics cards.
ASUS BTF Compatibility
Compatible ASUS reverse-connector motherboards can route major power and front-panel connections behind the tray.
MSI Project Zero Compatibility
Supported MSI back-connect boards reduce visible cabling in the main chamber.
Gigabyte Project Stealth Compatibility
Purpose-built tray openings support compatible Gigabyte reverse-connector layouts.
Adjustable GPU Anti-Sag Arm
An integrated support reduces graphics card droop and stress on the motherboard expansion slot.
Complete Premium Feature Set
Key Features
Four included ARGB fans, extensive air and liquid cooling, modular construction, advanced cable routing, modern front connectivity, vertical GPU support, and large component clearances.
Fully Modular FRAME Mid-Tower Platform
Black Steel and Tempered-Glass Construction
Reinforced 3D-Y High-Airflow Front Panel
Three-Quarter Tempered-Glass Left Panel
Ventilated Lower Side Section
Four RS140 ARGB PWM Fans Included
Motherboard PWM and 5V ARGB Control
No Dedicated Fan or Lighting Controller Included
Up to Fourteen 120mm Fans
Up to Twelve 140mm Fans
Front 3 × 120mm, 3 × 140mm, or 2 × 200mm Fan Support
Top 3 × 120mm or 3 × 140mm Fan Support
Side 3 × 120mm or 3 × 140mm Fan Support
Bottom 2 × 120mm or 2 × 140mm Fan Support
PSU Shroud 2 × 120mm Fan Support
Rear 1 × 120mm or 1 × 140mm Fan Support
Front 240mm, 280mm, 360mm, and 420mm Radiator Support
Top 240mm, 280mm, 360mm, and 420mm Radiator Support
Side 240mm, 280mm, 360mm, and 420mm Radiator Support
Rear 120mm and 140mm Radiator Support
Front and Roof InfiniRail Mounting Systems
Mini-ITX, Micro-ATX, ATX, and E-ATX Support
E-ATX Motherboards up to 305 × 277mm
ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth Support
450mm Maximum Listed GPU Length
175mm Maximum CPU Cooler Height
ATX Power Supply Support
Integrated Adjustable GPU Anti-Sag Arm
Eight Horizontal and Three Vertical Expansion Slots
Vertical GPU Support with Optional Riser Cable
Two Internal 3.5-Inch Drive Bays
Six Internal 2.5-Inch Drive Bays
One USB 3.2 Gen 2 Type-C Front Port
Four USB 3.2 Gen 1 Type-A Front Ports
Combined Headphone and Microphone Jack
RapidRoute 2.0 Cable Management System
42mm Cable Routing Space
Integrated Dust Filtration
Two-Year Manufacturer Warranty
Large Modern Hardware

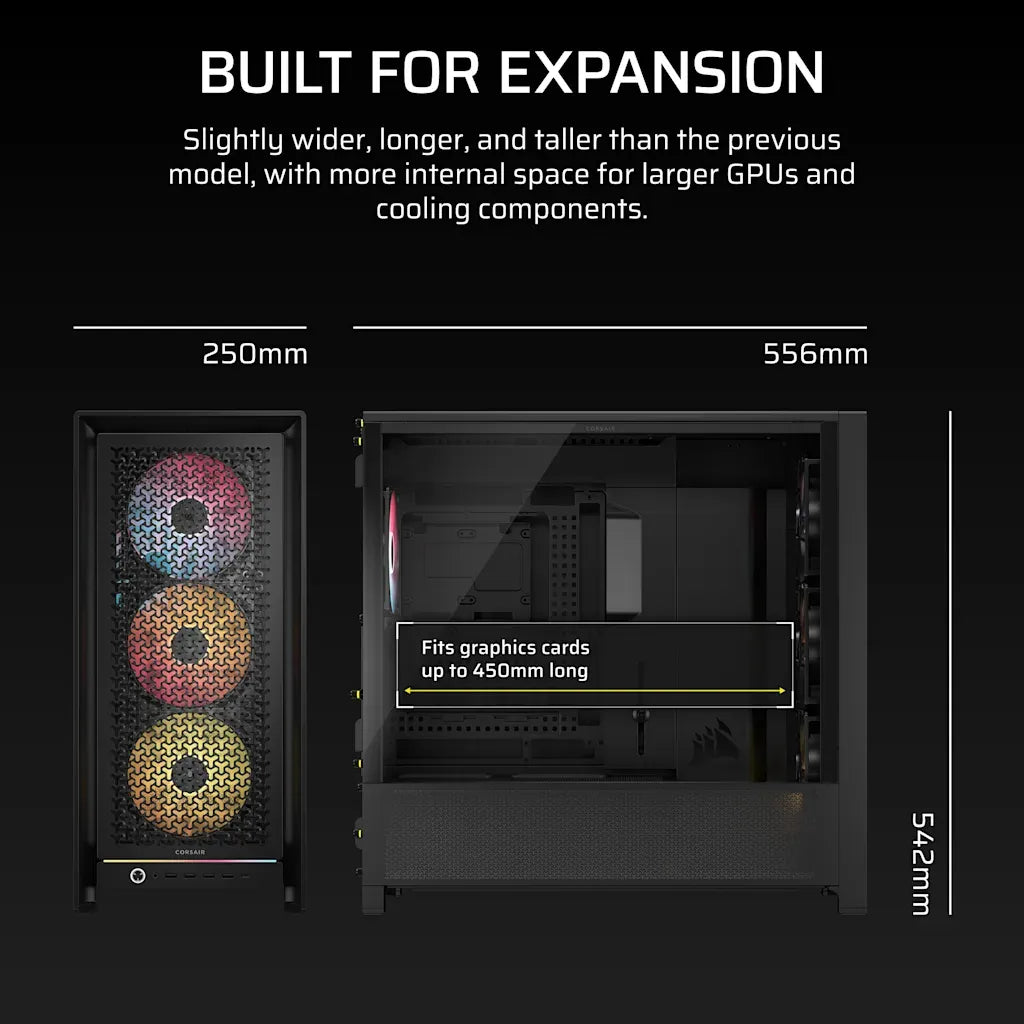

450mm GPU Clearance and E-ATX Support
The enlarged chassis accommodates long graphics cards, large CPU air coolers, reverse-connector motherboards, multiple storage devices, and extensive liquid-cooling hardware.
450mm Maximum Listed GPU Length
Large modern graphics cards fit within the official maximum, although front fans and radiators can reduce practical clearance.
175mm CPU Cooler Height
Many full-size tower air coolers fit within the official height limit.
Two HDD and Six SSD Positions
Build a large local storage configuration for games, projects, media, backups, and workstation data.
Vertical GPU Capability
Three vertical expansion slots are provided; a compatible PCI Express riser cable is required and sold separately.

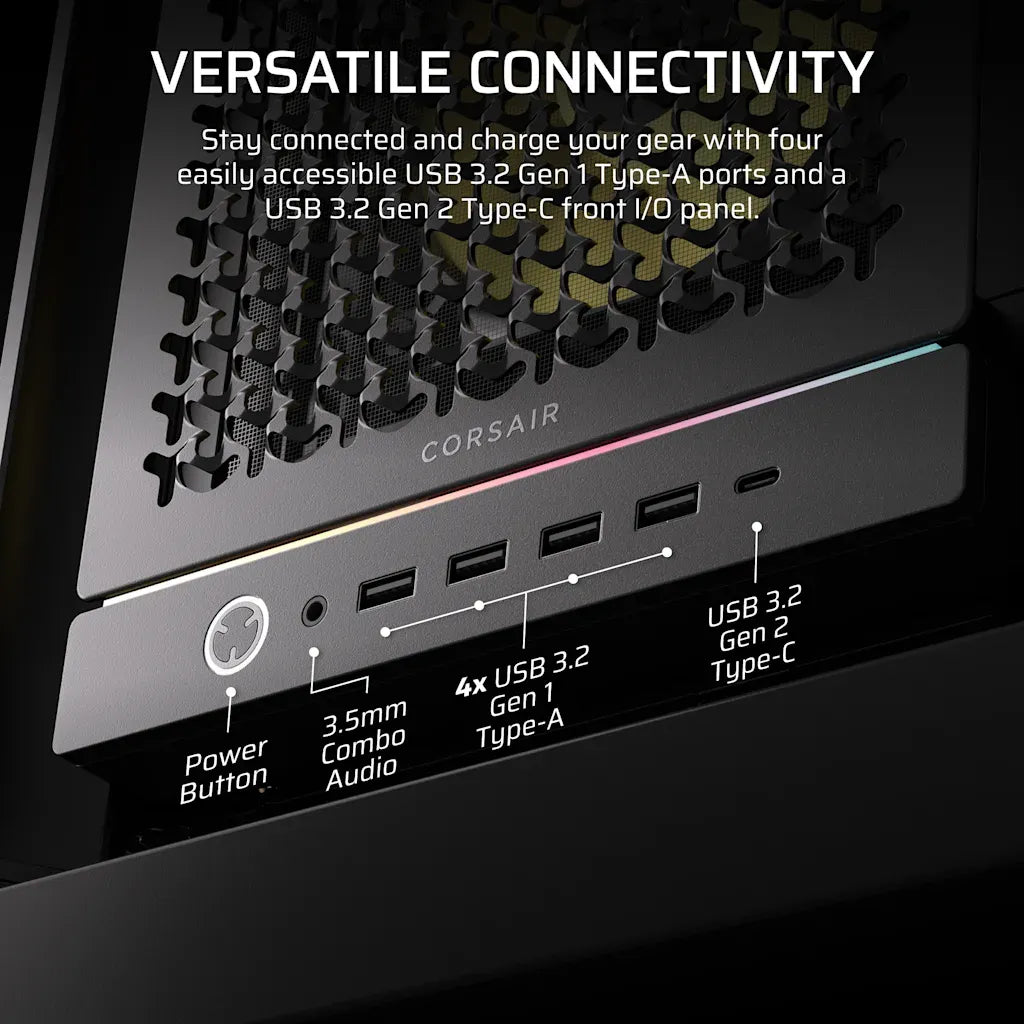

Modern Front Connectivity
Five Front USB Ports
The front I/O provides one USB-C port, four conventional USB-A ports, and a combined headset connection for current peripherals and external storage.
USB 3.2 Gen 2 Type-C
The front Type-C port connects through a compatible motherboard Type-E header.
Four USB 3.2 Gen 1 Type-A Ports
Multiple ports keep keyboards, mice, controllers, storage devices, and other accessories within reach.
Combined Audio Jack
A single headphone and microphone connection supports compatible headsets and audio devices.
Motherboard Header Planning
Confirm that the motherboard provides the required Type-E, USB 3.2 Gen 1, front-panel, HD Audio, PWM, and 5V ARGB headers.
Designed for High-End Systems
Perfect For
Ideal for large gaming PCs, creator workstations, custom liquid cooling, reverse-connector motherboards, high-capacity storage, and builds that need room to expand.
Large GPU and Cooling Support
Generous hardware clearance and four included 140mm fans provide a strong base for demanding components.
Three Large Radiator Zones
Front, roof, and side 420mm-capable locations provide extensive flexibility for pumps, reservoirs, and heat exchangers.
RapidRoute 2.0 and Back-Connect Support
Advanced cable management and reverse-connector compatibility help minimize visible wiring.
Installation Planning
Check Fan, Radiator, Storage, and GPU Interactions
The chassis offers extensive capacity, but not every mounting position can necessarily be filled simultaneously. Radiator thickness, fan placement, storage hardware, power cables, and motherboard layout affect the final configuration.
Bottom Fans Affect the Drive Plate
Installing two bottom fans requires removal of the combination drive plate, which can change the available storage layout.
Check Multi-Radiator Clearances
Large front, roof, and side radiators can interact with one another depending on thickness and fan configuration.
Front Cooling Can Reduce GPU Space
Verify graphics card length, power-connector location, radiator thickness, and cable bend radius before assembly.
No ARGB Controller Included
The included fans require compatible motherboard PWM and 5V ARGB headers or a separately purchased controller.
Detailed Hardware
Technical Specifications
Verified specifications for the included fans, motherboard compatibility, cooling capacity, component clearances, storage, connectivity, cable management, dimensions, and warranty.
| Brand | Corsair |
| Product Model | FRAME 5000D RS ARGB |
| Manufacturer Part Number | CC-9011309-WW |
| Product Type | Modular High-Airflow Mid-Tower PC Case |
| Color | Black |
| Materials | Steel, tempered glass, reinforced 3D-Y airflow steel, and plastic |
| Left Side Panel | Three-quarter tempered glass with a ventilated lower section |
| Right Side Panel | Steel with filtered ventilation |
| Supported Motherboards | Mini-ITX, Micro-ATX, ATX, and E-ATX up to 305 × 277mm |
| Reverse-Connector Support | Yes; ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth compatible |
| Included Fans | 4 × Corsair RS140 ARGB PWM 140mm fans |
| Included Fan Controller | None |
| Lighting Control | Compatible motherboard 5V ARGB header or separately purchased controller |
| Maximum 120mm Fan Capacity | 14 |
| Maximum 140mm Fan Capacity | 12 |
| Front Fan Support | 3 × 120mm, 3 × 140mm, or 2 × 200mm |
| Top Fan Support | 3 × 120mm or 3 × 140mm |
| Side Fan Support | 3 × 120mm or 3 × 140mm |
| Bottom Fan Support | 2 × 120mm or 2 × 140mm |
| PSU Shroud Fan Support | 2 × 120mm |
| Rear Fan Support | 1 × 120mm or 1 × 140mm |
| Front Radiator Support | 240mm, 280mm, 360mm, or 420mm |
| Top Radiator Support | 240mm, 280mm, 360mm, or 420mm |
| Side Radiator Support | 240mm, 280mm, 360mm, or 420mm |
| Rear Radiator Support | 120mm or 140mm |
| Bottom Radiator Support | None |
| Maximum GPU Length | 450mm / approximately 17.72 inches |
| Maximum CPU Cooler Height | 175mm / approximately 6.89 inches |
| Power Supply Support | ATX; confirm final length with the selected drive, fan, and cable layout |
| Horizontal Expansion Slots | 8 |
| Vertical Expansion Slots | 3 |
| Vertical GPU Support | Yes; compatible PCI Express riser cable sold separately |
| Integrated GPU Support | Adjustable anti-sag stabilization arm |
| Internal 3.5-Inch Drive Bays | 2 |
| Internal 2.5-Inch Drive Bays | 6 |
| Front USB-C | 1 × USB 3.2 Gen 2 Type-C |
| Front USB-A | 4 × USB 3.2 Gen 1 Type-A |
| Front Audio | 1 × combined headphone and microphone jack |
| Front Controls | Power button |
| Front I/O Motherboard Connections | HD Audio, USB 3.2 Gen 1, USB Type-E, F_PANEL, and 5V ARGB |
| Fan Mounting System | Corsair InfiniRail on the front and roof |
| Cable Management | RapidRoute 2.0 pegboard tray, cable looms, and ratcheting organizers |
| Cable Routing Space | 42mm / approximately 1.65 inches |
| Dust Filtration | Front, bottom, and ventilated side areas |
| Case Dimensions | 542 × 556 × 250mm / 21.34 × 21.89 × 9.84 inches |
| Listed Product Weight | 15.48kg / approximately 34.13 lb |
| Manufacturer Warranty | 2 years |
Shop With Confidence
Why Buy From OPCBleu?
OPCBleu combines carefully selected technology products with transparent service, Canadian delivery, and a customer-first buying experience.
Massive Cooling Capacity in a Clean Modular Platform.
The Corsair FRAME 5000D RS ARGB combines four included 140mm ARGB fans, three 420mm-capable radiator zones, modular construction, RapidRoute 2.0, reverse-connector support, and generous modern hardware clearance.
OPCBleu focuses on performance, reliability, and value so Canadian customers can shop for PC hardware with confidence.
🚚
Fast Canadian Shipping
Quick order processing and delivery across Canada.
🛡️
30-Day Returns
A clear return process for eligible purchases.
🔒
Secure Checkout
Protected payment processing through trusted providers.
💙
Quebec-Based Store
Technology enthusiasts serving customers across Canada.
Helpful Answers
FAQs
Answers to common questions about the included fans, cooling support, motherboard compatibility, component clearances, storage, connectivity, cable management, and vertical GPU mounting.
Which fans are included?
Four Corsair RS140 ARGB PWM fans are pre-installed. They support daisy-chain wiring and connect to compatible motherboard PWM and 5V ARGB headers.
Is a fan or RGB controller included?
No. The included fans can be controlled by compatible motherboard headers or a separately purchased controller.
How many fans can be installed?
The case supports up to fourteen 120mm fans or up to twelve 140mm fans across the front, roof, side, bottom, PSU shroud, and rear positions.
Where can 420mm radiators be installed?
Compatible 420mm radiators can be installed at the front, roof, or side. Final simultaneous compatibility depends on radiator thickness, fan placement, and adjacent hardware.
Which motherboard sizes are supported?
The case supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards measuring up to 305 × 277mm.
Does it support reverse-connector motherboards?
Yes. Corsair lists compatibility with ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth designs.
What is the maximum graphics card length?
The official product specification lists a maximum GPU length of 450mm. Front fans, radiators, reservoirs, and power-cable routing can reduce practical clearance.
Does it include a GPU anti-sag bracket?
Yes. An adjustable GPU anti-sag stabilization arm is integrated into the chassis.
Can the graphics card be mounted vertically?
Yes. Three vertical expansion slots are provided, but a compatible PCI Express riser cable is required and sold separately.
How many storage drives can be installed?
The case provides two 3.5-inch drive positions and six 2.5-inch drive positions. Installing both bottom fans requires removal of the combination drive plate and can affect the storage layout.
Which front USB ports are included?
The front I/O includes one USB 3.2 Gen 2 Type-C port, four USB 3.2 Gen 1 Type-A ports, and a combined headphone and microphone jack.
What is RapidRoute 2.0?
RapidRoute 2.0 combines a perforated pegboard-style motherboard tray, movable cable organizers, dedicated looms, and approximately 42mm of routing space behind the motherboard.
1/9
