Product description
Description and product details Overview, features, specifications, compatibility and FAQ
PANORAMIC CURVED GLASS. DUAL 360MM COOLING.

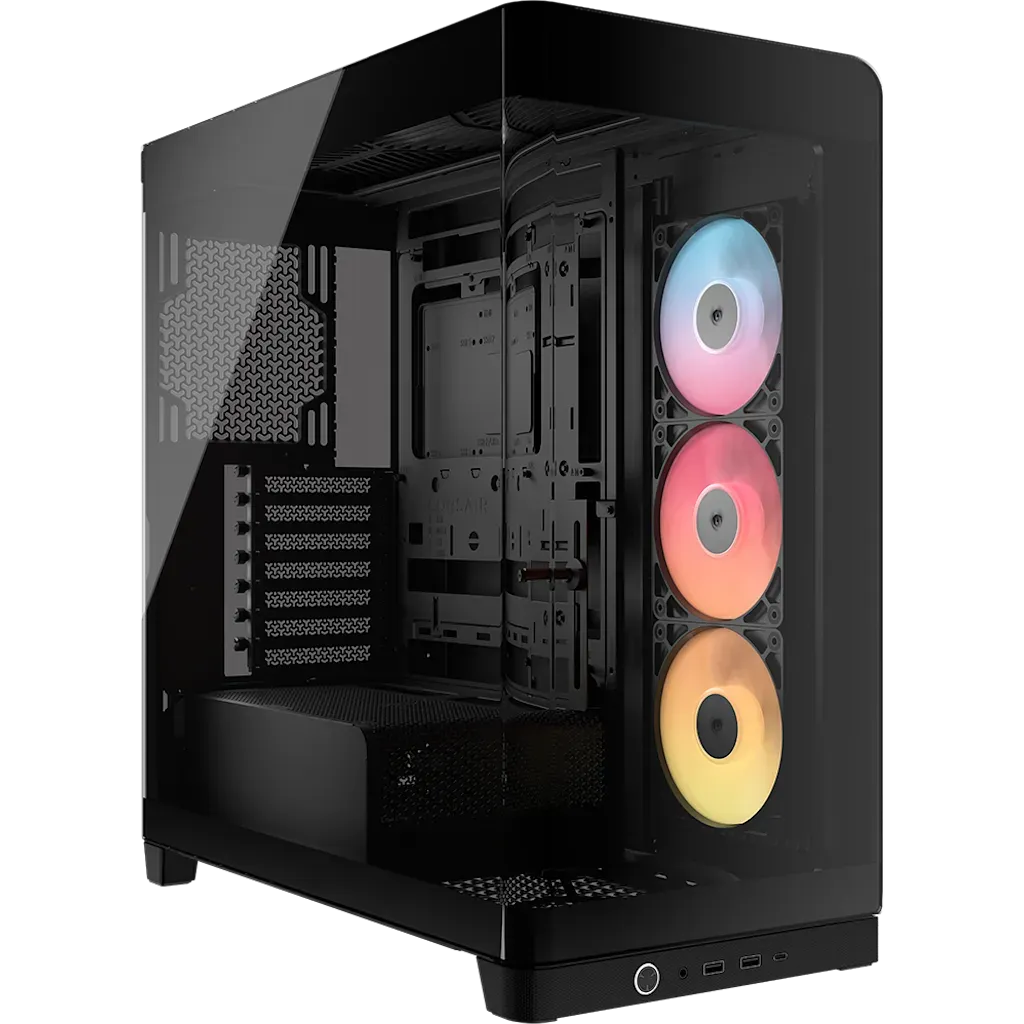

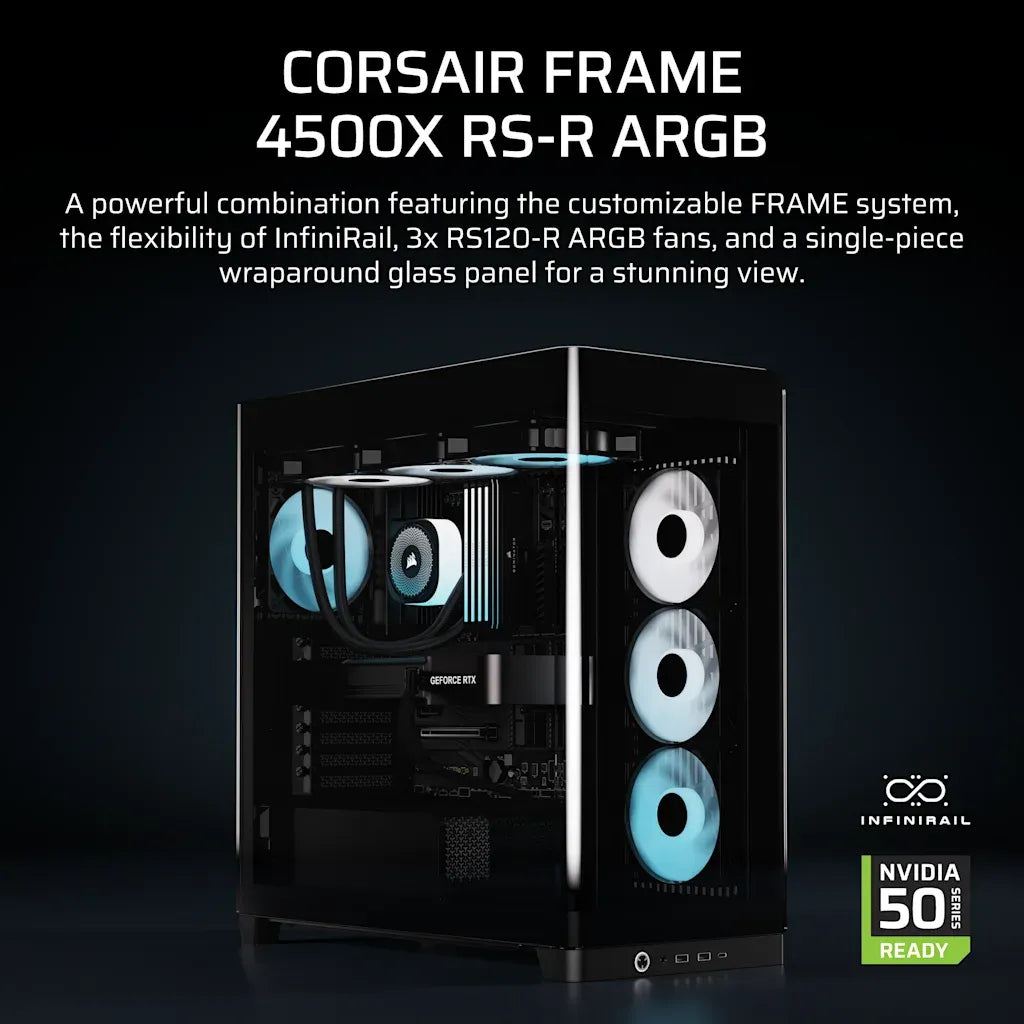

Corsair FRAME 4500X RS-R ARGB Panoramic Mid-Tower PC Case — Black
The black Corsair FRAME 4500X RS-R ARGB presents high-performance hardware through a single-piece curved tempered-glass panel that wraps across the front and left side. Its seamless panoramic design removes the visual interruption of a front corner pillar while a laminated safety film helps improve panel safety and reduce vibration-related noise.
Three RS-R ARGB 120mm reverse-rotor intake fans are included on the ventilated side panel, delivering visible RGB lighting while drawing fresh air into the chassis. The flexible Corsair InfiniRail fan-mounting system, support for up to ten 120mm fans, and simultaneous top-and-side 360mm radiator compatibility provide extensive cooling options for demanding gaming and creator systems.
10 × 120mm
Maximum fan capacity
2 × 360mm
Simultaneous radiator support
460mm
Maximum GPU clearance
Extensive top, side, bottom, and rear cooling support.
Install compatible 360mm radiators at the top and side simultaneously.
Generous rear clearance for conventional and back-connect builds.
Panoramic Showcase Design
A Seamless View of Your Hardware

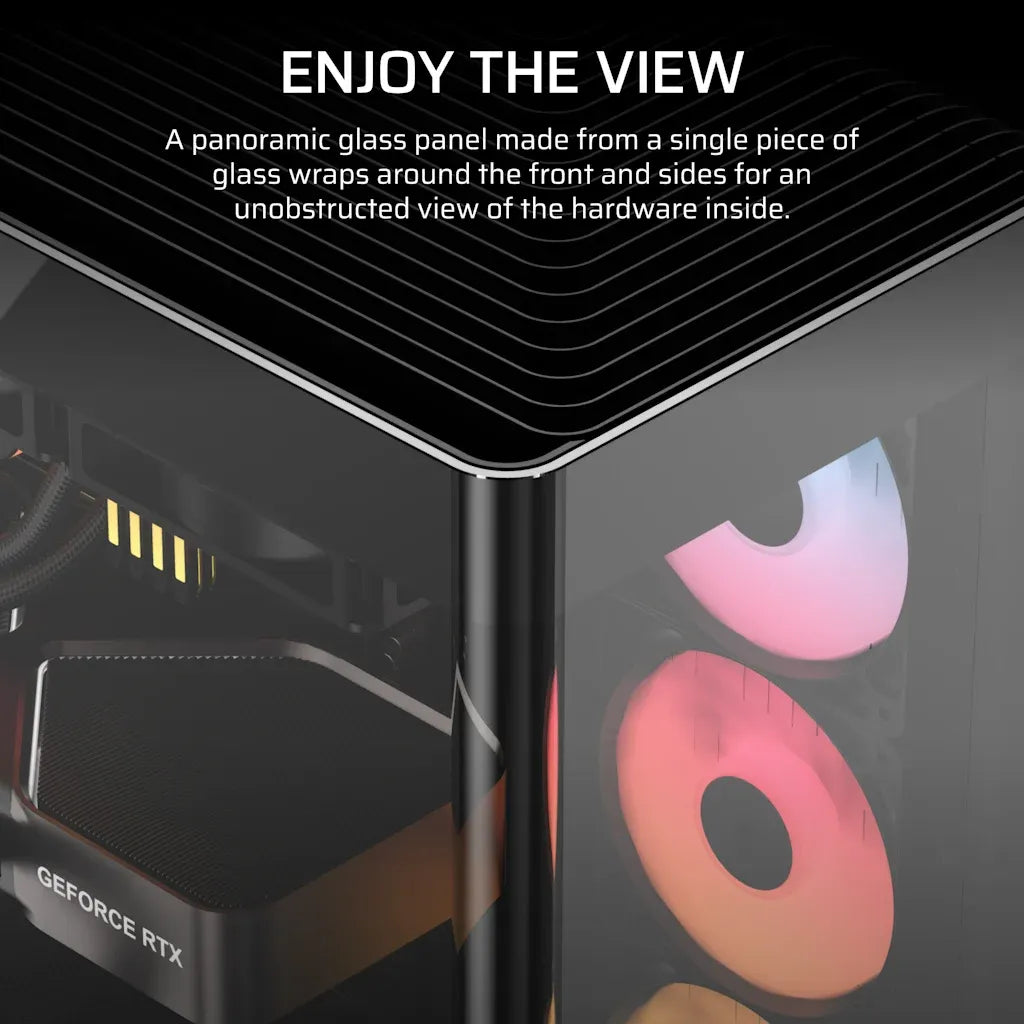

The curved tempered-glass panel wraps from the front into the left side, providing a wide uninterrupted view of the motherboard, graphics card, cooling, and lighting.
Single-Piece Curved Glass
The front and side viewing areas are formed from one curved tempered-glass panel without a visible corner support interrupting the build.
Laminated Safety Film
A practically invisible laminated coating helps improve safety and reduce glass-related vibration noise.

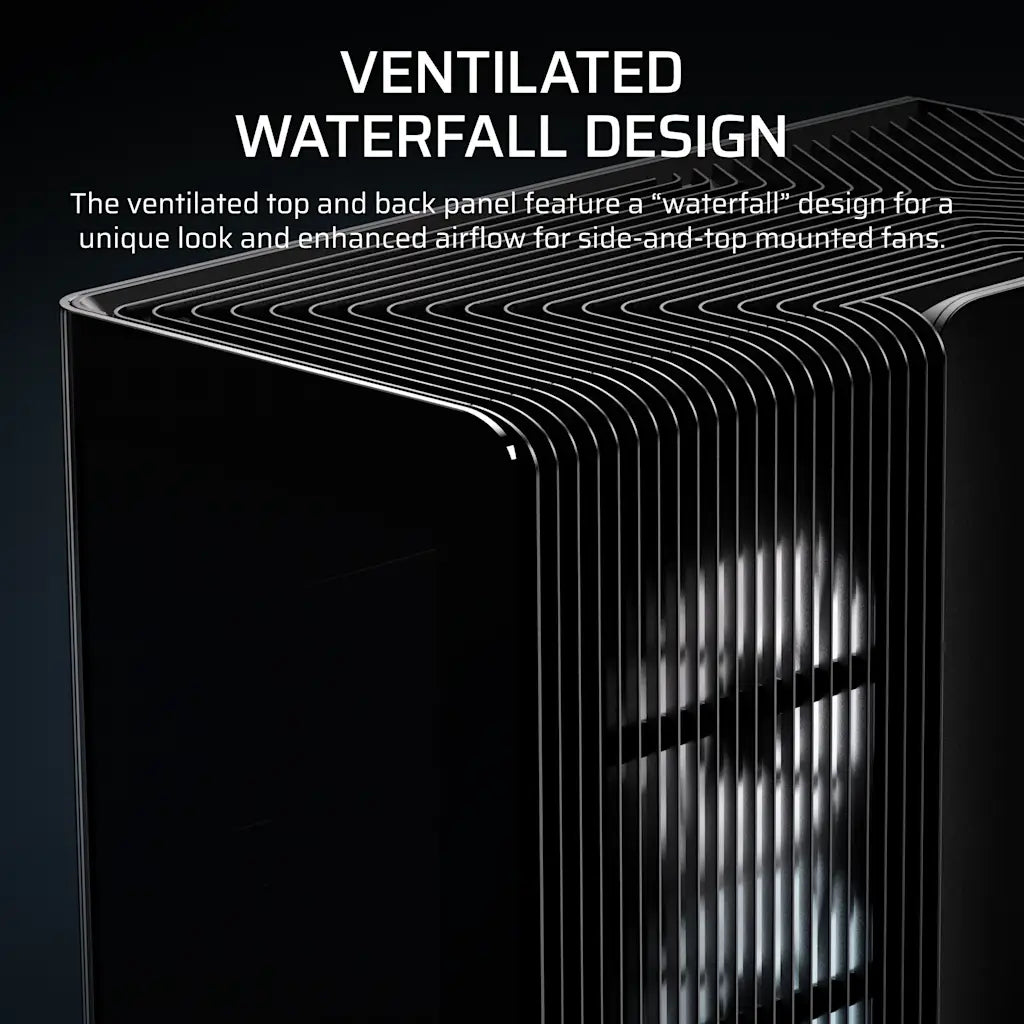

Ventilated Side and Top Panels
Large airflow-focused steel sections provide intake and exhaust access without placing fans behind the front glass.
Black Showcase Finish
The black chassis creates a deep, understated backdrop that emphasizes illuminated components, reverse-rotor ARGB fans, and premium cooling hardware.

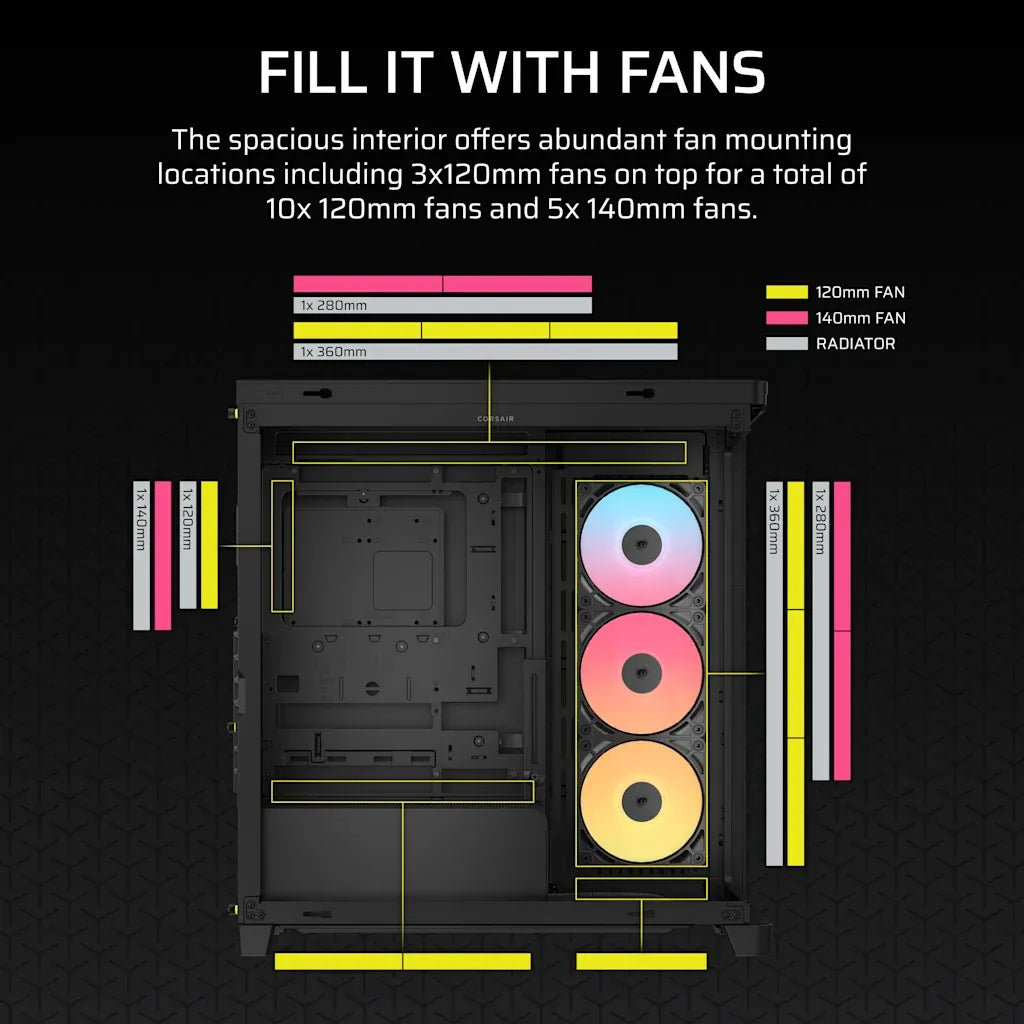

Advanced Cooling Flexibility
Up to Ten Fans and Two 360mm Radiators
Cooling can be distributed across the roof, side, bottom, and rear, allowing targeted intake and exhaust patterns for high-power processors and graphics cards.
Top 360mm Radiator Support
The roof supports 240mm, 280mm, or 360mm radiators alongside compatible fan configurations.
Side 360mm Radiator Support
The ventilated side supports 240mm, 280mm, or 360mm radiators while maintaining the panoramic front appearance.

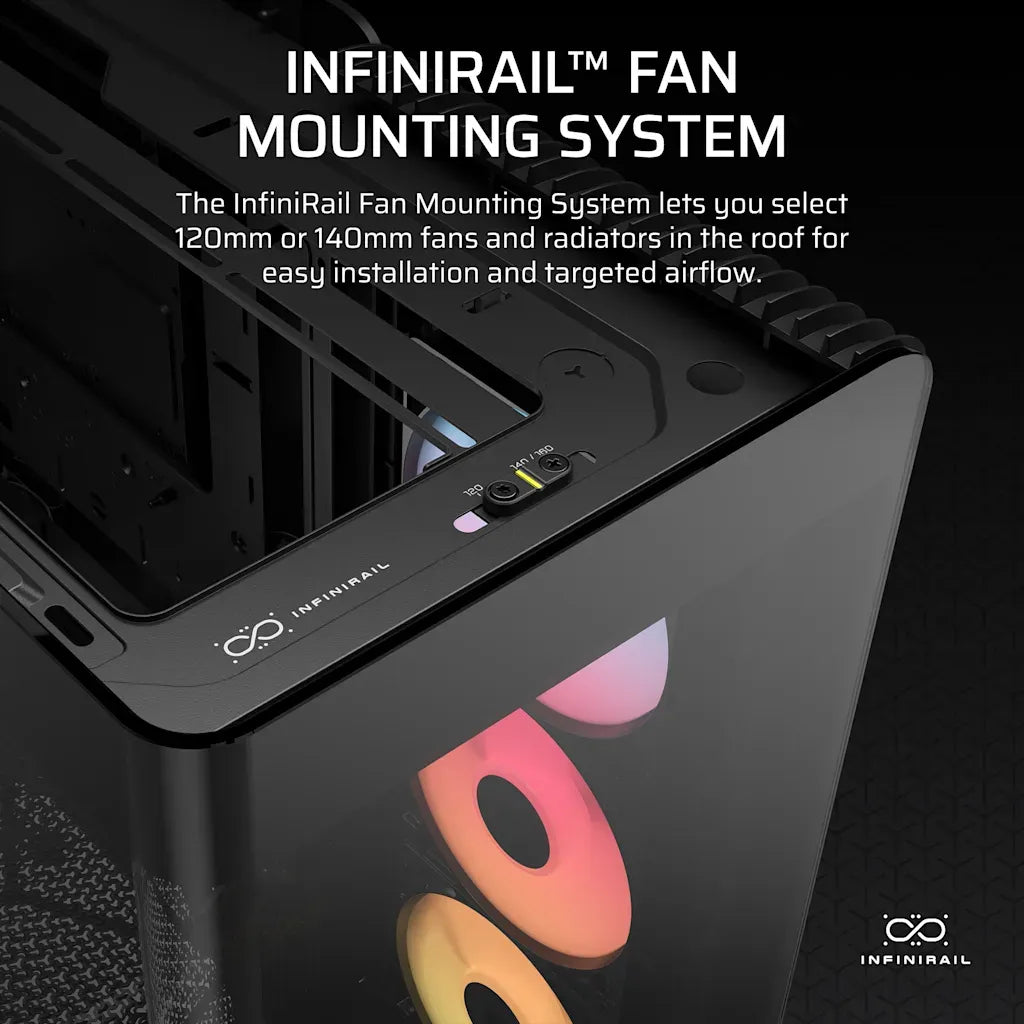

Corsair InfiniRail
The adjustable steel roof rail slides to position 120mm or 140mm fans where they best match the selected components.

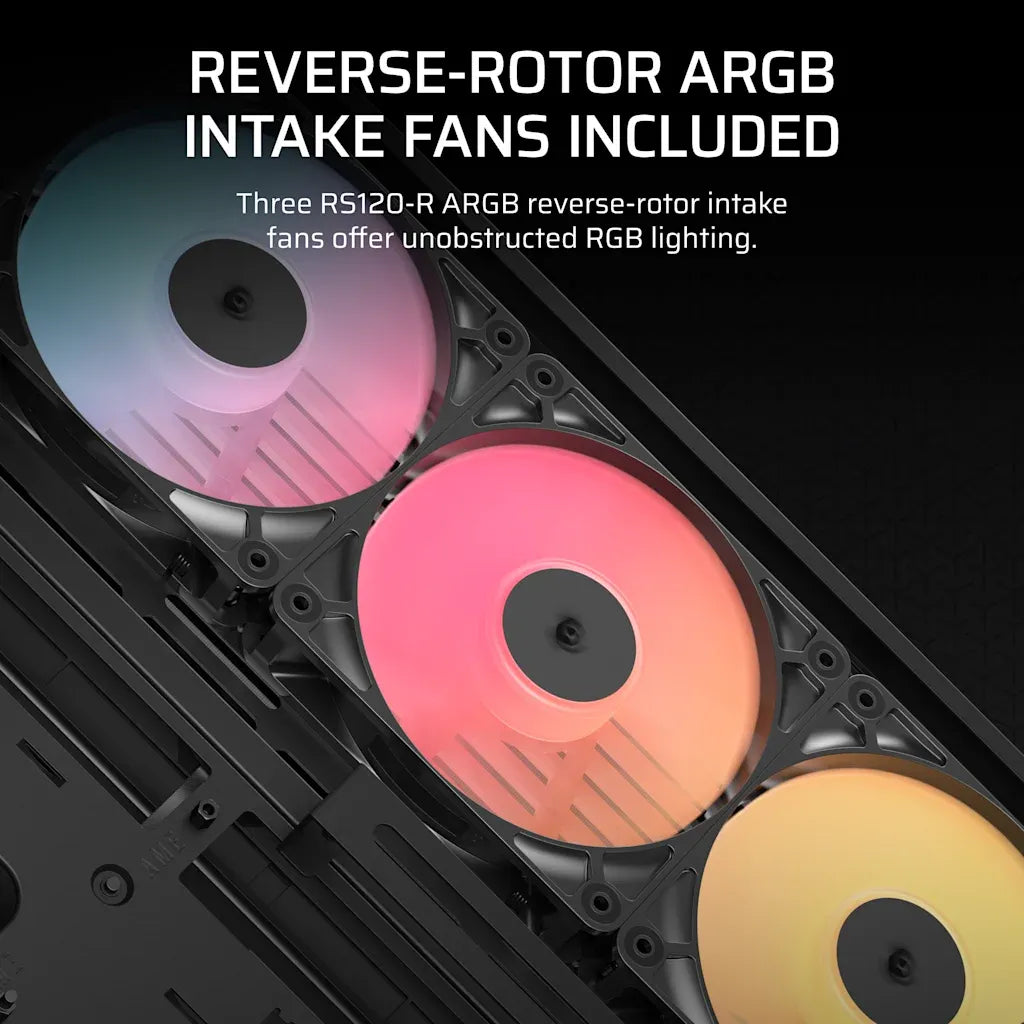

Reverse-Rotor ARGB Intake
The included RS-R fans pull air inward while keeping their illuminated side visible through the curved glass.
Complete Builder Platform
Key Features
A premium combination of panoramic glass, flexible cooling, modern hardware clearance, back-connect support, vertical GPU readiness, integrated stabilization, and convenient front connectivity.
Single-Piece Curved Tempered-Glass Front and Side Panel
Laminated Glass Safety and Noise-Reduction Film
Black Panoramic Mid-Tower Chassis
E-ATX Support up to 305 × 277mm
ATX Motherboard Support
Micro-ATX Motherboard Support
Mini-ITX Motherboard Support
ASUS BTF Compatibility
MSI Project Zero Compatibility
Gigabyte Project Stealth Compatibility
Corsair InfiniRail Roof Fan-Mounting System
Three RS-R ARGB 120mm Reverse-Rotor Fans Included
Motherboard-Controlled ARGB and PWM Fans
Up to Ten 120mm Fans
Top 3 × 120mm or 2 × 140mm Fan Support
Side 3 × 120mm or 2 × 140mm Fan Support
Bottom 1 × 120mm Fan Support
PSU Shroud 2 × 120mm Fan Support
Rear 1 × 120mm or 1 × 140mm Fan Support
Top 240mm, 280mm, and 360mm Radiator Support
Side 240mm, 280mm, and 360mm Radiator Support
Rear 120mm or 140mm Radiator Support
Dual 360mm Radiator Capability
460mm Maximum GPU Length
185mm Maximum CPU Cooler Height
250mm Maximum ATX Power Supply Length
Integrated GPU Anti-Sag Stabilization Arm
Seven Horizontal Expansion Slots
Three Vertical Expansion Slots
Tool-Free Vertical GPU Positioning
Vertical GPU Riser Cable Sold Separately
One 3.5-Inch Drive Bay
Two 2.5-Inch Drive Bays
USB 3.2 Gen 2x2 Type-C Front Port
Two USB 3.2 Gen 1 Type-A Front Ports
Combined Headphone and Microphone Jack
37mm Cable Routing Space
Integrated Dust Filtration
Reusable Hardware Screw Box Included
Two-Year Manufacturer Warranty

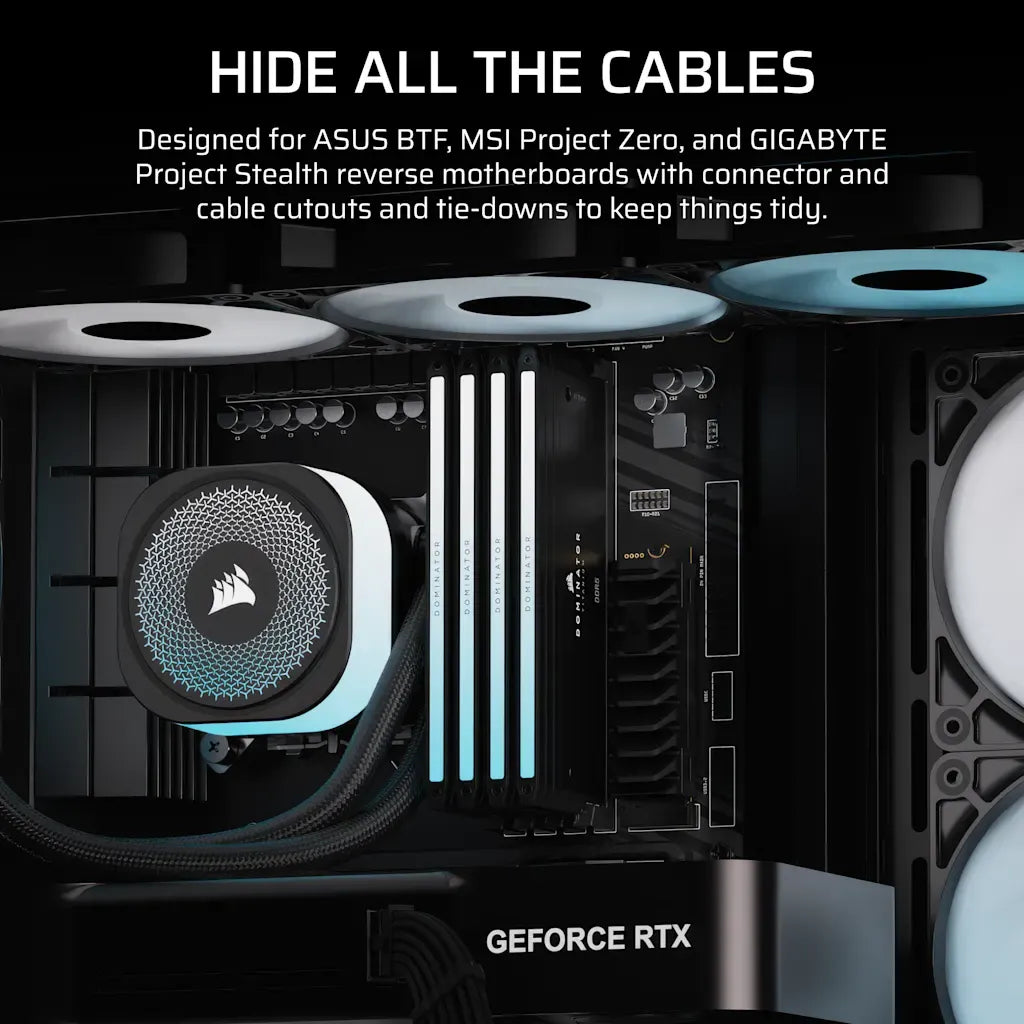

Clean Back-Connect Building
Hide Major Motherboard Cables Behind the Tray
Dedicated rear-facing connector cutouts support compatible back-connect motherboard ecosystems while the 37mm routing space provides room for power, fan, storage, and front-panel wiring.
Multiple Back-Connect Ecosystems
The case supports compatible ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth motherboard designs.
37mm Rear Cable Space
Generous cable clearance behind the motherboard tray helps organize thick power leads and multiple fan or ARGB cables.
Cleaner Panoramic View
Moving major connectors behind the motherboard reduces visible cable clutter through the curved glass panel.
Conventional Boards Supported
Traditional front-connector Mini-ITX, Micro-ATX, ATX, and supported E-ATX motherboards can also be installed.
Large Hardware Support
Built for Flagship Graphics Cards and Cooling
Generous internal dimensions support oversized graphics cards, tall air coolers, large ATX power supplies, and extensive liquid-cooling hardware.
Up to 460mm GPU Length
The spacious chamber supports exceptionally long graphics cards, subject to the selected side cooling and cable configuration.

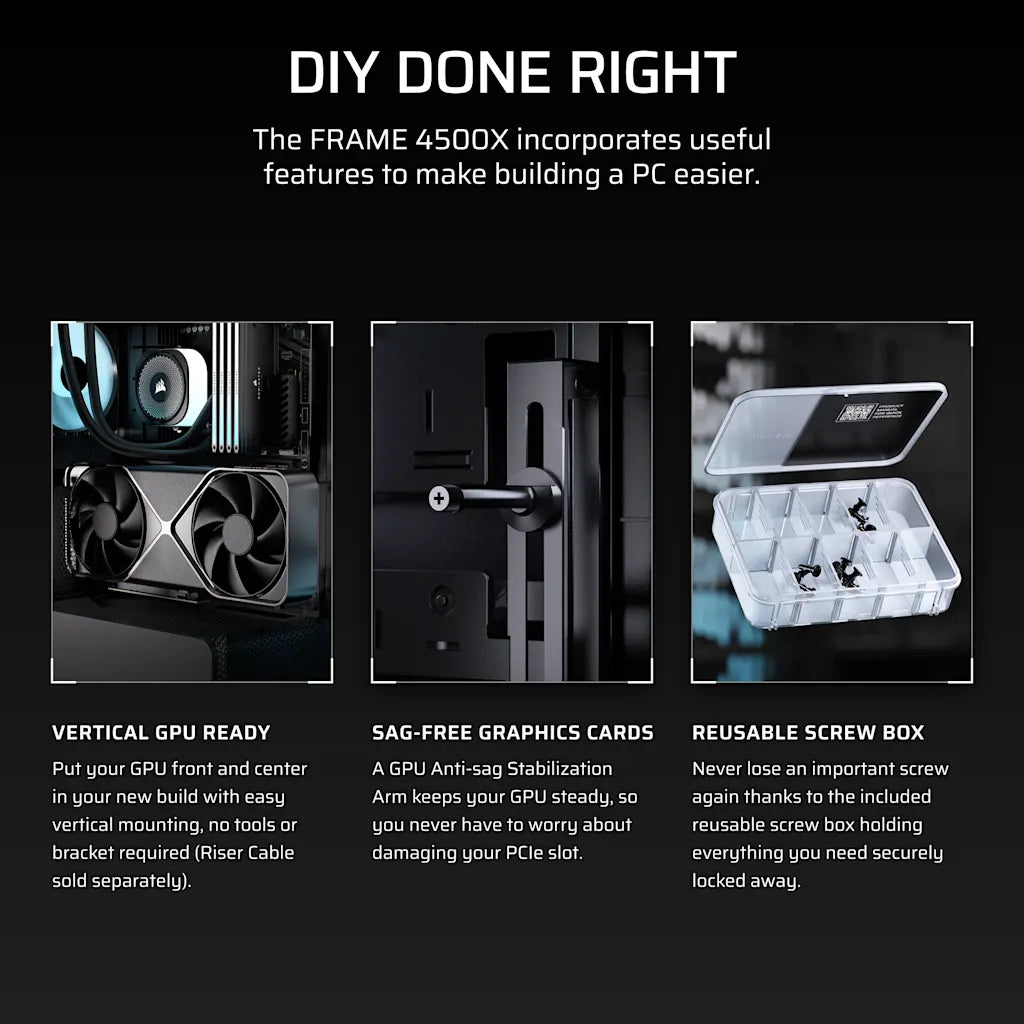

Integrated GPU Stabilization
An adjustable anti-sag arm supports heavy graphics cards and helps reduce stress on the PCI Express slot.
Vertical GPU Ready
The expansion-slot assembly supports a vertical GPU position without an additional mounting bracket; a compatible riser cable is sold separately.
Up to 250mm PSU Length
The power supply compartment supports long ATX units while builders should still reserve room for modular connectors and cable bends.
Designed for Premium Systems
Perfect For
Ideal for panoramic showcase PCs, high-end gaming systems, liquid-cooled workstations, RGB builds, reverse-connector platforms, and vertically mounted graphics cards.
Unobstructed Curved-Glass Display
The continuous front-and-side window highlights premium graphics cards, cooling hardware, and synchronized RGB lighting.
Top and Side 360mm Radiators
Dual large-radiator support provides flexibility for high-performance CPU cooling and custom thermal configurations.
Reverse-Connector Compatibility
Compatible back-connect motherboards can route major connectors away from the visible main chamber.
Installation Planning
Confirm Cooling and Component Clearances
Maximum clearances may be affected by radiator thickness, fan placement, vertical GPU positioning, motherboard size, power cable routing, and storage installation.
Plan Top Radiator Clearance
Check radiator and fan thickness against memory modules, motherboard heatsinks, and CPU power connectors.
Plan Side Cooling Depth
A thick side radiator and fan assembly can affect internal working space and cable routing around a large graphics card.
Vertical GPU Requires a Riser
The chassis provides vertical expansion slots, but a compatible PCI Express riser cable must be purchased separately.
Plan Storage Placement
The chassis supports one 3.5-inch drive and two 2.5-inch drives for local storage configurations.
Detailed Hardware
Technical Specifications
Official specifications for checking motherboard support, fan and radiator capacity, component clearance, storage, connectivity, dimensions, materials, and warranty coverage.
| Brand | Corsair |
| Product Model | FRAME 4500X RS-R ARGB |
| Manufacturer Part Number | CC-9011314-WW |
| Product Type | Panoramic Glass Mid-Tower PC Case |
| Color | Black |
| Case Size | Mid-Tower |
| Materials | Steel, tempered glass, 3D-Y airflow steel, and plastic |
| Panoramic Panel | Single-piece curved tempered glass across the front and left side |
| Glass Film | Laminated safety and noise-reduction film |
| Supported Motherboards | Mini-ITX, Micro-ATX, ATX, and E-ATX up to 305 × 277mm |
| Reverse-Connector Support | Yes |
| Supported Back-Connect Platforms | ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth |
| Included Fans | 3 × RS-R ARGB 120mm reverse-rotor PWM fans |
| Maximum 120mm Fan Capacity | 10 |
| Top Fan Support | 3 × 120mm or 2 × 140mm |
| Side Fan Support | 3 × 120mm or 2 × 140mm |
| Bottom Fan Support | 1 × 120mm |
| PSU Shroud Fan Support | 2 × 120mm |
| Rear Fan Support | 1 × 120mm or 1 × 140mm |
| Front Fan Support | None |
| Top Radiator Support | 240mm, 280mm, or 360mm |
| Side Radiator Support | 240mm, 280mm, or 360mm |
| Rear Radiator Support | 120mm or 140mm |
| Front Radiator Support | None |
| Bottom Radiator Support | None |
| Maximum Simultaneous Radiator Configuration | Top 360mm and side 360mm |
| Maximum GPU Length | 460mm / approximately 18.11 inches |
| Maximum CPU Cooler Height | 185mm / approximately 7.28 inches |
| Maximum PSU Length | 250mm / approximately 9.84 inches |
| Power Supply Form Factor | ATX |
| Horizontal Expansion Slots | 7 |
| Vertical Expansion Slots | 3 |
| Vertical GPU Support | Yes; compatible riser cable sold separately |
| Integrated GPU Support | Anti-sag stabilization arm |
| Internal 3.5-Inch Drive Bays | 1 |
| Internal 2.5-Inch Drive Bays | 2 |
| Front USB-C | 1 × USB 3.2 Gen 2x2 Type-C |
| Front USB-A | 2 × USB 3.2 Gen 1 Type-A |
| Front Audio | 1 × combined headphone and microphone jack |
| Front I/O Motherboard Headers | USB 3.2 Gen 2x2 Type-E, USB 3.2 Gen 1 20-pin, F_PANEL, and HD Audio |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm / approximately 1.46 inches |
| RapidRoute Cable Management | Not included |
| Left Side Panel | Curved tempered glass |
| Right Side Panel | Steel |

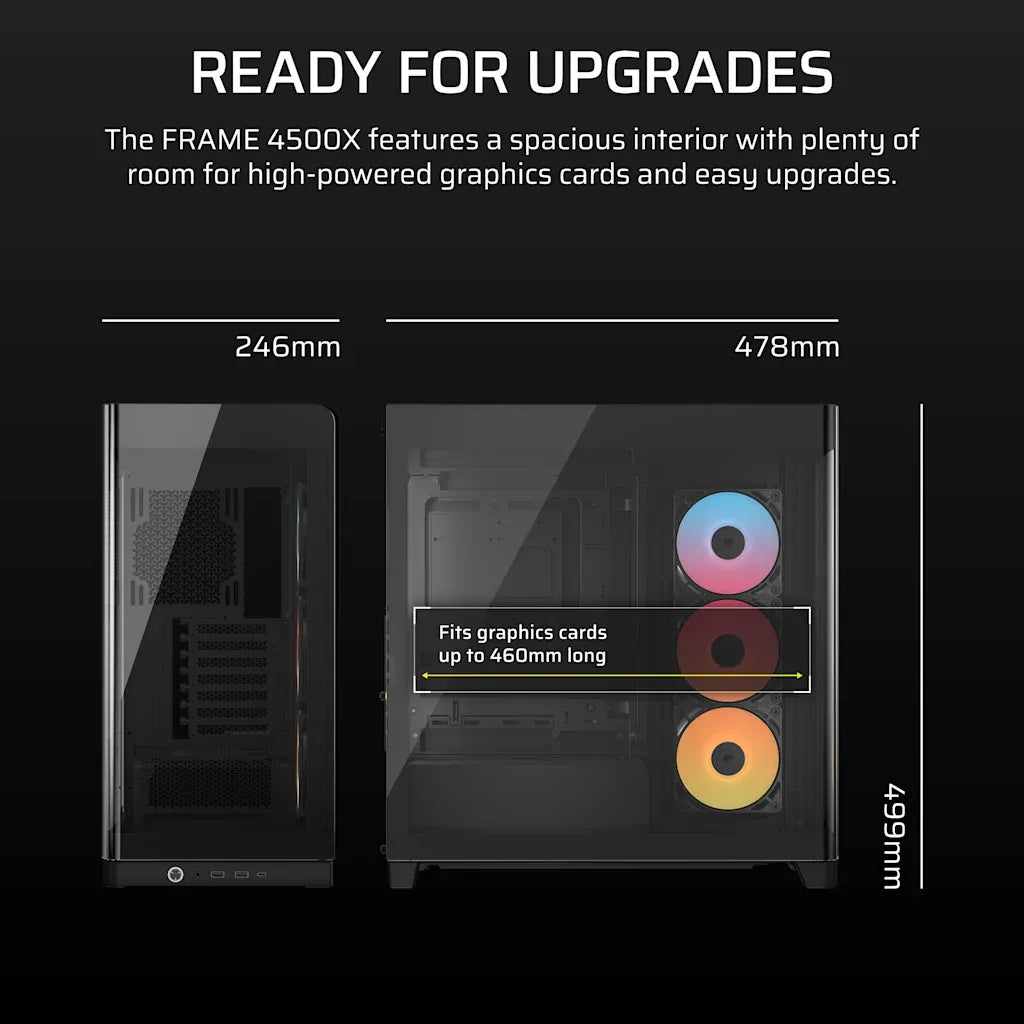

| Case Dimensions | 499 × 246 × 478mm / 19.65 × 9.69 × 18.82 inches |
| Listed Weight | 14.26kg / approximately 31.44 lb |
| Manufacturer Warranty | 2 years |
Shop With Confidence
Why Buy From OPCBleu?
OPCBleu combines carefully selected technology products with transparent service, Canadian delivery, and a customer-first buying experience.
Panoramic Style. Serious Cooling Flexibility.
The black Corsair FRAME 4500X RS-R ARGB combines seamless curved glass, three reverse-rotor ARGB fans, InfiniRail mounting, dual 360mm radiator capability, extensive component clearance, and back-connect motherboard support.
OPCBleu focuses on performance, reliability, and value so Canadian customers can shop for PC hardware with confidence.
🚚
Fast Canadian Shipping
Quick order processing and delivery across Canada.
🛡️
30-Day Returns
A clear return process for eligible purchases.
🔒
Secure Checkout
Protected payment processing through trusted providers.
💙
Quebec-Based Store
Technology enthusiasts serving customers across Canada.
Helpful Answers
FAQs
Answers to common questions about motherboard support, included fans, radiator capacity, graphics card clearance, vertical mounting, back-connect compatibility, storage, front I/O, and RGB control.
Which motherboard sizes fit in the Corsair FRAME 4500X?
It supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards measuring up to 305 × 277mm.
Which reverse-connector motherboards are supported?
The chassis is designed for compatible ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth motherboards.
How many fans are included?
Three Corsair RS-R ARGB 120mm reverse-rotor PWM intake fans are included on the side.
How many fans can be installed?
The case supports up to ten 120mm fans across the top, side, bottom, and rear.
Can two 360mm radiators be installed?
Yes. Corsair lists simultaneous support for compatible 360mm radiators at the top and side.
Can a radiator be installed in the front?
No. The curved panoramic glass occupies the front. Radiators are supported at the top, side, and rear.
What is the maximum graphics card length?
The maximum listed GPU length is 460mm. Actual clearance can be affected by cooling hardware, cable routing, and the selected installation layout.
Does it support vertical graphics card mounting?
Yes. The case provides three vertical expansion slots and does not require a separate vertical mounting bracket, but a compatible PCI Express riser cable is sold separately.
Does it include a GPU support bracket?
Yes. An adjustable anti-sag stabilization arm is integrated into the chassis.
How is the fan lighting controlled?
The bundled RS-R ARGB PWM fans are designed for connection to compatible motherboard ARGB and PWM headers.
What front ports are included?
The front I/O includes one USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and one combined headphone and microphone jack.
How many storage drives can be installed?
The case provides one internal 3.5-inch drive bay and two internal 2.5-inch drive bays.
