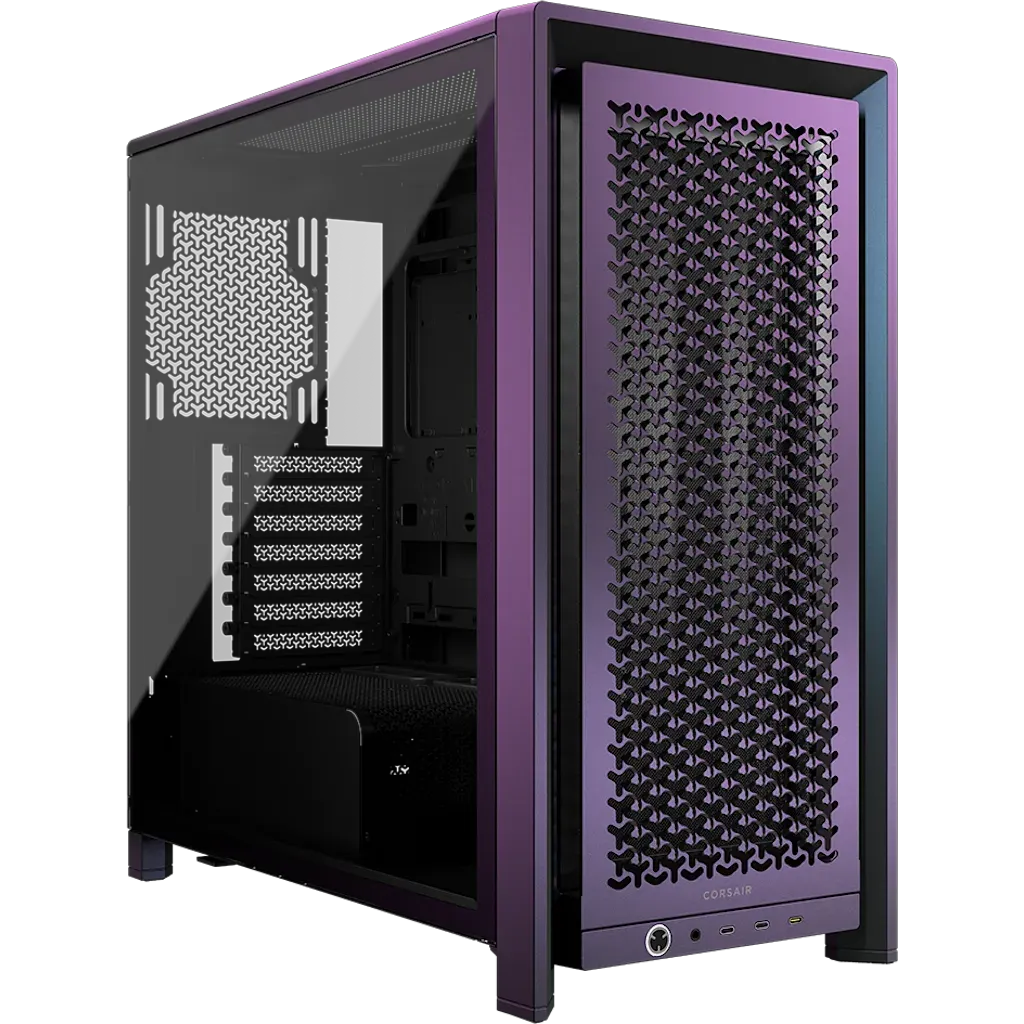

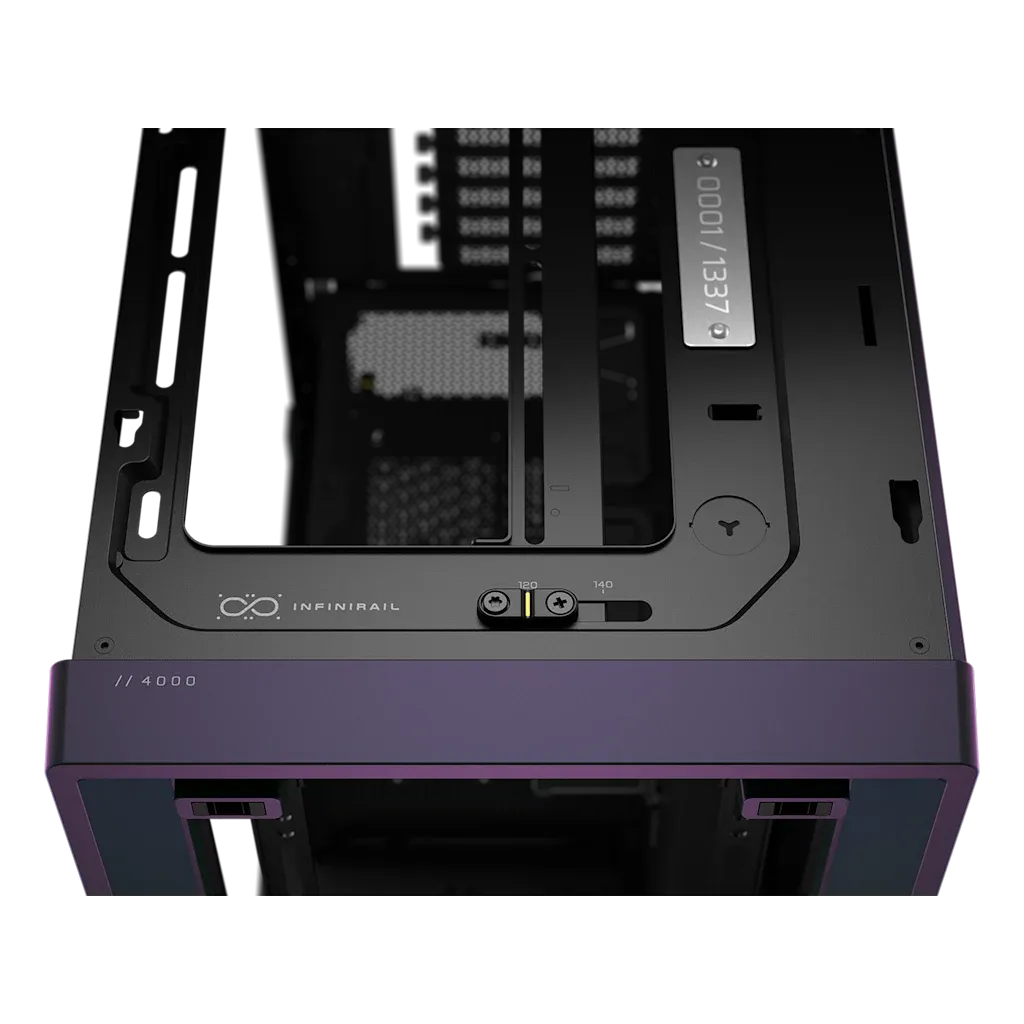

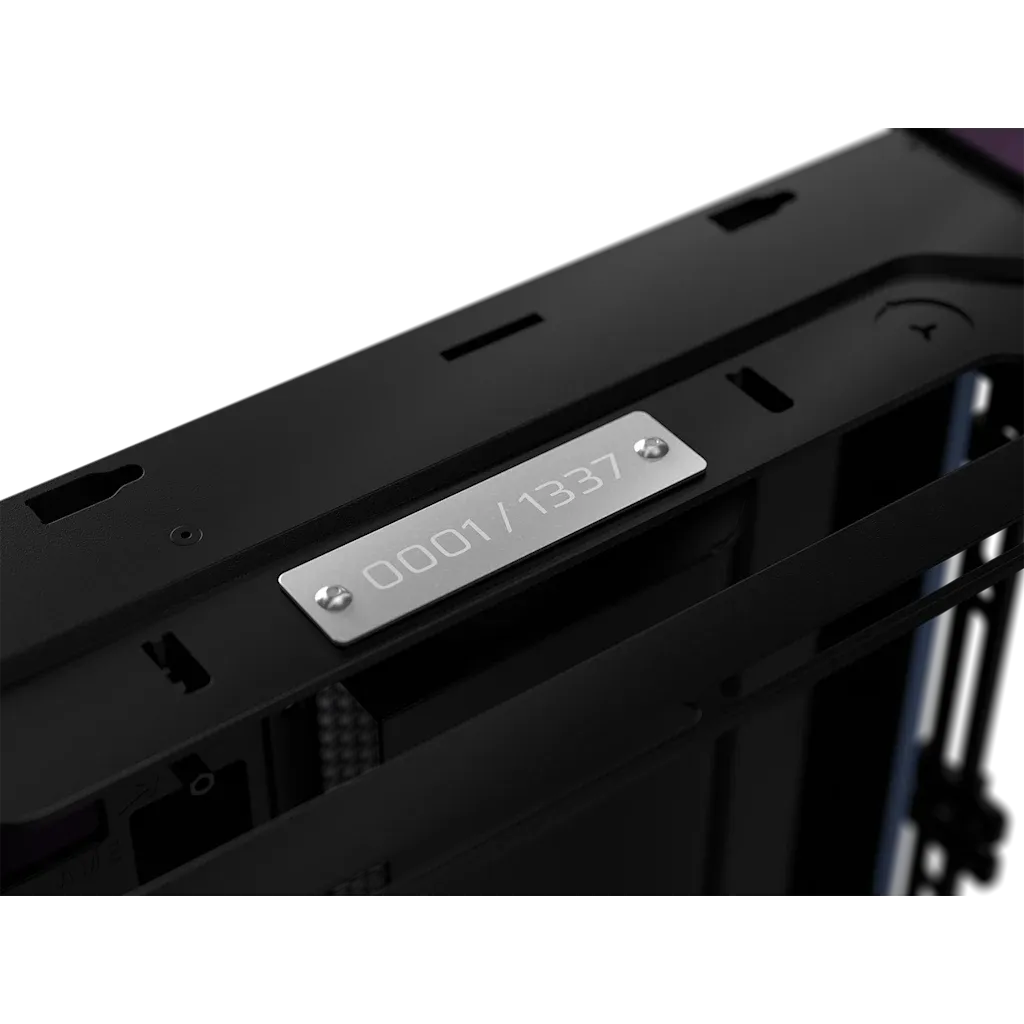

The FRAME 4000D Vault Series delivers a limited-edition modular mid-tower chassis with a stunning chromatic paint finish that shifts color with your viewing angle and lighting. An aluminum badge with exclusive etching marks this as one of only 1,337 units produced in each colorway.
Built for high-performance systems, it supports dual 360mm radiators, features the InfiniRail™ fan mounting system for effortless builds, and includes a GPU anti-sag stabilization arm. The modern front I/O panel provides three USB Type-C ports, while the full tempered glass side panel and compact PSU shroud showcase your components cleanly.
Key Features
Brand
Corsair
Model
FRAME 4000D Vault Series
SKU
CC-9011342-WW
Case Type
Mid-Tower
Motherboard Support
Mini-ITX, MicroATX, ATX, E-ATX (305mm x 277mm)
Material
Steel, Tempered Glass, Plastic
Side Panel
Tempered Glass
Radiator Compatibility
120mm, 140mm, 240mm, 280mm, 360mm
Compatible Liquid Coolers
H60, H100, H115, H150, NAUTILUS, TITAN
Internal 3.5" Drive Bays
1
Internal 2.5" Drive Bays
2
Maximum CPU Cooler Height
6.7 in (170 mm)
Maximum PSU Length
8.7 in (220 mm)
Maximum GPU Length
16.9 in (430 mm)
Front I/O
1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-C, 1x Audio In/Out
Dimensions (L x W x H)
19.3 x 9.4 x 19.1 in (490 x 239 x 486 mm)
Weight
27.6 lb (12.54 kg)
Expansion Slots
7
PSU Support
ATX
Fan Mounting System
InfiniRail™
GPU Anti-Sag
Yes (Stabilization Arm)
Reverse Connector Motherboard Support
ASUS BTF, MSI PROJECT ZERO, GIGABYTE PROJECT STEALTH
Warranty
2 Years
Videos
Warranty
Two-Year Warranty.
Frequently asked questions
What motherboard sizes does the FRAME 4000D support?
It supports Mini-ITX, MicroATX, ATX, and E-ATX motherboards up to 305mm x 277mm.
How many units of this limited edition were produced?
Only 1,337 units of each colorway were made, making it a true limited edition.
What radiators can I install in this case?
The case supports dual 360mm radiators and is compatible with 120mm, 140mm, 240mm, 280mm, and 360mm sizes.
Does this case work with reverse connector motherboards?
Yes, it is compatible with reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH.
What is the maximum GPU length supported?
The case can accommodate graphics cards up to 16.9 inches (430 mm) in length.
What is included in the front I/O panel?
The front I/O includes one USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen 1 Type-C ports, and an audio in/out jack.
Roll over image to zoom inClick on image to zoom
/

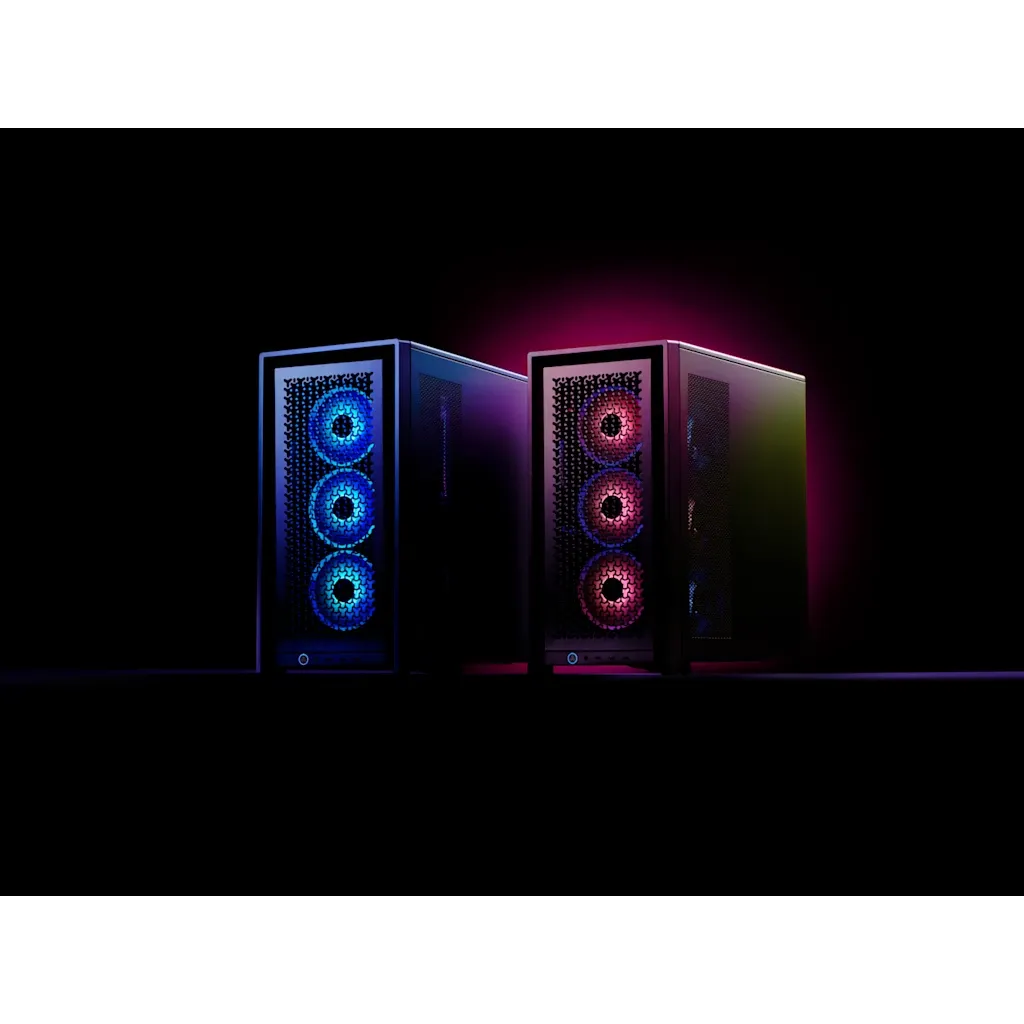

Corsair FRAME 4000D Vault Series Modular Mid-Tower PC Case - Galaxy
