Product description
Description and product details Overview, features, specifications, compatibility and FAQ
THREE RS120 ARGB FANS. FULLY MODULAR. THREE 360MM-CAPABLE LOCATIONS.

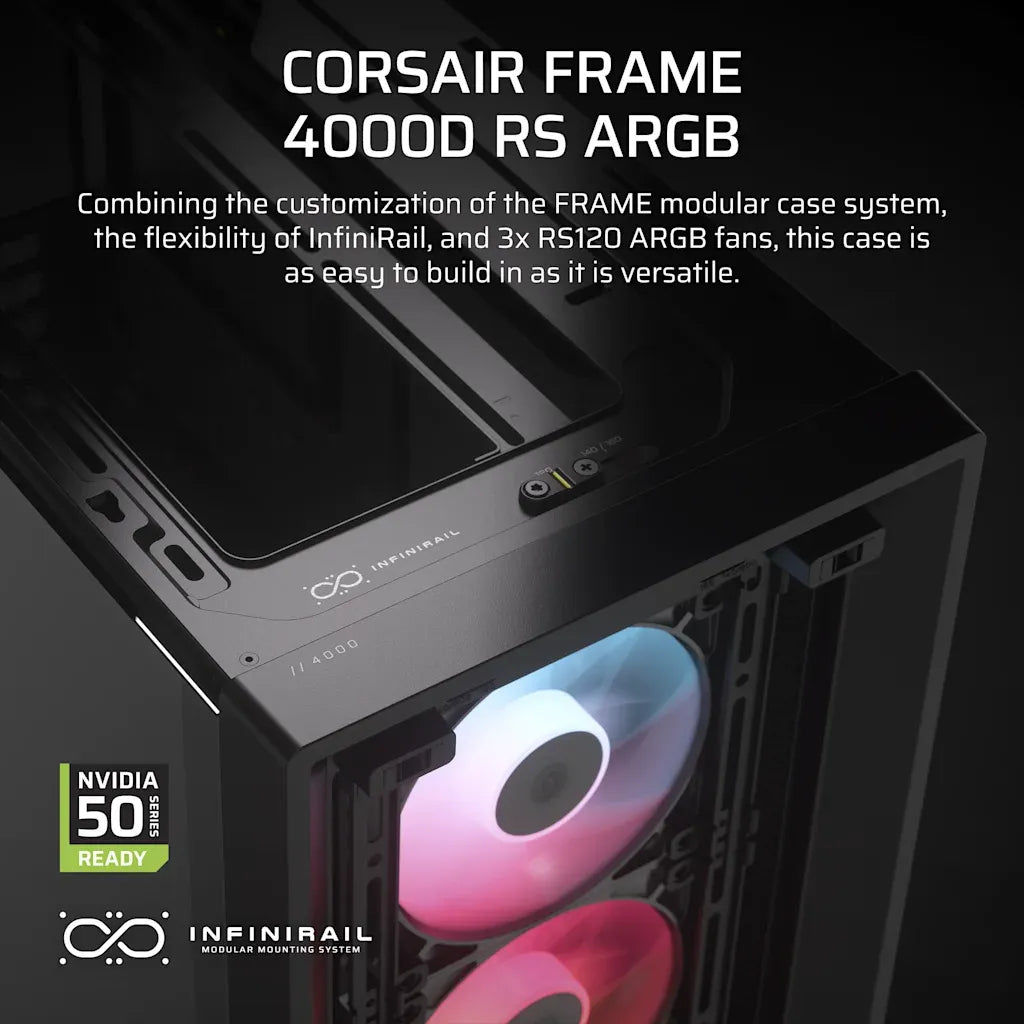

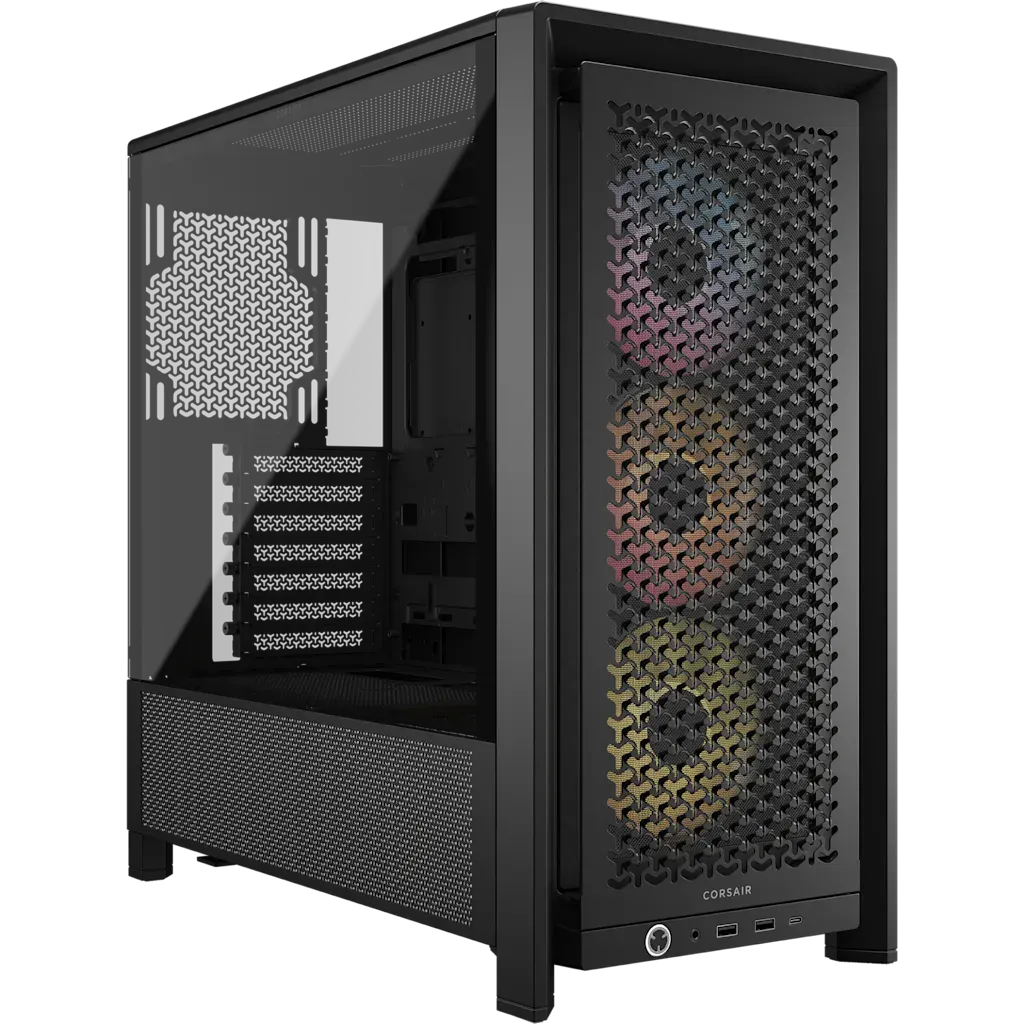

Corsair FRAME 4000D RS ARGB Modular Mid-Tower PC Case — Black
The Corsair FRAME 4000D RS ARGB combines Corsair’s fully modular FRAME platform with three pre-installed RS120 ARGB PWM fans. Its reinforced 3D-Y airflow front panel, InfiniRail fan mounting system, tempered-glass side panel, and expansive internal layout create a flexible foundation for gaming PCs, creator systems, and clean enthusiast builds.
The included fans use daisy-chainable 4-pin PWM and +5V ARGB connections, allowing speed and lighting control through compatible motherboard headers without a dedicated controller. Reverse-connector motherboard support, multiple 360mm radiator locations, vertical GPU capability, and an integrated anti-sag arm make the chassis ready for modern high-performance hardware.
3 × RS120
ARGB PWM fans included
430mm
Maximum listed GPU length
3 × 360mm
Front, roof, and side locations
Corsair specifies up to ten 120mm fans simultaneously, depending on the installed layout.
Compatible radiators can be installed at the front, roof, or side.
Generous clearance supports large modern graphics cards and high-performance builds.

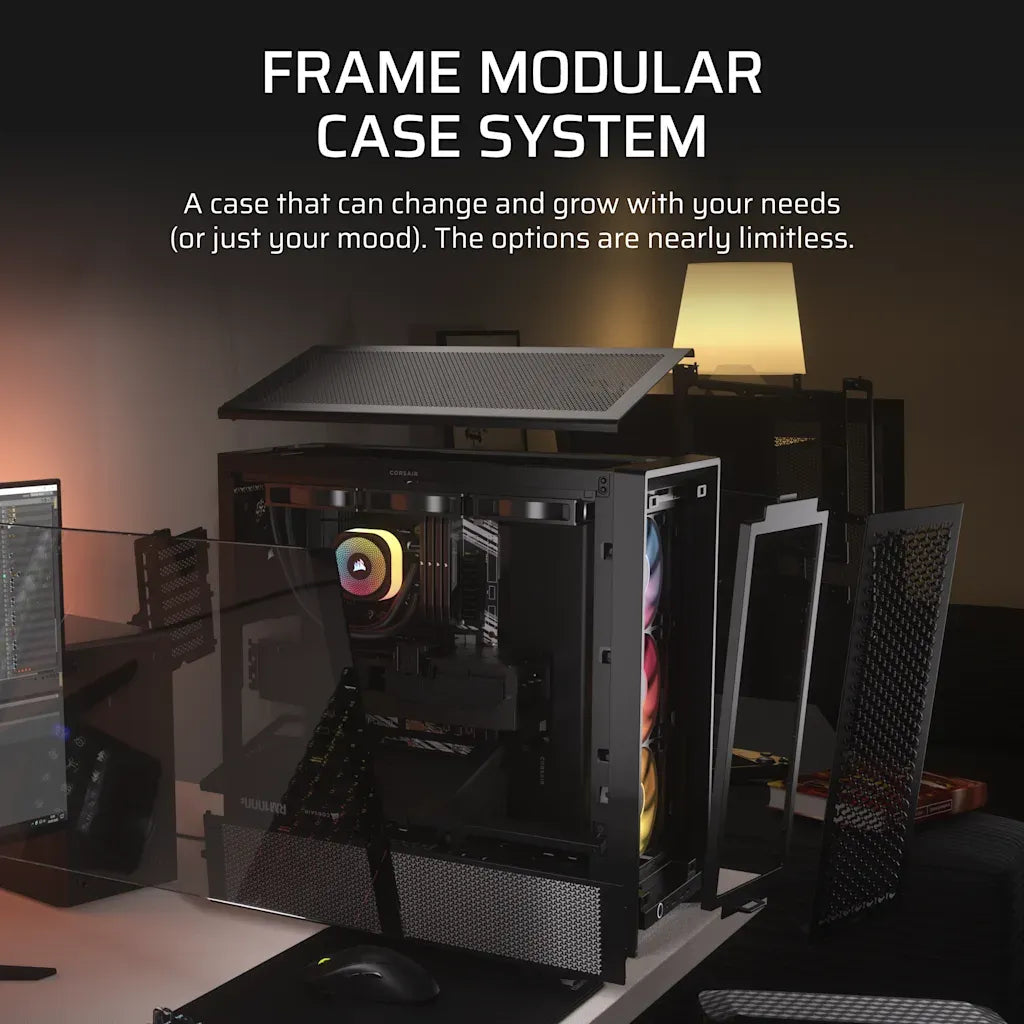

FRAME Modular Case System
A Chassis Designed to Change with the Build
Selected exterior and internal components can be replaced with compatible FRAME accessories, allowing the enclosure to evolve without replacing the complete chassis.
Replaceable FRAME Components
Compatible panels, trays, shrouds, and I/O accessories can change the appearance or functionality of the case.

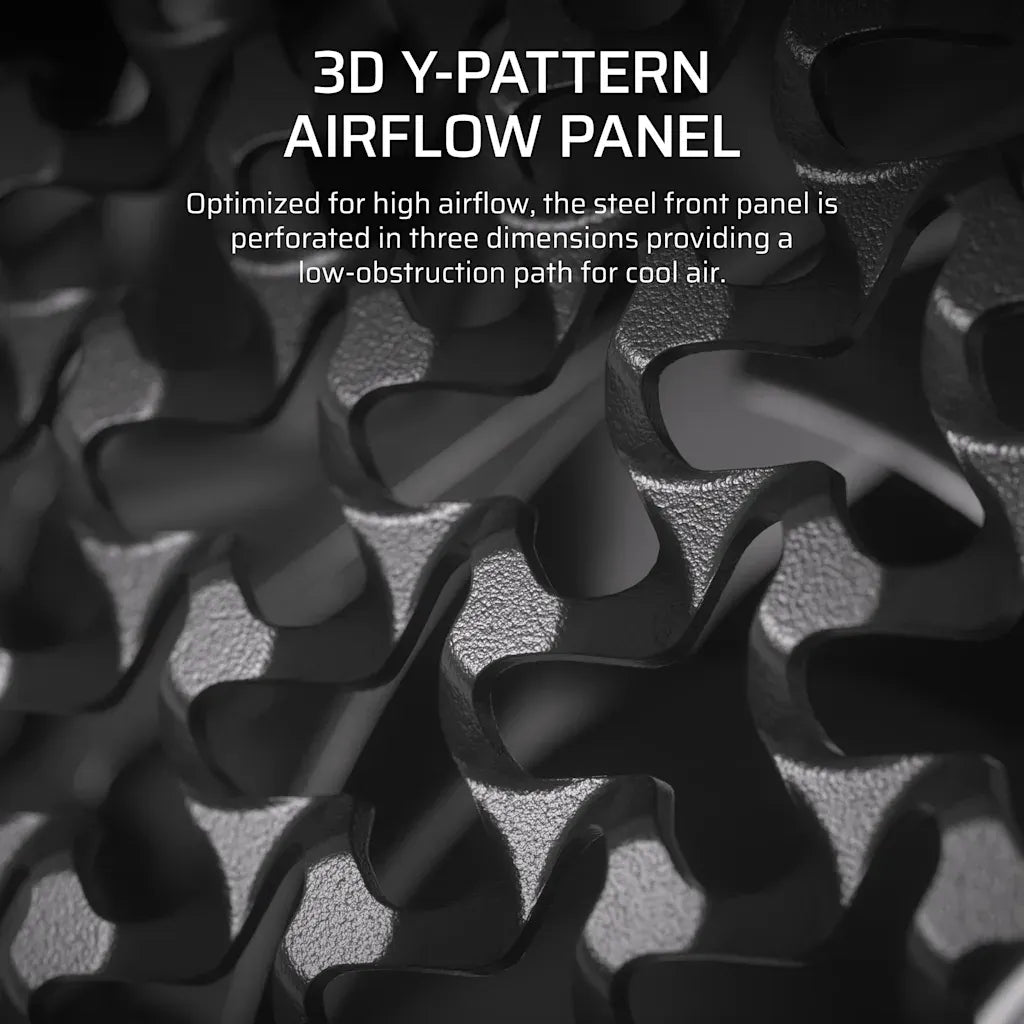

3D-Y Airflow Front Panel
The reinforced steel pattern is designed to reduce airflow restriction while maintaining structural rigidity.

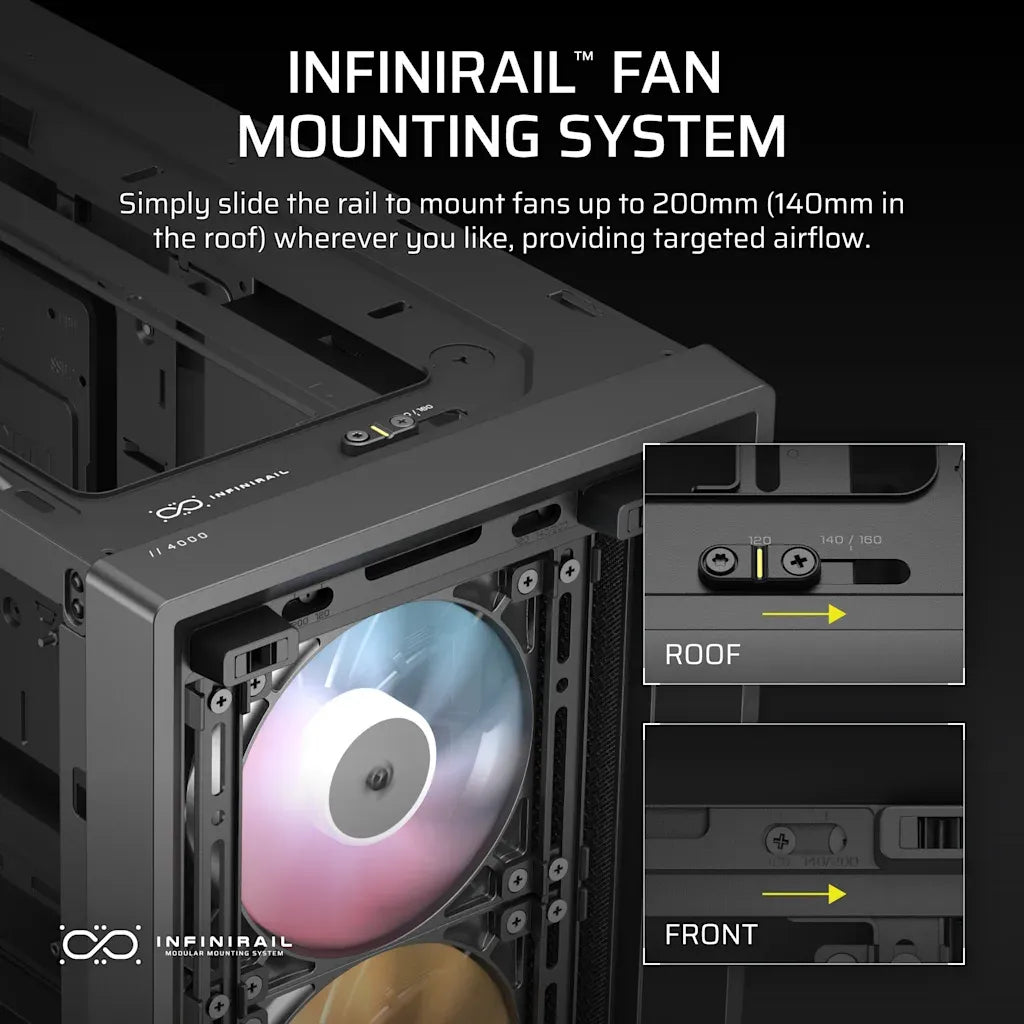

InfiniRail Fan Mounting
Adjustable steel rails simplify fan-size changes and allow more precise positioning at the front and roof.
Tempered-Glass Side Panel
The main chamber remains visible for showcasing the motherboard, graphics card, cooling hardware, and lighting.
High-Performance Cooling Included
Three RS120 ARGB PWM Fans Out of the Box
The factory-installed front intake fans combine concentrated airflow, strong static pressure, addressable lighting, daisy-chain wiring, and low-load Zero RPM support.

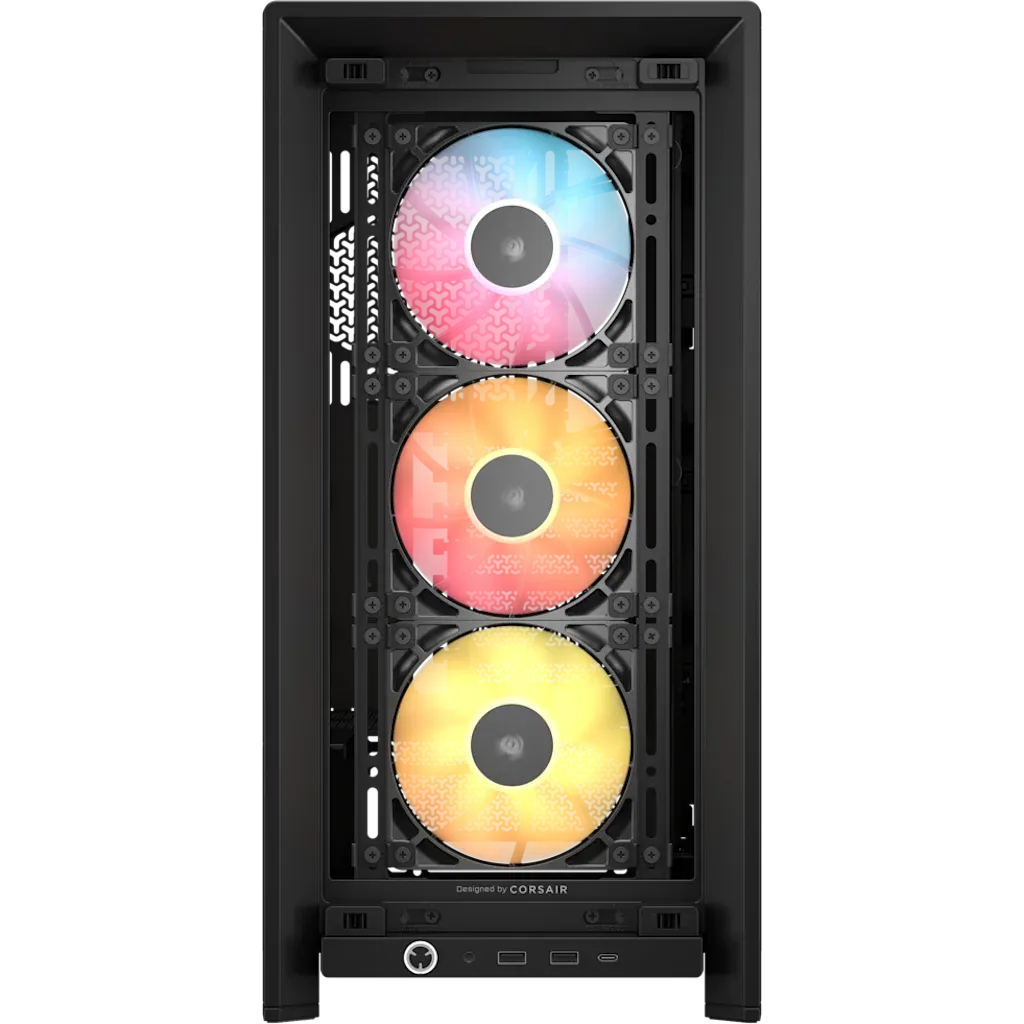

Front Intake Configuration
Three 120mm fans draw cool outside air through the high-airflow 3D-Y steel front panel.
Eight ARGB LEDs per Fan
Lighting connects directly to a compatible +5V ARGB motherboard header and can synchronize with supported motherboard software.
420–2100 RPM PWM Range
Wide speed control allows the system to balance quiet operation and stronger cooling under load.
Up to 72.8 CFM
Each fan can deliver substantial airflow for the graphics card, motherboard, memory, and CPU cooling hardware.
Up to 4.15mm H₂O
Strong static pressure helps move air through the filtered front intake and compatible radiator fins.
Magnetic Dome Bearings
Low-friction bearing technology and Corsair AirGuide vanes support smooth operation and focused airflow.
Daisy-Chain Connections
The three fans can share one 4-pin PWM connection and one +5V ARGB connection on a compatible motherboard.
Zero RPM Support
Compatible fan control can stop the fans completely during low-load operation to eliminate fan noise.
Wide Cooling Flexibility
Up to Twelve Physical 120mm Fan Positions
Corsair lists twelve physical 120mm mounting positions. Its product copy also states that up to ten 120mm fans can be mounted simultaneously, reflecting layout conflicts between certain positions, the three included front fans, and installed hardware.
Front: 3 × 120mm
The front also supports two 140mm or two 200mm fans through the InfiniRail system.
Roof: 3 × 120mm
The roof alternatively supports two 140mm fans for a quieter large-fan configuration.
Side: 3 × 120mm
The removable side bracket also supports two 140mm fans for direct motherboard and GPU airflow.
Lower Area: 2 × 120mm
Corsair lists two lower 120mm positions in the bottom or PSU-shroud area, depending on the installed internal configuration.
Rear: 1 × 120mm or 140mm
The rear provides a conventional exhaust position for balancing intake airflow.
Plan Simultaneous Compatibility
Side cooling, the anti-sag arm, storage hardware, and radiator placement can prevent every physical position from being used at once.

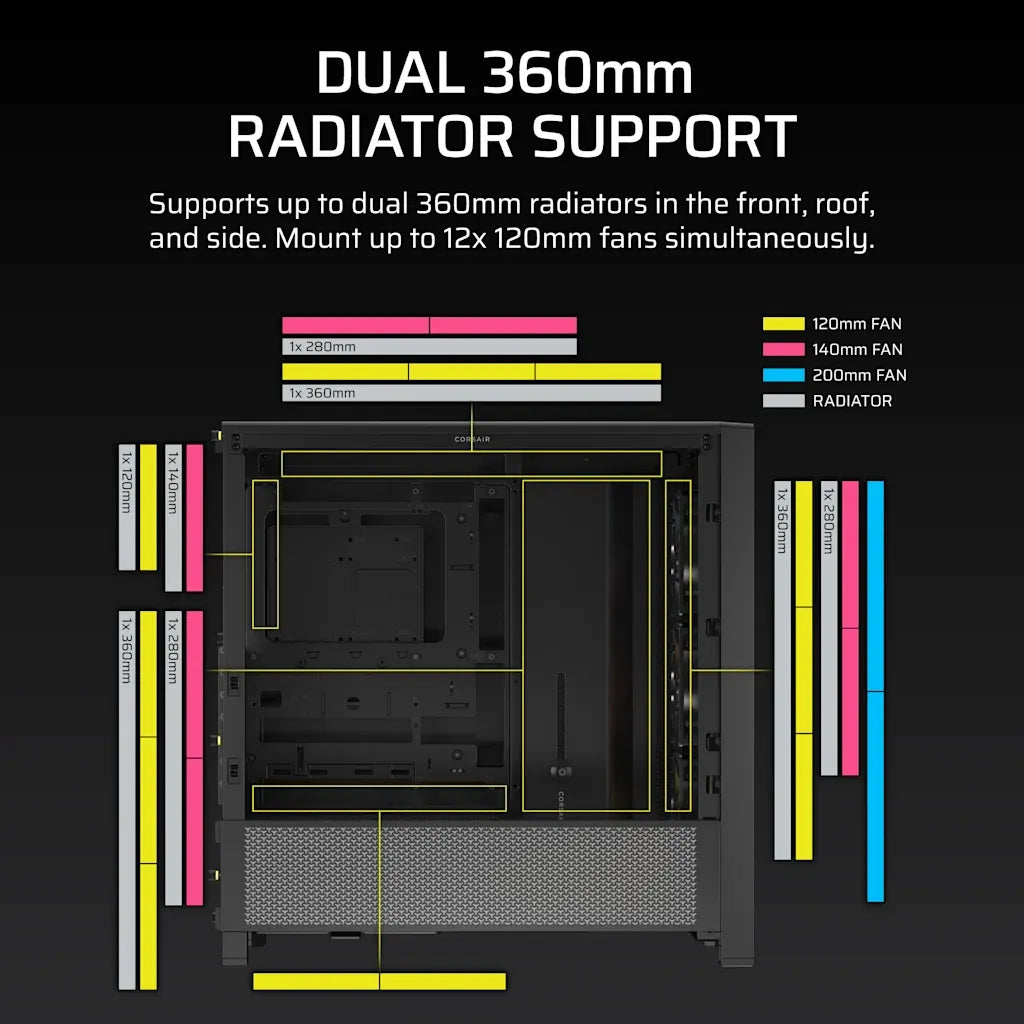

Liquid-Cooling Ready
Three 360mm-Capable Locations, Two Simultaneously
The front, roof, and side each accept compatible 240mm, 280mm, or 360mm radiators. Corsair describes the chassis as supporting up to two 360mm radiators at the same time.
Front 240mm, 280mm, or 360mm
The airflow front panel supplies outside air directly to a compatible radiator and fan assembly.
Roof 240mm, 280mm, or 360mm
The roof supports large exhaust-oriented AIO coolers and custom-loop heat exchangers.
Side 240mm, 280mm, or 360mm
The internal side bracket adds flexibility for AIO placement and custom-loop configurations.
Rear 120mm or 140mm*
The current Corsair product specification lists 120mm and 140mm rear radiator support. Confirm spacing for the exact radiator and rear hardware selected.
Clean Modern Building

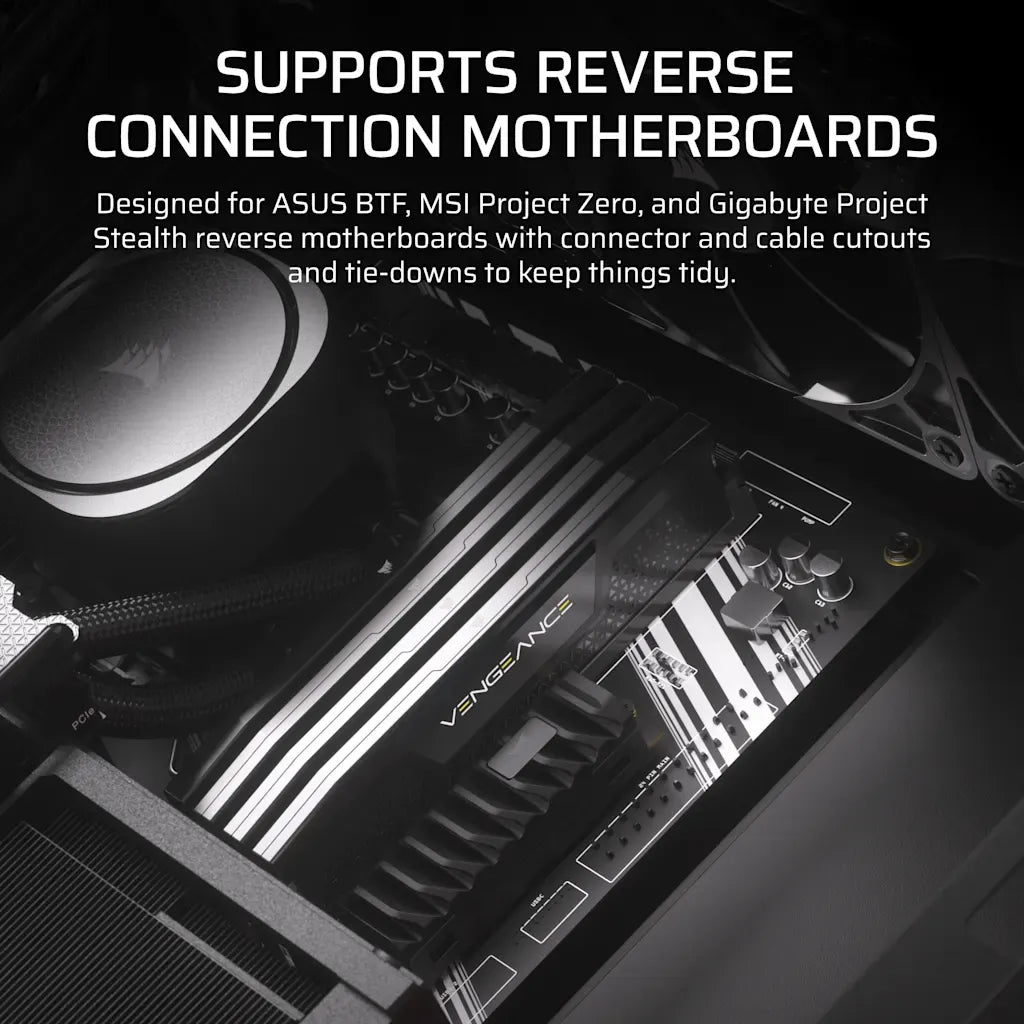

Reverse-Connector Ready with GPU Anti-Sag Support
Compatible back-connect motherboards move major power and front-panel connectors behind the motherboard tray, while the included stabilization arm supports large graphics cards.
ASUS BTF Compatibility
Compatible ASUS reverse-connector motherboards can route major connections behind the tray.
MSI Project Zero Compatibility
Supported MSI back-connect boards reduce visible cabling in the main chamber.
Gigabyte Project Stealth Compatibility
Purpose-built tray cutouts support compatible Gigabyte reverse-connector layouts.
Adjustable GPU Anti-Sag Arm
The included support helps reduce graphics-card droop and stress on the motherboard PCI Express slot.
Complete Builder Feature Set
Key Features
Three included RS120 ARGB fans, fully modular construction, extensive cooling support, reverse-connector compatibility, modern front I/O, large component clearance, vertical GPU capability, and flexible storage.
Fully Modular FRAME Mid-Tower Platform
Black Steel and Tempered-Glass Construction
Reinforced 3D-Y High-Airflow Front Panel
Tempered-Glass Left Side Panel
Three RS120 ARGB PWM Fans Included
Front Intake Fan Configuration
420–2100 RPM PWM Fan Speed Range
Up to 72.8 CFM Airflow per Included Fan
Up to 4.15mm H₂O Static Pressure per Fan
Eight Addressable RGB LEDs per Fan
Magnetic Dome Bearings and AirGuide Vanes
Daisy-Chainable 4-Pin PWM and +5V ARGB Connections
Zero RPM Support at Low Loads
No Dedicated Fan or ARGB Controller Required
Up to Twelve Physical 120mm Fan Positions
Up to Ten 120mm Fans Simultaneously According to Corsair Product Copy
Front 3 × 120mm, 2 × 140mm, or 2 × 200mm Fan Support
Top 3 × 120mm or 2 × 140mm Fan Support
Side 3 × 120mm or 2 × 140mm Fan Support
Lower 2 × 120mm Fan Support
Rear 1 × 120mm or 1 × 140mm Fan Support
Front 240mm, 280mm, and 360mm Radiator Support
Top 240mm, 280mm, and 360mm Radiator Support
Side 240mm, 280mm, and 360mm Radiator Support
Rear 120mm and 140mm Radiator Support on Current Product Specification
Front and Roof InfiniRail Mounting Systems
Mini-ITX, Micro-ATX, ATX, and E-ATX Support
E-ATX Motherboards up to 305 × 277mm
ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth Support
430mm Maximum GPU Length
Approximately 405mm GPU Clearance with Front Fans Installed
170mm Maximum CPU Cooler Height
220mm Maximum ATX Power Supply Length
Integrated Adjustable GPU Anti-Sag Arm
Seven Horizontal or Three Vertical Expansion Slots
Vertical GPU Support with Optional Riser Cable
Two Internal 3.5-Inch Drive Bays
Four Internal 2.5-Inch Drive Bays
One USB 3.2 Gen 2 Type-C Front Port
Two USB 3.2 Gen 1 Type-A Front Ports
Combined Headphone and Microphone Jack
37mm Cable Routing Space
Front, Lower, and Side Dust Filtration
Two-Year Manufacturer Warranty
Large Modern Hardware
430mm GPU Clearance and E-ATX Support
The spacious interior supports long graphics cards, full-size CPU air coolers, standard ATX power supplies, multiple storage devices, and reverse-connector motherboards.
430mm Maximum GPU Length
Corsair lists approximately 405mm of graphics-card clearance when front fans are installed.
170mm CPU Cooler Height
Many full-size tower air coolers fit within the official height limit.
220mm ATX PSU Length
Large high-wattage power supplies are supported, with final working space affected by cables and drive placement.
Six Internal Drive Positions
Install up to two 3.5-inch hard drives and four 2.5-inch solid-state drives.

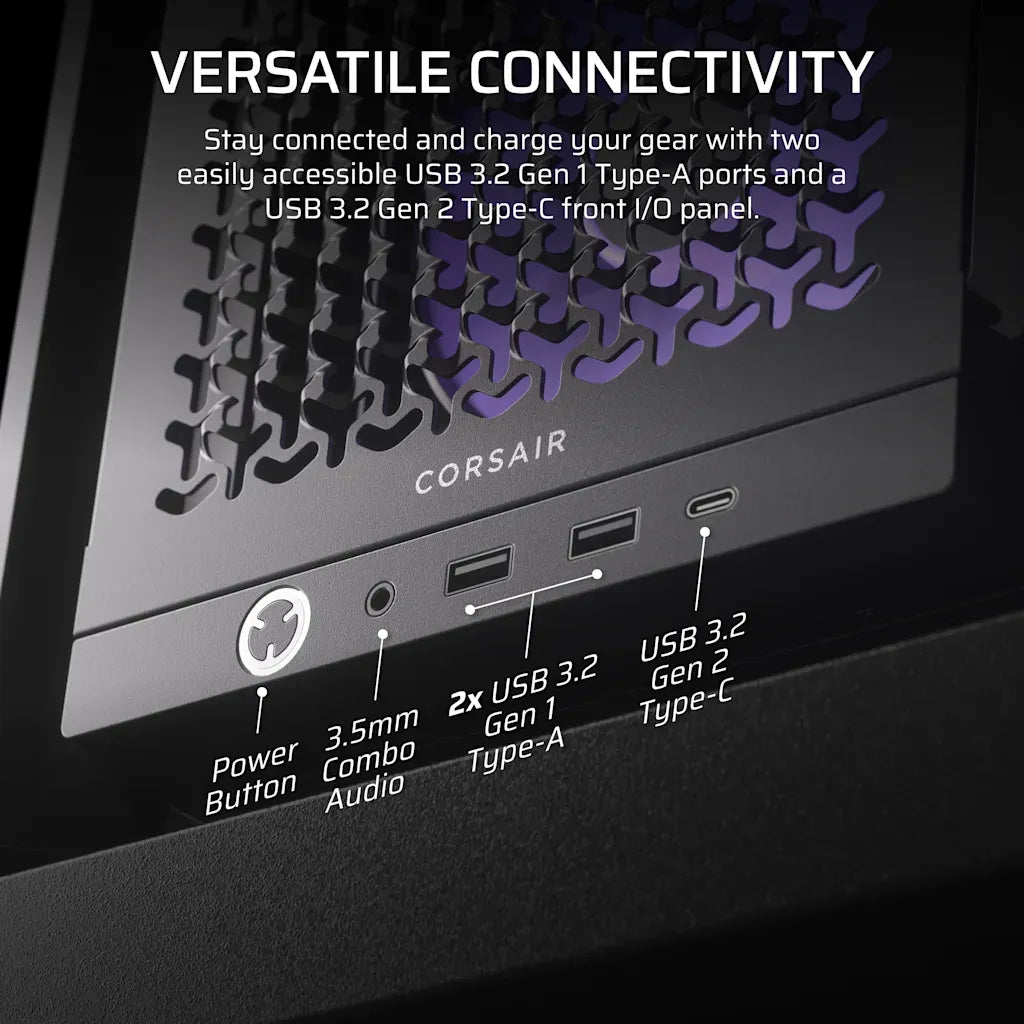

Modern Front Connectivity
USB-C, Dual USB-A, and Combined Audio
The front I/O provides current Type-C connectivity alongside conventional Type-A ports and a headset jack.
USB 3.2 Gen 2 Type-C
The front Type-C port connects through a compatible motherboard Type-E header.
Two USB 3.2 Gen 1 Type-A
Connect keyboards, mice, controllers, flash drives, and other conventional USB devices.
Headphone and Microphone Combo
A single combined audio connection supports compatible headsets and audio devices.
Standard Motherboard Headers
The front I/O uses standard HD Audio, USB, Type-E, and front-panel motherboard connections.
Designed for Flexible Systems
Perfect For
Ideal for high-airflow gaming PCs, motherboard-controlled ARGB builds, clean reverse-connector systems, large liquid coolers, and builders who want a modular chassis that can evolve over time.
Three Front ARGB Fans Included
Start with a complete front intake configuration and add rear, roof, side, or lower cooling as needed.
Reverse-Connector Ready
Compatible motherboards move major cables behind the tray for a cleaner visible chamber.
Modular FRAME Ecosystem
Replace compatible panels, trays, shrouds, and I/O components as the build evolves.
Installation Planning
Confirm the Cooling Layout Before Buying Components
Physical fan positions do not guarantee that every position can be used simultaneously. Radiator thickness, storage hardware, side cooling, the anti-sag arm, graphics-card cables, motherboard size, and the included front fans all affect the final configuration.
Add a Rear Exhaust Fan
The three included fans are configured as front intake. Adding a rear or roof exhaust fan can create a more complete front-to-back airflow path.
Side Fans Affect the Anti-Sag Arm
Corsair notes that installing side fans removes access to the adjustable anti-sag arrangement.
E-ATX Changes Internal Compatibility
Very wide E-ATX boards can affect the anti-sag arm, cable shrouds, and available side-mount space.
Check Dual-Radiator Interactions
Two 360mm radiators can be installed, but thickness and fan placement can interfere with adjacent mounting zones.
Detailed Hardware
Technical Specifications
Verified specifications for the chassis, fan and radiator compatibility, motherboard support, component clearances, storage, connectivity, dimensions, and warranty.
| Brand | Corsair |
| Product Model | FRAME 4000D RS ARGB |
| Manufacturer Part Number | CC-9011296-WW |
| Product Type | Fully Modular Mid-Tower PC Case |
| Color | Black |
| Materials | Steel, tempered glass, reinforced 3D-Y airflow steel, and plastic |
| Left Side Panel | Tempered glass |
| Right Side Panel | Steel |
| Supported Motherboards | Mini-ITX, Micro-ATX, ATX, and E-ATX up to 305 × 277mm |
| Reverse-Connector Support | Yes; ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth compatible |
| Included Fans | 3 × Corsair RS120 ARGB PWM 120mm fans |
| Included Fan Position | Front intake |
| Included Fan Speed | 420–2100 RPM ±10% |
| Included Fan Airflow | 13.3–72.8 CFM per fan |
| Included Fan Static Pressure | 0.2–4.15mm H₂O per fan |
| Included Fan Noise Level | 10–36 dBA per fan |
| Included Fan Lighting | 8 addressable RGB LEDs per fan |
| Included Fan Bearing | Magnetic Dome |
| Included Fan Features | AirGuide vanes, PWM control, daisy-chain wiring, and Zero RPM support |
| Included Fan or RGB Controller | None; fans connect directly to compatible motherboard headers |
| Included Fan Connections | Daisy-chainable 4-pin PWM and +5V ARGB |
| Physical 120mm Fan Positions | 12 |
| Maximum Simultaneous 120mm Fans in Corsair Product Copy | Up to 10, depending on installed hardware and mounting conflicts |
| Front Fan Support | 3 × 120mm, 2 × 140mm, or 2 × 200mm |
| Top Fan Support | 3 × 120mm or 2 × 140mm |
| Side Fan Support | 3 × 120mm or 2 × 140mm |
| Lower Fan Support | 2 × 120mm |
| Rear Fan Support | 1 × 120mm or 1 × 140mm |
| Front Radiator Support | 240mm, 280mm, or 360mm |
| Top Radiator Support | 240mm, 280mm, or 360mm |
| Side Radiator Support | 240mm, 280mm, or 360mm |
| Rear Radiator Support | 120mm or 140mm on the current Corsair product specification |
| Bottom Radiator Support | None |
| Simultaneous Large Radiator Support | Up to two 360mm radiators |

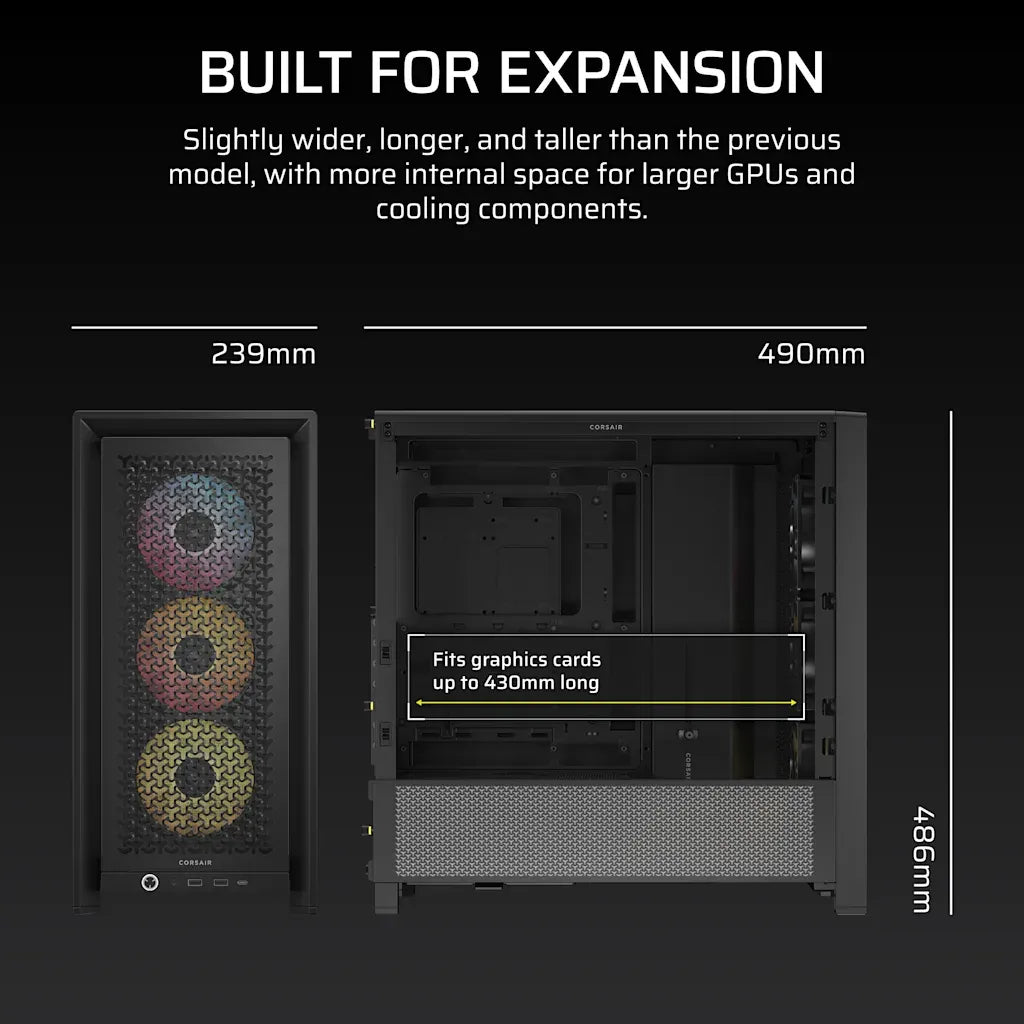

| Maximum GPU Length | 430mm / approximately 16.93 inches |
| GPU Length with Front Fans Installed | Approximately 405mm / 15.94 inches |
| Maximum CPU Cooler Height | 170mm / approximately 6.69 inches |
| Maximum PSU Length | 220mm / approximately 8.66 inches |
| Power Supply Form Factor | ATX |
| Horizontal Expansion Slots | 7 |
| Vertical Expansion Slots | 3 |
| Vertical GPU Support | Yes; compatible PCI Express riser cable sold separately |
| Integrated GPU Support | Adjustable anti-sag stabilization arm |
| Internal 3.5-Inch Drive Bays | 2 |
| Internal 2.5-Inch Drive Bays | 4 |
| Front USB-C | 1 × USB 3.2 Gen 2 Type-C |
| Front USB-A | 2 × USB 3.2 Gen 1 Type-A |
| Front Audio | 1 × combined headphone and microphone jack |
| Front Controls | Power and reset |
| Front I/O Motherboard Connections | HD Audio, USB 3.2 Gen 1, USB Type-E, and F_PANEL |
| Fan Mounting System | Corsair InfiniRail on the front and roof |
| Cable Routing Space | 37mm / approximately 1.46 inches |
| RapidRoute Cable Management | Not included on this base model |
| Dust Filtration | Front, lower power-supply area, and side |
| Case Dimensions | 490 × 239 × 486mm / 19.29 × 9.41 × 19.13 inches |
| Listed Product Weight | 10.38kg / approximately 22.88 lb |
| Compatible Corsair Liquid-Cooler Families | H60, H100, H115, H150, NAUTILUS, and TITAN |
| Manufacturer Warranty | 2 years |
Shop With Confidence
Why Buy From OPCBleu?
OPCBleu combines carefully selected technology products with transparent service, Canadian delivery, and a customer-first buying experience.
Modular Airflow with Three ARGB Fans Included.
The Corsair FRAME 4000D RS ARGB combines three high-performance RS120 ARGB fans, modular construction, broad air and liquid-cooling compatibility, reverse-connector support, and modern component clearance.
OPCBleu focuses on performance, reliability, and value so Canadian customers can shop for PC hardware with confidence.
🚚
Fast Canadian Shipping
Quick order processing and delivery across Canada.
🛡️
30-Day Returns
A clear return process for eligible purchases.
🔒
Secure Checkout
Protected payment processing through trusted providers.
💙
Quebec-Based Store
Technology enthusiasts serving customers across Canada.
Helpful Answers
FAQs
Answers to common questions about the included RS120 ARGB fans, fan control, cooling capacity, motherboard compatibility, component clearances, storage, front connectivity, and vertical GPU mounting.
Which fans are included?
Three Corsair RS120 ARGB PWM 120mm fans are pre-installed as front intake fans.
Do the included fans require a separate controller?
No dedicated controller is required. The fans use daisy-chainable 4-pin PWM and +5V ARGB connections for compatible motherboard headers.
What are the included fan specifications?
Each RS120 ARGB fan operates from approximately 420 to 2100 RPM, delivers up to 72.8 CFM and 4.15mm H₂O, uses eight ARGB LEDs, and supports Zero RPM operation at low loads.
How many 120mm fans can be installed?
The chassis provides twelve physical 120mm mounting positions. Corsair’s product copy states that up to ten 120mm fans can be used simultaneously, depending on mounting conflicts and installed hardware.
Where can 360mm radiators be installed?
Compatible 360mm radiators can be installed at the front, roof, or side. Corsair describes support for up to two 360mm radiators simultaneously.
Which motherboard sizes are supported?
The case supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards measuring up to 305 × 277mm.
Does it support reverse-connector motherboards?
Yes. Corsair lists compatibility with ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth designs.
What is the maximum graphics card length?
The maximum listed GPU length is 430mm. Corsair lists approximately 405mm with front fans installed, and radiators can reduce clearance further.
Does the case include a GPU anti-sag bracket?
Yes. An adjustable anti-sag stabilization arm is included. Side fans and very wide E-ATX motherboards can affect its usability.
Can the graphics card be mounted vertically?
Yes. Three vertical expansion slots are provided, but a compatible PCI Express riser cable is required and sold separately.
How many storage drives can be installed?
The case supports up to two 3.5-inch hard drives and four 2.5-inch solid-state drives.
Which front USB ports are included?
The front I/O includes one USB 3.2 Gen 2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and a combined headphone and microphone jack.
Is RapidRoute cable management included?
No. Corsair lists 37mm of cable-routing space, but the RapidRoute system is not included with this model.
Can the case be customized later?
Yes. The FRAME Modular Case System supports compatible replacement panels, trays, shrouds, I/O modules, and other accessories.
1/10
