Product description
Description and product details Overview, features, specifications, compatibility and FAQ
650W. CYBENETICS BRONZE. ATX 3.1. PCIe 5.1. SEMI-MODULAR.

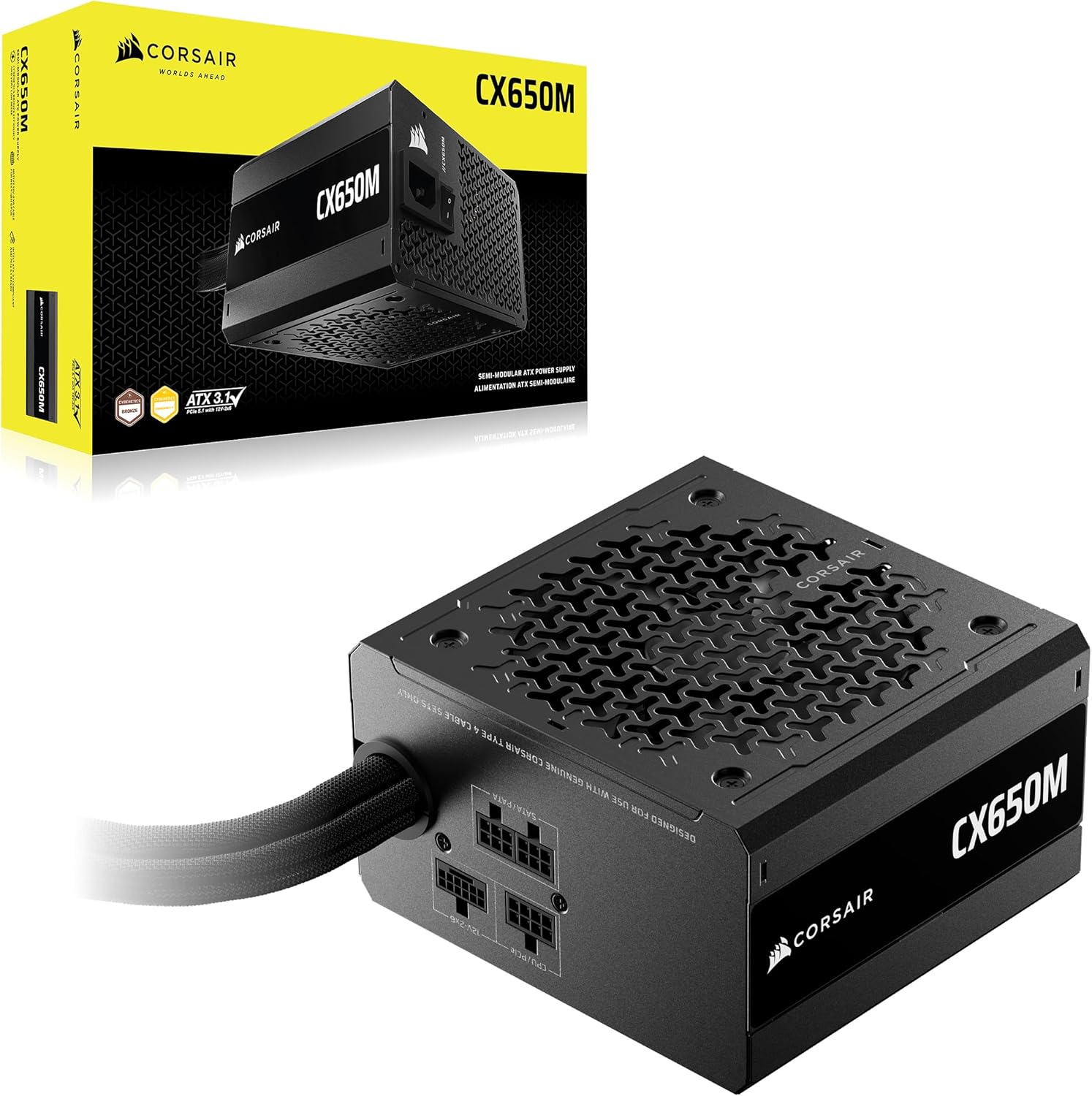

CORSAIR CX650M ATX 3.1 PCIe 5.1 650W Semi-Modular Power Supply — Black
The CORSAIR CX650M delivers reliable 650W power for modern gaming and desktop systems with a practical semi-modular cable design. Its ATX 3.1 architecture and PCIe 5.1 readiness add support for current-generation power requirements, including a native 12V-2x6 GPU cable rated up to 450W.
A compact 140mm-long chassis and low-noise 120mm fan make installation easy in a wide range of ATX cases, while Cybenetics Bronze efficiency, LLC topology with DC-to-DC conversion, 105°C-rated capacitors, and a 7-year warranty provide a solid foundation for mainstream gaming builds.
650Wcontinuous power
BronzeCybenetics
450W12V-2x6 cable
Built around current ATX power-delivery requirements for modern desktop hardware.
Includes a native 12V-2x6 cable for compatible modern graphics cards.
A short PSU body leaves more room for cables and components inside compatible ATX cases.
Modern Power Delivery
ATX 3.1 + PCIe 5.1
The upgraded CX-M platform is designed for current desktop power requirements and modern graphics-card connectivity.
ATX 3.1
Compliant with the current ATX12V 3.1 power-supply standard.
PCIe 5.1 Ready
Designed for compatible current-generation GPUs and their power-delivery requirements.
Native 12V-2x6
A dedicated modular 12V-2x6 cable provides a clean single-cable GPU connection.
Up to 450W GPU Cable
CORSAIR rates the included native 12V-2x6 cable for up to 450W to compatible graphics cards.

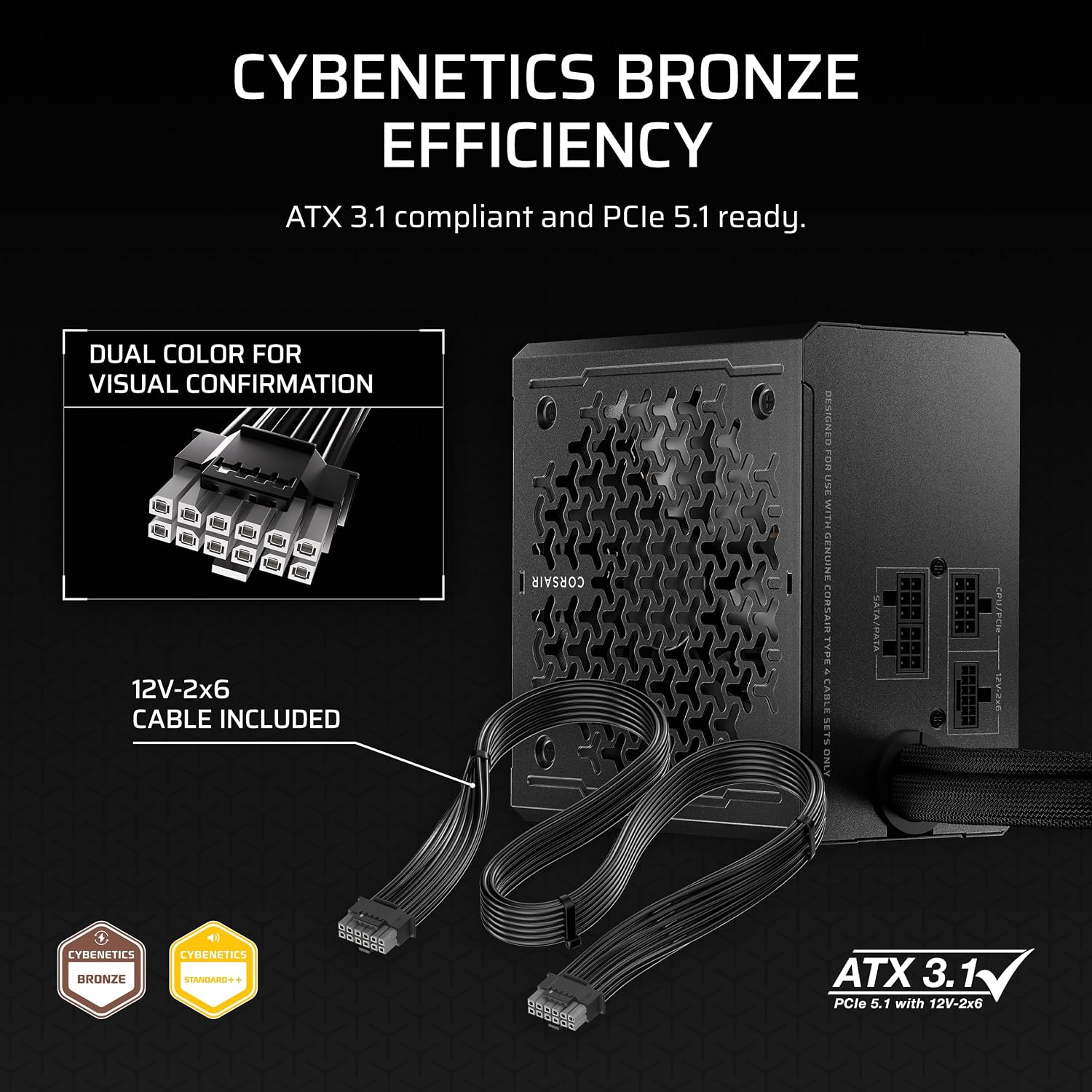

Efficient Everyday Power
Cybenetics Bronze Efficiency
Efficient power conversion helps reduce unnecessary heat and fan demand in everyday use.
Cybenetics Bronze
Certified efficiency targets strong everyday conversion efficiency across real-world loads.
Reduced Waste Heat
Higher conversion efficiency means less electrical energy is lost as heat.
LLC Topology
A resonant LLC design contributes to stable, efficient power conversion.
DC-to-DC Conversion
DC-to-DC regulation supports stable lower-voltage rails and modern system requirements.

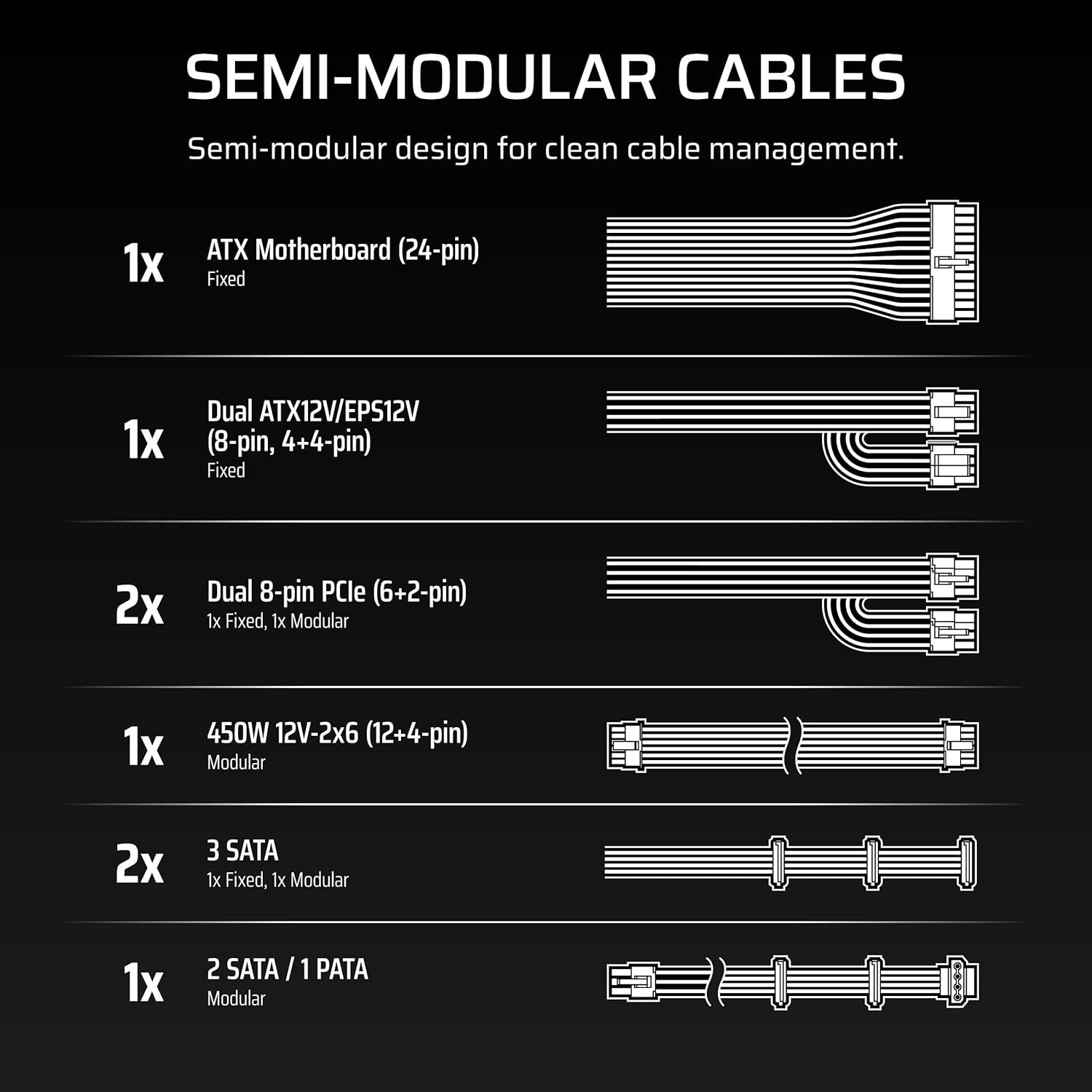

Cleaner Cable Management
Semi-Modular Design
Core motherboard and CPU/GPU cables are fixed, while additional peripheral and GPU cables can be attached only when needed.
Less Cable Clutter
Optional modular cables help reduce unused cabling inside the case.
Type 4 Modular Cables
The modular side uses CORSAIR's Type 4 cable system for supported included connections.
4 × PCIe 6+2-Pin
Four standard PCIe connectors are available across fixed and modular cabling.
8 × SATA
Multiple SATA connectors support SSDs, hard drives, hubs, and compatible accessories.

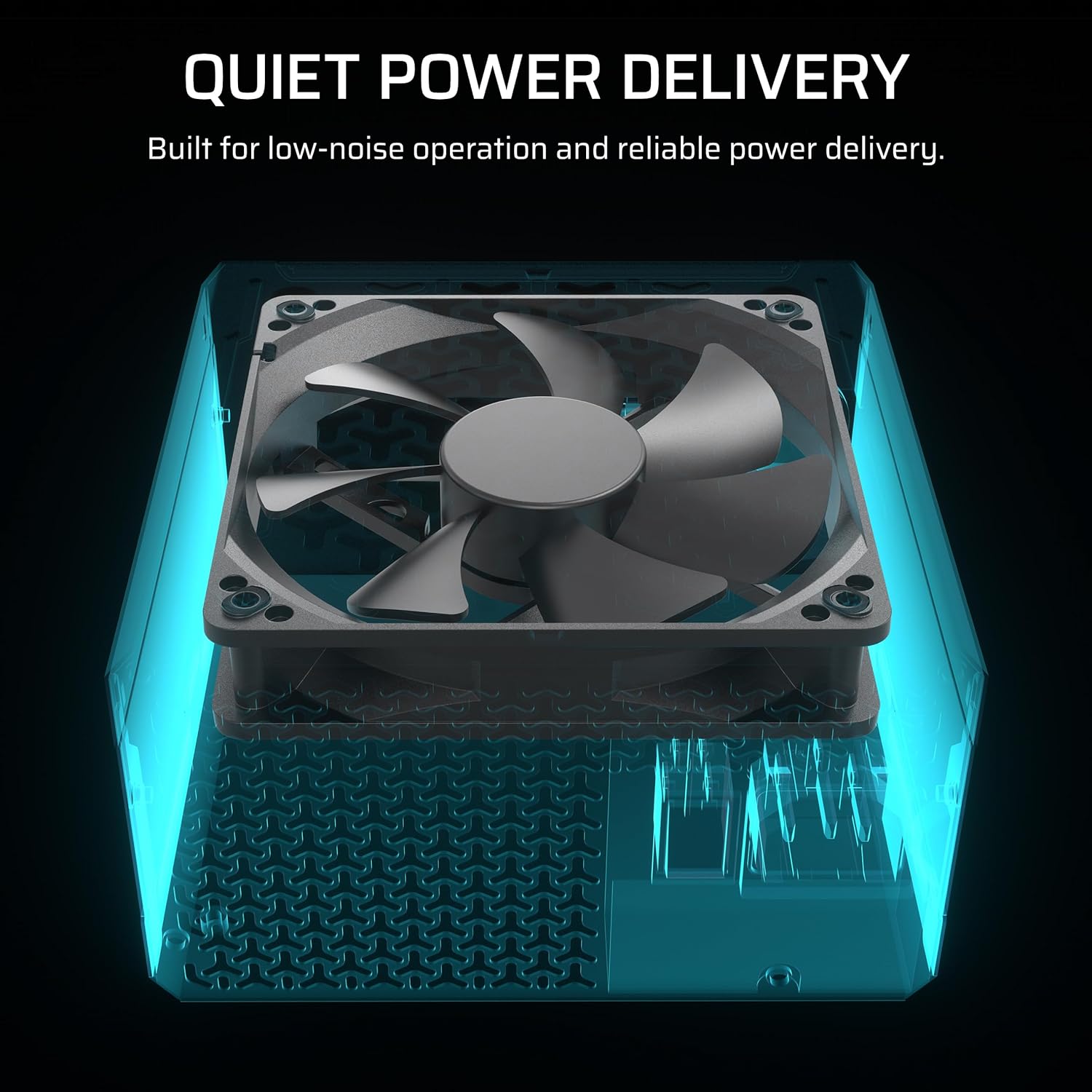

Compact & Quiet
Low-Noise 120mm Cooling Fan
The CX650M uses a compact chassis and custom fan curve designed for quiet operation under low-to-moderate loads.
120mm Fan
A large cooling fan moves air through the PSU while balancing cooling and noise.
Custom Fan Curve
Fan behavior is tuned to remain quiet during lighter workloads.
140mm Length
The compact 140mm depth improves fitment in a broad range of ATX chassis.
Standard ATX Width
Standard 150mm width and 86mm height maintain broad case compatibility.
Built for Reliable Operation
105°C-Rated Capacitors
Industrial-grade capacitors and a robust internal design support dependable long-term power delivery.
105°C Capacitors
High-temperature-rated capacitors are designed to operate reliably under sustained PSU thermal conditions.
Single +12V Rail
The +12V rail supplies up to 54.2A / 650W for high-demand system components.
100–240V AC
Wide-range AC input supports common mains voltages in compatible regions.
100,000-Hour MTBF
CORSAIR specifies a mean time between failures of 100,000 hours.
Modern Semi-Modular PSU
Key Features
✓650W continuous power output
✓Cybenetics Bronze efficiency certification
✓ATX12V 3.1 compliant
✓PCIe 5.1 ready
✓Native modular 12V-2x6 GPU cable up to 450W
✓Semi-modular cable design
✓1 × 24-pin ATX motherboard connector
✓2 × EPS / ATX12V CPU connectors
✓4 × PCIe 6+2-pin connectors
✓8 × SATA connectors
✓1 × PATA connector
✓120mm low-noise sleeve-bearing fan
✓LLC topology with DC-to-DC conversion
✓105°C-rated industrial-grade capacitors
✓54.2A / 650W single +12V rail
✓100–240V AC input
✓100,000-hour MTBF
✓Compact 150 × 86 × 140mm chassis
✓7-year CORSAIR warranty
Balanced Power for Modern Builds
Perfect For
650W Modern Power
A practical capacity for many mainstream gaming CPU and GPU configurations.
Native 12V-2x6
Power compatible modern graphics cards through a single native 16-pin GPU cable.
140mm Chassis
The short PSU depth leaves more room for cable routing and internal components.
Semi-Modular Cabling
Use only the additional modular cables your system requires.
Inside the Box
Package Contents
✓CORSAIR CX650M ATX 3.1 Power Supply
✓Modular DC cable set
✓Native 450W 12V-2x6 modular GPU cable
✓AC power cable
✓Installation screws
✓Warranty and safety documentation
Detailed Model Information
Technical Specifications
Specifications for the North American CORSAIR CX650M ATX 3.1, model CP-9020310-NA.
| Brand | CORSAIR |
| Series | CX-M Series |
| Model | CX650M |
| SKU / MPN | CP-9020310-NA |
| Internal Model | RPS0228 |
| CORSAIR Part No. | 75-006837 |
| Colour | Black |
| Continuous Power | 650W |
| Efficiency Certification | Cybenetics Bronze |
| ATX Version | ATX12V 3.1 |
| PCIe Standard | PCIe 5.1 Ready |
| Modular Design | Semi-Modular |
| Cable Type | CORSAIR Type 4 modular system |
| Native GPU Cable | 1 × 12V-2x6 (12+4-pin), up to 450W |
| ATX Connector | 1 × 24-pin |
| EPS / CPU Connectors | 2 × 4+4-pin / 8-pin |
| PCIe Connectors | 4 × 6+2-pin |
| SATA Connectors | 8 |
| PATA Connector | 1 |
| Fan Size | 120mm |
| Fan Bearing | Sleeve Bearing |
| Zero RPM Mode | No |
| AC Input | 100–240V AC |
| Input Current | 10A–5A |
| Input Frequency | 47–63Hz |
| +12V Output | 54.2A / 650W |
| +3.3V Output | 20A |
| +5V Output | 20A |
| +5VSB Output | 3A / 15W |
| Topology | Resonant LLC with DC-to-DC conversion |
| Capacitors | 105°C-rated industrial-grade |
| Dimensions | 150 × 86 × 140 mm |
| Product Weight | Approx. 1.77 kg / 3.91 lb |
| Package Weight | Approx. 2.48 kg / 5.47 lb |
| Package Dimensions | Approx. 12 × 7.9 × 4 in |
| MTBF | 100,000 Hours |
| Warranty | 7 Years |
Shop With Confidence
Why Buy From OPCBleu?
OPCBleu combines carefully selected PC hardware with transparent product information, Canadian delivery, and a customer-first shopping experience.
Modern ATX 3.1 Power Without the Premium Price.
The CORSAIR CX650M combines 650W output, Cybenetics Bronze efficiency, PCIe 5.1 readiness, native 12V-2x6 GPU power, compact dimensions, and semi-modular cabling.
🚚
Fast Canadian ShippingQuick order processing and delivery across Canada.
🛡️
30-Day ReturnsA clear return process for eligible purchases.
🔒
Secure CheckoutProtected payment processing through trusted providers.
💙
Quebec-Based StoreTechnology enthusiasts serving customers across Canada.
Helpful Answers
FAQs
Is the CORSAIR CX650M ATX 3.1 compliant?
Yes. CORSAIR lists this generation of the CX650M as ATX 3.1 compliant and PCIe 5.1 ready.
Does it include a native 12V-2x6 GPU cable?
Yes. It includes a modular 12V-2x6 cable rated by CORSAIR for up to 450W to compatible graphics cards.
Is the CX650M fully modular?
No. It is semi-modular: essential motherboard, CPU, and some PCIe/SATA cabling is fixed, while additional cables are modular.
How many PCIe 6+2-pin connectors does it have?
CORSAIR specifies four PCIe 6+2-pin connectors in addition to the native 12V-2x6 GPU cable.
What efficiency certification does it use?
This new ATX 3.1 generation is certified Cybenetics Bronze.
What size fan does it use?
It uses a 120mm low-noise sleeve-bearing cooling fan.
What is the shipping weight?
B&H lists a package weight of approximately 5.47 lb, or about 2.48 kg, for CP-9020310-NA.
What warranty does CORSAIR provide?
CORSAIR provides a seven-year manufacturer warranty.
