Product description
Description and product details Overview, features, specifications, compatibility and FAQ
TRIPLE-CHAMBER COOLING. CURVED GLASS. REVERSE-ROTOR ARGB.

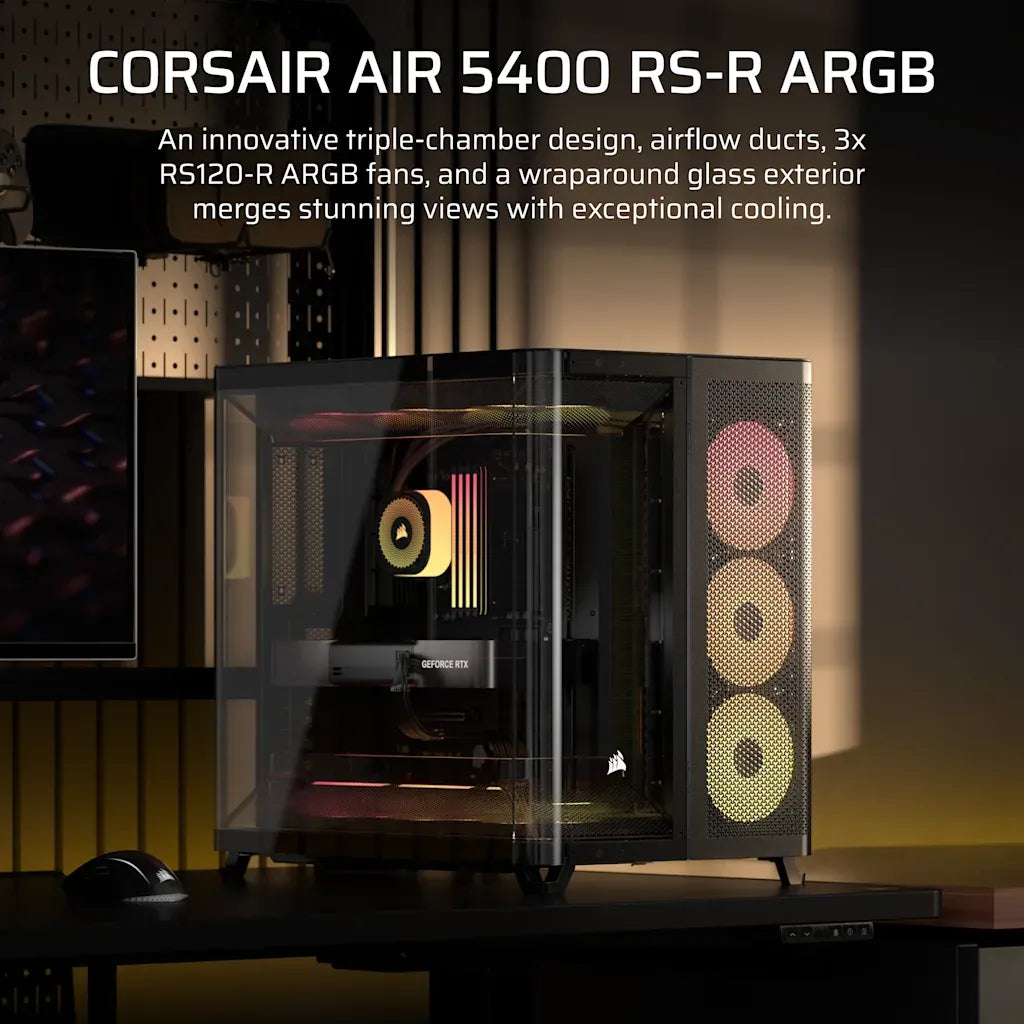

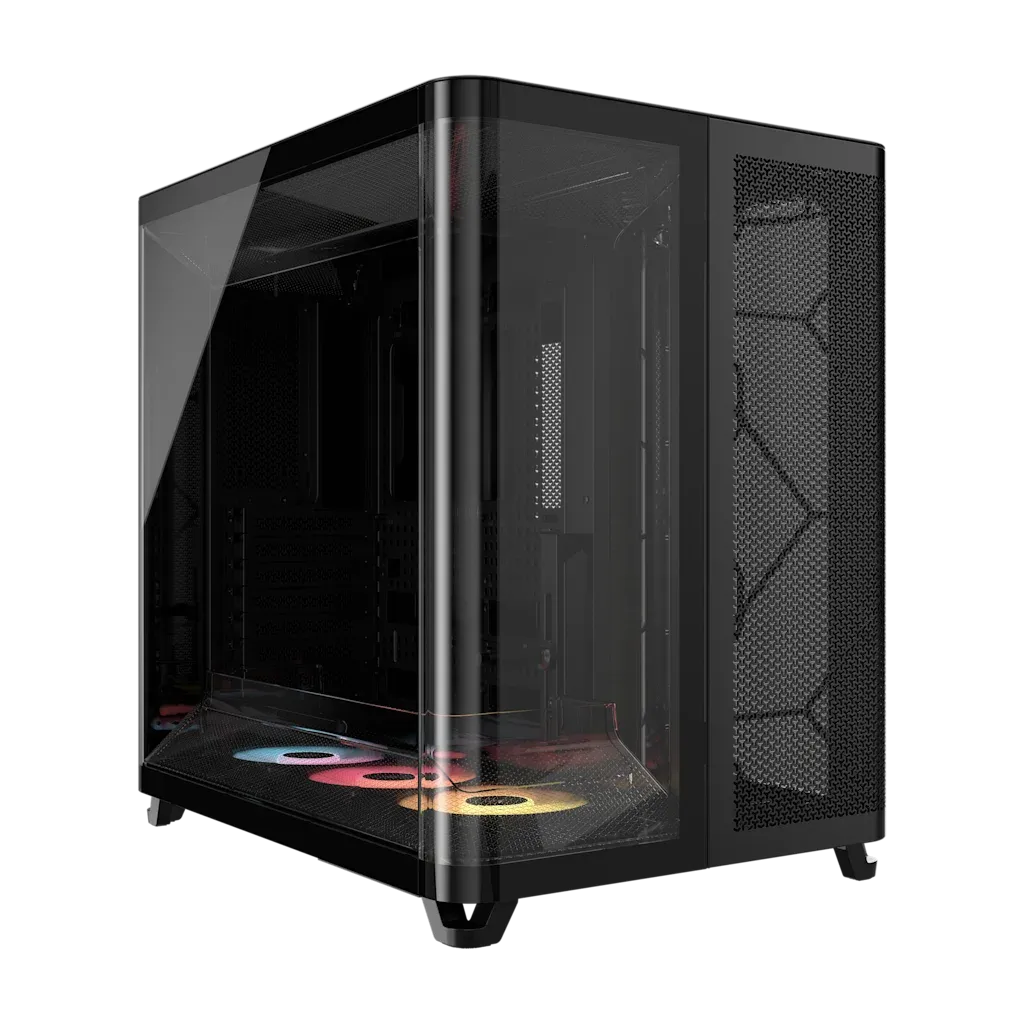

Corsair AIR 5400 RS-R ARGB Triple-Chamber Mid-Tower PC Case — Black
The Corsair AIR 5400 RS-R ARGB is a premium mid-tower chassis built around an innovative triple-chamber layout. Separate zones for CPU cooling, the GPU and motherboard, and the power supply, cables, and storage help reduce heat interaction while creating a clean and efficient building environment.
Three pre-installed RS-R 120mm reverse-rotor PWM ARGB fans provide unobstructed lighting and direct bottom-to-top GPU airflow. Dual curved tempered-glass French-door panels showcase the system, while RapidRoute 2.0, 134mm of cable space, reverse-connector motherboard support, and an adjustable GPU anti-sag arm simplify high-end builds.
3 Chambers
CPU, GPU, and PSU zones
3 × 360mm
Front, top, and bottom
134mm
Maximum cable space
Three included bottom fans plus seven additional mounting positions.
Supports large modern graphics cards with dedicated dual airflow ducts.
RapidRoute 2.0 provides an exceptionally deep cable-management chamber.

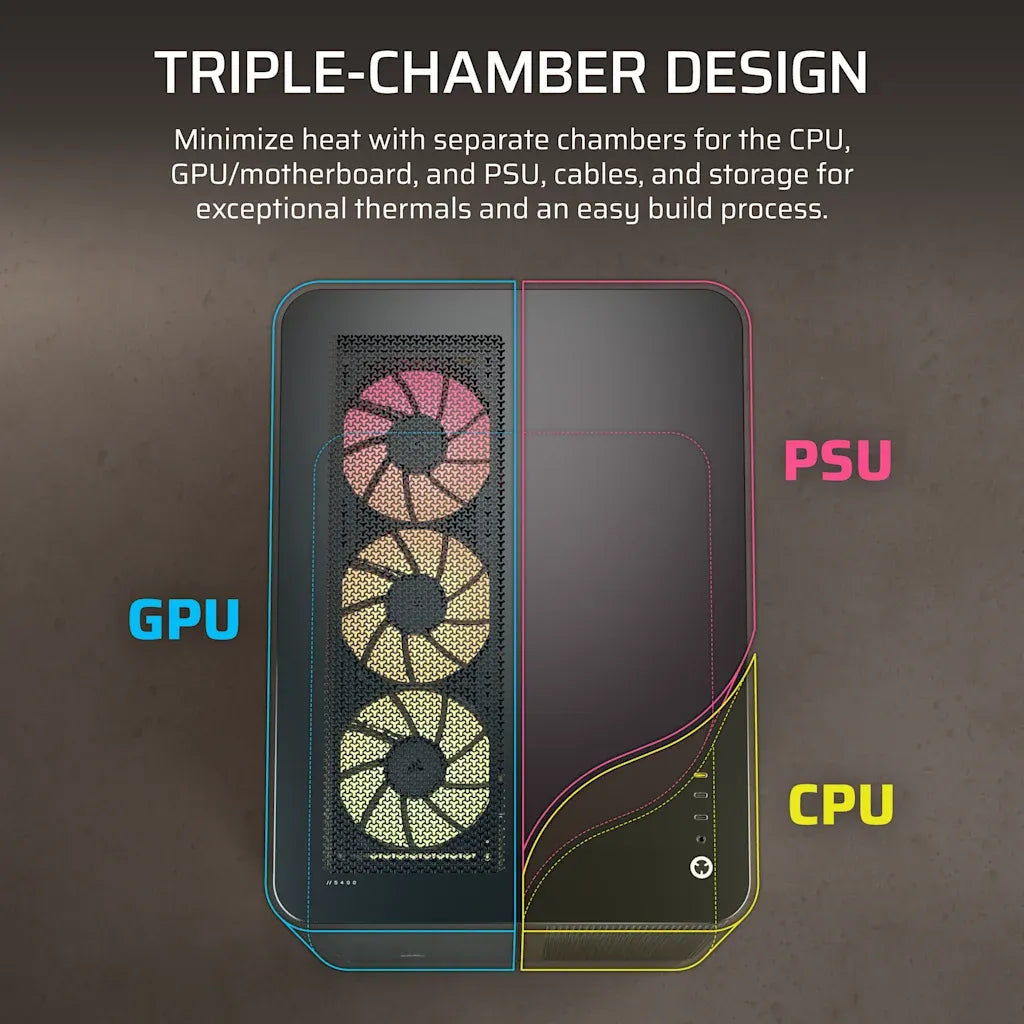

Three Thermal Zones
Purpose-Built Triple-Chamber Cooling
Instead of placing every heat source in one shared space, the AIR 5400 separates major components into dedicated chambers to improve airflow direction and simplify installation.

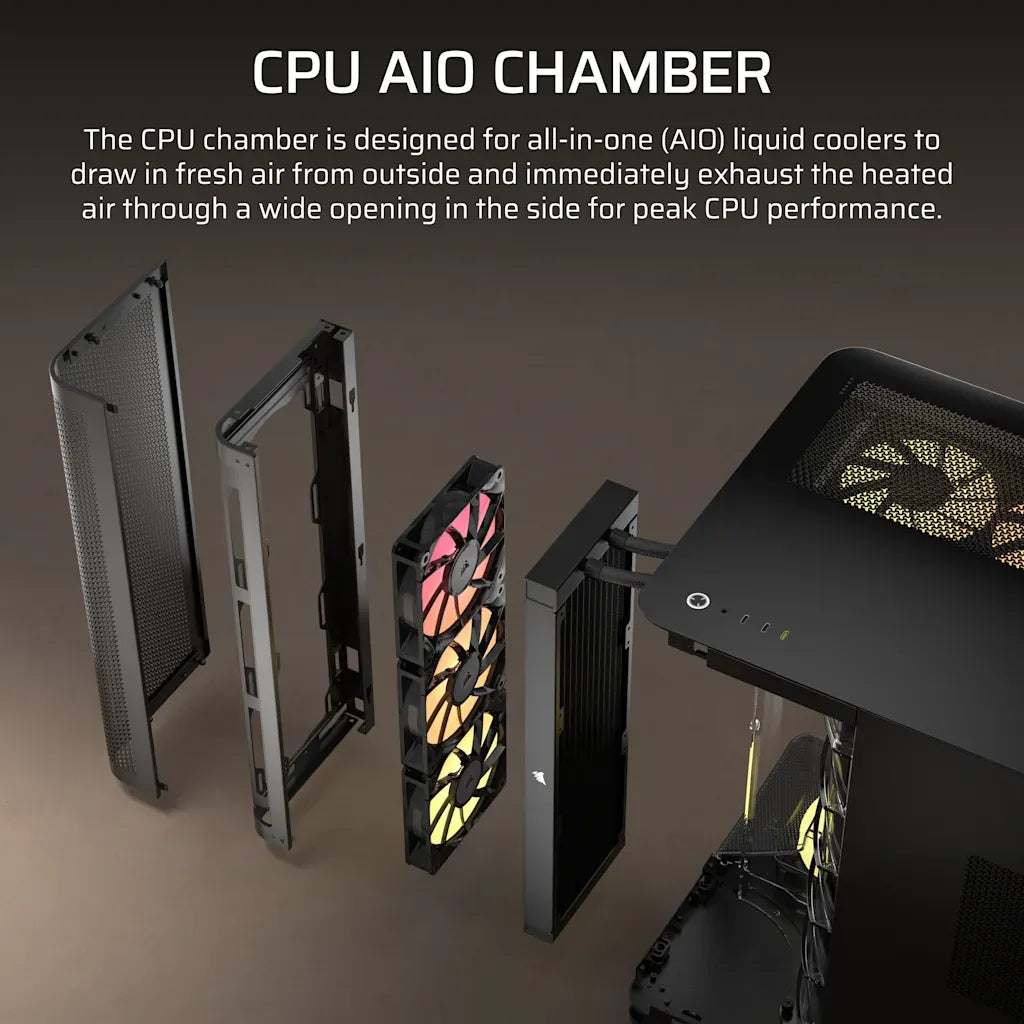

Dedicated CPU Cooling Chamber
The front chamber can house a compatible 240mm or 360mm liquid cooler, helping keep CPU radiator heat away from the main hardware chamber.
GPU and Motherboard Chamber
The primary showcase chamber provides room for the graphics card and motherboard with vertical bottom-to-top airflow.
PSU, Cable, and Storage Chamber
The rear compartment hides the power supply, drives, and excess cabling behind the visible hardware.

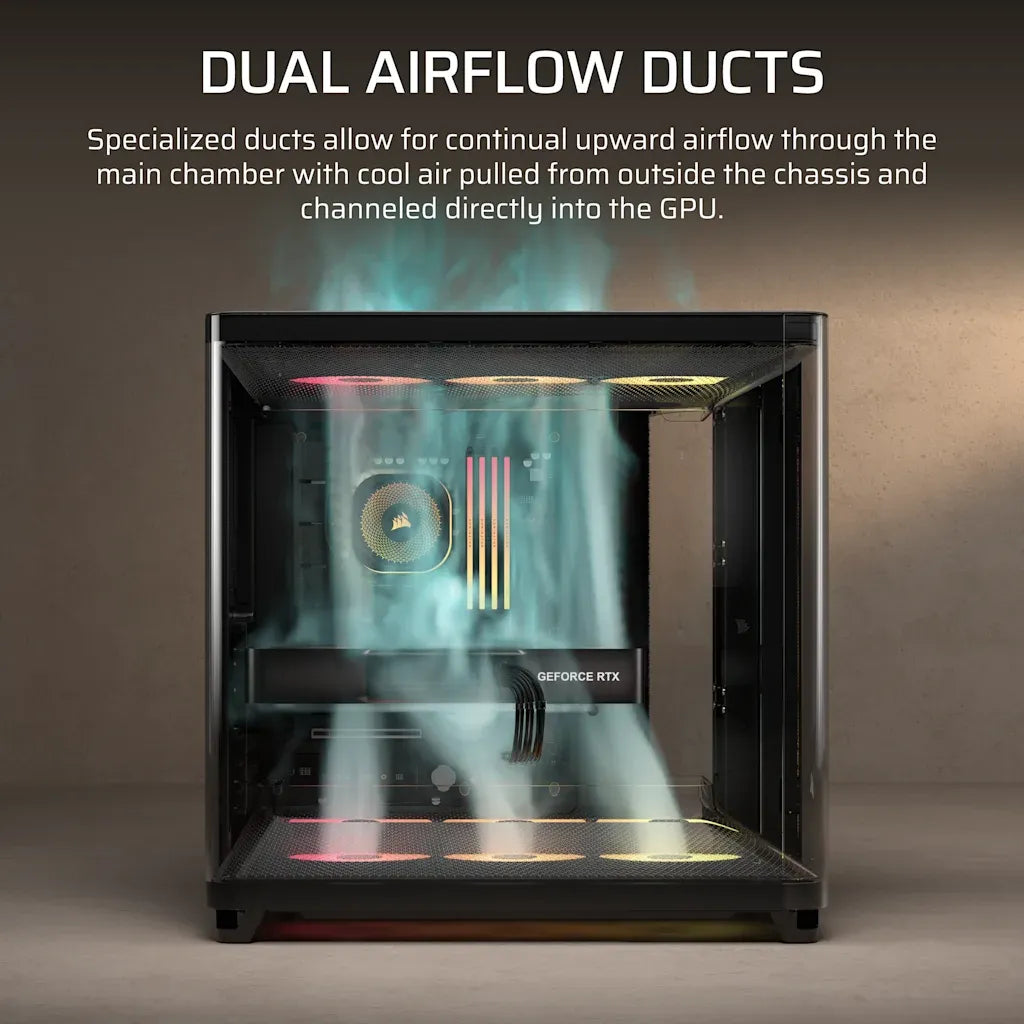

Dual Airflow Ducts
Integrated ducts guide cool air through the main chamber and toward the graphics card for more focused airflow.
Unobstructed RGB Presentation

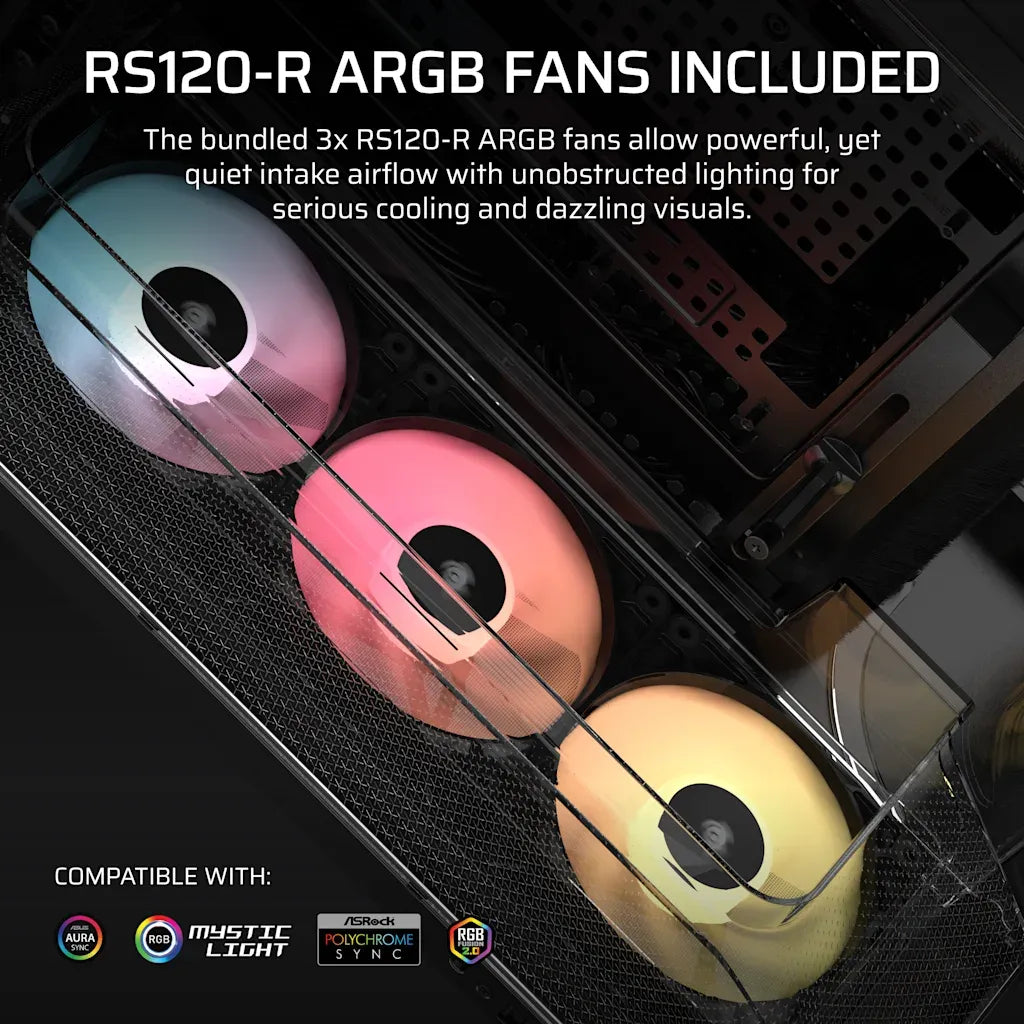

Reverse-Rotor RS-R ARGB Fans
Three bottom-mounted 120mm reverse-rotor fans draw fresh air into the case while keeping the cleaner illuminated side of each fan visible through the curved glass.
ARGB Lighting
Addressable lighting connects to a compatible 5V motherboard RGB header for synchronized effects.
Reverse-Rotor Airflow
The reverse blade orientation allows the fans to function as intake without exposing the support struts toward the glass.
Daisy-Chain Connections
Fan speed and lighting connections can be linked together to reduce cable clutter and simplify motherboard installation.
Performance with Controlled Noise
PWM speed control lets the motherboard balance cooling output and acoustics according to system temperature.
Panoramic Hardware Showcase

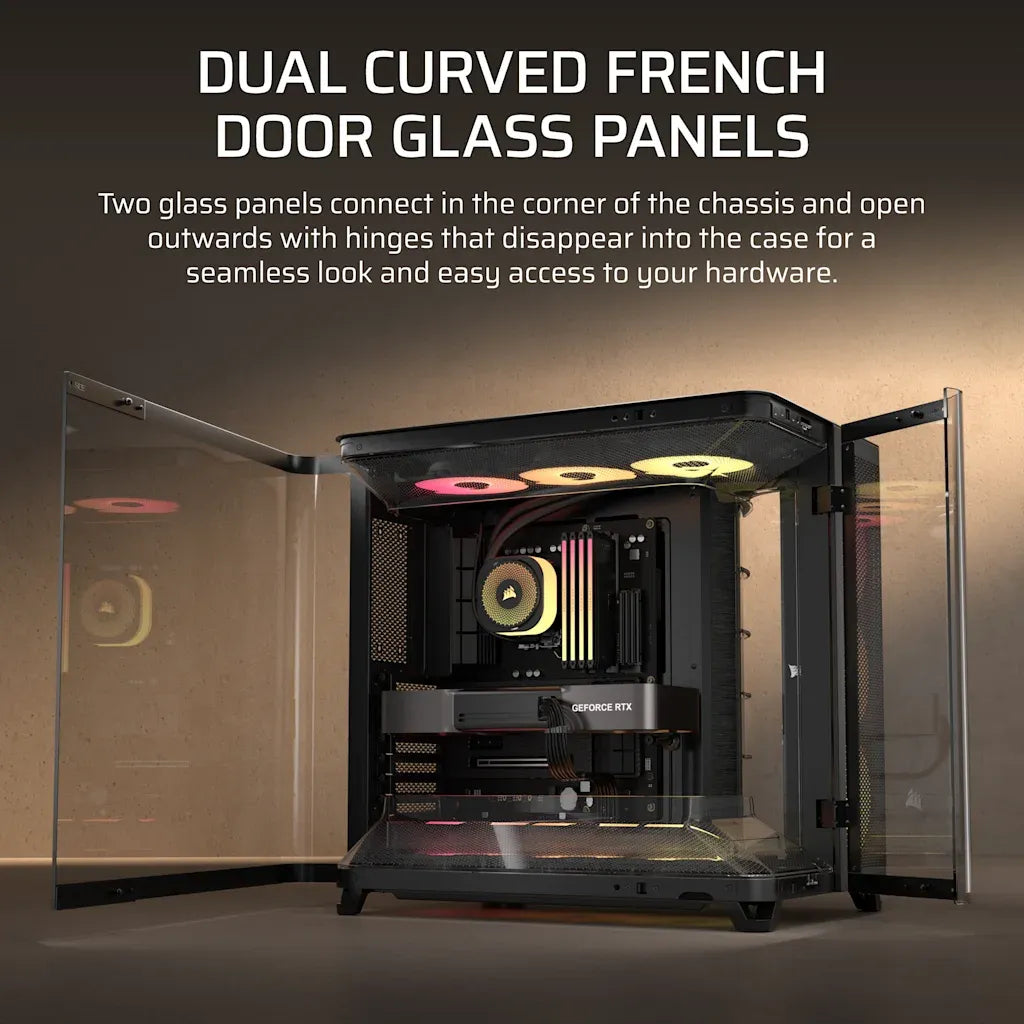

Dual Curved Glass French-Door Panels
Two curved tempered-glass panels meet at the front corner and open outward, providing a seamless panoramic view and convenient access to the main chamber.
Wraparound Glass View
The curved glass construction presents the motherboard, graphics card, fans, and cooling system from multiple angles.
French-Door Access
Both glass panels open outward for easier component installation, cleaning, troubleshooting, and upgrades.
Hidden Hinges
Discreet hinge hardware preserves the clean exterior and uninterrupted glass presentation.
Steel Internal Structure
A rigid steel chassis supports the curved glass panels and high-performance internal components.
Complete Builder Feature Set
Key Features
Premium thermal separation, panoramic glass, reverse-rotor lighting, high-capacity cooling, modern USB-C connectivity, reverse-connector compatibility, and advanced cable management.
Triple-Chamber Mid-Tower Design
Dedicated CPU Cooling Chamber
Separate GPU and Motherboard Chamber
Separate PSU, Cable, and Storage Chamber
Dual Main-Chamber Airflow Ducts
Dual Curved Tempered-Glass French Doors
Three RS-R 120mm Reverse PWM ARGB Fans Included
Bottom-Mounted Intake Fan Configuration
Motherboard PWM and 5V ARGB Control
Up to Ten 120mm Fans
Front 3 × 120mm Fan Support
Top 3 × 120mm Fan Support
Bottom 3 × 120mm Fan Support
Rear 1 × 120mm Fan Support
Front 240mm and 360mm Radiator Support
Top 360mm Radiator Support
Bottom 240mm and 360mm Radiator Support
Rear 120mm Radiator Support
Mini-ITX, Micro-ATX, ATX, and E-ATX Support
E-ATX Motherboards up to 305 × 277mm
ASUS, MSI, and Gigabyte Reverse-Connector Compatibility
Integrated Adjustable GPU Anti-Sag Arm
360mm Maximum GPU Length
180mm Maximum CPU Cooler Height
200mm Maximum ATX Power Supply Length
Seven Horizontal Expansion Slots
One Internal 3.5-Inch Drive Bay
Two Internal 2.5-Inch Drive Bays
RapidRoute 2.0 Cable Management System
Pegboard-Style Motherboard Tray
134mm Cable Routing Space
Nylon Cable-Pass-Through Brushes
One USB 3.2 Gen 2x2 Type-C Front Port
Two USB 3.2 Gen 1 Type-C Front Ports
Combined Headphone and Microphone Jack
Integrated Dust Filtration
Two-Year Manufacturer Warranty

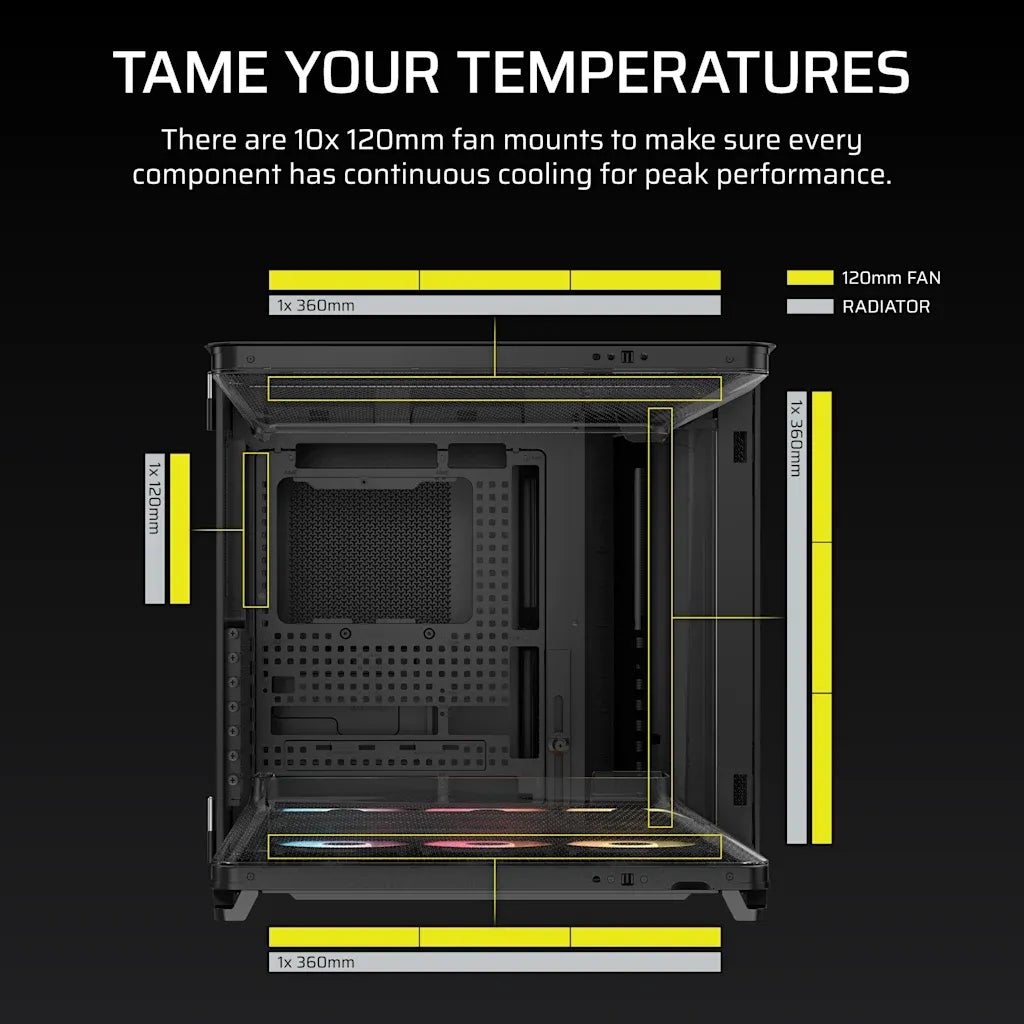

Multi-Radiator Cooling
Three 360mm Radiator Locations
The front CPU chamber, roof, and bottom all support compatible 360mm radiators, allowing extensive liquid-cooling configurations without placing every heat exchanger in the same airflow path.
Front 240mm or 360mm
The dedicated front chamber is designed for compatible liquid CPU coolers while keeping radiator heat separated from the main chamber.
Top 360mm
The roof accepts a 360mm radiator or three 120mm fans for high-capacity exhaust cooling.
Bottom 240mm or 360mm
The bottom location supports a large radiator, although using it changes the standard fan and GPU airflow configuration.
Rear 120mm
The rear mount supports a 120mm radiator or exhaust fan. No side radiator location is provided.
Advanced Cable Management

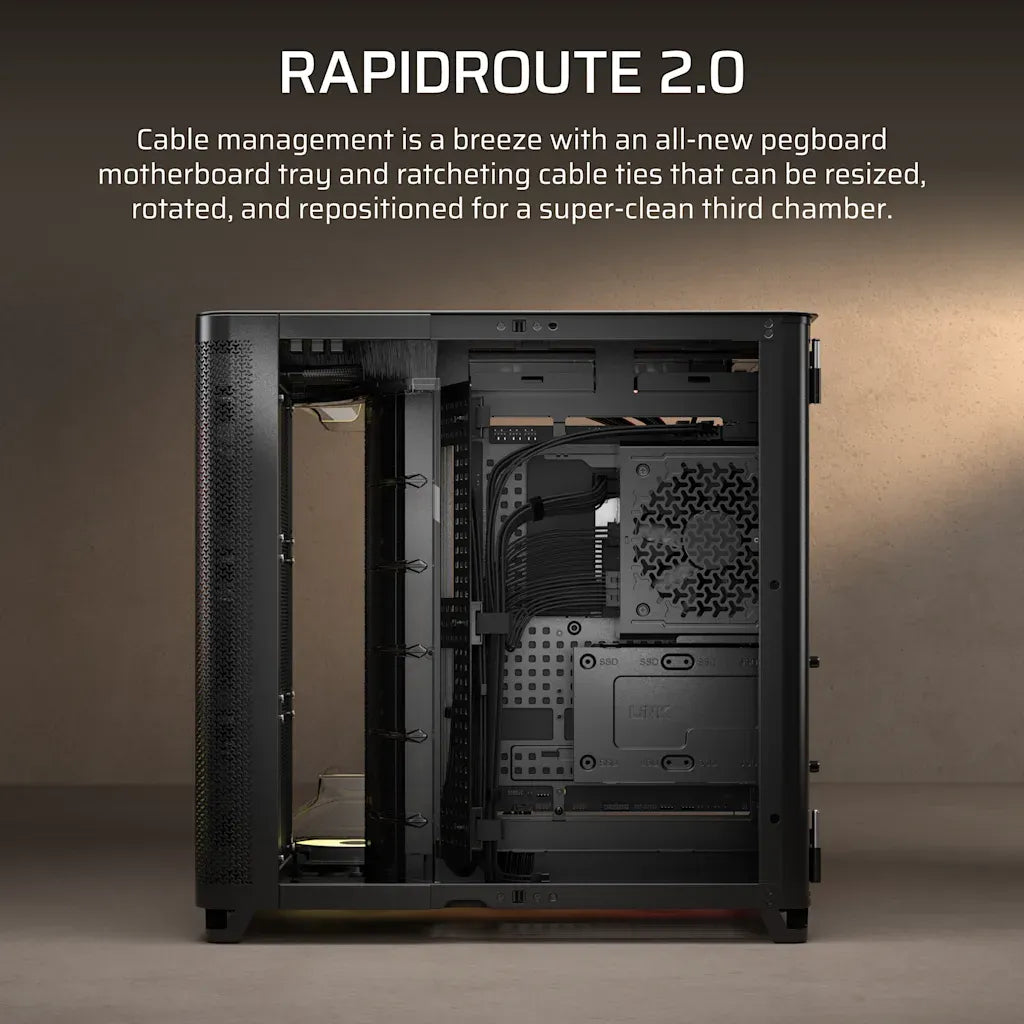

RapidRoute 2.0 with 134mm of Working Space
The extra-deep rear chamber and movable cable-tie positions help accommodate conventional power cables, reverse-connector motherboards, fan wiring, RGB connections, and storage devices.
Pegboard Motherboard Tray
Cable ties can be moved and rotated across the rear tray to better match the routing needs of each build.
134mm Routing Depth
The dedicated cable chamber offers unusually generous clearance for power, fan, storage, and lighting cables.

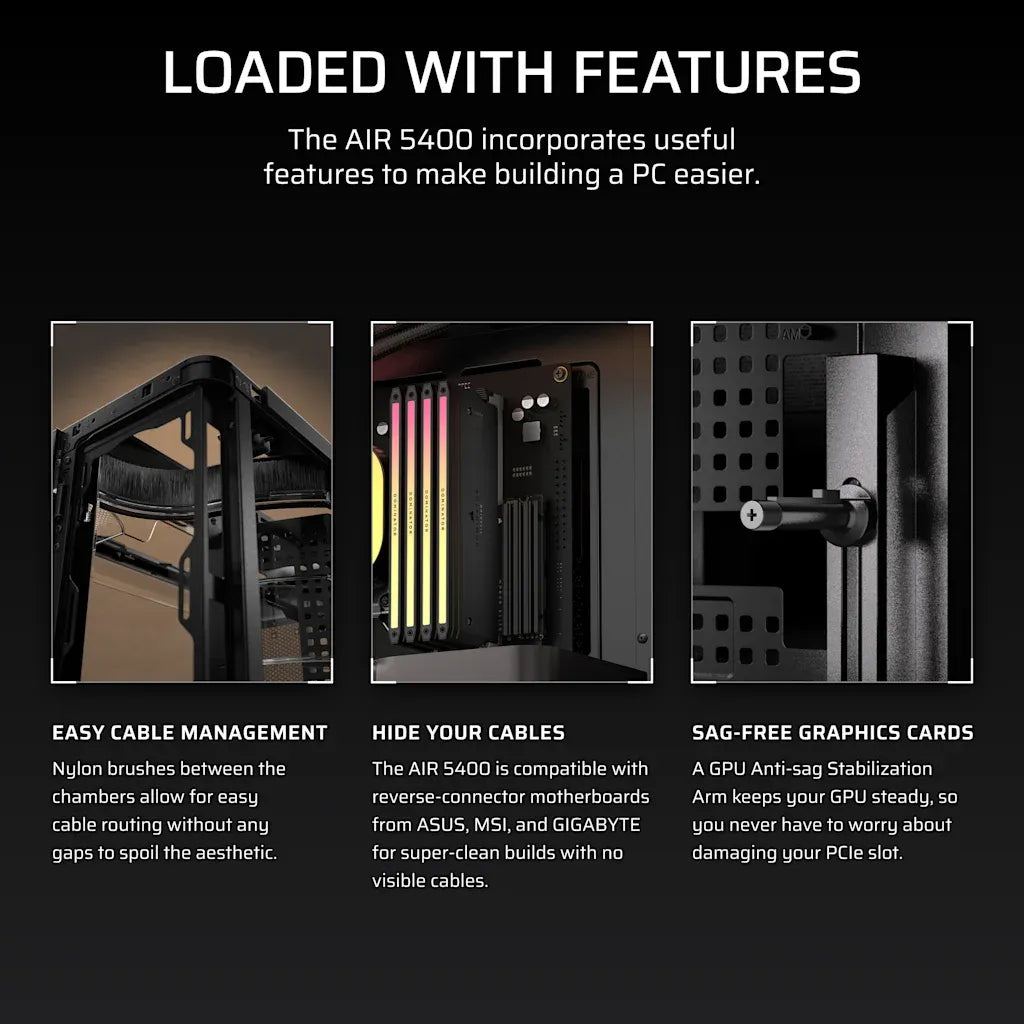

Brush-Sealed Pass-Throughs
Nylon brushes between chambers allow cables to pass through while reducing visible gaps around the openings.
Reverse-Connector Ready
Compatible ASUS, MSI, and Gigabyte back-connect motherboards can hide major connections behind the tray.
Modern Front Connectivity
Three Convenient USB-C Ports
The front I/O places one high-speed 20Gbps USB-C port and two additional 5Gbps USB-C ports within easy reach, along with a combined audio jack.
USB 3.2 Gen 2x2 Type-C
One front USB-C port supports up to 20Gbps when connected to a compatible motherboard Type-E header.
Two USB 3.2 Gen 1 Type-C Ports
Two additional front USB-C ports provide up to 5Gbps connectivity for compatible devices.
Combined Audio Jack
A single headphone and microphone connection supports compatible headsets and audio devices.
Motherboard Header Requirements
Check that the motherboard provides the required USB Type-E, USB 3.2 Gen 1, front-panel, and HD Audio headers.
Designed for Premium Systems
Perfect For
Ideal for high-end gaming systems, panoramic showcase builds, reverse-connector motherboards, multi-radiator liquid cooling, and builders who want exceptional cable-management space.
Focused GPU Airflow
Bottom intake fans and dual airflow ducts deliver cool air directly through the graphics card chamber.
Curved Glass French Doors
The wraparound glass design displays premium hardware and lighting without a visible front corner pillar.
RapidRoute 2.0
Reverse-connector support and 134mm of routing space help produce an exceptionally clean visible chamber.
Official Product Media
Product Videos
Official Corsair animations demonstrating the AIR 5400 design, triple-chamber layout, curved glass construction, and directed airflow system.
AIR 5400 exterior and triple-chamber design overview.
Official airflow animation for the black RS-R ARGB edition.
Official Corsair-hosted product media. Playback availability can depend on the browser, network, and Shopify content-security settings.
Installation Planning
Check Component and Cooling Interactions
Final usable clearance depends on radiator thickness, fan position, cable routing, motherboard layout, graphics card dimensions, power supply length, and storage configuration.

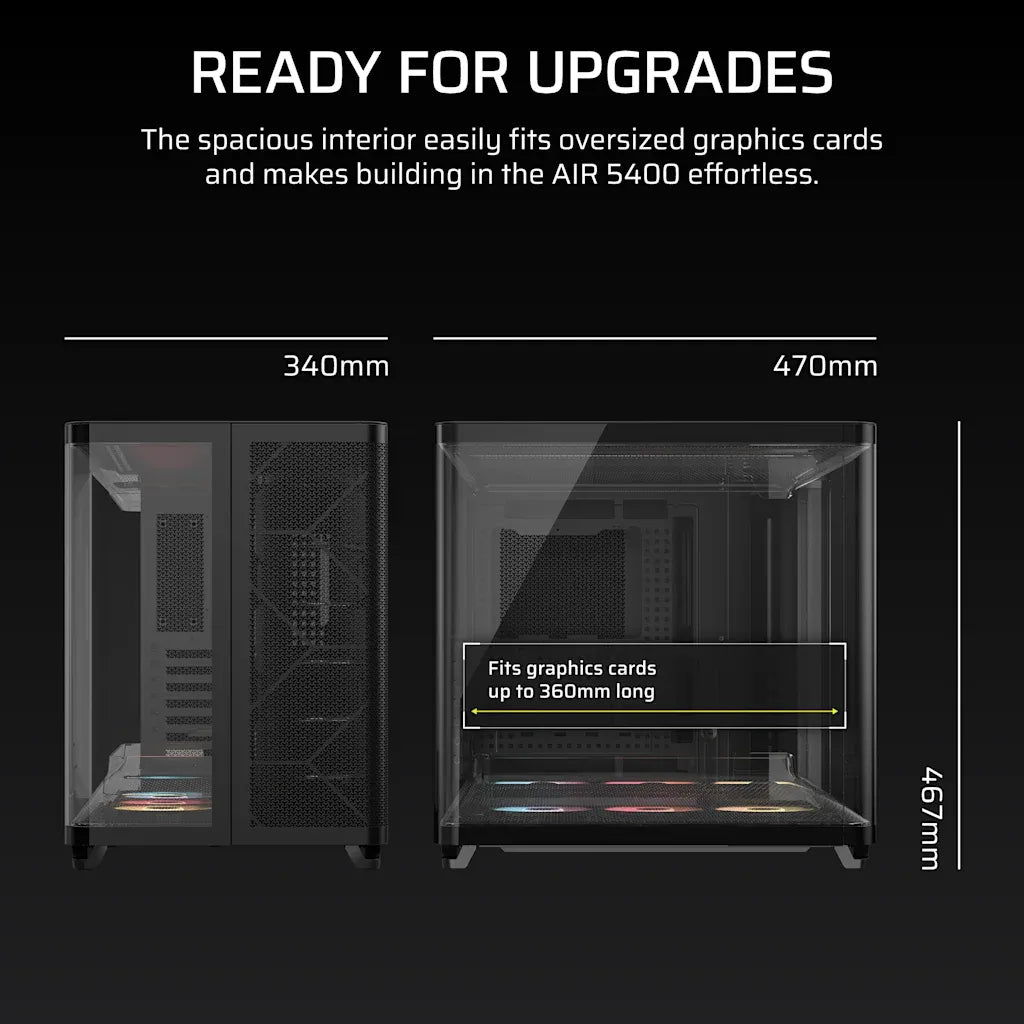

360mm GPU Limit
Confirm the complete graphics card length, power connector position, and cable bend radius before installation.
Bottom Radiator Trade-Offs
A bottom radiator changes the standard reverse-fan intake configuration and can affect space around the graphics card.
Front CPU Chamber Planning
Verify radiator and tube routing for the dedicated front chamber before mounting the motherboard and graphics card.
No Vertical GPU Mount
The official Corsair specification lists vertical mounting as unsupported; the chassis provides seven horizontal expansion slots.
Detailed Hardware
Technical Specifications
Verified specifications for motherboard support, cooling capacity, component clearance, storage, front connectivity, dimensions, included hardware, and warranty coverage.
| Brand | Corsair |
| Product Model | AIR 5400 RS-R ARGB |
| Manufacturer Part Number | CC-9011318-WW |
| Product Type | Triple-Chamber Mid-Tower PC Case |
| Color | Black |
| Materials | Steel and tempered glass |
| Chamber Layout | Dedicated CPU cooling chamber; GPU and motherboard chamber; PSU, cable, and storage chamber |
| Glass Panels | Dual curved tempered-glass French-door panels |
| Supported Motherboards | Mini-ITX, Micro-ATX, ATX, and E-ATX up to 305 × 277mm |
| Reverse-Connector Support | Yes; compatible layouts from ASUS, MSI, and Gigabyte |
| Included Fans | 3 × Corsair RS-R 120mm reverse-rotor PWM ARGB fans |
| Included Fan Position | Bottom intake |
| Maximum 120mm Fan Capacity | 10 |
| Front Fan Support | 3 × 120mm |
| Top Fan Support | 3 × 120mm |
| Bottom Fan Support | 3 × 120mm |
| Rear Fan Support | 1 × 120mm |
| Side Fan Support | None |
| Front Radiator Support | 240mm or 360mm |
| Top Radiator Support | 360mm |
| Bottom Radiator Support | 240mm or 360mm |
| Rear Radiator Support | 120mm |
| Side Radiator Support | None |
| Maximum GPU Length | 360mm / approximately 14.17 inches |
| Maximum CPU Cooler Height | 180mm / approximately 7.09 inches |
| Maximum PSU Length | 200mm / approximately 7.87 inches |
| Power Supply Form Factor | ATX |
| Expansion Slots | 7 horizontal |
| Vertical GPU Mounting | Unsupported |
| Integrated GPU Support | Adjustable anti-sag stabilization arm |
| Internal 3.5-Inch Drive Bays | 1 |
| Internal 2.5-Inch Drive Bays | 2 |
| Front High-Speed USB-C | 1 × USB 3.2 Gen 2x2 Type-C, up to 20Gbps |
| Additional Front USB-C | 2 × USB 3.2 Gen 1 Type-C, up to 5Gbps |
| Front Audio | 1 × combined headphone and microphone jack |
| Front I/O Motherboard Connections | 1 × USB 3.2 Gen 2x2 Type-E, 1 × USB 3.2 Gen 1 20-pin, 1 × F_PANEL, and 1 × HD Audio |
| Cable Management | RapidRoute 2.0 pegboard-style cable management system |
| Cable Routing Space | 134mm / approximately 5.28 inches |
| Dust Filtration | Yes |
| Compatible Corsair Liquid-Cooler Families | H60, H100, H115, H150, NAUTILUS, and TITAN |
| Case Dimensions | 467 × 470 × 340mm / 18.39 × 18.50 × 13.39 inches |
| Listed Product Weight | 16.9kg / approximately 37.26 lb |
| Manufacturer Warranty | 2 years |
Shop With Confidence
Why Buy From OPCBleu?
OPCBleu combines carefully selected technology products with transparent service, Canadian delivery, and a customer-first buying experience.
Three Chambers. Panoramic Glass. Focused Cooling.
The Corsair AIR 5400 RS-R ARGB delivers an unconventional thermal layout, premium curved glass, reverse-rotor RGB intake fans, extensive 360mm radiator support, and industry-leading cable-management depth.
OPCBleu focuses on performance, reliability, and value so Canadian customers can shop for PC hardware with confidence.
🚚
Fast Canadian Shipping
Quick order processing and delivery across Canada.
🛡️
30-Day Returns
A clear return process for eligible purchases.
🔒
Secure Checkout
Protected payment processing through trusted providers.
💙
Quebec-Based Store
Technology enthusiasts serving customers across Canada.
Helpful Answers
FAQs
Answers to common questions about the chamber layout, included fans, motherboard support, radiator capacity, clearances, front I/O, cable management, and vertical GPU mounting.
What does the triple-chamber design separate?
The case separates CPU cooling, the GPU and motherboard, and the power supply, cables, and storage into dedicated zones to improve thermal organization and simplify building.
Which fans are included?
Three Corsair RS-R 120mm reverse-rotor PWM ARGB fans are pre-installed as bottom intake fans.
How are fan speed and lighting controlled?
The included fans can be daisy-chained and connected to compatible motherboard PWM and 5V ARGB headers.
How many fans can the case hold?
The case supports up to ten 120mm fans: three at the front, three at the top, three at the bottom, and one at the rear.
Where can 360mm radiators be installed?
Compatible 360mm radiators can be installed at the front, top, or bottom. The rear supports a 120mm radiator, and there is no side radiator mount.
Which motherboard sizes are supported?
The AIR 5400 supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards measuring up to 305 × 277mm.
Does it support reverse-connector motherboards?
Yes. Corsair lists compatibility with reverse-connector designs from ASUS, MSI, and Gigabyte.
What is the maximum graphics card length?
The official Corsair specification lists a maximum GPU length of 360mm.
Does it include a GPU anti-sag bracket?
Yes. The case includes an adjustable anti-sag stabilization arm designed to remain hidden beneath the installed graphics card.
Can the graphics card be mounted vertically?
No. Corsair lists vertical mounting as unsupported. The chassis provides seven horizontal expansion slots.
How much cable-management space is available?
The dedicated rear chamber provides up to 134mm of cable-routing space and includes the RapidRoute 2.0 pegboard-style management system.
Which front USB ports are included?
The official Corsair specification lists one USB 3.2 Gen 2x2 Type-C port and two USB 3.2 Gen 1 Type-C ports, plus a combined audio jack.
