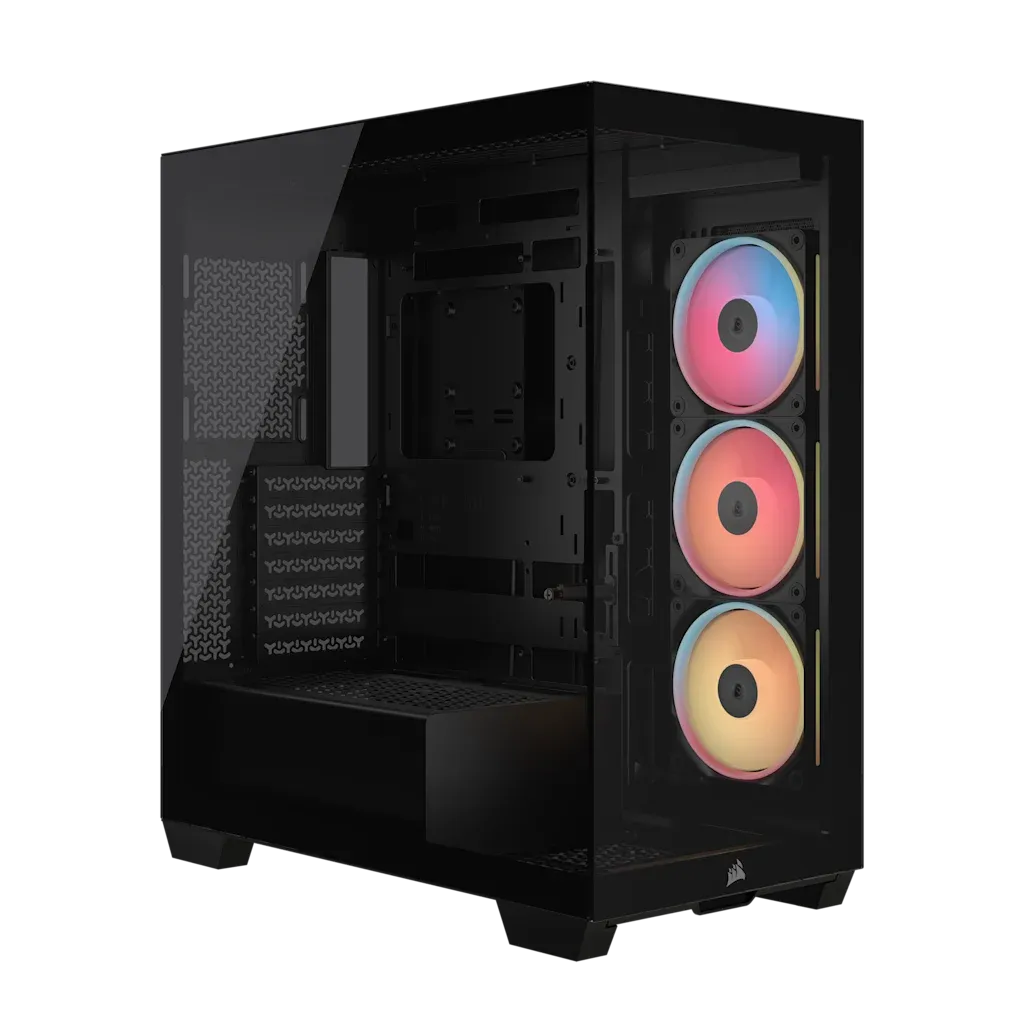

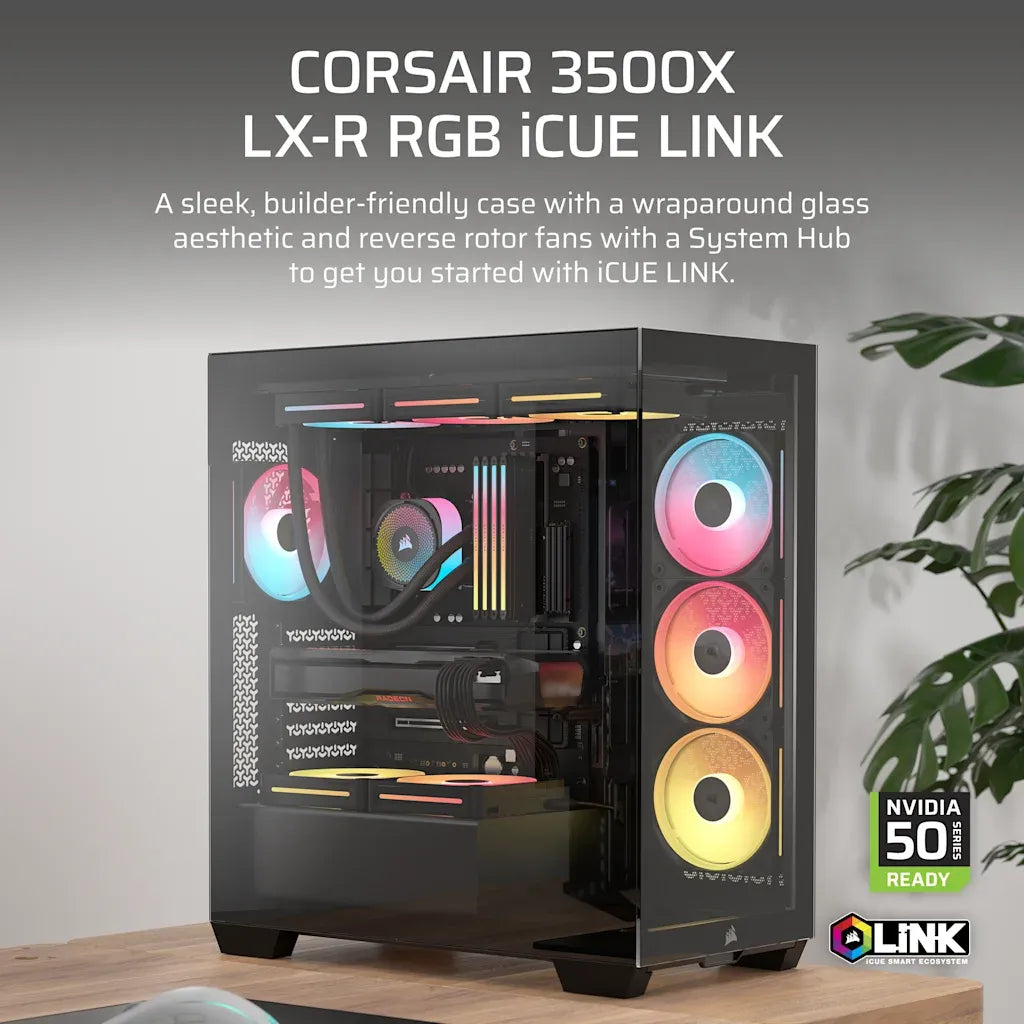

The Corsair 3500X LX-R RGB iCUE LINK Mid-Tower PC Case showcases your build with a stunning wraparound glass view, featuring removable front and side tempered glass panels. Three pre-installed iCUE LINK LX120-R RGB fans and an included System Hub deliver brilliant, synchronized lighting and simplified cable management right out of the box.

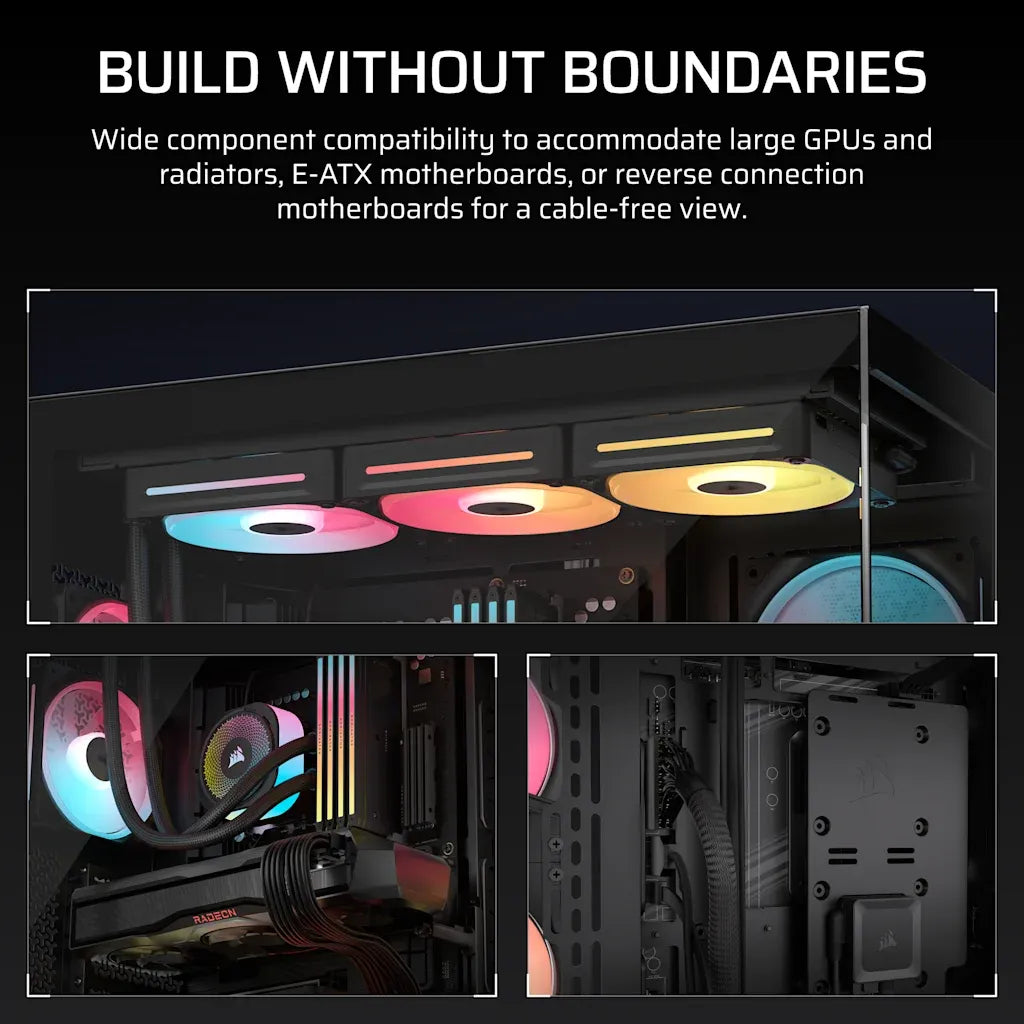

Designed for high-performance custom PCs, this case supports motherboards from Mini-ITX to E-ATX and is compatible with reverse connection motherboards for a cleaner aesthetic. Builder-friendly features include multiple fan mounting points on the side, roof, and PSU area, along with extensive radiator support for powerful liquid cooling setups.
Key Features
Brand
Corsair
Model
3500X LX-R RGB iCUE LINK
Case Size
Mid-Tower
Color
Black
Material
Steel, Tempered Glass
Motherboard Support
Mini-ITX, MicroATX, ATX, E-ATX (305mm x 277mm)
Case Height
19.9 in
Case Length
18.1 in
Case Width
9.4 in
Weight
24.0 lb

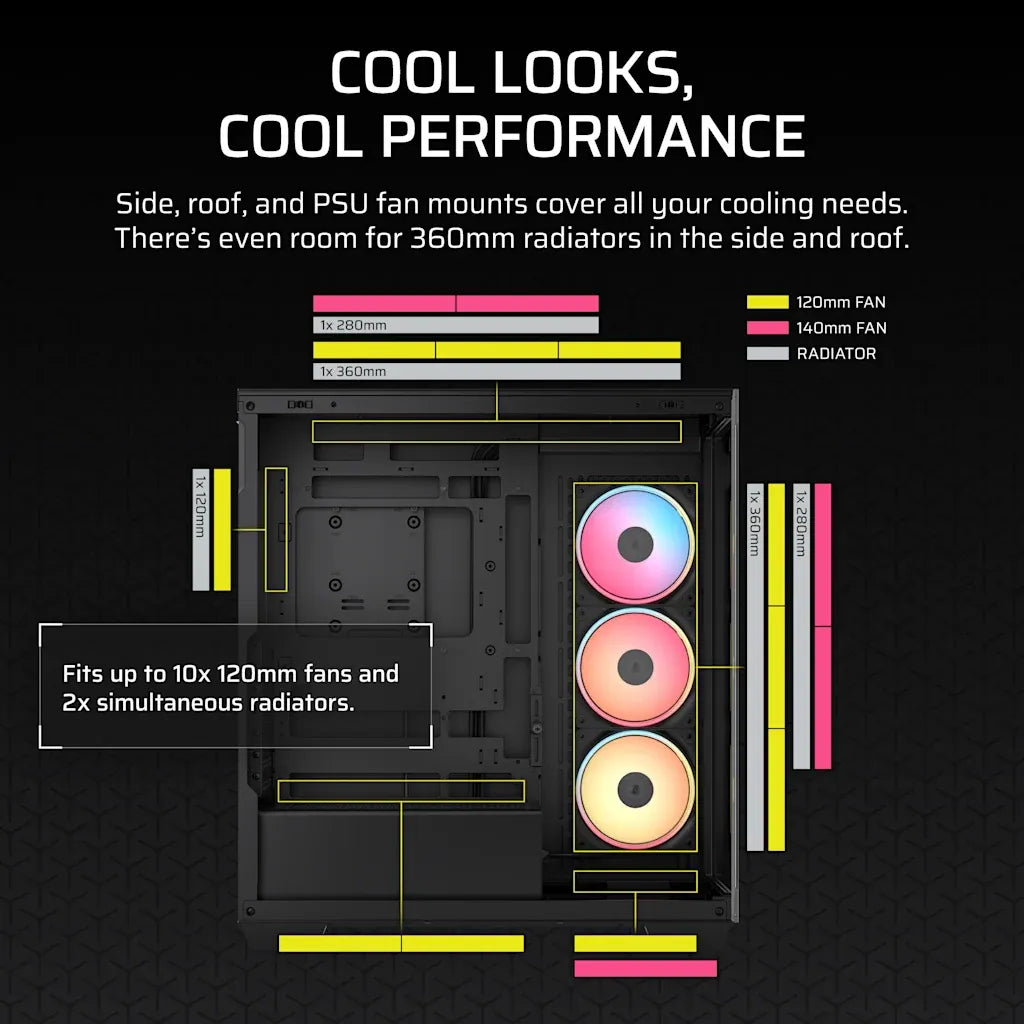

Radiator Compatibility
120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support - Top
360mm, 280mm, 240mm
Radiator Support - Side
360mm, 280mm, 240mm
Radiator Support - Rear
1x 120mm
Fan Support - Top
3x 120mm, 2x 140mm
Fan Support - Bottom
3x 120mm, 1x 140mm
Fan Support - Side
3x 120mm, 2x 140mm
Fan Support - Rear
1x 120mm
Included Fans
iCUE LINK LX-R RGB Series

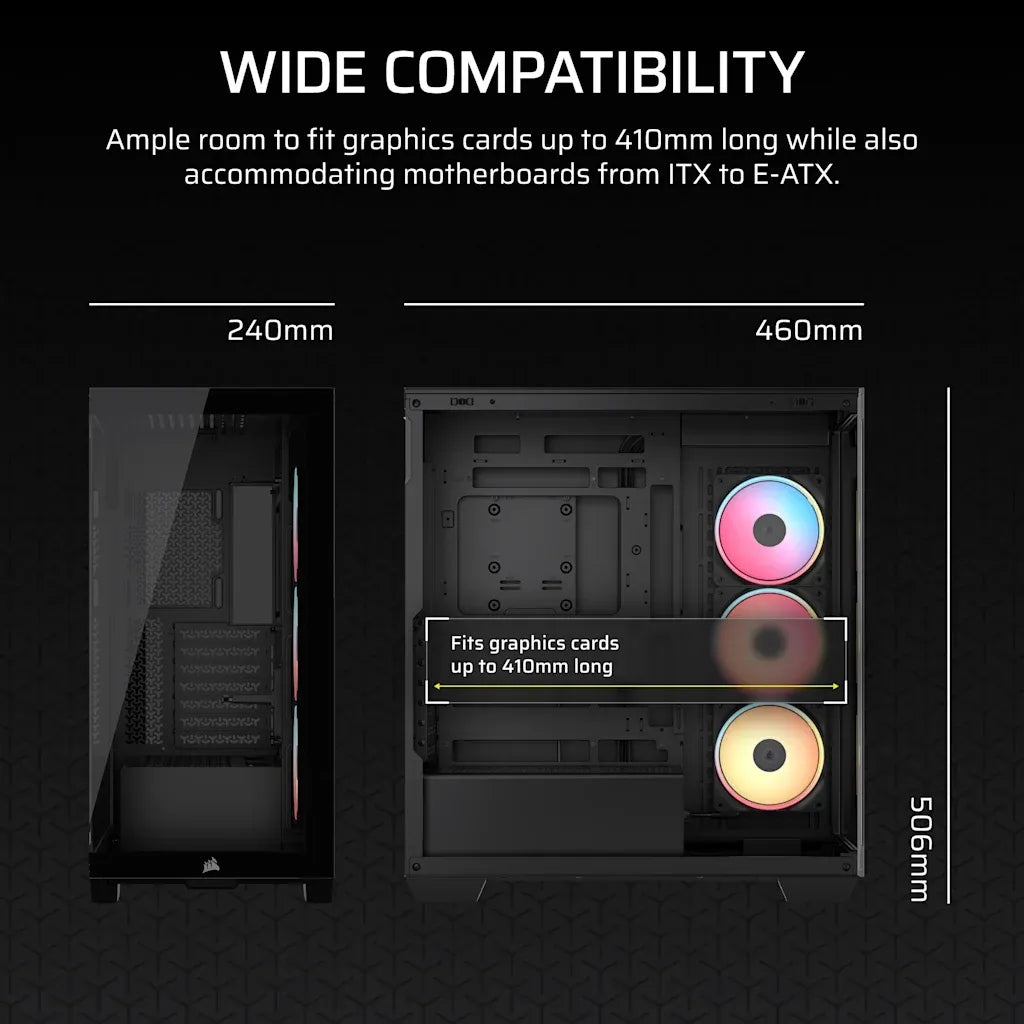

Maximum GPU Length
16.7 in
Maximum CPU Cooler Height
6.7 in
Maximum PSU Length
7.1 in
Internal 3.5" Drive Bays
2
Internal 2.5" Drive Bays
2
Case Expansion Slots
7 Horizontal (or 4 Vertical)
Case Front IO
(1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Case Window
Tempered Glass
Left Side Panel
Tempered Glass
Right Side Panel
Steel
Case Power Supply
ATX

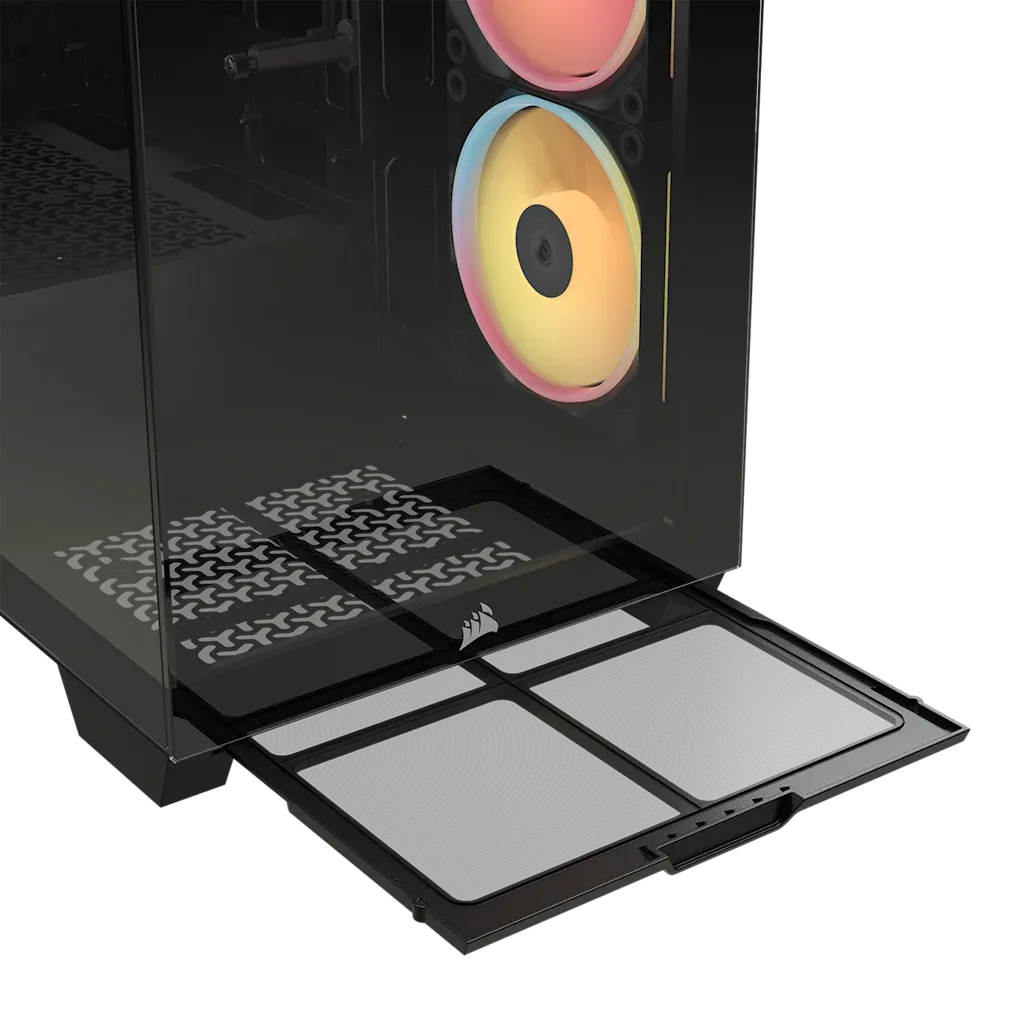

Dust Filtration
Yes

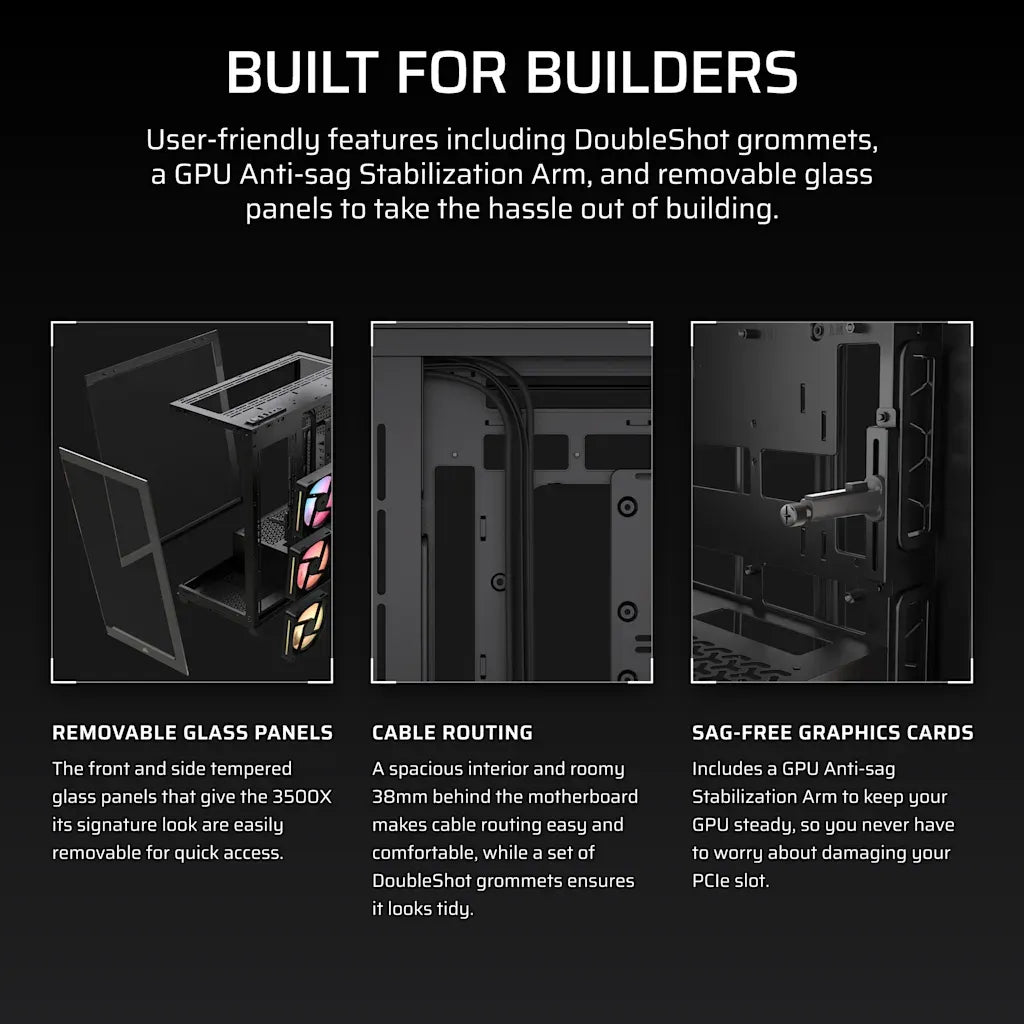

Cable Routing Space
1.8 in
Reverse Connector Motherboard Support
Yes
Vertical Mount Support
Supported (Riser Card Sold Separately)
Compatible Liquid Coolers
H60, H100, H115, H150, NAUTILUS, TITAN
Case Warranty
2 Year
Frequently asked questions
What size motherboards fit in the 3500X LX-R RGB?
It supports Mini-ITX, MicroATX, ATX, and E-ATX motherboards up to 305mm x 277mm, including reverse connection models.
How many fans come pre-installed?

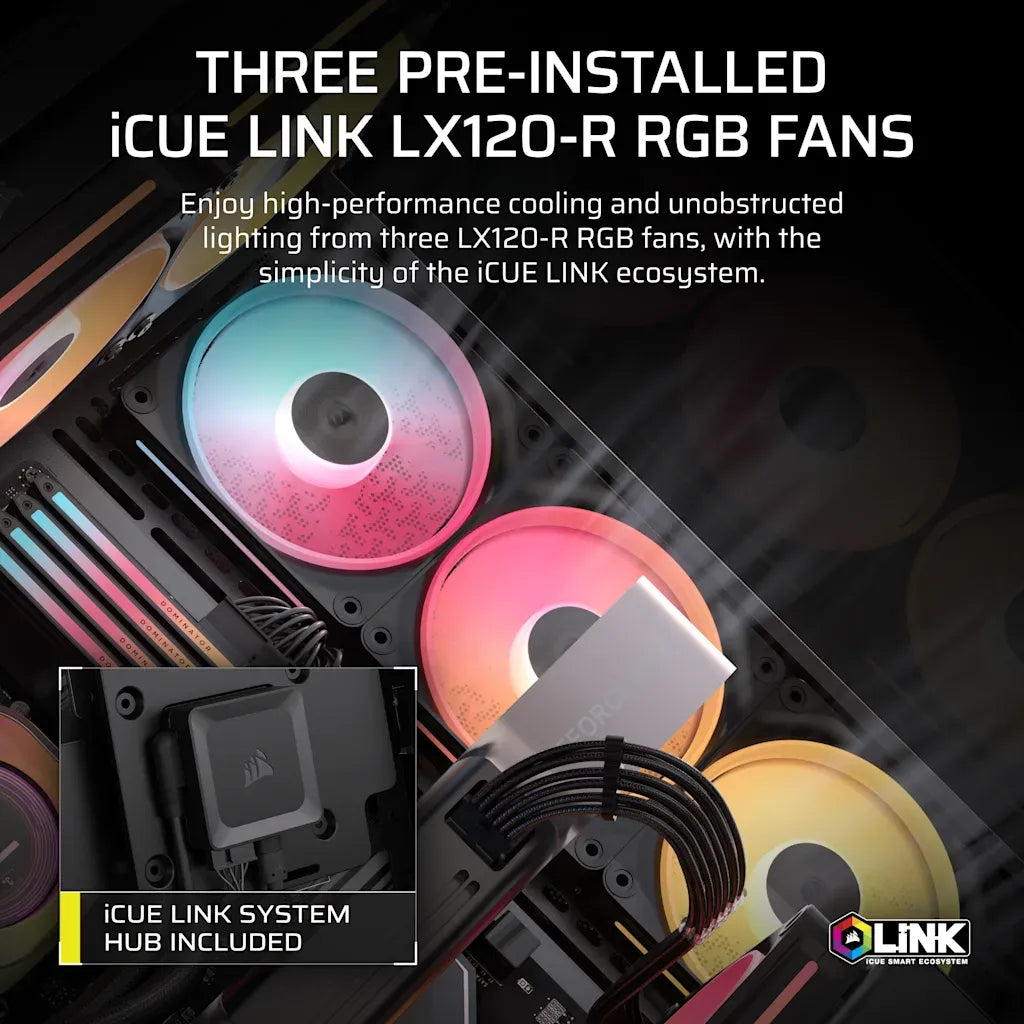

Three iCUE LINK LX120-R RGB fans are pre-installed, along with an iCUE LINK System Hub for lighting and speed control.
What is the maximum GPU length this case can accommodate?
The case supports graphics cards up to 425mm (16.7 inches) in length.
Can I mount a liquid cooling radiator in this case?
Yes, you can mount radiators up to 360mm on the top and side, and a single 120mm radiator at the rear.
What type of front panel connections does it have?
The front I/O includes one USB 3.2 Gen 2x2 Type-C, two USB 3.2 Gen 1 Type-A ports, and a combo audio in/out jack.
Does the case support vertical GPU mounting?
Vertical GPU mounting is supported, but you will need to purchase a compatible riser card separately.
Roll over image to zoom inClick on image to zoom
/
Corsair 3500X LX-R RGB iCUE LINK Mid-Tower PC Case - Black
(0)
$299.95
$349.95
Save 14%
✓ In Stock
🚚 Delivery in 48 business hours
