Large-capacity high-speed memory for demanding games and creator workloads.
OPCBLEU // PRODUCT
Product description
Description and product details Overview, features, specifications, compatibility and FAQ
BLACKWELL POWER. TUF-GRADE DURABILITY.

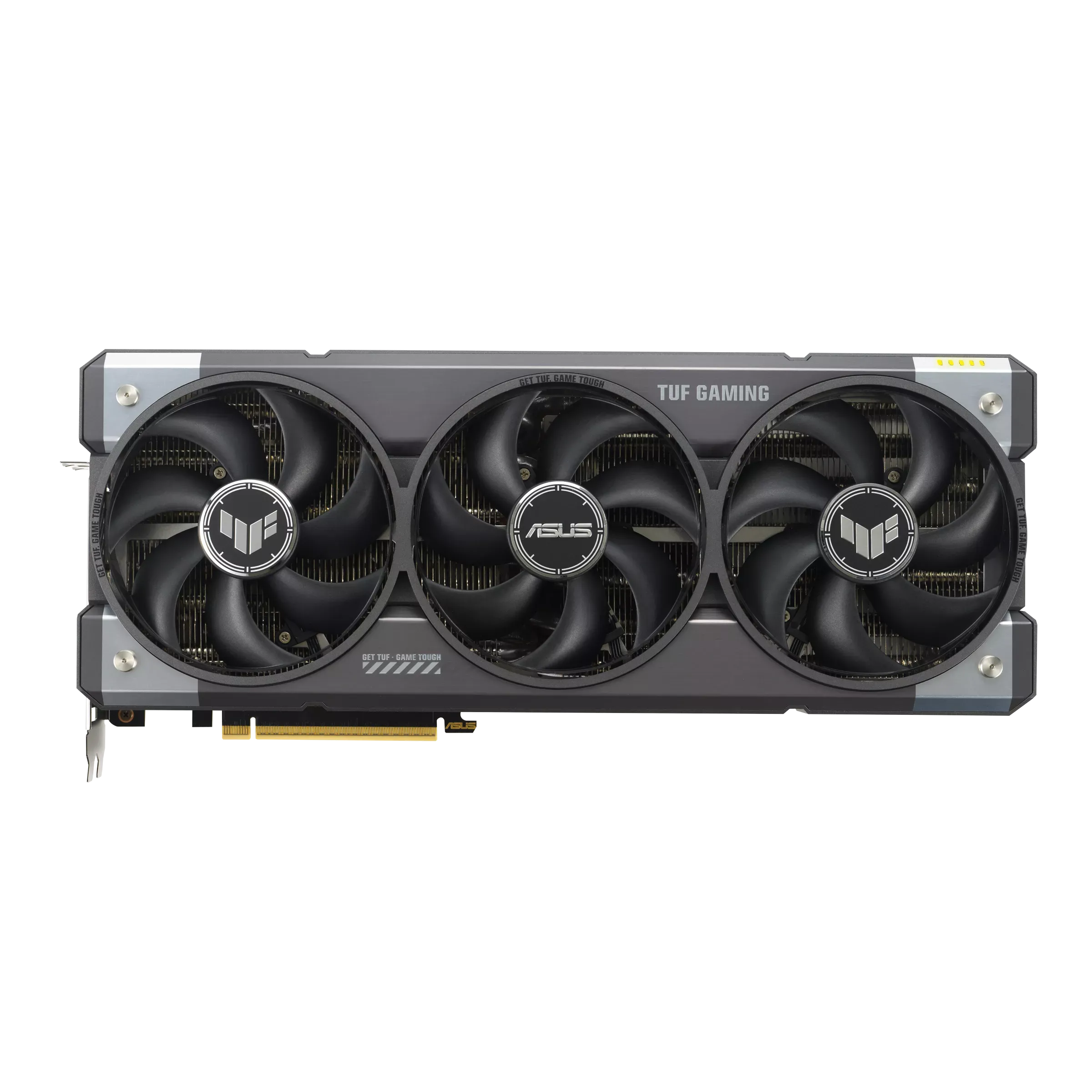

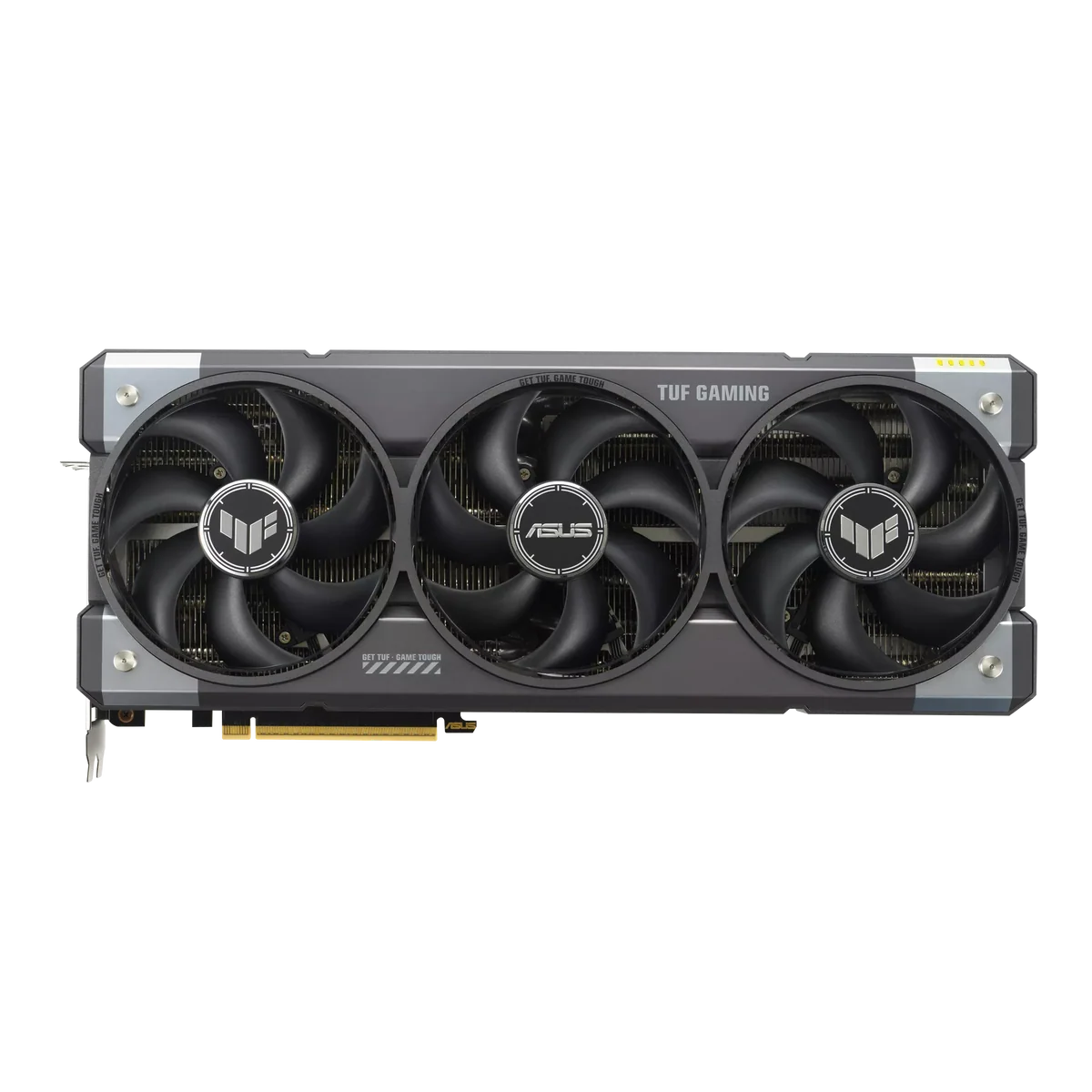

ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition
The ASUS TUF Gaming GeForce RTX 5090 OC Edition is engineered for extreme gaming, professional creation, AI workloads, and high-resolution visual experiences. Powered by the NVIDIA Blackwell architecture, it combines 21,760 CUDA cores, fifth-generation Tensor Cores, fourth-generation Ray Tracing Cores, and 32GB of high-speed GDDR7 memory.
Factory overclocked to reach up to 2,580 MHz in OC mode, the card features a massive 3.6-slot thermal design with a vapor chamber, 12 heatpipes, Axial-tech fans, a phase-change GPU thermal pad, and ASUS MaxContact technology. Military-grade TUF components, a protective PCB coating, and a reinforced metal exoskeleton help provide dependable long-term operation under demanding loads.
32GB GDDR7 512-bit memory interface
2,580 MHz Maximum OC mode clock
3,352 TOPS Rated AI performance
Massive parallel processing capability for graphics, rendering, and compute.
Factory-overclocked performance available through the OC profile.
Large thermal design with triple Axial-tech fans and a vapor chamber.
NVIDIA Blackwell Architecture
Next-Generation Gaming, Ray Tracing and AI
The GeForce RTX 5090 combines new-generation shader processing, AI acceleration, advanced ray tracing, and 32GB of GDDR7 memory for demanding gaming and professional applications.
DLSS 4 with Multi Frame Generation
NVIDIA DLSS 4 uses AI-powered rendering technologies to improve frame rates, image quality, and responsiveness in supported games.
Fourth-Generation RT Cores
Advanced ray tracing hardware supports realistic lighting, reflections, shadows, and path-traced rendering in compatible titles.
Fifth-Generation Tensor Cores
Dedicated AI hardware accelerates neural rendering, creative tools, productivity applications, and supported local AI workloads.
NVIDIA Reflex 2
Reflex technologies optimize the rendering pipeline to help reduce system latency and improve responsiveness in supported competitive games.
TUF Cooling Mastery
Engineered to Control Extreme GPU Heat
A 3.6-slot heatsink, vapor chamber, 12 heatpipes, phase-change thermal material, and triple Axial-tech fans work together to manage sustained high-performance workloads.
Vapor Chamber and 12 Heatpipes
The large vapor chamber and extensive heatpipe array rapidly move heat away from the GPU into the oversized heatsink.
Triple Axial-Tech Fans
Upgraded Axial-tech fans use dual-ball bearings and are designed to deliver increased airflow through the cooling assembly.
Phase-Change GPU Thermal Pad
The thermal material softens under heat to help fill microscopic gaps between the GPU and cooling module for improved heat transfer.
ASUS MaxContact
ASUS manufacturing technology increases the effective heat-spreader contact area to improve thermal transfer from the GPU.
Complete Graphics Platform
Key Features
A complete combination of extreme graphics performance, advanced cooling, reinforced construction, high-capacity memory, modern display outputs, and NVIDIA creator technologies.
NVIDIA GeForce RTX 5090 GPU
NVIDIA Blackwell Architecture
21,760 CUDA Cores
Fifth-Generation Tensor Cores
Fourth-Generation Ray Tracing Cores
3,352 AI TOPS
32GB GDDR7 Video Memory
512-Bit Memory Interface
28 Gbps Memory Speed
2,550 MHz Default Boost Clock
2,580 MHz OC Mode Clock
PCI Express 5.0 Interface
NVIDIA DLSS 4
NVIDIA Reflex 2
Full Ray Tracing and Neural Rendering
NVIDIA Studio Driver Support
Three Ninth-Generation NVIDIA Encoders
Two Sixth-Generation NVIDIA Decoders
AV1 Encode and Decode Support
Triple Axial-Tech Cooling Fans
Dual-Ball Fan Bearings
0dB Fan Technology
Vapor Chamber and 12 Heatpipes
ASUS MaxContact Heat Spreader
Phase-Change GPU Thermal Pad
Military-Grade TUF Chokes and MOSFETs
TUF 5K Black Metallic Capacitors
Protective PCB Conformal Coating
Diecast Shroud and Aluminum Backplate
Dual BIOS with Performance and Quiet Modes
ASUS Auto-Extreme Manufacturing
Aura Sync ARGB Lighting
Premium Durability
Built to Withstand Demanding Workloads
ASUS combines reinforced construction, protective materials, automated manufacturing, and military-grade power components to support long-term reliability.
Military-Grade TUF Components
TUF chokes, MOSFETs, and capacitors are selected to provide stable power delivery under sustained gaming and creator workloads.
Protective PCB Coating
A conformal coating helps protect the circuit board against short circuits caused by moisture, dust, and debris.
Vented Metal Exoskeleton
A diecast shroud and aluminum backplate help reduce PCB flex while allowing heated air to escape through large vents.
Auto-Extreme Technology
ASUS automated manufacturing completes soldering in a single pass to reduce thermal strain and improve production consistency.
Gaming and Creation
Perfect For
Designed for flagship gaming PCs, high-resolution content creation, 3D rendering, AI-assisted applications, streaming, and advanced professional workflows.
High-Resolution RTX Experiences
Blackwell architecture, DLSS 4, and advanced ray tracing support demanding 4K gaming and high-refresh-rate displays.
Video, 3D and Rendering Workflows
32GB of GDDR7 memory and NVIDIA Studio technologies support complex scenes, large assets, and accelerated creator applications.
Advanced Local Processing
Fifth-generation Tensor Cores and massive parallel compute resources accelerate supported AI and GPU-compute workloads.
Display Connectivity
Five Modern Video Outputs
Connect high-refresh-rate monitors, professional displays, televisions, and multi-monitor workstations through HDMI 2.1b and DisplayPort 2.1b.
Three DisplayPort 2.1b Outputs
DisplayPort 2.1b supports modern high-resolution and high-refresh-rate displays with compatible cables and monitors.
Two HDMI 2.1b Outputs
Dual HDMI connectivity adds flexibility for gaming monitors, televisions, capture setups, and home entertainment systems.
Up to Four Simultaneous Displays
The card supports a maximum of four active displays at the same time, depending on resolution and bandwidth.
HDCP 2.3 Support
HDCP compatibility supports protected digital media playback through compatible displays and software.
Installation Planning
Confirm Case, Power and Cable Clearance
This is a large, high-power graphics card. Check your chassis dimensions, expansion-slot clearance, power supply capacity, motherboard layout, and 16-pin cable routing before installation.
348mm Card Length
The case must provide at least 348mm of graphics card clearance, plus appropriate room for front radiators, fans, and cable routing.
3.6-Slot Thickness
Reserve sufficient adjacent expansion-slot space and maintain airflow around the card's 72mm-thick cooling assembly.
1,000W Recommended PSU
ASUS recommends a 1,000W power supply. The appropriate capacity can vary based on the processor, overclocking, and other system components.
Single 16-Pin Power Connector
Connect the power cable fully and route it without excessive bending or side pressure near the graphics card connector.
Detailed Hardware
Technical Specifications
Official model specifications for checking GPU performance, memory, clock speeds, outputs, physical dimensions, power requirements, included accessories, and software support.
| Brand | ASUS |
| Product Family | TUF Gaming |
| Official Model | TUF-RTX5090-O32G-GAMING |
| ASUS Part Number | 90YV0LY0-MVAA00 |
| Graphics Engine | NVIDIA GeForce RTX 5090 |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 21,760 |
| AI Performance | 3,352 TOPS |
| Tensor Cores | Fifth generation |
| Ray Tracing Cores | Fourth generation |
| Default Boost Clock | 2,550 MHz |
| OC Mode Clock | 2,580 MHz |
| Video Memory | 32GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |
| Bus Standard | PCI Express 5.0 |
| OpenGL Support | OpenGL 4.6 |
| DirectX Support | DirectX 12 Ultimate |
| Maximum Digital Resolution | 7,680 × 4,320 |
| HDMI Outputs | 2 × HDMI 2.1b |
| DisplayPort Outputs | 3 × DisplayPort 2.1b |
| Maximum Simultaneous Displays | 4 |
| HDCP Support | 2.3 |
| NVLink / SLI Support | No |
| Cooling Design | Triple Axial-tech fans, vapor chamber, and 12 heatpipes |
| Fan Bearings | Dual-ball bearings |
| 0dB Technology | Yes |
| BIOS Modes | Performance and Quiet |
| Lighting | Aura Sync ARGB |
| Dimensions | 348 × 146 × 72mm / 13.7 × 5.7 × 2.8 inches |
| Slot Requirement | 3.6 slots |
| Recommended Power Supply | 1,000W |
| Power Connector | 1 × 16-pin |
| Included Power Adapter | 1-to-4 adapter cable |
| Included Support | TUF graphics card holder |
| Bundled Accessories | Speedsetup manual, TUF Velcro strap, TUF magnet, TUF Gaming certificate, thank-you card, graphics card holder, and adapter cable |
| Supported ASUS Software | GPU Tweak III and MuseTree |
| Driver Support | NVIDIA Game Ready and Studio Drivers |
Shop With Confidence
Why Buy From OPCBleu?
OPCBleu combines carefully selected technology products with transparent service, Canadian delivery, and a customer-first buying experience.
Flagship Performance. TUF-Grade Engineering.
The ASUS TUF Gaming GeForce RTX 5090 OC Edition combines NVIDIA Blackwell performance, 32GB of GDDR7 memory, advanced ray tracing, powerful AI acceleration, extensive cooling, and reinforced TUF construction.
OPCBleu focuses on performance, reliability, and value so Canadian customers can shop for PC hardware with confidence.
🚚
Fast Canadian Shipping Quick order processing and delivery across Canada.
🛡️
30-Day Returns A clear return process for eligible purchases.
🔒
Secure Checkout Protected payment processing through trusted providers.
💙
Quebec-Based Store Technology enthusiasts serving customers across Canada.
Helpful Answers
FAQs
Answers to common questions about memory, clock speed, cooling, power requirements, case clearance, display outputs, DLSS, ray tracing, and included accessories.
How much video memory does the ASUS TUF RTX 5090 OC Edition have?
It includes 32GB of GDDR7 memory connected through a 512-bit interface.
What are the card's clock speeds?
ASUS lists a 2,550 MHz default boost clock and up to 2,580 MHz in OC mode.
How many CUDA cores does it have?
The GeForce RTX 5090 includes 21,760 CUDA cores.
Does it support NVIDIA DLSS 4?
Yes. The RTX 5090 supports NVIDIA DLSS 4, including Multi Frame Generation in compatible games and applications.
What cooling system does the card use?
It uses three Axial-tech fans, a vapor chamber, 12 heatpipes, ASUS MaxContact technology, and a phase-change GPU thermal pad.
What power supply does ASUS recommend?
ASUS recommends a 1,000W power supply. Actual requirements depend on the processor, system configuration, and overclocking.
Which power connector is required?
The card uses one 16-pin power connector and includes a 1-to-4 adapter cable.
Will it fit in a standard PC case?
The case must support a card measuring 348 × 146 × 72mm and occupying 3.6 expansion slots. Additional room should be reserved for airflow and the power cable.
How many displays can be connected?
The card includes three DisplayPort 2.1b outputs and two HDMI 2.1b outputs, with support for up to four simultaneous displays.
Does it include a support bracket?
Yes. ASUS includes a TUF graphics card holder to help support the large card inside the system.
What does the Dual BIOS switch do?
The Dual BIOS switch allows selection between Performance and Quiet operating profiles.
Is the RGB lighting customizable?
Yes. The card includes Aura Sync-compatible ARGB lighting on the shroud.
