Product description
Description and product details Overview, features, specifications, compatibility and FAQ
ZEN 4. 16 CORES. 128MB L3 CACHE. AMD 3D V-CACHE.

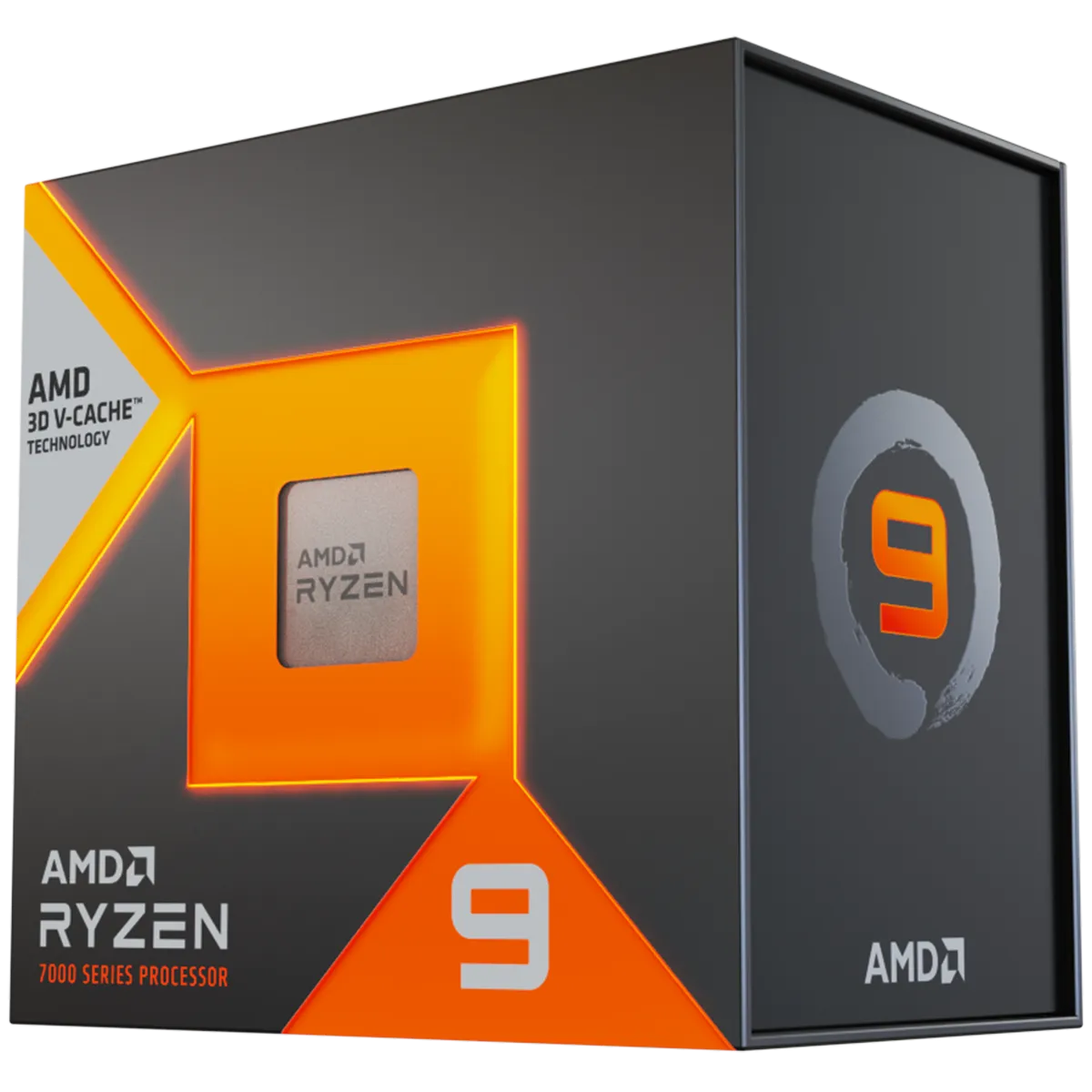

AMD Ryzen 9 7950X3D 16-Core 32-Thread AM5 Desktop Processor
The AMD Ryzen 9 7950X3D combines high-end gaming performance with substantial multi-threaded capability for content creation, software development, simulation, streaming, and demanding desktop workloads. Its Zen 4 architecture provides 16 cores and 32 threads with a maximum boost clock of up to 5.7GHz.
AMD 3D V-Cache technology expands the processor’s L3 cache to 128MB, helping reduce memory-access latency in cache-sensitive games and applications. The AM5 platform supports DDR5 memory, PCIe 5.0 connectivity, AMD EXPO profiles, integrated Radeon graphics, and current AMD desktop chipsets.
Important: This boxed WOF processor does not include a CPU cooler. AMD recommends a liquid cooling solution for optimal performance.
16 Cores 32 processing threads
5.7GHz Maximum boost clock
128MB AMD 3D V-Cache-enhanced L3
Simultaneous multithreading helps accelerate demanding multi-threaded applications.
AMD 3D V-Cache technology provides a large low-latency cache pool for supported workloads.
A high-performance power profile that requires capable cooling and motherboard power delivery.
High-End Gaming Performance
AMD 3D V-Cache Technology for Cache-Sensitive Games
The Ryzen 9 7950X3D expands total L3 cache to 128MB, helping reduce trips to system memory in workloads that benefit from a larger on-chip cache.
Large 128MB L3 Cache
Additional cache can improve frame rates and frame-time consistency in compatible games and simulation workloads.
Up to 5.7GHz Boost
High peak frequency supports responsive foreground performance and lightly threaded applications.
Zen 4 Architecture
Modern x86-64 cores support AVX2, AVX-512, AES, virtualization, and other current instruction extensions.
Game-Aware Workload Scheduling
Current BIOS, AMD chipset software, and Windows updates help the platform direct compatible workloads appropriately.
Creator and Workstation Capability
Sixteen Cores for Rendering, Encoding, and Heavy Multitasking
The processor pairs gaming-focused cache technology with a full 16-core, 32-thread configuration for demanding creation and productivity workloads.
Video Production
High thread count supports editing, transcoding, rendering, effects processing, and background exports.
3D Rendering
Sixteen CPU cores provide substantial throughput for compatible rendering, simulation, and content-creation software.
Development Workloads
Compilation, containers, local services, virtual machines, and multitasking benefit from the high core and thread count.
Gaming and Streaming
Run a game alongside capture, communication, browser, monitoring, and streaming applications.
Modern AMD AM5 Platform
DDR5 Memory and PCI Express 5.0 Connectivity
The AM5 platform supports modern memory, graphics, storage, and peripheral connectivity through compatible motherboards and chipsets.
AM5 Socket
Requires a compatible Socket AM5 motherboard with BIOS support for the Ryzen 9 7950X3D.
PCI Express 5.0
The processor provides 28 native PCIe lanes, with 24 usable lanes for compatible platform devices.
NVMe RAID Support
AMD lists boot support plus RAID 0, RAID 1, and RAID 10 for compatible NVMe configurations.
Current AM5 Chipsets
Official support includes compatible A620, B650, B650E, X670, X670E, B840, B850, X870, and X870E motherboards.
DDR5 Memory Controller
Dual-Channel DDR5 with AMD EXPO Support
The integrated memory controller supports DDR5 UDIMMs, two memory channels, ECC functionality when supported by the motherboard, and AMD EXPO memory profiles.
Up to 128GB Official Maximum
AMD lists up to 128GB of system memory for this processor under its official specification.
DDR5-5200 with Two DIMMs
Official maximum speed is DDR5-5200 for supported two-module single-rank or dual-rank configurations.
DDR5-3600 with Four DIMMs
AMD lists a lower official speed when four single-rank or dual-rank modules are installed.
AMD EXPO Profiles
Compatible memory kits and motherboards can apply validated performance profiles through the BIOS.
Integrated Display Capability
AMD Radeon Graphics for Essential Video Output
The processor includes a small integrated Radeon graphics engine that can provide basic display output and troubleshooting capability when the motherboard includes compatible video connections.
Two Graphics Cores
The integrated Radeon graphics engine contains two graphics cores operating at up to 2,200MHz.
Useful for Diagnostics
Basic integrated graphics can simplify initial setup and troubleshooting without a discrete graphics card.
Discrete GPU Recommended for Gaming
The integrated graphics are not intended to replace a high-performance graphics card for modern gaming.
Motherboard Outputs Required
Actual video connections depend on the selected motherboard and its rear-panel display outputs.
Precision Boost and Tuning
AMD Ryzen Master, PBO, and Curve Optimizer Support
The processor supports AMD tuning and monitoring technologies, but performance settings must be applied carefully with adequate cooling and motherboard power delivery.
Precision Boost 2
Automatically adjusts operating frequency according to temperature, current, power, workload, and platform conditions.
Precision Boost Overdrive
Compatible motherboards can expose additional platform limits, subject to cooling, power, BIOS, and warranty considerations.
Curve Optimizer
Voltage-offset tuning can improve efficiency or boost behaviour when validated for stability.
AMD Ryzen Master
AMD’s Windows utility provides supported monitoring, configuration, and tuning functions.
Cooling and Thermal Planning
No Cooler Included — Liquid Cooling Recommended
The boxed WOF package does not include a heatsink or fan. AMD recommends liquid cooling for optimal performance, and the processor has a maximum operating temperature of 89°C.
Capable AM5 Cooler Required
Select a cooling solution rated for the processor, case airflow, ambient temperature, and expected sustained workloads.
89°C Maximum Operating Temperature
Boost frequency adjusts dynamically as thermal, electrical, and workload conditions change.
Thermal Compound Required
Use the compound supplied with the cooler or a suitable separately purchased thermal interface material.
Plan Complete Case Airflow
Radiator placement, intake and exhaust balance, GPU heat, fan curves, and room temperature affect CPU thermals.
Complete Enthusiast Processor Platform
Key Features
High core count, AMD 3D V-Cache technology, Zen 4 architecture, DDR5 memory, PCIe 5.0 connectivity, integrated graphics, advanced tuning support, and the AM5 platform.
AMD Ryzen 7000 Series Desktop Processor
Zen 4 Processor Architecture
AMD 3D V-Cache Technology
16 CPU Cores
32 Processing Threads with SMT
4.2GHz Base Clock
Up to 5.7GHz Maximum Boost Clock
1MB L1 Cache
16MB L2 Cache
128MB L3 Cache
145MB Combined L1, L2, and L3 Cache
120W Default TDP
89°C Maximum Operating Temperature
TSMC 5nm CPU Core Dies
TSMC 6nm I/O Die
Socket AM5 Platform
Dual-Channel DDR5 Memory Controller
Up to 128GB Official Memory Capacity
Up to DDR5-5200 with Two DIMMs
DDR5-3600 Official Speed with Four DIMMs
ECC Support with Compatible Motherboard
AMD EXPO Memory Profile Support
PCI Express 5.0 Support
28 Native / 24 Usable PCIe Lanes
Integrated AMD Radeon Graphics
Two Graphics Cores at 2,200MHz
Precision Boost 2 Technology
Precision Boost Overdrive Support
Curve Optimizer Voltage Offset Support
AMD Ryzen Master Support
No CPU Cooler Included
Liquid Cooling Recommended by AMD
Three-Year Limited AMD PIB Warranty
Build Compatibility
Confirm the Motherboard, BIOS, Memory, and Cooling
A compatible AM5 socket alone does not guarantee complete support. Confirm the motherboard CPU support list, required BIOS version, memory QVL, cooler clearance, and power-delivery capability.
Check the CPU Support List
Use the exact motherboard model and revision to verify Ryzen 9 7950X3D support.
Update the BIOS when Required
Some boards require a newer BIOS before the processor can boot or operate correctly.
Choose a Validated DDR5 Kit
Memory speed, rank, module count, BIOS, and processor memory-controller quality affect stability.
Install Adequate Cooling
Use a properly mounted AM5-compatible cooler with suitable thermal compound and strong case airflow.
Official AMD Software
Drivers, Chipset Software, and Ryzen Master
Current AMD chipset drivers, graphics drivers, motherboard firmware, and operating-system updates help provide correct platform behaviour and performance.
AMD Drivers and Support
AMD Chipset Software
Install the current package for the exact motherboard chipset and supported operating system.
AMD Ryzen Master
Use AMD’s official utility for supported monitoring, tuning, and profile management in Windows.
Three-Year Boxed Warranty
AMD’s Processor-in-a-Box warranty applies to eligible authentic retail-boxed processors, subject to its current terms.
Designed for Enthusiast Systems
Perfect For
Ideal for high-end gaming PCs, streaming systems, creator workstations, development environments, simulation workloads, and users who need both large cache and substantial multi-threaded performance.
Large Cache and High Boost Frequency
AMD 3D V-Cache technology targets games and applications that benefit from reduced memory-access latency.
Sixteen Cores for Heavy Workloads
Handle rendering, encoding, editing, exports, and multitasking with 32 processing threads.
DDR5 and PCIe 5.0 Platform
Build around modern memory, graphics, storage, connectivity, and current AMD chipsets.
Detailed Processor Hardware
Technical Specifications
Verified specifications for architecture, core count, clocks, cache, power, process technology, socket, memory, PCIe connectivity, integrated graphics, supported technologies, cooling, operating systems, and warranty.
| Brand | AMD |
| Product Name | AMD Ryzen 9 7950X3D |
| Boxed Product ID / OPN | 100-100000908WOF |
| Tray Product ID | 100-000000908 |
| Processor Family | AMD Ryzen |
| Processor Series | Ryzen 7000 Series |
| Market Segment | Enthusiast desktop |
| Former Codename | Raphael AM5 |
| Architecture | Zen 4 |
| CPU Cores | 16 |
| Processing Threads | 32 |
| Simultaneous Multithreading | Supported |
| Base Clock | 4.2GHz |
| Maximum Boost Clock | Up to 5.7GHz |
| CPU Boost Technology | Precision Boost 2 |
| L1 Cache | 1,024KB / 1MB |
| L2 Cache | 16MB |
| L3 Cache | 128MB |
| Combined Cache | 145MB across L1, L2, and L3 |
| Cache Technology | AMD 3D V-Cache technology |
| Default TDP | 120W |
| Maximum Operating Temperature | 89°C |
| CPU Core Process | TSMC 5nm FinFET |
| I/O Die Process | TSMC 6nm FinFET |
| CPU Compute Die Size | 71mm² per CCD |
| I/O Die Size | 122mm² |
| Package Die Count | 3 |
| CPU Socket | AM5 |
| Officially Listed Chipsets | A620, B650, B650E, X670, X670E, B840, B850, X870, X870E |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes | 28 total / 24 usable |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10 |
| System Memory Type | DDR5 UDIMM |
| Memory Channels | 2 |
| Official Maximum Memory | 128GB |
| Official Memory Speed — 2 × Single-Rank | DDR5-5200 |
| Official Memory Speed — 2 × Dual-Rank | DDR5-5200 |
| Official Memory Speed — 4 × Single-Rank | DDR5-3600 |
| Official Memory Speed — 4 × Dual-Rank | DDR5-3600 |
| ECC Support | Supported when provided by the motherboard |
| AMD EXPO Support | Yes |
| Integrated Graphics | AMD Radeon Graphics |
| Integrated Graphics Core Count | 2 |
| Integrated Graphics Frequency | 2,200MHz |
| USB Type-C DisplayPort Alternate Mode | Supported through compatible platform implementation |
| Native USB 3.2 Gen 2 | 4 ports at up to 10Gbps through compatible platform implementation |
| Native USB 2.0 | 1 port through compatible platform implementation |
| Precision Boost Overdrive | Supported |
| Curve Optimizer | Supported |
| AMD Ryzen Master | Supported |
| Instruction Set | x86-64 |
| Selected Extensions | AES, AMD-V, AVX, AVX2, AVX-512, FMA3, SHA, SSE family |
| Operating-System Support | Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit |
| Thermal Solution in Box | Not included |
| AMD Cooling Recommendation | Liquid cooler recommended for optimal performance |
| Launch Date | February 28, 2023 |
| Retail Box Warranty | 3-year limited AMD Processor-in-a-Box warranty for eligible purchases, subject to AMD’s terms |
Shop With Confidence
Why Buy From OPCBleu?
OPCBleu combines carefully selected technology products with transparent service, Canadian delivery, and a customer-first buying experience.
Elite Gaming Cache with Sixteen-Core Creator Performance.
The AMD Ryzen 9 7950X3D combines Zen 4 architecture, 16 cores, 32 threads, 128MB of L3 cache, AM5 connectivity, DDR5 memory, PCIe 5.0, and integrated Radeon graphics.
OPCBleu focuses on performance, reliability, and value so Canadian customers can shop for PC hardware with confidence.
🚚
Fast Canadian Shipping Quick order processing and delivery across Canada.
🛡️
30-Day Returns A clear return process for eligible purchases.
🔒
Secure Checkout Protected payment processing through trusted providers.
💙
Quebec-Based Store Technology enthusiasts serving customers across Canada.
Helpful Answers
FAQs
Answers to common questions about the exact product ID, AM5 compatibility, gaming cache, core count, clocks, cooling, memory, integrated graphics, BIOS requirements, tuning, and warranty.
What is the exact boxed product ID?
The AMD retail boxed WOF product ID is 100-100000908WOF. The tray product ID is 100-000000908.
How many cores and threads does it have?
The Ryzen 9 7950X3D has 16 Zen 4 CPU cores and 32 processing threads with simultaneous multithreading.
What are the base and boost clocks?
The base clock is 4.2GHz, and the maximum boost clock is up to 5.7GHz. Actual frequency varies with workload, temperature, power, current, BIOS, cooling, and silicon characteristics.
How much cache does it include?
AMD lists 1MB of L1 cache, 16MB of L2 cache, and 128MB of L3 cache, for 145MB combined.
Which socket does it use?
It uses Socket AM5. Confirm support for the exact motherboard model and BIOS version before installation.
Does the processor include a cooler?
No. The boxed WOF package does not include a thermal solution. AMD recommends a liquid cooler for optimal performance.
What is the maximum operating temperature?
AMD lists a maximum operating temperature of 89°C. The processor automatically adjusts boost behaviour according to thermal and electrical limits.
Which memory does it support?
The processor supports dual-channel DDR5 UDIMMs. AMD lists DDR5-5200 with two modules and DDR5-3600 with four modules under its official configurations.
Does it support AMD EXPO memory profiles?
Yes. AMD EXPO is supported with compatible DDR5 memory, motherboard firmware, and platform settings.
Does it have integrated graphics?
Yes. It includes AMD Radeon Graphics with two graphics cores at 2,200MHz. A compatible motherboard video output is required, and a discrete GPU is recommended for demanding games.
Does it support PCIe 5.0?
Yes. AMD lists PCIe 5.0 with 28 native lanes, of which 24 are usable for compatible platform connections.
Does it support Precision Boost Overdrive and Curve Optimizer?
Yes. Both are supported on compatible platforms. Any tuning should be tested carefully for temperature, stability, power, and warranty implications.
How long is the AMD warranty?
An eligible authentic retail-boxed Processor-in-a-Box purchase carries AMD’s three-year limited warranty, subject to the current warranty terms and exclusions.
