Eight high-performance Zen 5 cores provide a powerful foundation for modern gaming.
OPCBLEU // PRODUCT
Product description
Description and product details Overview, features, specifications, compatibility and FAQ
ZEN 5. 8 CORES. 16 THREADS. 2ND GEN 3D V-CACHE.

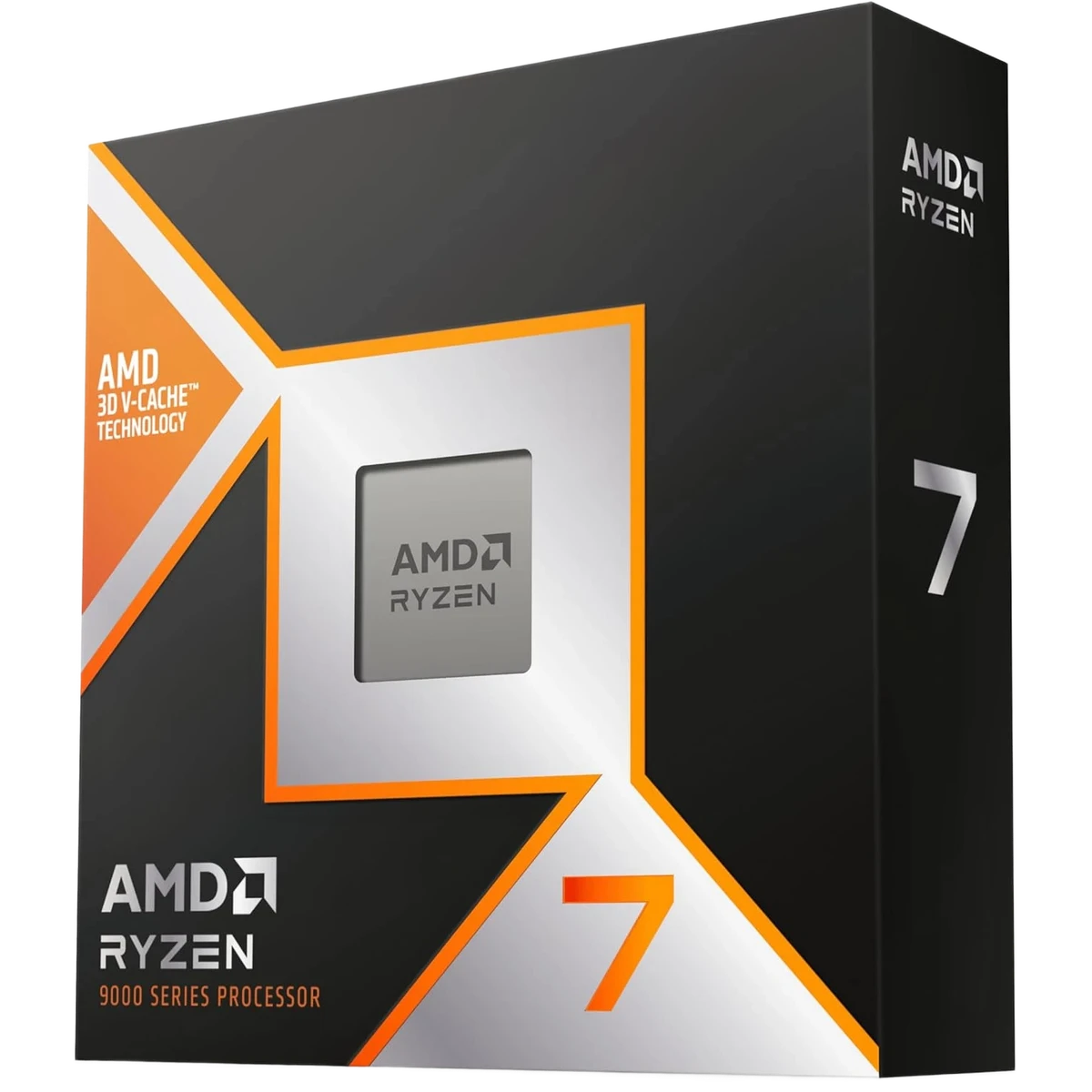

AMD Ryzen 7 9800X3D 8-Core 16-Thread AM5 Gaming Processor
The AMD Ryzen 7 9800X3D combines 8 Zen 5 cores and 16 threads with AMD's second-generation 3D V-Cache technology for exceptional gaming performance.
With a 4.7 GHz base clock, boost frequency up to 5.2 GHz, 96MB L3 cache, DDR5-5600 support, PCIe 5.0 connectivity, and an unlocked multiplier, it is built for premium AM5 gaming systems.
ZEN 54nm CPU cores
96MBL3 cache
5.2GHz max boost
Sixteen threads provide substantial resources for gaming, streaming, and multitasking.
Second-generation AMD 3D V-Cache provides a massive cache pool for latency-sensitive games.
Precision Boost 2 dynamically increases frequency when operating conditions allow.
Next-Generation Gaming Cache
2nd Gen AMD 3D V-Cache
The Ryzen 7 9800X3D uses AMD's second-generation 3D V-Cache technology to combine high clock speeds with 96MB of L3 cache.
Gaming-Focused Design
Large on-chip cache helps reduce memory latency in cache-sensitive gaming workloads.
96MB L3 Cache
Massive L3 capacity keeps more frequently requested game data close to the CPU cores.
104MB L2 + L3
8MB of L2 plus 96MB of L3 provides substantial total cache capacity.
2nd Gen X3D
AMD's newer X3D design enables improved thermal characteristics and higher clock capability.
Zen 5 Desktop Performance
4.7 GHz Base — Up to 5.2 GHz Boost
Modern Zen 5 architecture delivers fast per-core performance alongside eight cores and sixteen processing threads.
8 CPU Cores
Eight physical cores provide substantial resources for high-performance gaming and applications.
16 Threads
Simultaneous multithreading expands processing capacity for concurrent workloads.
Up to 5.2 GHz
High boost frequency provides responsive performance in demanding games.
Unlocked
The processor is multiplier-unlocked and supports AMD Ryzen Master and Precision Boost Overdrive.
Modern AM5 Platform
DDR5 + PCI Express 5.0
Socket AM5 provides a current desktop foundation with DDR5 memory, PCIe 5.0, and broad AMD chipset compatibility.
Socket AM5
Designed for compatible AMD AM5 motherboards.
DDR5-5600
AMD specifies up to DDR5-5600 with supported two-DIMM configurations.
PCIe 5.0
High-bandwidth PCI Express 5.0 connectivity supports modern expansion and storage.
AM5 Ecosystem
Compatible with supported A620, B650, B650E, X670, X670E, B840, B850, X870, and X870E platforms.
Memory & Expansion
Up to 256GB DDR5 + 28 PCIe Lanes
The platform provides dual-channel DDR5 memory and extensive native PCIe connectivity for high-performance desktop builds.
Up to 256GB
AMD specifies maximum system memory capacity up to 256GB.
Dual Channel
Two memory channels provide modern DDR5 bandwidth.
28 Native PCIe Lanes
The CPU provides 28 native PCIe lanes, with 24 usable.
NVMe Support
Native platform support includes NVMe boot and supported RAID configurations.
Basic Display Capability
Integrated AMD Radeon Graphics
Integrated Radeon graphics provide convenient basic display output and troubleshooting capability.
Radeon Graphics
Built-in graphics can provide display output without a discrete graphics card.
2 Graphics Cores
AMD specifies two integrated graphics cores.
2200 MHz
The integrated graphics frequency is specified at 2200 MHz.
Gaming GPU Recommended
Pair the processor with a capable discrete GPU for the premium gaming workloads it targets.
Thermal Planning
120W TDP — Cooler Not Included
The boxed processor does not include a thermal solution. AMD recommends liquid cooling for optimal performance.
120W TDP
AMD officially specifies a 120-watt default TDP.
No Cooler Included
A compatible CPU cooling solution must be purchased separately.
Liquid Cooling Recommended
AMD recommends a liquid cooler for optimal performance.
95°C Tjmax
The official maximum operating temperature is 95°C.
Premium AM5 Gaming CPU
Key Features
Zen 5, second-generation 3D V-Cache, high clocks, DDR5, PCIe 5.0, and unlocked tuning in one gaming-focused processor.
✓AMD Ryzen 7 9800X3D boxed desktop processor
✓Zen 5 architecture
✓2nd Gen AMD 3D V-Cache technology
✓8 CPU cores / 16 threads
✓4.7 GHz base / up to 5.2 GHz boost
✓8MB L2 + 96MB L3 cache
✓104MB combined L2 + L3 cache
✓Socket AM5
✓Up to DDR5-5600 with supported 2-DIMM configurations
✓Up to 256GB system memory
✓PCI Express 5.0
✓28 native PCIe lanes / 24 usable
✓Integrated AMD Radeon graphics
✓Unlocked for overclocking
✓AMD EXPO and Precision Boost Overdrive support
✓120W default TDP
✓CPU cooler not included
High-End Gaming Platform
Perfect For
A gaming-focused processor for enthusiasts building a premium AM5 system.
2nd Gen 3D V-Cache
Massive cache capacity is engineered for exceptional performance in cache-sensitive games.
Zen 5 Performance
Fast per-core processing complements powerful modern discrete graphics cards.
Drop-In Platform
Existing compatible AM5 systems may support the processor with the appropriate motherboard BIOS.
Unlocked Tuning
Support for AMD tuning technologies provides additional configuration flexibility.
Inside the Box
Package Contents
The WOF boxed version contains the Ryzen processor without a bundled CPU cooler.
✓AMD Ryzen 7 9800X3D Desktop Processor
!CPU cooler sold separately
Detailed Model Information
Technical Specifications
Specifications aligned with AMD's official Ryzen 7 9800X3D boxed processor information.
| Brand | AMD |
| Processor | AMD Ryzen 7 9800X3D |
| MPN / Boxed Product ID | 100-100001084WOF |
| Series | Ryzen 9000 Series |
| Codename | Granite Ridge AM5 |
| Architecture | Zen 5 |
| CPU Process | TSMC 4nm FinFET |
| Socket | AM5 |
| Cores / Threads | 8 / 16 |
| Base Clock | 4.7 GHz |
| Maximum Boost Clock | Up to 5.2 GHz |
| L1 / L2 / L3 Cache | 640KB / 8MB / 96MB |
| Default TDP | 120W |
| Maximum Operating Temperature | 95°C |
| Unlocked | Yes |
| Memory Type | DDR5 UDIMM |
| Memory Channels | 2 |
| Maximum Memory | 256GB |
| Maximum Memory Speed | DDR5-5600 (supported 2-DIMM configurations) |
| PCI Express | PCIe 5.0 |
| Native PCIe Lanes | 28 total / 24 usable |
| Integrated Graphics | AMD Radeon Graphics |
| Graphics Cores / Frequency | 2 / 2200 MHz |
| Thermal Solution | Not Included |
| Recommended Cooler | Liquid cooler recommended by AMD for optimal performance |
| Launch Date | November 7, 2024 |
Shop With Confidence
Why Buy From OPCBleu?
OPCBleu combines carefully selected PC hardware with transparent product information, Canadian delivery, and a customer-first shopping experience.
Next-Generation X3D Gaming Performance on AM5.
The Ryzen 7 9800X3D combines Zen 5 processing, second-generation 3D V-Cache, 96MB L3 cache, DDR5, PCIe 5.0, and unlocked tuning.
🚚
Fast Canadian ShippingQuick order processing and delivery across Canada.
🛡️
30-Day ReturnsA clear return process for eligible purchases.
🔒
Secure CheckoutProtected payment processing through trusted providers.
💙
Quebec-Based StoreTechnology enthusiasts serving customers across Canada.
Helpful Answers
FAQs
How many cores and threads does the Ryzen 7 9800X3D have?
It has 8 Zen 5 CPU cores and 16 processing threads.
What are its clock speeds?
AMD specifies a 4.7 GHz base clock and maximum boost clock up to 5.2 GHz.
How much cache does it have?
It has 8MB L2 and 96MB L3 cache, plus 640KB L1 cache.
Which socket does it use?
It uses Socket AM5.
Does it support DDR5 and PCIe 5.0?
Yes. AMD specifies DDR5 memory and PCI Express 5.0 support.
Is it unlocked?
Yes. AMD lists the Ryzen 7 9800X3D as unlocked for overclocking.
Does it include integrated graphics?
Yes. It includes AMD Radeon graphics with two graphics cores at 2200 MHz.
Is a CPU cooler included?
No. The boxed WOF processor does not include a thermal solution. AMD recommends liquid cooling for optimal performance.
What is the official TDP?
AMD specifies a 120W default TDP.
